HOWO
CLW
CLW5180SS3
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Group HOWO 6x4 Sewage Suction Truck |
| Driving Type | 6x4 |
| Color | White or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 11430 |
| Curb Weight(kg) | 13440 |
| Dimensions | |
| Wheelbase(mm) | 4300+1350 |
| Front/Rear Overhang(mm) | 1430/2290 |
| Approach/Departure Angle | 19/15 |
| Overall Dimension(mm) | 9370*2500*3450 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP10.380E32 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 280(380hp) |
| Drive Line | |
| Transmission | 10 forwards,2 reverse gear,10JSD180 |
| Axle | |
| Axle | 7000/18000 |
| Tire Specification | |
| Tire Specification | 12.00R20 16PR; 10+1 spare tire |
| Front Wheel Track(mm) | 2015 |
| Rear Wheel Track(mm) | 1850/1850 |
| Number of Leaf Springs | 11/12 |
| Upper Body | |
| Van Box Size(mm) | 6450*1950 |
| Box Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Sewage Tank Volume | 14.28m³ |
| SewageTank Material | 5mm thickness;Q235A |
| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
| Other Key Parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
Product Description：

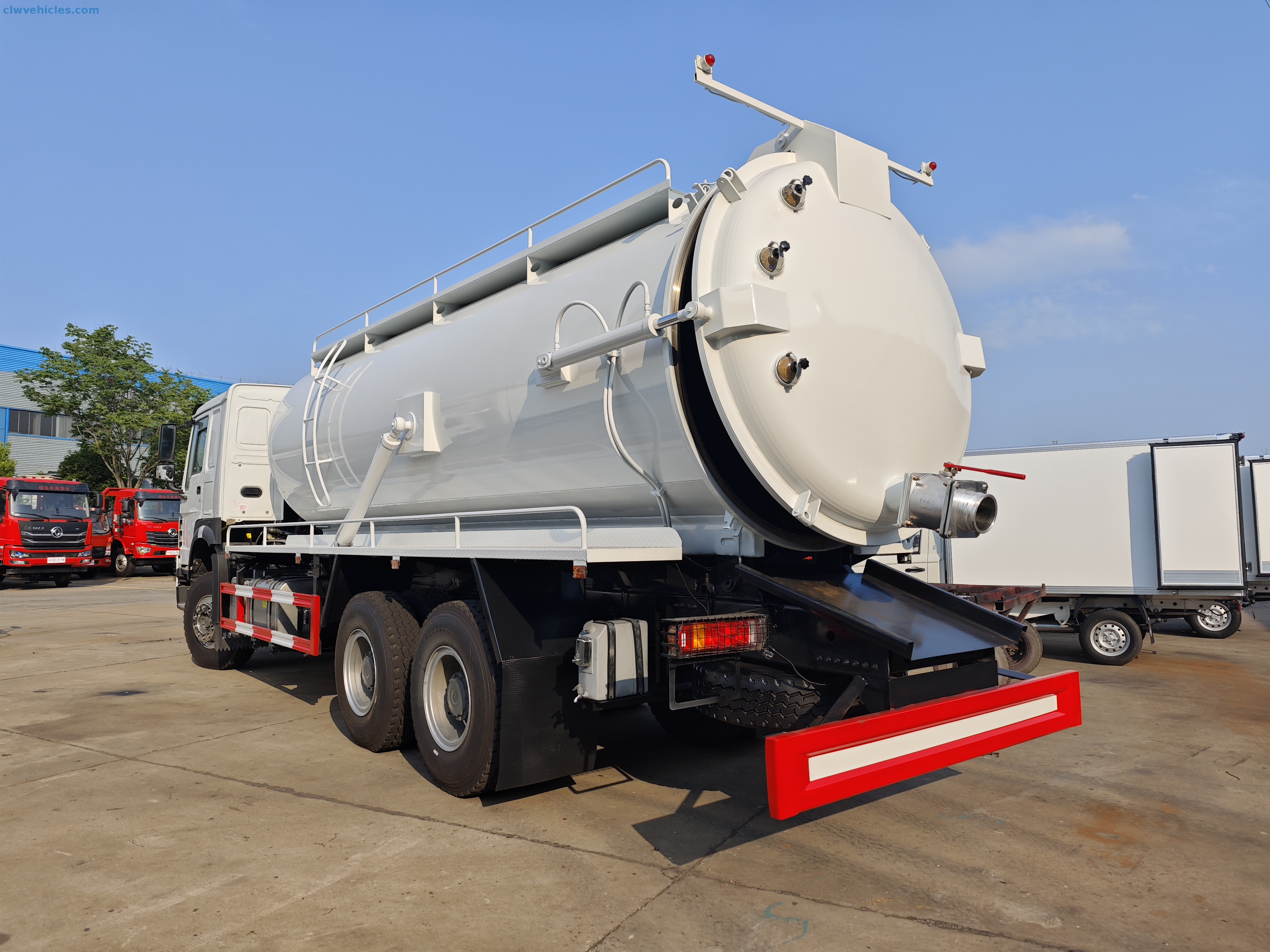

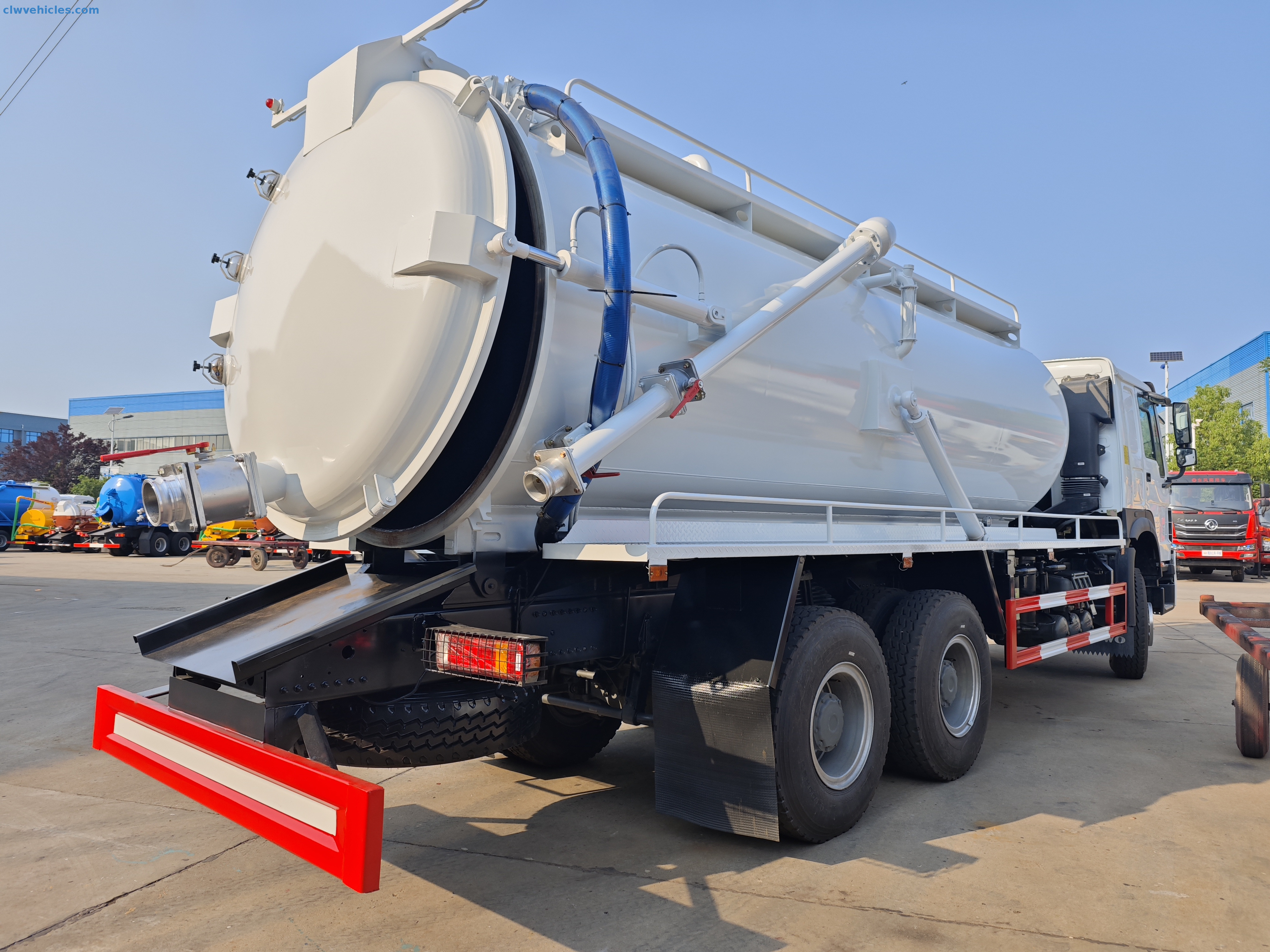

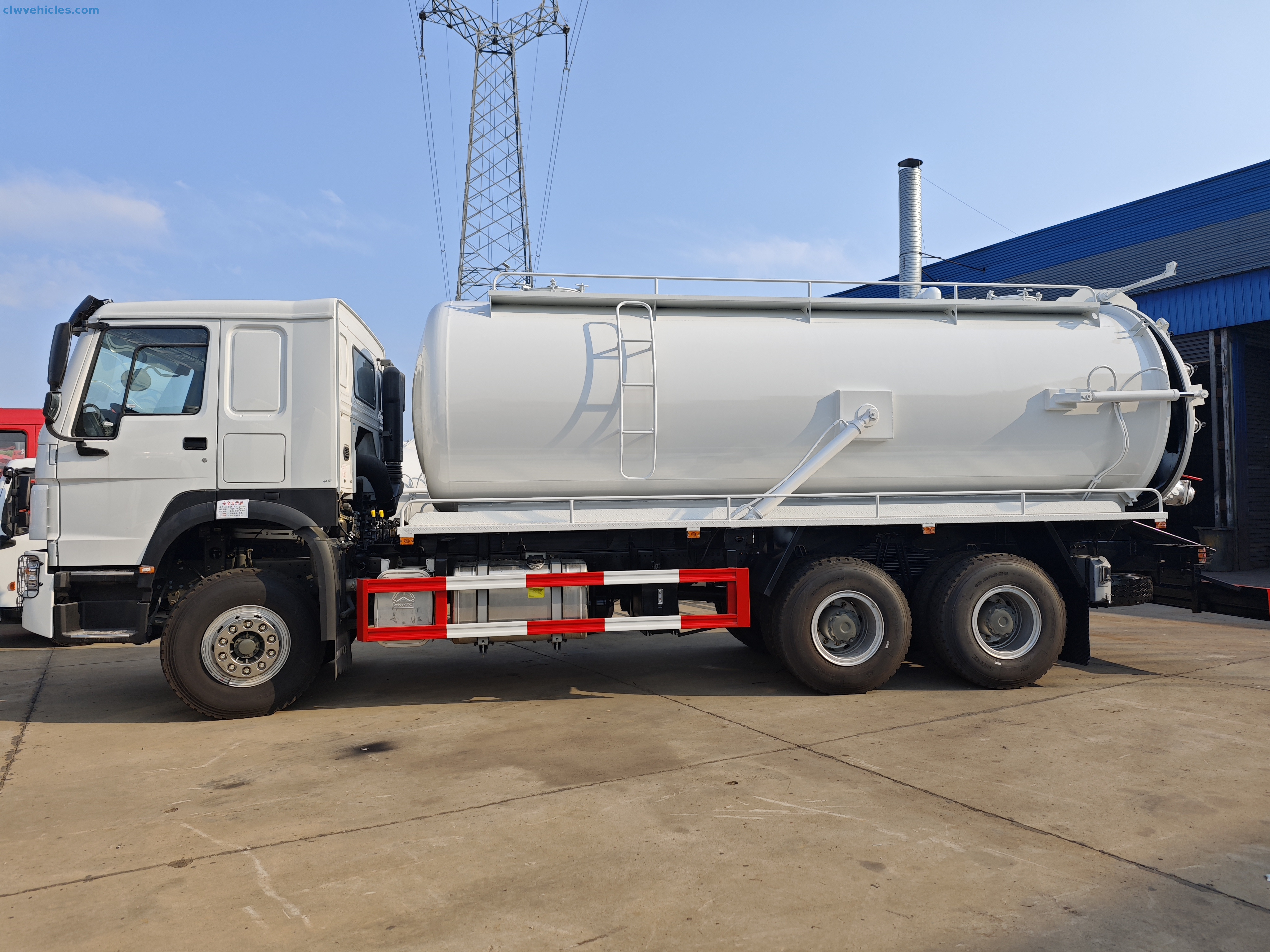

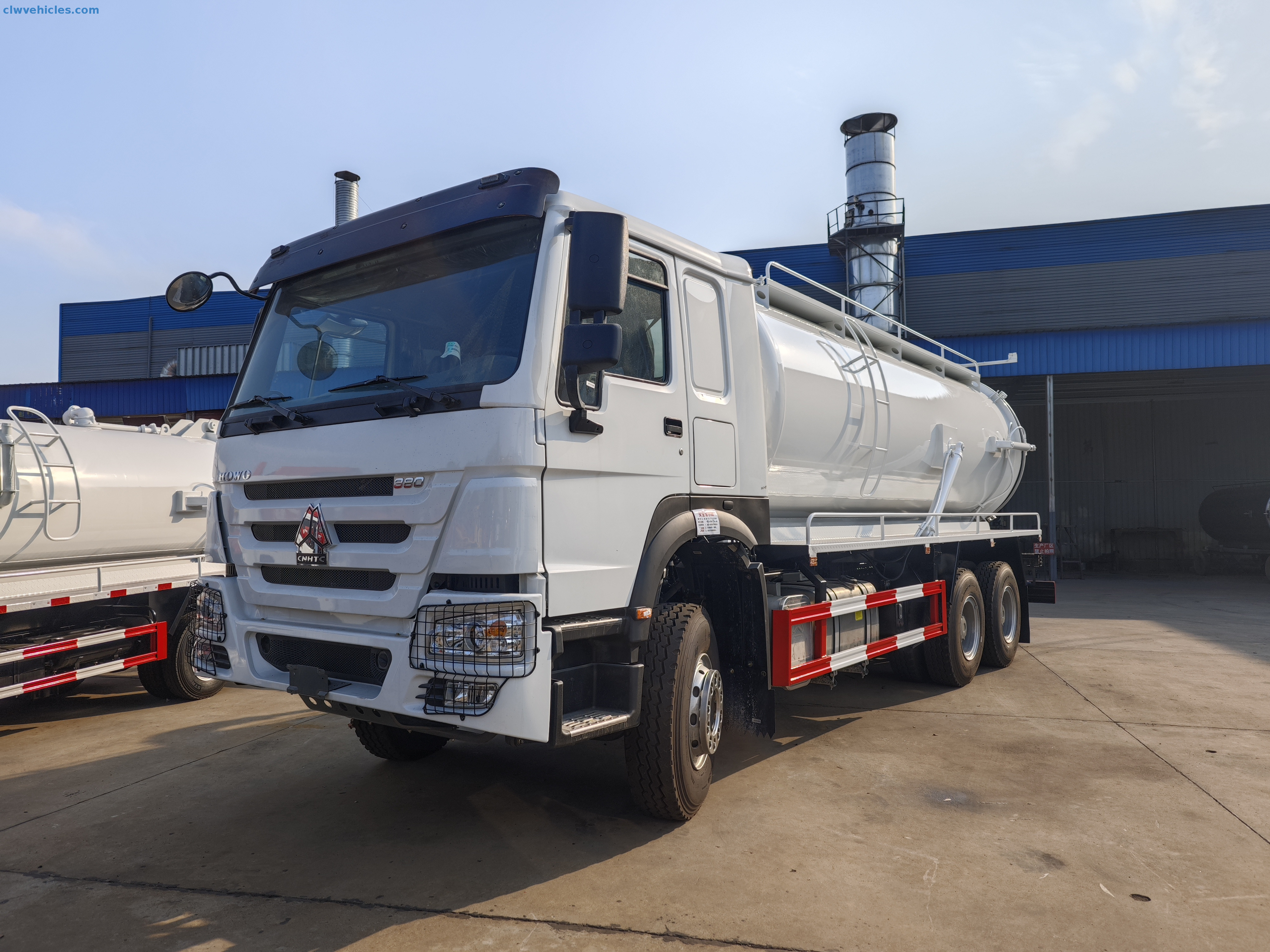

HOWO 6×4 14CBM Sewage Suction Truck – Built Tough for Heavy-Duty Waste Removal
If you're looking for a powerful and efficient solution for cleaning and transporting sewage, sludge, and waste water, the HOWO 6×4 Sewage Suction Truck by CLW Group is up to the task. This reliable sewage suction vehicle is specially designed to handle large-capacity vacuum pumping jobs with ease—perfect for municipalities, sanitation companies, and construction sites.
This vacuum suction sewage truck is made for one clear purpose: safe, efficient sewage and sludge collection. With a 14.28m³ vacuum tank, it's ideal for cleaning septic tanks, sewer lines, and drainage systems in urban or rural areas. The sewage collector truck can suck, transport, and discharge liquid waste, sludge, or slurry, making it a smart choice for public works or commercial cleaning contractors.
Robust HOWO 6×4 Drivetrain – Built on a dependable 6×4 configuration, this truck provides strong traction and load-carrying ability, even on uneven ground.
Powerful Engine – Equipped with a WP10.380E32 engine, this water-cooled, four-stroke turbocharged diesel engine delivers 380 horsepower and up to 280kW of output. That means you get consistent torque and performance even under full tank loads.
Smooth Transmission – A 10-speed manual gearbox (10 forward, 2 reverse) ensures flexible driving across various terrains. Combined with high-strength axles (7,000/18,000 kg front and rear), the truck can handle heavy-duty operations with confidence.
Stable Ride – With a wide wheelbase of 4300+1350 mm, reinforced leaf springs, and 12.00R20 16PR tires, the truck offers a stable, smooth ride during operation and transport.
Spacious Tank Design – The sewage tank is made from Q235A carbon steel, with 5mm thickness to ensure strength and durability. A 14.28-cubic-meter capacity lets you finish big jobs without constant offloading.

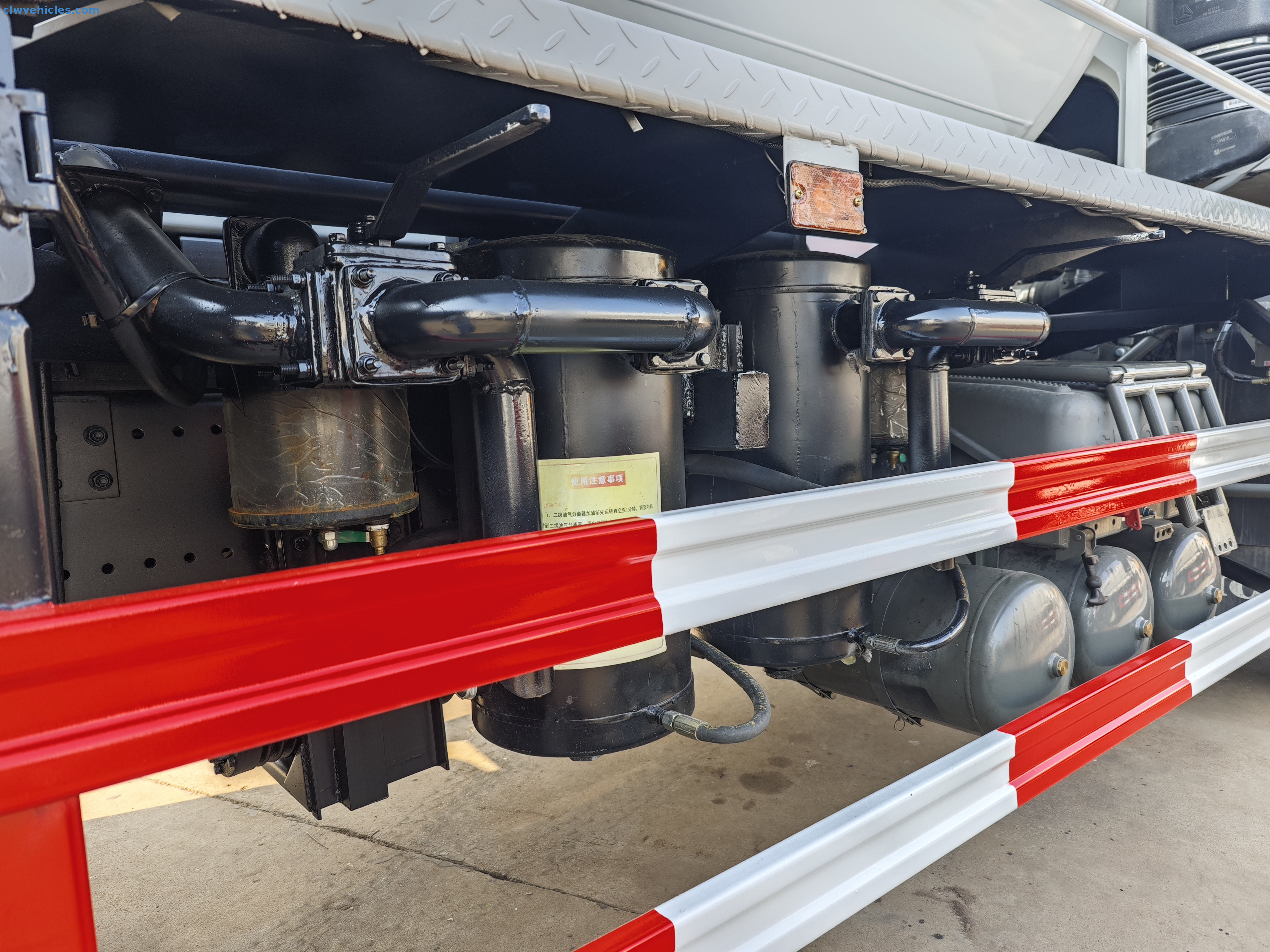

Advanced Pumping System – Powered by a Weilong double vacuum pump (65QZDH-110/7000) rated at 12kW, this system delivers a suction speed of 110L/s and an impressive suction depth of 7 meters. That means faster collection times and deeper reach into underground chambers or manholes.
Smart Controls & Features – With hydraulic cylinders, multi-way valves, power take-off, and built-in pressure gauges, operators get real-time control and status. Additional features like water-gas separators, oil-gas separators, and level inspection windows improve safety and reduce maintenance issues.
Heavy-Duty Operation – Made for high-capacity vacuum work, perfect for urban or industrial use.
Versatile Build Options – Tank can be made of stainless or carbon steel, tailored to your exact job needs.
Reliable CLW Engineering – As a CLW Group sewage truck, you benefit from years of manufacturing experience and field-proven performance.
Comfort and Convenience – Single-row cab with A/C and ergonomic controls ensures comfort during long working days.
Ideal for Municipal Projects – Whether for city use or rural sanitation, this vacuum tank sewer flushing truck gets the job done fast.
The HOWO 6×4 Sewage Suction Truck is your go-to solution when reliability, volume, and suction power matter most. From cleaning drainage systems to transporting sludge safely, it's everything a modern sewage suction truck should be.
Suction operation:
1. Slowly insert the suction pipe into the sewage well or sewage pool. The insertion depth should be appropriate to avoid the pipe mouth being blocked.
2. Start the vacuum pump and control the suction speed by operating the valve. Pay attention to observing the liquid level of the suction tank.
3. During the suction process, always pay attention to the working sound and temperature of the vacuum pump. If there is any abnormality, stop the machine immediately for inspection.
Discharge operation:
1. After arriving at the designated discharge location, stop the vehicle and pull the handbrake.
2. Open the discharge valve and slowly discharge the sewage. Pay attention to controlling the discharge speed and direction.
3. After the discharge is completed, close the discharge valve and clean the discharge pipe.
