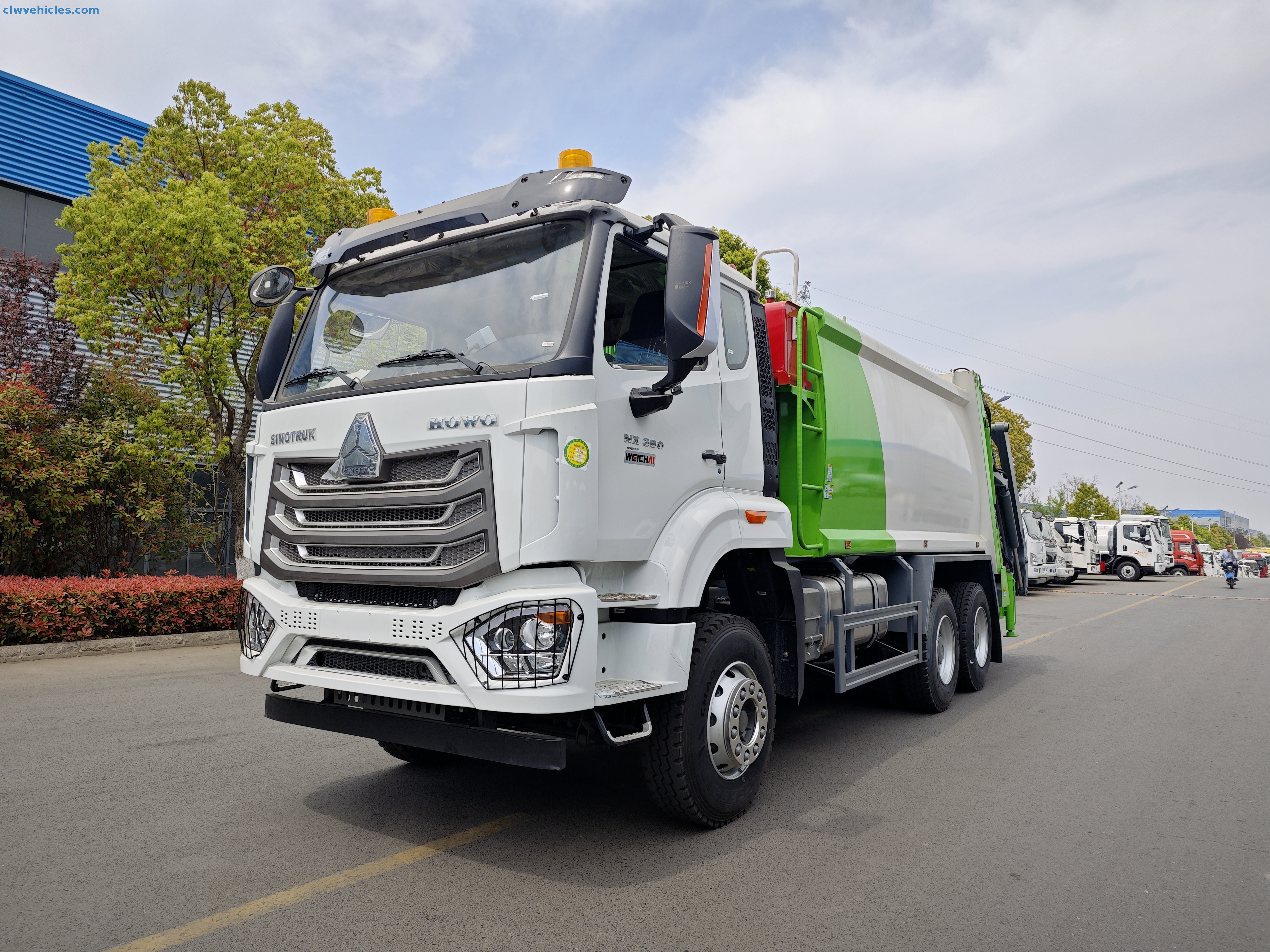

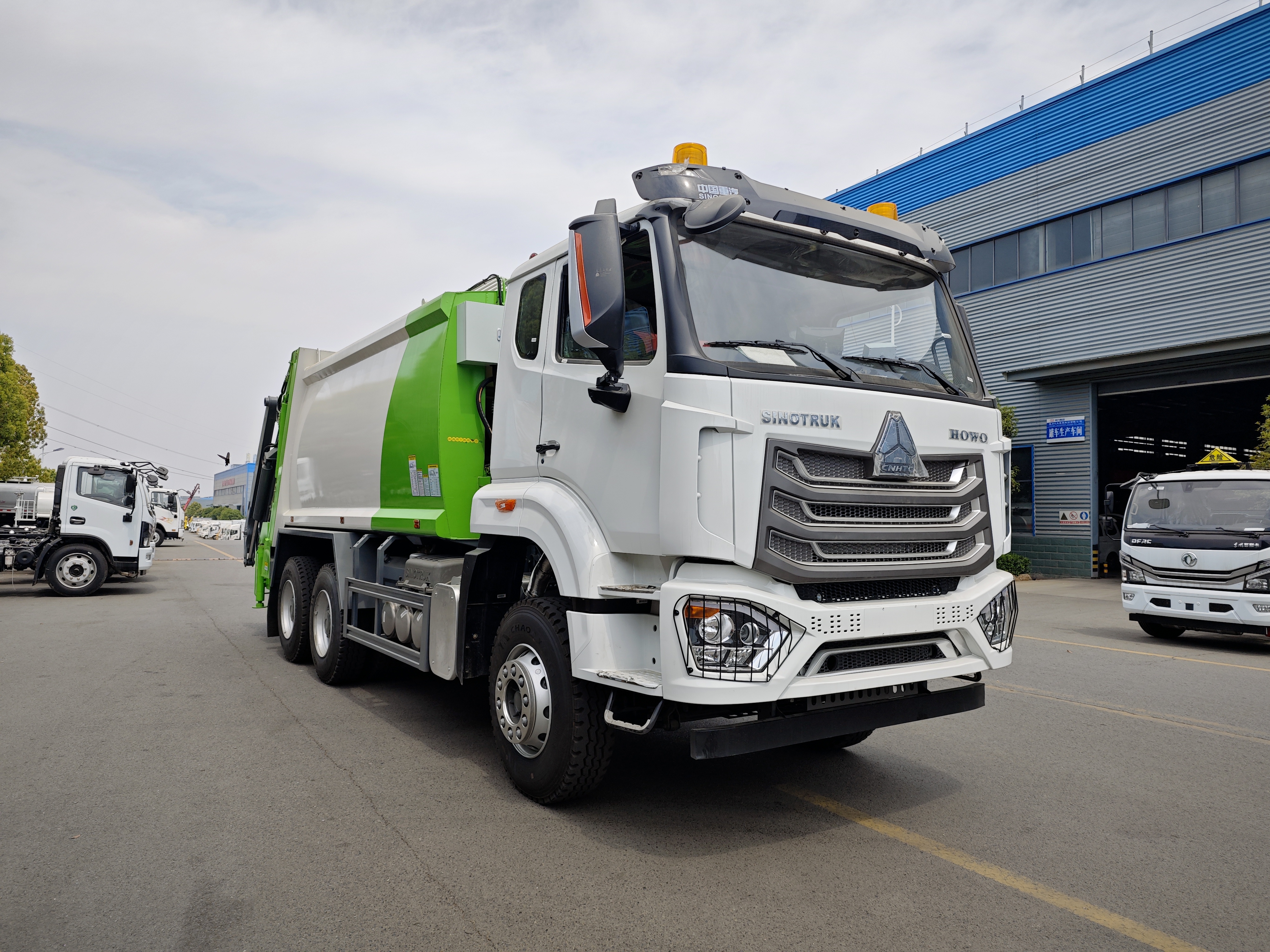

HOWO 6x4 18cbm Garbage Compactor Truck

HOWO 6x4 18cbm Garbage Compactor Truck – Reliable Waste Collection Solution

Looking for a high-performance garbage truck that improves efficiency and reduces transportation costs? The HOWO 6x4 18cbm garbage compactor truck is engineered for municipal waste management, residential areas, commercial centers, and industrial sanitation projects. Its robust compactor body and high compression ratio minimize collection trips while keeping communities clean and environmentally safe.

Strong Chassis and Powerful Engine

Built on the trusted HOWO 6x4 chassis, this garbage truck ensures stability, durability, and long-term reliability even under heavy working conditions. The WP10.380E32 diesel engine delivers 380 horsepower with Euro 3 emission compliance, providing strong performance and fuel efficiency. The in-line 6-cylinder, water-cooled, turbocharged engine pairs with the HW19712 12-speed manual gearbox (12 forward, 2 reverse), ensuring smooth power transfer and precise driving control in urban and industrial environments.

Suspension, Axle, and Tires

The truck features a Dena 7-ton front axle and a Dena 18-ton rear axle, capable of handling heavy loads. Equipped with 12R22.5 18PR tires, it performs reliably on diverse road conditions. The air brake system with vacuum pump and power steering enhance both safety and driver comfort during long shifts or multiple collection routes.

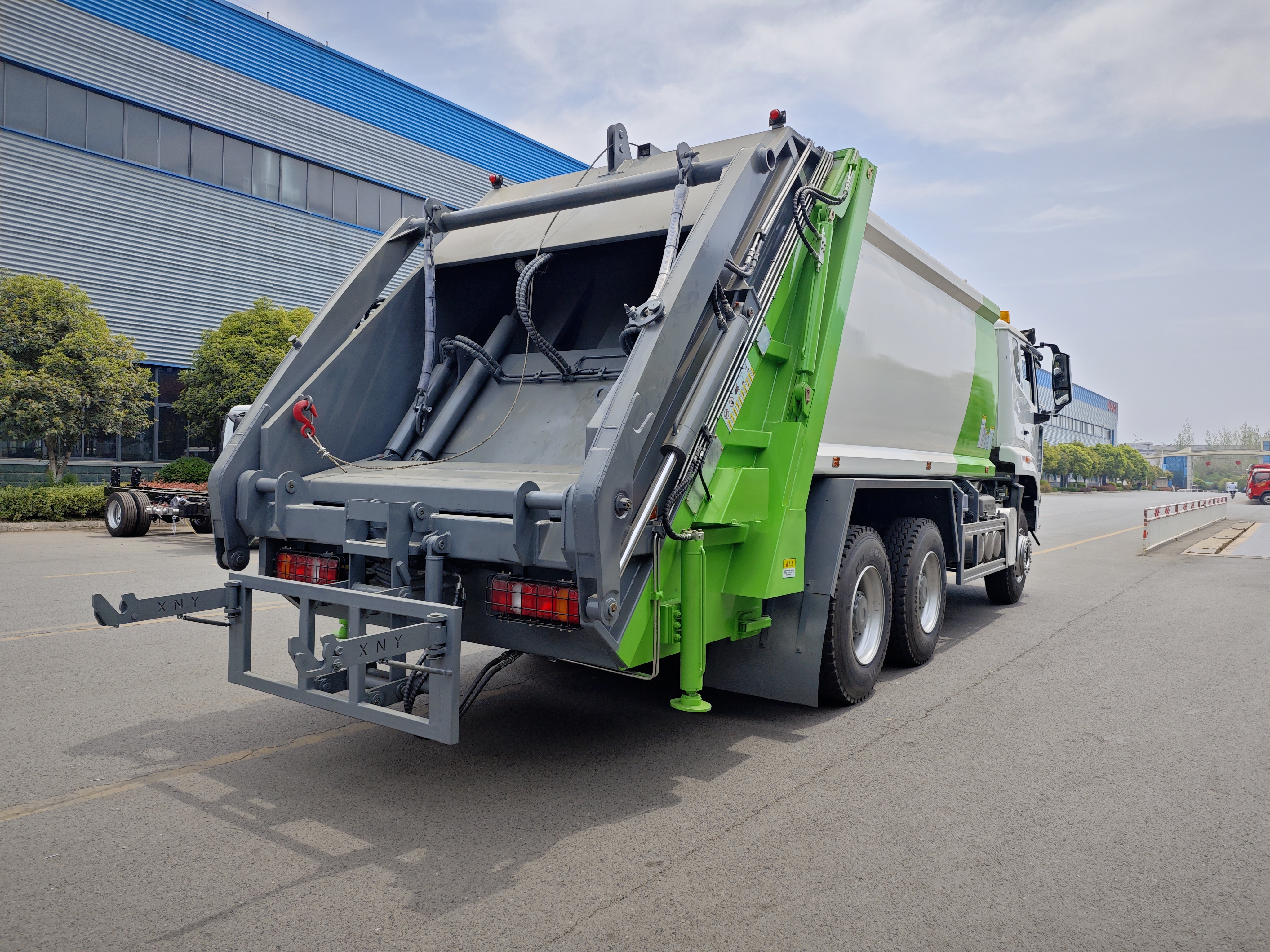

Garbage Compactor Body

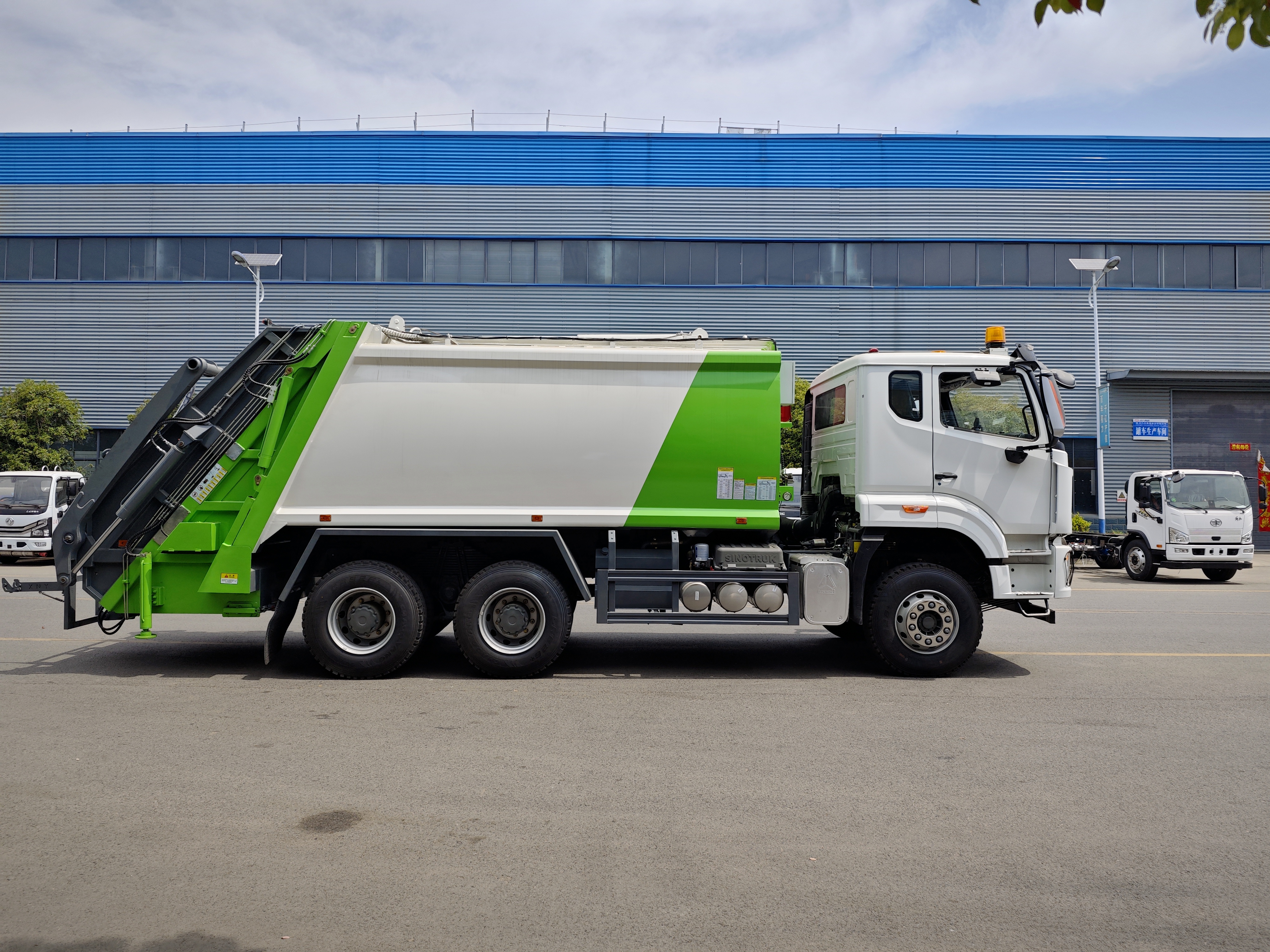

The 18cbm compactor box is made of T700L high-strength steel with 5mm side panels and 5mm bottom for long-lasting durability. The rear-loading design is compatible with multiple waste bins, including two 240L bins or a combination of 180L and 300L bins.

Key features include:

• High compaction ratio (0.6–0.8 t/m³) reduces waste volume, improving transportation efficiency

• PLC one-key cycling and semi-automatic control for easy operation

• Manual levers for flexible control in different situations

• Rear filler and pushing plate for fast and clean unloading

• Integrated sewage tank prevents leakage and keeps the surrounding environment clean

Advantages for Waste Management

• Large 18cbm capacity reduces collection trips and boosts efficiency

• High compaction ratio saves on transportation and fuel costs

• Durable T700L steel body ensures a long service life

• Flexible control system (PLC + manual levers) improves operator convenience

• Rear loader design compatible with standard waste bins

• Reliable HOWO chassis and powerful engine for demanding municipal sanitation tasks

FAQ

Q1: What is the capacity of the compactor truck?
The HOWO 6x4 garbage truck has an 18cbm compactor body, suitable for city and industrial waste collection.

Q2: What type of engine does it use?
It is powered by the WP10.380E32 Euro 3 diesel engine, delivering 380 HP for strong performance.

Q3: How does the compactor body unload waste?
The rear filler unit lifts first, then the pushing plate discharges the waste. The process is controlled via PLC or manual levers.

Q4: What types of bins are compatible?
Compatible with two 240L bins or a combination of 180L and 300L bins.

Q5: Is the truck suitable for different road conditions?
Yes, with 12R22.5 18PR tires, air brakes, and a robust suspension system, it performs reliably on city streets, industrial areas, and uneven roads.

Technical Specifications of the CLW 18cbm garbage compactor truck：

Main Technology Parameter
Model Name	CLW Brand HOWO 6x4 18cbm Garbage Compactor truck
Driving Type	6x4
Color	White and green color or based on client’s request.
Weights
GVW(kg)	25000
Rated payload weight(kg)	8770
Curb weight(kg)	16200
Dimensions
Wheelbase(mm)	4600+1350
Overall Dimension(mm)	10290x2550x3200
Max speed(km/h)	95
Engine
Engine model	WP10.380E32
Emission standard	Euro 3
Engine type	Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler
No. of cylinders	straight-6 cylinders, diesel
Displacement(L)	9.726
Max. output (kw)	280(380hp)
Drive Line
Transmission	HOWO HW19712; 12 forwards,2 reverse gear, manual operation
Steering	Power steering
Brake	Air brake with vacuum pump
Axle
Front axle	Dena 7 tons
Rear axle	Dena 18 tons
Tire specification
Tire specification	12R22.5 18PR
Garbage compactor box
Volume	18cbm
Raw material	T700L, side is 5mm, and bottom is 5mm.
Loading Method	Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins
Unloading Method	The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate
Compacted Ratio	0.6-0.8t/m³
Control Method	Double side control box + manual levers
	PLC; one-key cycling + half-auto control
Sewage Tank	One unit

Custom configurations available. Let’s build a cleaner future together!
