HOWO
CLW
CLW5280OT16

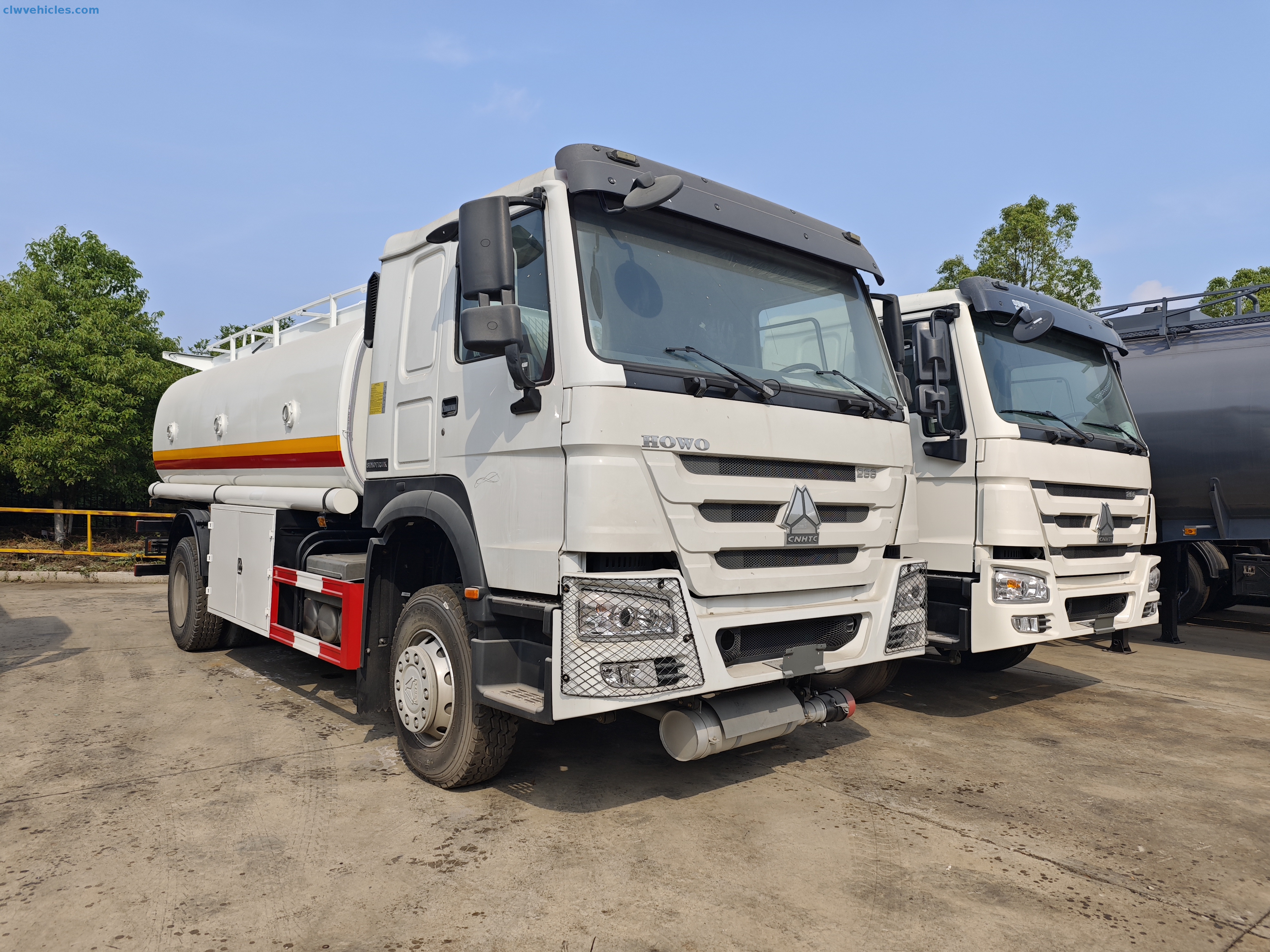

The Highway Hero: HOWO 6×4 19cbm Oil Tank Truck – Where Reliability Meets Heavy-Duty Hauling
Tired of breakdowns derailing your fuel deliveries? Meet CLW Group's long-haul champion – a HOWO oil tank truck built for relentless highway performance. This 19cbm oil tanker masters diesel and gasoline transport between depots, mines, and industrial hubs with unwavering efficiency. When your bottom line depends on every kilometer, this fuel transport truck delivers.
Powertrain Perfection: Built for the Long Run
At its core lies HOWO's battle-tested WP10.290E32 engine (290hp/213kW) – a torque-rich workhorse that sips fuel while conquering mountain passes. Paired with HOWO’s own HW10 manual transmission (10 forward gears), shifts feel crisp even under 19-ton loads. The MAN double-stage rear axles (19-ton capacity) laugh off potholes, while wide-base 315/80R22.5 tires (plus spare) grip rain-slicked highways like velcro. With air brakes and precise power steering, this oil transport truck stops and turns like a rig half its size.

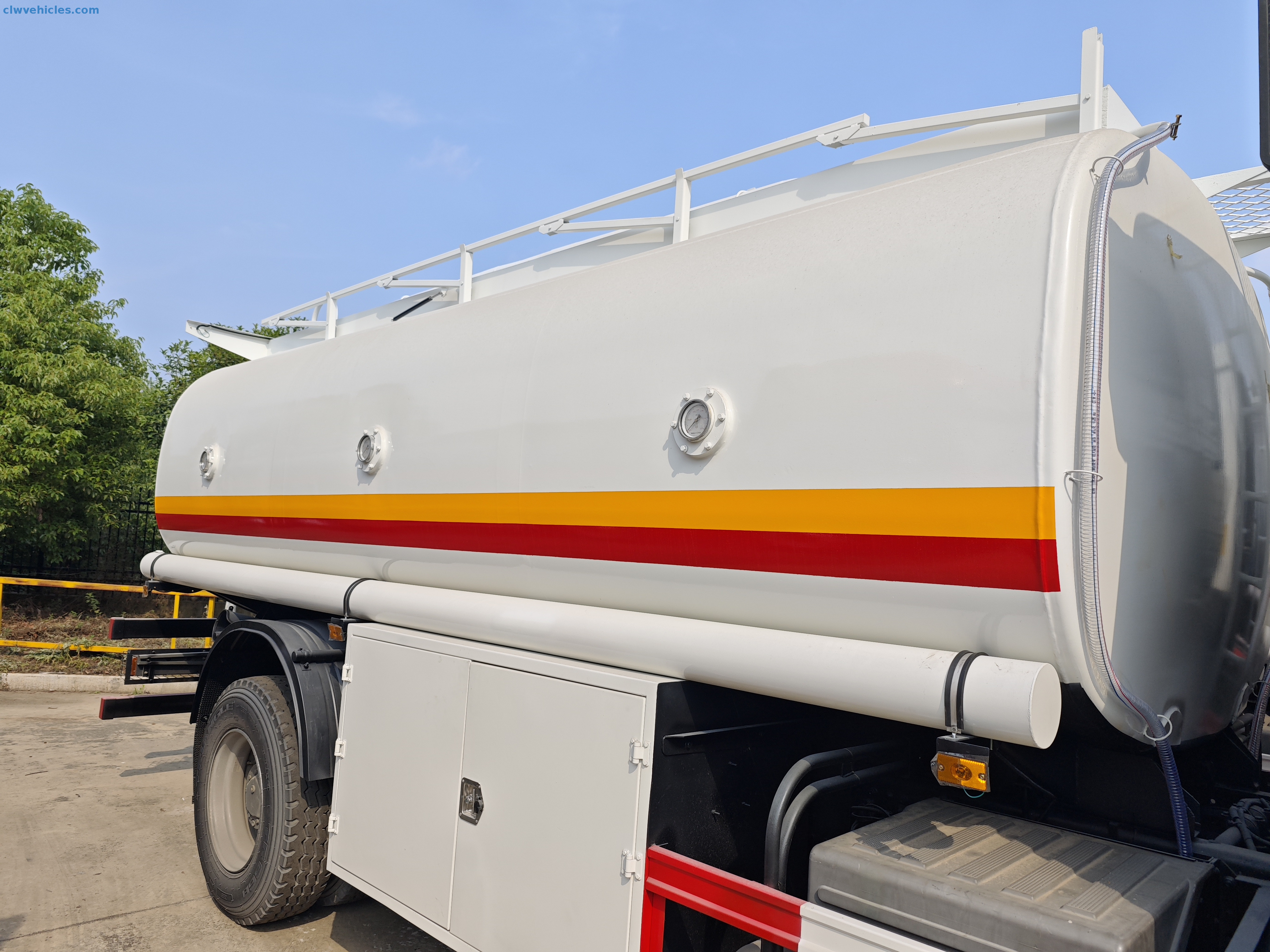

19cbm Tank: Smart Design, Smarter Safety
Engineered for high-volume efficiency:
Triple-Product Flexibility: 3 segregated compartments handle diesel/gasoline/kerosene in one trip
Armored Construction: 5mm carbon steel walls with 4mm breakwater plates tame liquid surge
90-Second Unloads: Bottom-discharge valves + gravity flow via 4" aluminum pipes
Theft-Proof: Lockable alloy boxes hide API adapters from tampering
Dual 20-inch manholes with pressure vents and emergency releases meet global safety standards. Optional aluminum tanks available for chemical transport.
Why This HOWO Beats the Competition:
→ Cost Per Mile King: HOWO powertrain + MAN axles = 15% lower operating costs
→ No Compartment Compromises: Haul 3 fuel types without cross-contamination
→ All-Weather Confidence: 19/10° approach/departure angles handle steep terminals
→ CLW Toughened: Reinforced welds survive decade-long abuse
Tailor Your Tanker
Add winter kits, GPS tracking, or stainless steel tanks – we'll customize your CLW Group oil tank truck for any challenge.
| Main Technology Parameter | |
| Model Name | CLW Group HOWO 6x4 Oil Tank Truck |
| Driving Type | 6*4 |
| Color | White or based on client's request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 12300 |
| Curb Weight(kg) | 12505 |
| Dimensions | |
| Wheelbase(mm) | 3800+1400 |
| Front/Rear Overhang(mm) | 1430/2445 |
| Approach/Departure Angle | 19/10 |
| Overall Dimension(mm) | 9850*2550*3500 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP10.290E32 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 213kw(290hp) |
| Drive Line | |
| Transmission | HOWO Brand HW10; 10 forwards, 2 reverse gear, manual operation |
| Axle | |
| Axle | 7000/19000kg double axle |
| Tire Specification | |
| Tire Specification | 315/80R22.5 18PR; 10+1 spare tire |
| Front Wheel Track(mm) | 2015 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 4/-/- |
| Upper Body | |
| Fuel Tank | |
| Capacity(cbm) | 6000*2470*1670mm; 19cbm |
| Tank Material | Carbon steel Q235(Aluminum alloy) |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| Thickness(mm) | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 3 |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. |

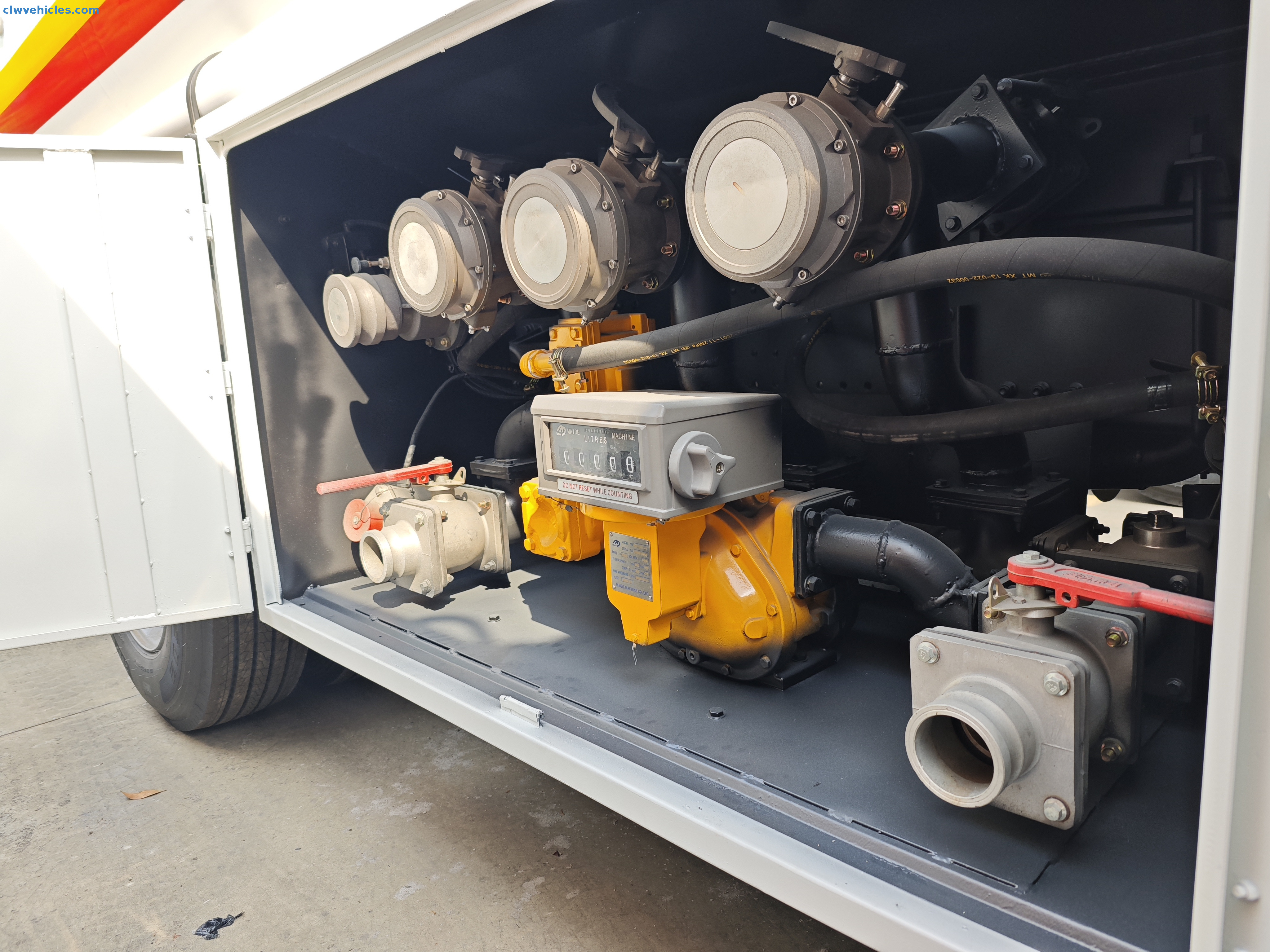

| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
