HOWO
CLW
CLW5280OT17

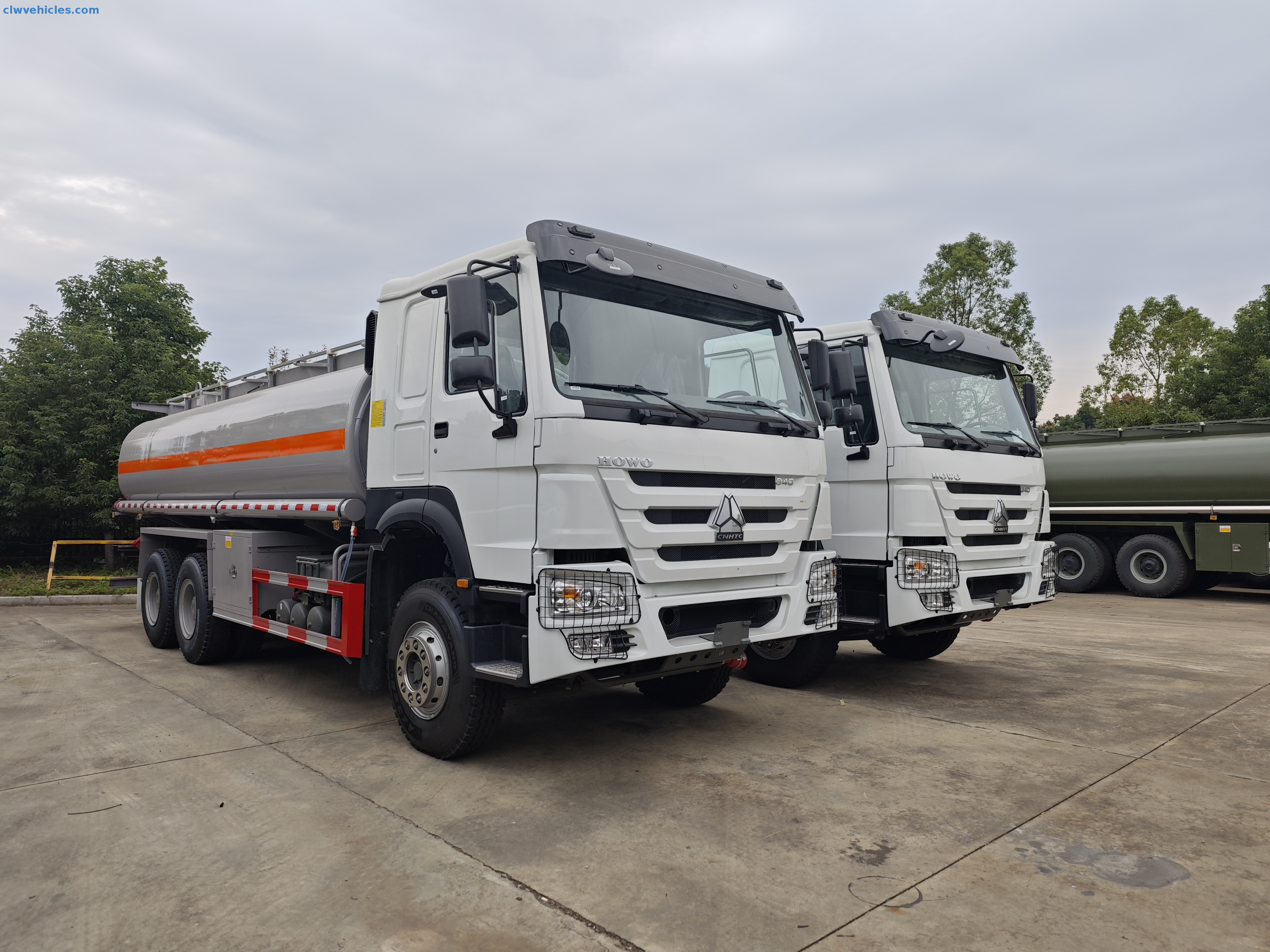

The Howo 6x4 20CBM Refueling Truck is a heavy-duty fuel transportation vehicle designed to handle large-scale diesel and gasoline delivery operations. Manufactured by CLW Group, this tanker combines robust construction, safety, and operational efficiency—making it an ideal solution for construction sites, logistics fleets, and oil distribution companies.
Built on a HOWO chassis, it features a powerful WP10.340E32 engine (340HP, Euro 3 emission standard), ensuring high torque output and stability across varied terrains. The 20,000-liter carbon steel tank (optional aluminum alloy) offers high durability and corrosion resistance. Equipped with pneumatic bottom valves, API adapters, and a vapor recovery system, it guarantees safety and compliance during refueling operations.
The refueling system supports both bottom loading and gravity discharge, suitable for gasoline, diesel, and other liquid fuels. The compartmented tank structure (1–2 chambers) enhances safety and prevents liquid surge during transportation. With its 10-speed transmission, power steering, and top speed of 90 km/h, this model delivers excellent maneuverability and performance even under full load.
Whether used in city fuel distribution, highway refueling, or industrial fleet service, the Howo 6x4 tanker is engineered to deliver power, precision, and peace of mind.
High-Capacity 20CBM Tank – Large 20,000L volume minimizes downtime with fewer refill cycles, ideal for bulk fuel transport.
Strong and Durable Structure – 5mm carbon steel tank with anti-surge baffles ensures long service life and safety during movement.
Powerful 340HP Engine – Equipped with the WP10.340E32 diesel engine delivering high torque and fuel efficiency.
Advanced Refueling System – Dual pneumatic bottom valves, API adapters, and vapor recovery pipeline for clean and efficient operations.
Multi-Compartment Design – Supports 1–2 chambers for separate fuel types like diesel and gasoline.
Customizable Options – Aluminum alloy tank, extra manholes, and multiple capacity choices (20–25 CBM).
Operator-Friendly Design – Side aluminum box for outlet systems with collapsible, lockable doors for easy maintenance and enhanced safety.
Fuel Distribution Companies: Efficient transport of gasoline and diesel between depots and fueling stations.
Construction and Mining: On-site refueling for heavy machinery and equipment.
Logistics Fleets: Centralized fuel supply for long-distance trucking and transport companies.
Municipal Operations: Reliable use in city maintenance, emergency power stations, and road operations.
Remote Industrial Sites: Safe fuel transport and storage for mining or agricultural applications.
Q1: What fuel types can this truck transport?
A1: It is suitable for transporting diesel, gasoline, and other light oil-based fuels.
Q2: Can the tank material be customized?
A2: Yes, you can choose between carbon steel, stainless steel, or aluminum alloy depending on your local requirements.
Q3: How many compartments does the fuel tank have?
A3: It can be built with 1 or 2 compartments to carry different fuel types simultaneously.
Q4: Does it support both top and bottom loading systems?
A4: Yes, it is primarily designed for bottom loading but can also be adapted for top loading if requested.
Q5: Is this refueling truck compliant with international safety standards?
A5: Yes, the truck follows strict design and safety standards with vapor recovery systems and emergency vents.
Main Technical Parameters
| Vehicle Description | Brand | CLW |
| GVW(kg) | 26000 | |
| Curb Weight(kg) | 10405 | |
| Loading Weight(kg) | 15400 | |
| Overall Dimension(mm) | 9810*2525*3335 | |
| Wheelbase(mm) | 4075+1400 | |
| Axle Load(kg) | 7000/18000 | |
| Top Speed(km/h) | 90 | |
| Chassis Brand | HOWO | |
| Chassis Model | ZZ3257V434GF1 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.340E32 |
| HP | 340 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 9725/250 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1250 | |
| Maximum Torque Speed(rpm) | 1400-1600 | |
| Gearbox Brand | HOWO | |
| Gearbox | 10Forward/2Reverse Gear | |
| Tyre | 12.00R20 18PR | |
| Fuel Tank | Capacity(cbm) | 20/22/24/25 |
| Tank material | Carbon steel Q235( Aluminum alloy or other) | |
| Compartment Quantity(pcs) | 1/2 | |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium | |
| thickness(mm) | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm | |
| Compartments | 2 | |

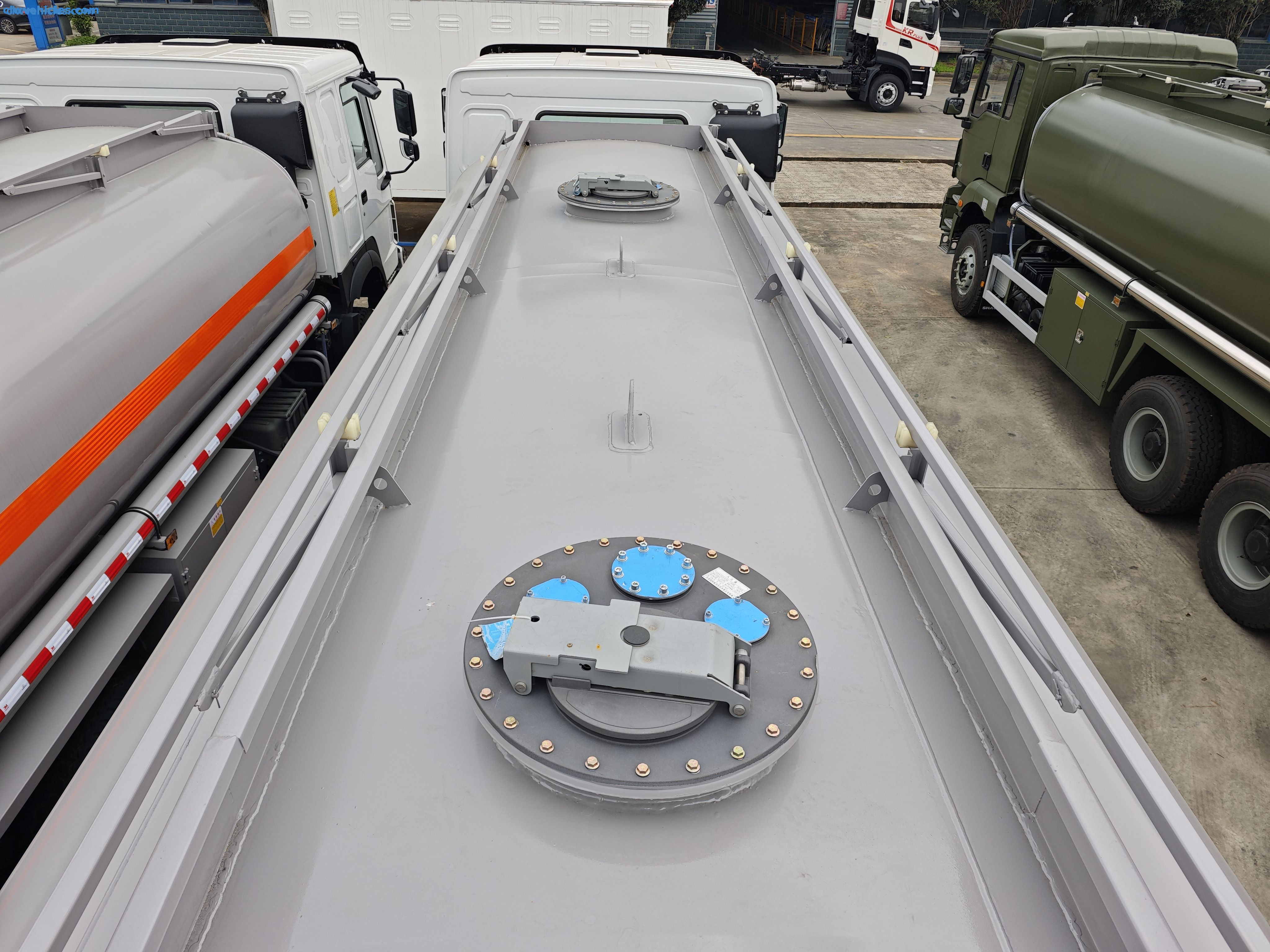

| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. | |

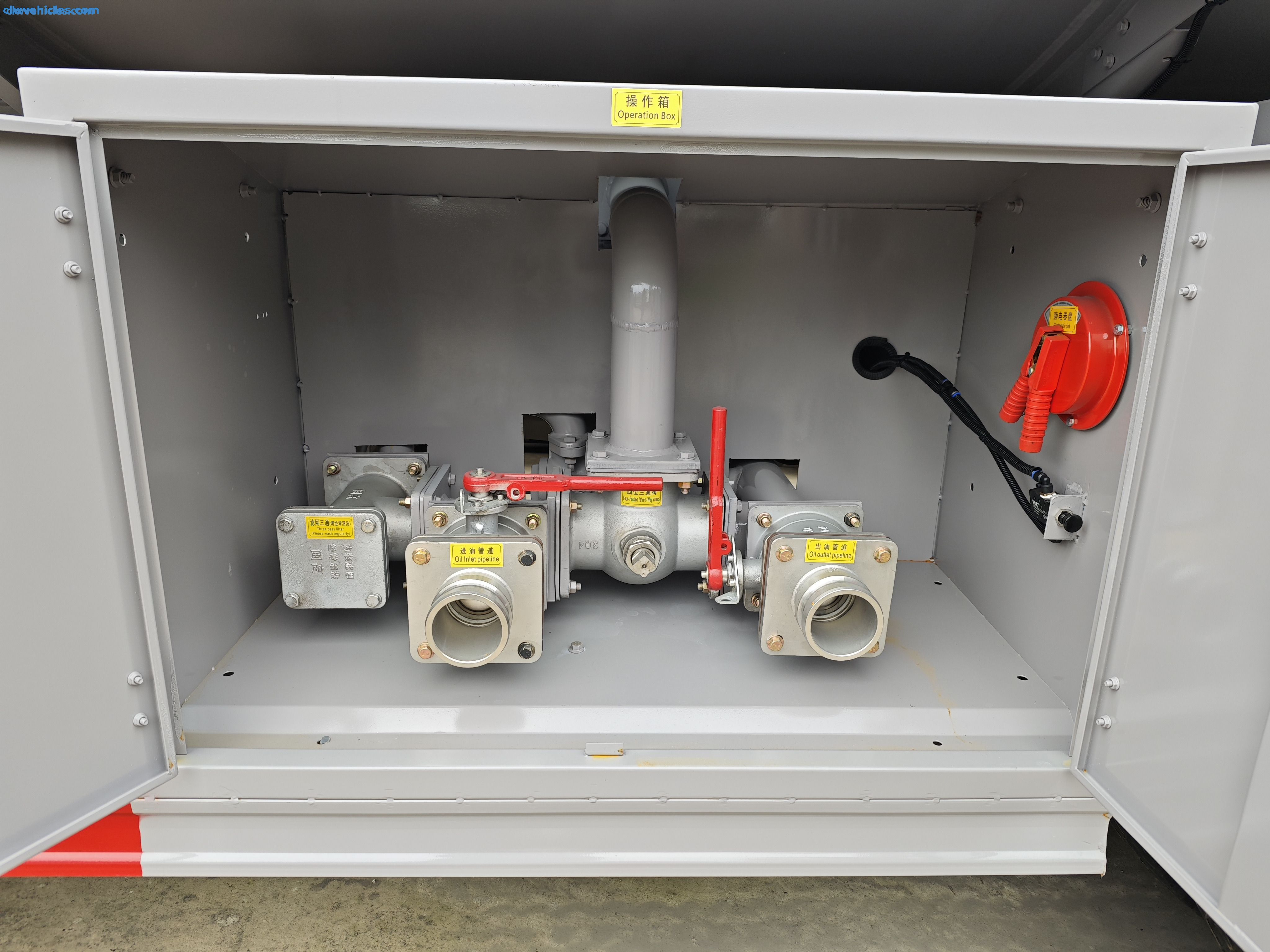

| Discharge system | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. | |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. | |
