HOWO
CLW
CLW5180RCWC2
Product Description：

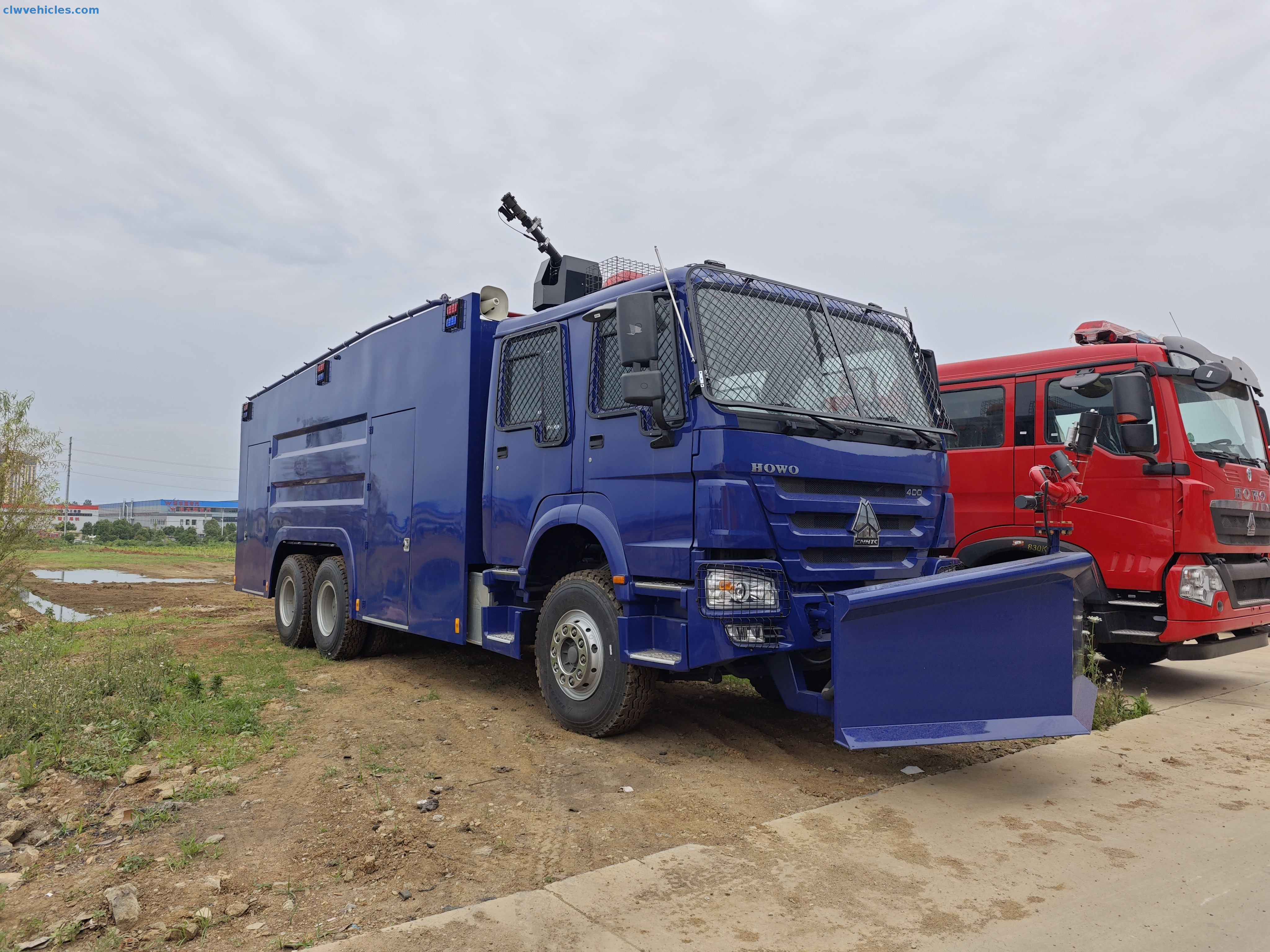

HOWO 6×4 Anti Riot Control Water Cannon Truck – Advanced Security for Civil Stability
Engineered for Non-Lethal Crowd Management & Emergency Response
The HOWO Anti Riot Water Cannon Truck sets the standard for modern public safety operations, combining precision crowd control with emergency firefighting capabilities. Designed for riot suppression, hazardous material incidents, and large-scale event security, this CLW Group Riot Control Vehicle delivers targeted water, foam, dye, or gas solutions while prioritizing officer safety. Ideal for police forces and emergency units, it transforms volatile situations into controlled environments with minimal risk.
Robust Chassis: Power Meets Tactical Agility
Built on HOWO's heavy-duty 6×4 chassis, this riot control water cannon truck dominates demanding scenarios. The WP10.5H400E62 engine delivers 294kW (400hp) for rapid deployment across urban or rugged terrain. Paired with a 10-speed HW15710 manual transmission, operators maintain precise control during high-stress maneuvers. Reinforced 7-ton front/18-ton double rear axles and 12.00R20 radial tires (10+1 spare) ensure stability, while the air brake system guarantees instant stopping power. The 13°/14° approach/departure angle enables access to congested areas.
Advanced Riot Suppression Systems
Dual-nozzle cannons with ≥10m range
Horizontal sweep: -135° to 135° (single), -135° to 5° (double)
Vertical pitch: -10° to 45° for elevated targeting
60L/s high-pressure pump (1.6-2.5MPa) with auto-priming PTO drive
100L tanks for gas/foam/dye solutions
Integrated mixing system for rapid agent switching
Real-time gas detectors triggering automatic alarms/protection
Positive-pressure cab blocking toxic infiltration
Emergency escape system with respirators, blast shields, and evacuation routes
Survivability-First Design

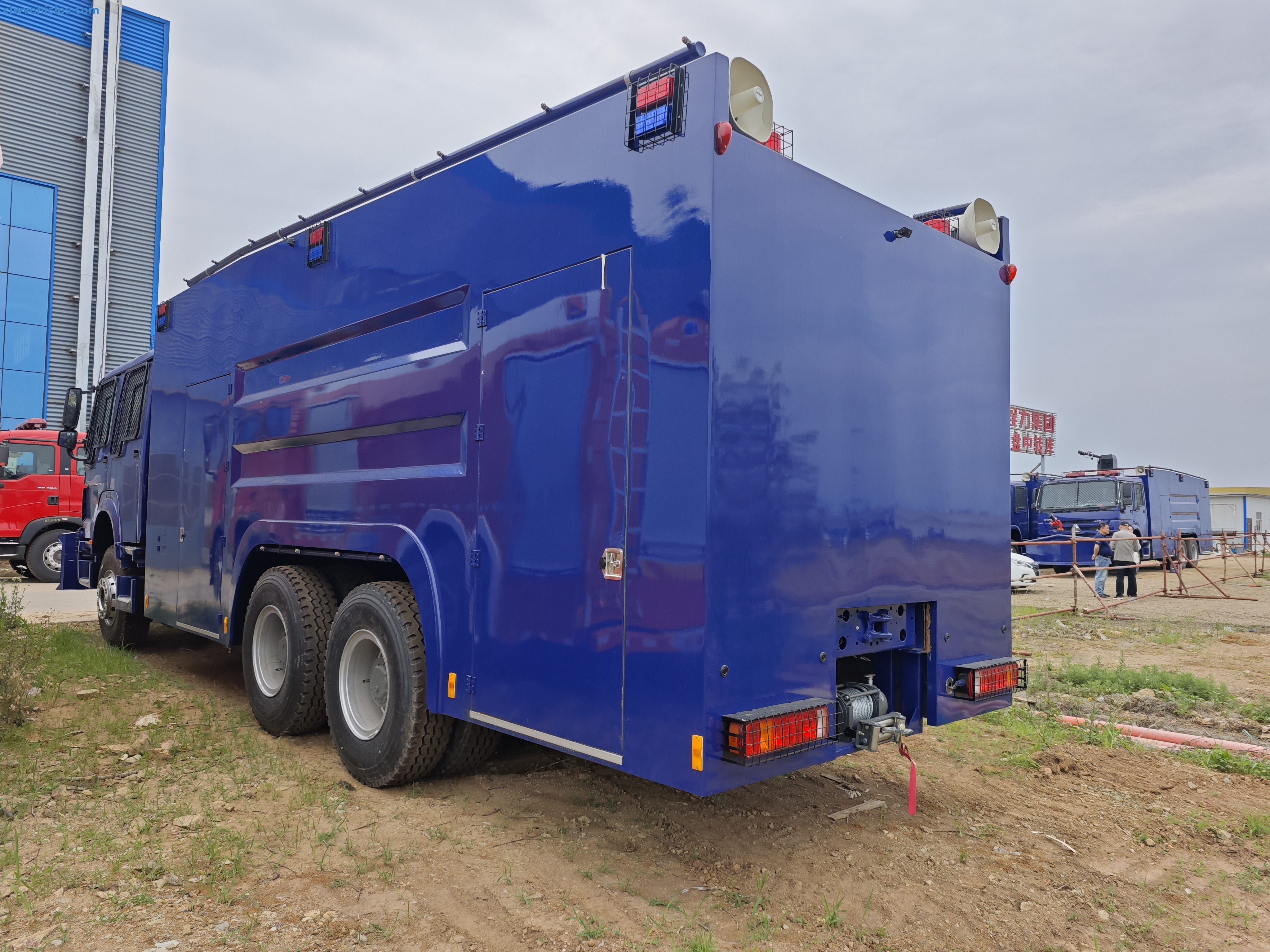

The armored cab features bullet-resistant glass and reinforced body panels. The 10m³ water tank provides extended operation time, while roof-mounted floodlights illuminate night operations. Hydraulic stabilizers ensure platform steadiness during cannon use.
Why Choose This CLW Group Riot Control Truck?
"When seconds count, this truck delivers decisive force with surgical precision."
Merging HOWO's chassis with CLW Group's tactical engineering, this anti riot vehicle excels in:
Versatility – Transition from water dispersal to foam-based firefighting instantly
Officer Protection – NBC-rated cab with hazard detection
Operational Endurance – Extended range systems for prolonged missions
Non-Escalatory Force – Precision tools to de-escalate without lethal measures
From dispersing unlawful assemblies to containing chemical spills, this riot control water cannon redefines public safety – where authority meets humanity.
Main Technology Parameter：
| Main Technology Parameter | |
| Model Name | CLW Group HOWO 4x2 Anti Riot Control Truck |
| Driving Type | 4x2 |
| Color | Blue or based on client’s request. |
| Number of Cabs | 4-5 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 10000 |
| Curb Weight(kg) | 14610 |
| Dimensions | |
| Wheelbase(mm) | 4325+1350 |
| Front/Rear Overhang(mm) | 1500/1920 |
| Approach/Departure Angle | 13/14 |
| Overall Dimension(mm) | 10270*2540*3950 |
| Max Speed(km/h) | 100 |
| Engine | |
| Engine Model | WP10.5H400E62 |
| Engine Type | In-line, four cylinders, turbocharged with intercooler |
| Rated Torque(Nm) | 1900 |
| Rated Speed(rpm) | 1900 |
| Max.Output(kw) | 294(400hp) |
| Drive Line | |
| Transmission | HW15710;10 forwards,2 reverse gear |
| Steering | Power steering |
| Axle | |
| Axle | 7000/18000(double) |
| Tire Specification | |
| Tire Specification | 10+1spare tire;12.00R20 Radial tube type |
| Front Wheel Track(mm) | 2110 |
| Rear Wheel Track(mm) | 1830/1830 |
| Number of Leaf Springs | 10/12 |
| Upper Body | |
| Water Tank Volume(m³) | 10 |
| Anti Riot Water Cannon | |
| Max Range(m) | 65 |
| Horizontal Rotating Angle(°) | Single: -135~135 |
| Double: -135~5 | |
| Pitching Angle(°) | -10~45 |
| Fire Pump | |
| Priming Manner | Automatic |
| Pressure Range(Mpa) | 1.6~2.5 |
| Flow Rate(L/s) | 60 |
| Drive Mode | Power Take-off(PTO) |
| Gas Solution | 100 |
| Foam Solution | 100 |
| Dye Solution | 100 |
| Emergency Equipment | |
| Gas Detector | Real-time monitoring of the concentration of combustible gas in the environment, automatic alarm and activation of protective measures when exceeding the limit. |
| Positive Pressure System | The cab maintains a positive pressure state to prevent external toxic gas from infiltrating. |
| Emergency Escape System | Equipped with rapid evacuation channels, self-contained respirators and explosion-proof shields, etc. |
Basic Functions of the Whole Vehicle

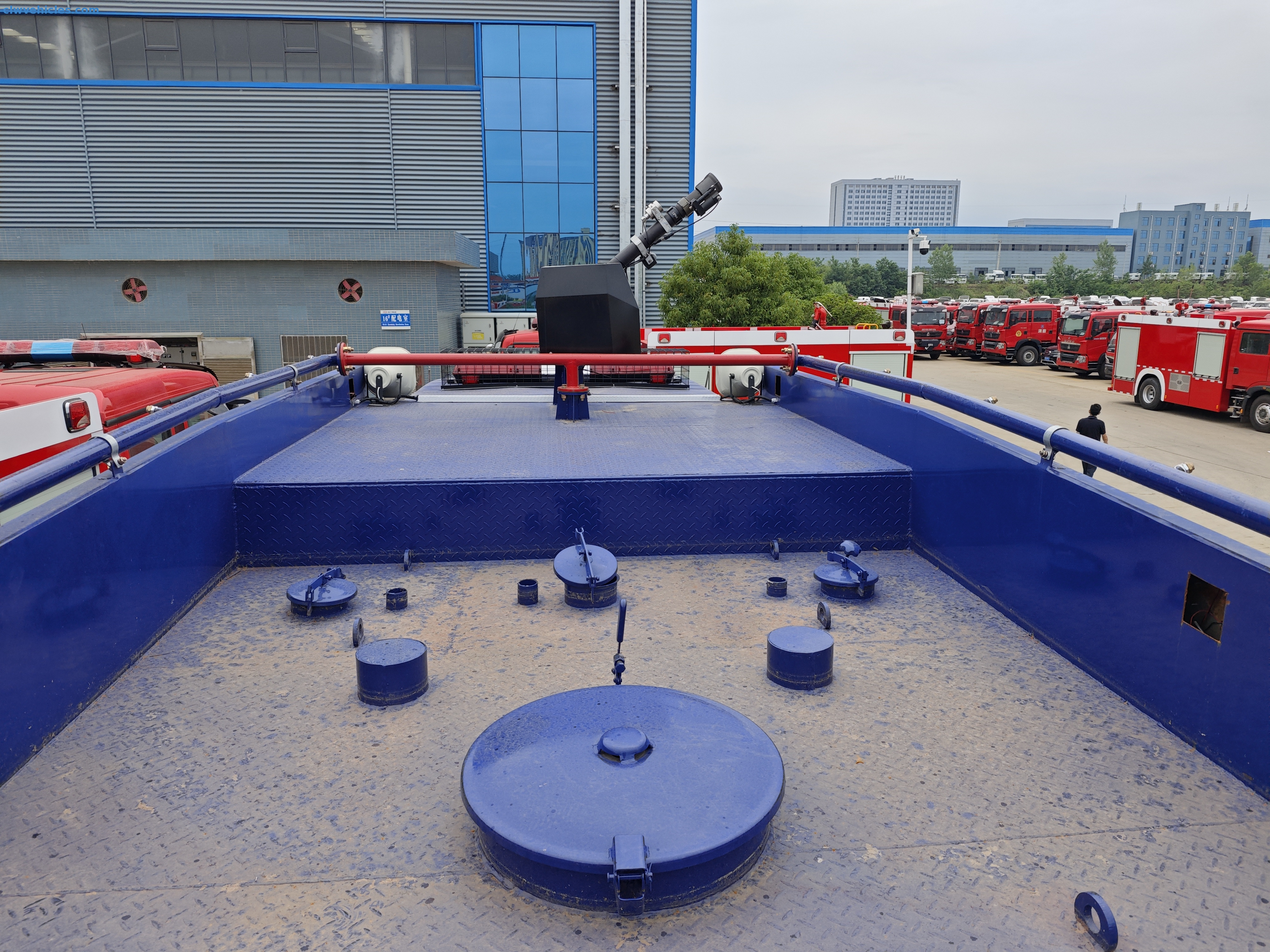

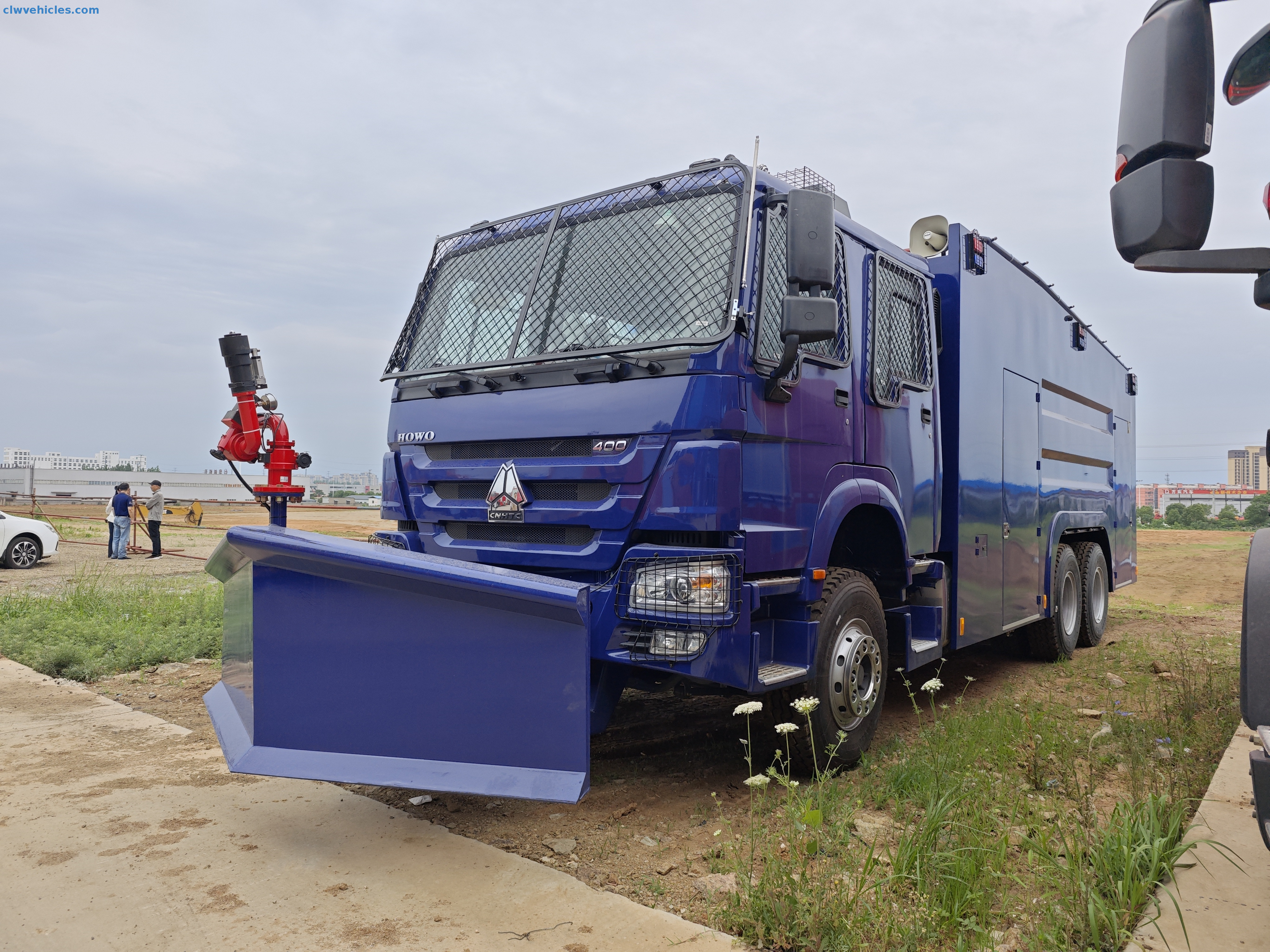

Water Cannons: Equipped with 2 direct-current electrically controlled anti-riot main water cannons on the roof, which can be used for long-distance riot dispersal. There is an auxiliary water cannon assembled in the front of the vehicle, which can strike riot targets at close range in front of the vehicle.
Sprinkler System: There are sprinkler heads on six sides of the whole vehicle. This system can spray clear water, dye solutions and tear gas solutions.
Self-extinguishing System: The sprinkler heads on six sides of the whole vehicle can spray foam solutions to achieve self-extinguishing protection.
Anti-freezing and Water Draining System: It is used to drain the residual water in the pipelines and effectively protect the safety of the water system in extremely cold weather conditions.

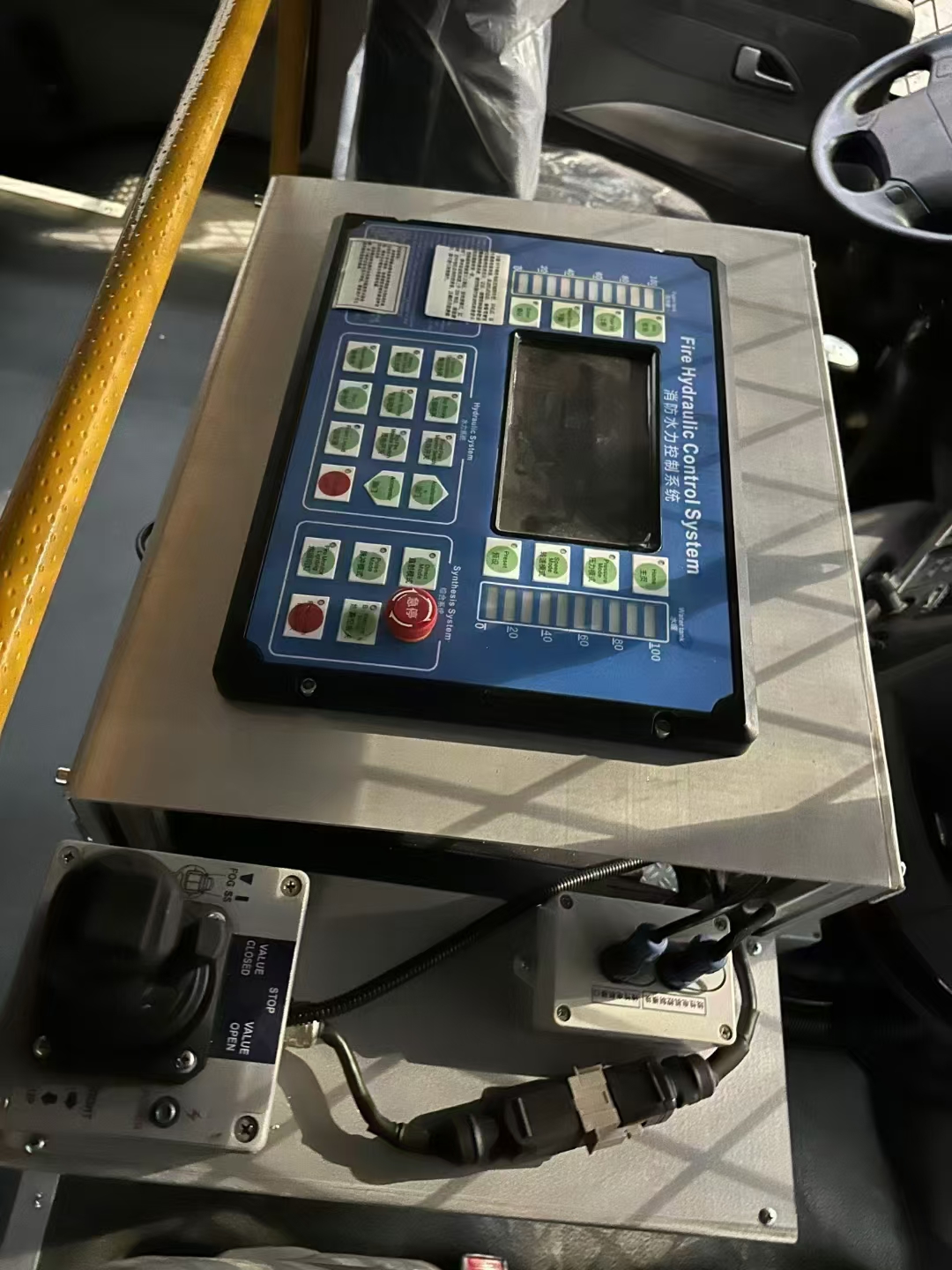

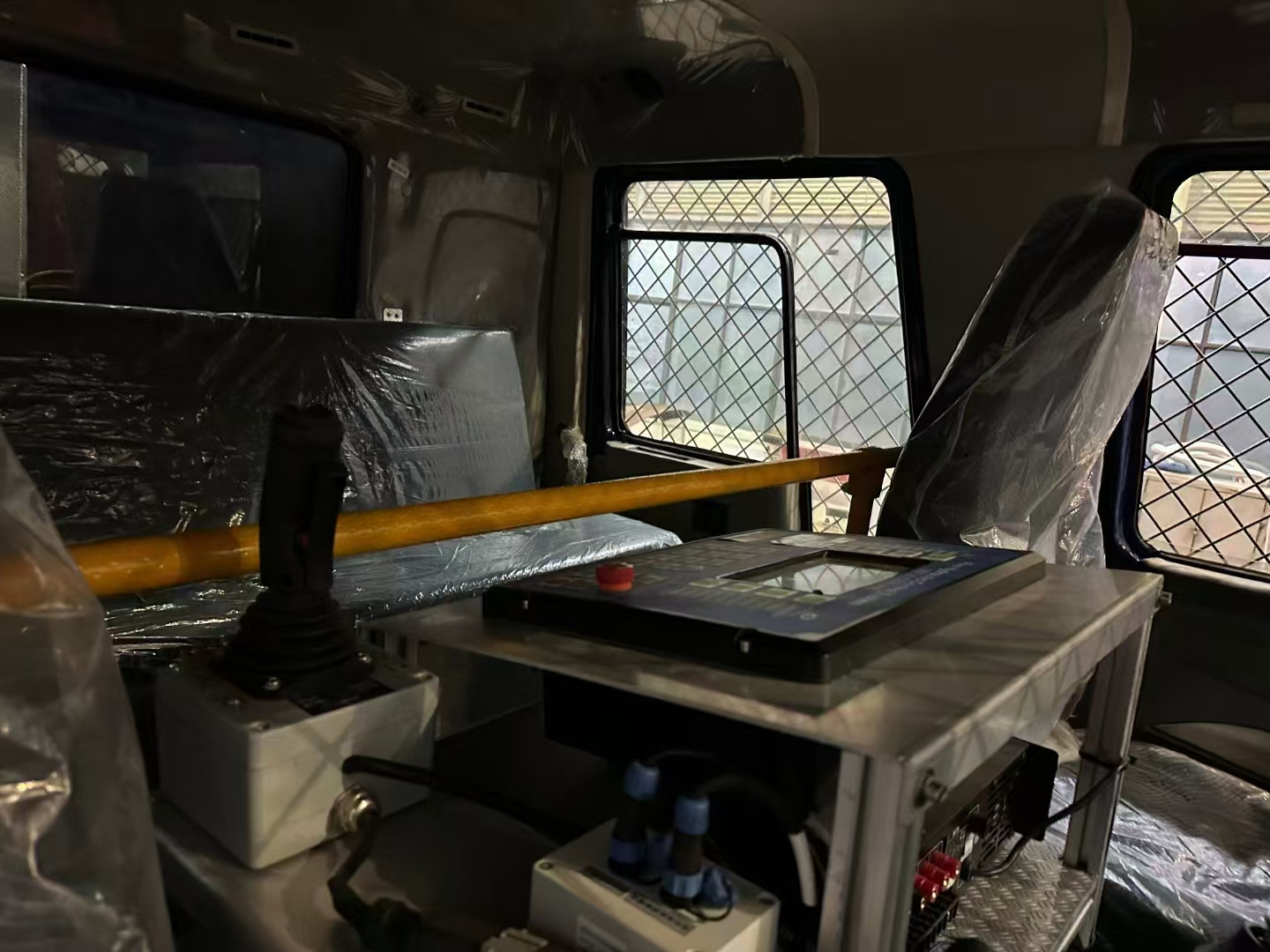

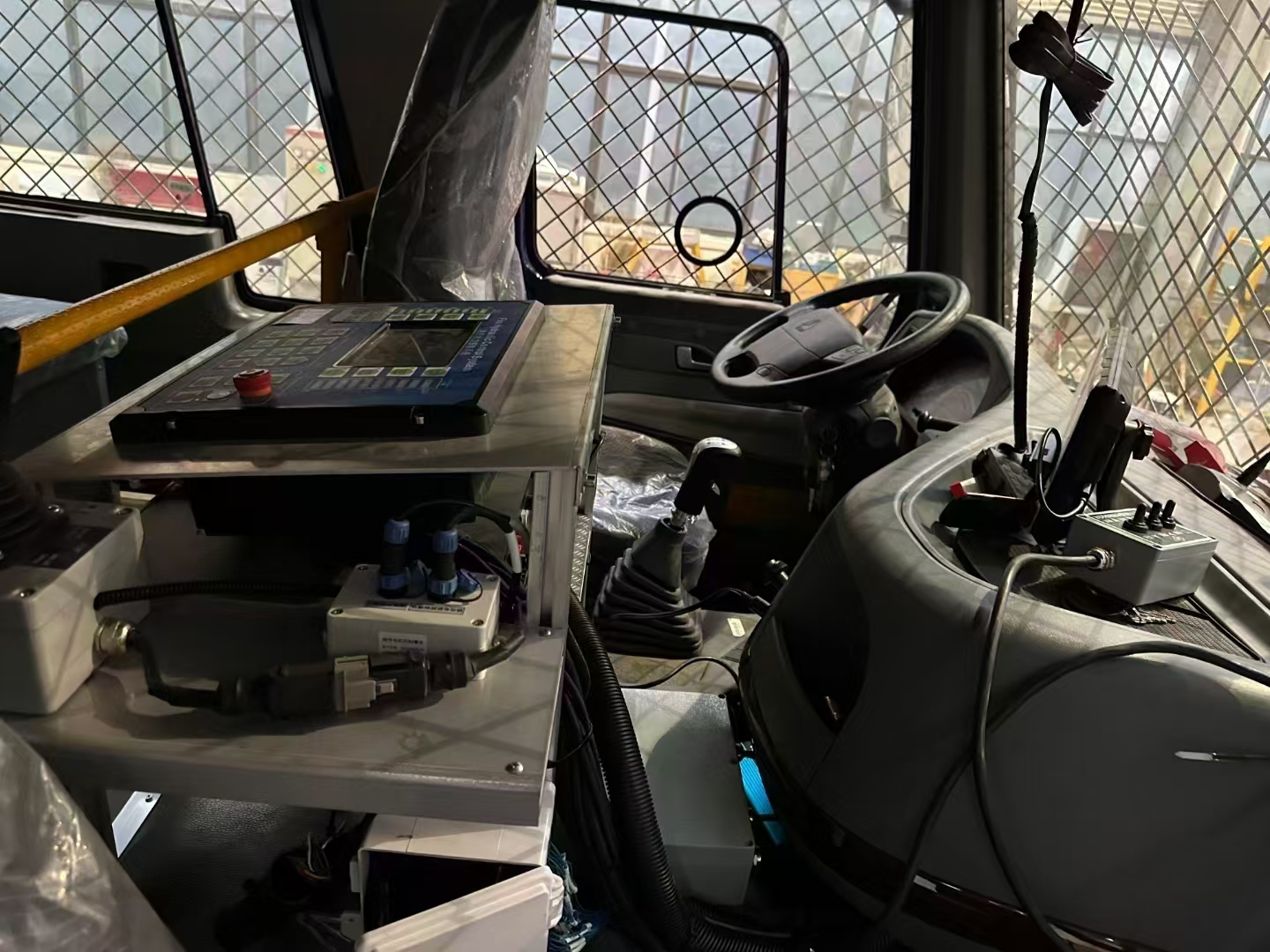

Centralized Control System: PLC programmable control, with operation panel and handle operation, realizing centralized control and status display.
Warning and Security System: The system consists of cylindrical red and blue warning lights, square warning lights, sirens and police horns.

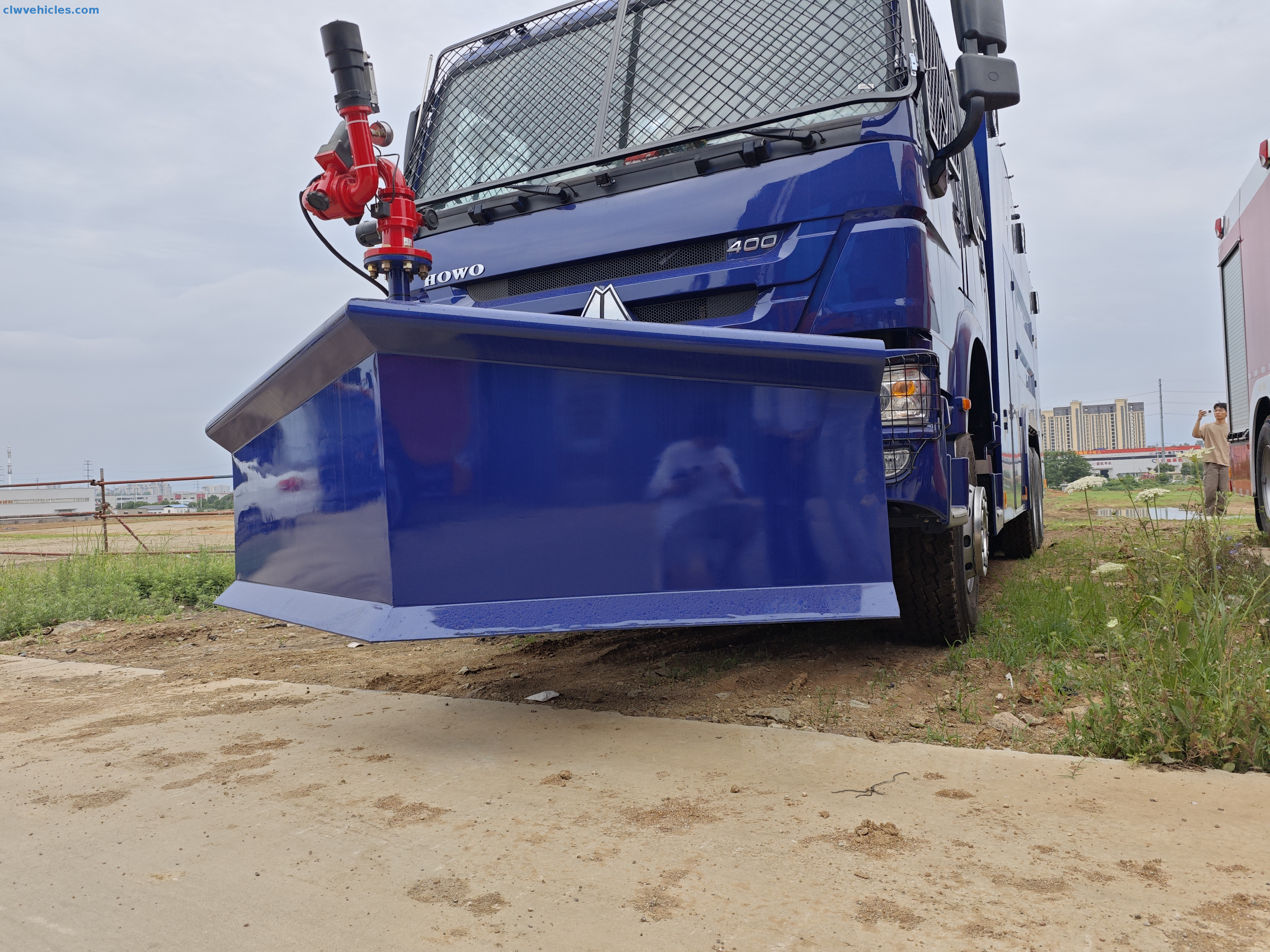

Roadblock Removal Device: V-shaped obstacle-clearing shovel, used for clearing ground obstacles.
Video Surveillance System: Composed of water cannon cameras, vehicle-mounted hard disk video recorders (with 500G hard disks) and 9-inch liquid crystal displays. The display integrates functions such as gun position display.
Reverse Monitoring System: Consisting of a rear-view camera for reversing and a display screen.
Broadcasting and Propaganda System: The power amplifier and horns of the siren can be used to make announcements on the scene and play discs.
Special Automatic Fire Extinguishing System for Vehicles: Equipped with special fixed aerosol automatic fire extinguishing devices for vehicles.
Power Supply System: The system can automatically provide power for the additional equipment.
