SITRAK
CLW
CLW5260WS1
Product Description：

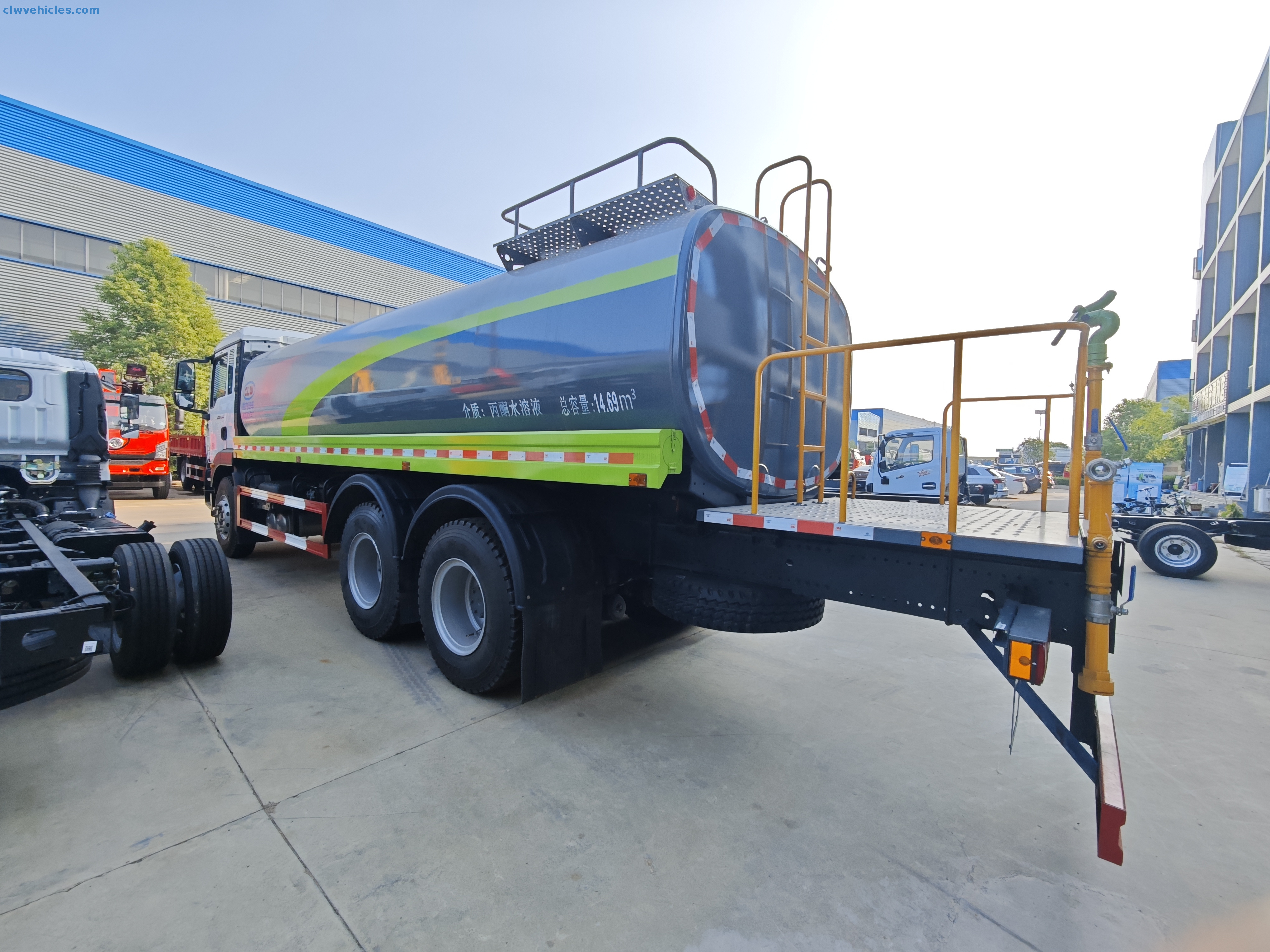

Introducing the Sitrak 6x4 Sprinkler Truck
Engineered for efficiency and versatility, the Sitrak 6x4 Sprinkler Truck combines robust chassis design with high-performance functionality for urban sanitation, epidemic control, and environmental management. Built on a robust Sitrak chassis, this vehicle is powered by a WP10.290E32 engine delivering 290 horsepower and a displacement of 9.726L, ensuring reliable operation across demanding tasks.
Key Specifications:
Tires: 11.00R20 18PR for enhanced durability and load-bearing capacity.
Dimensions: Compact yet spacious design measuring 10,020 × 2,550 × 3,200 mm (L×W×H).
Wheelbase: Optimized layout at 3,900 + 1,350 mm for superior maneuverability.
Advanced Spraying System:
The truck features an integrated upper-mounted water tank and precision spraying system, designed for multipurpose applications such as disinfection, dust suppression, and sanitation.
Tank Capacity: Total volume of 14.68 m³, with an effective capacity of 14 m³.
Tank Dimensions: 6,500 × 2,360 × 1,400 mm (L × long axis × short axis), engineered for optimal liquid storage and stability.
Customization Options:
Fog Cannon: Enhance coverage and efficiency with an optional high-range misting system.
Tank Material: Select specialized materials to suit specific operational requirements.
Safety & Durability:
Protection Guards: Constructed from Q235 steel for maximum impact resistance.
Rear Protection: Features a 120 × 50 mm cross-section profile, installed 480 mm above ground level, with welded joints ensuring structural integrity.
Ideal for municipal services and industrial applications, the Sitrak 6x4 Sprinkler Truck delivers precision, power, and adaptability in one streamlined package.
Main technical parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 10800 | |
| Loading Weight(kg) | 14005 | |
| Overall Dimension(mm) | 10020*2550*3200 | |
| Wheelbase(mm) | 3900+1350 | |
| Axle Load(kg) | 7000/18000 | |
| Top Speed(km/h) | 89 | |
| Chassis Brand | SITRAK | |
| Chassis Model | ZZ5256XXYN504GF1 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.290E32 |
| HP | 290 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 9726/213 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1160 | |
| Maximum Torque Speed(rpm) | 1200-1600 | |
| Gearbox | 10Forward/2Reverse Gear | |
| Tyre | 11.00R20 18PR | |
| Tanker Description | Actual Volume(cbm) | 14.6 |
| Effective Volume(cbm) | 14 | |
| Tanker Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 5 | |
| Standard configuration | Equipped With | |
| 1.Front Sprinkler(rear and side,sprinkling width>14m) | ||
| 2.Rear Working Platform With Water Cannon(range>28m) | ||
| 3.Pump(suction Lift>6m) | ||

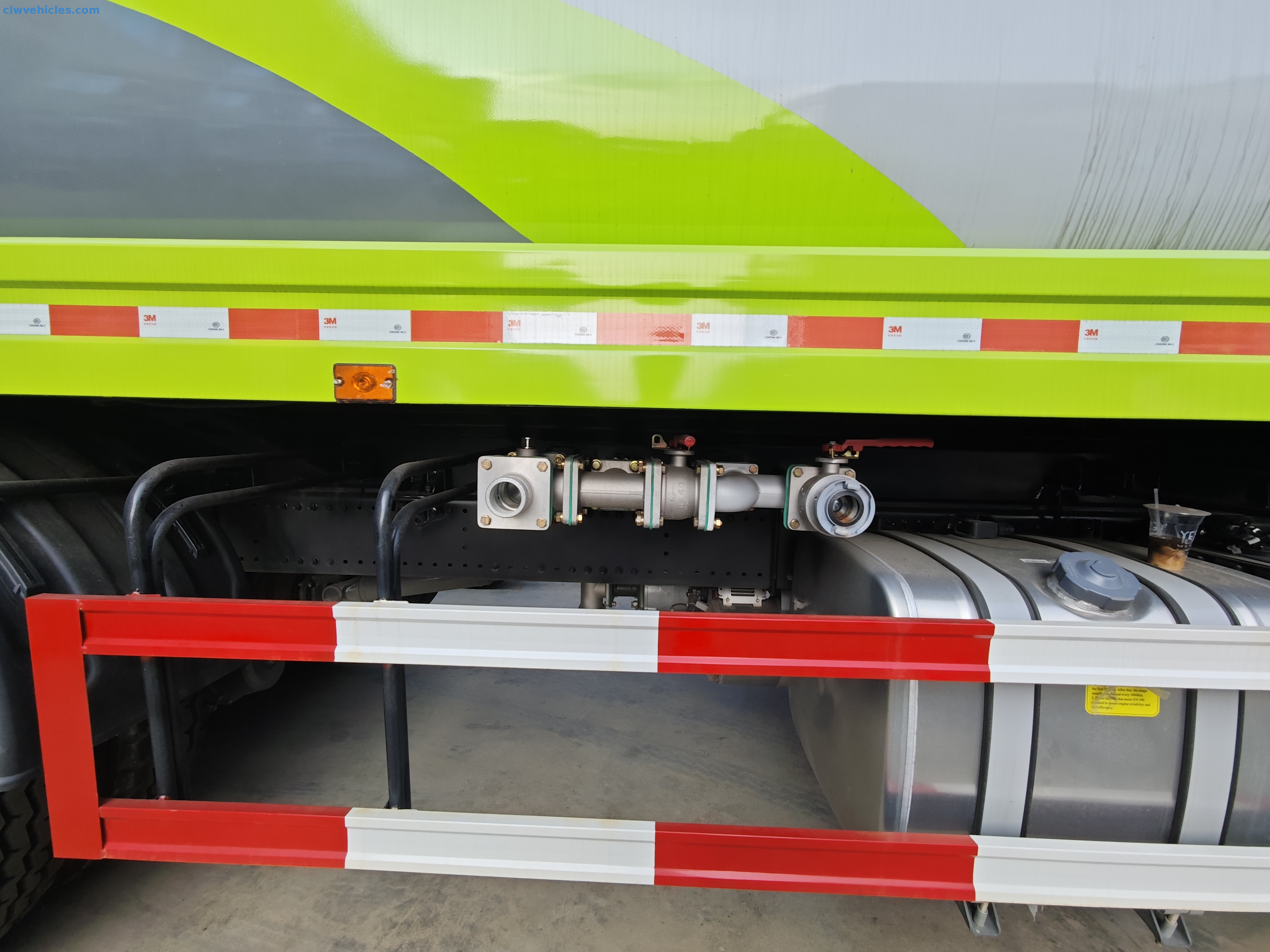

| 4.Fire Valve,Water Valve,and Filter Gauze | ||
| Optional Configuration | 1.Fog Cannon Could Be Available | |
| 2.Tanker Material Could Be Customized | ||
Enhanced Functional Features:
To maximize operational safety and versatility, the Sitrak 6x4 Sprinkler Truck is equipped with advanced auxiliary systems designed for seamless urban management and emergency response:
Audible Alert System: An integrated music-based warning device emits clear, attention-grabbing tones during operation, alerting pedestrians and vehicles to maintain safe distances and enhancing worksite safety.
Real-Time Water Level Monitoring: A precision-engineered water level gauge provides operators with instant visibility into tank volume, enabling timely water replenishment or shutdown to prevent dry runs or overflow scenarios.
Emergency Fire-Fighting Interface: Equipped with a dedicated fire hydrant connection, the vehicle doubles as an auxiliary firefighting unit. This feature allows rapid water intake during emergencies, expanding its role in crisis response and community safety.
Why It Stands Out:
These additions reinforce the truck’s adaptability, transforming it into a multifunctional solution for daily sanitation, public safety, and urgent fire-suppression tasks—all while prioritizing user convenience and operational reliability.
