Product Description:

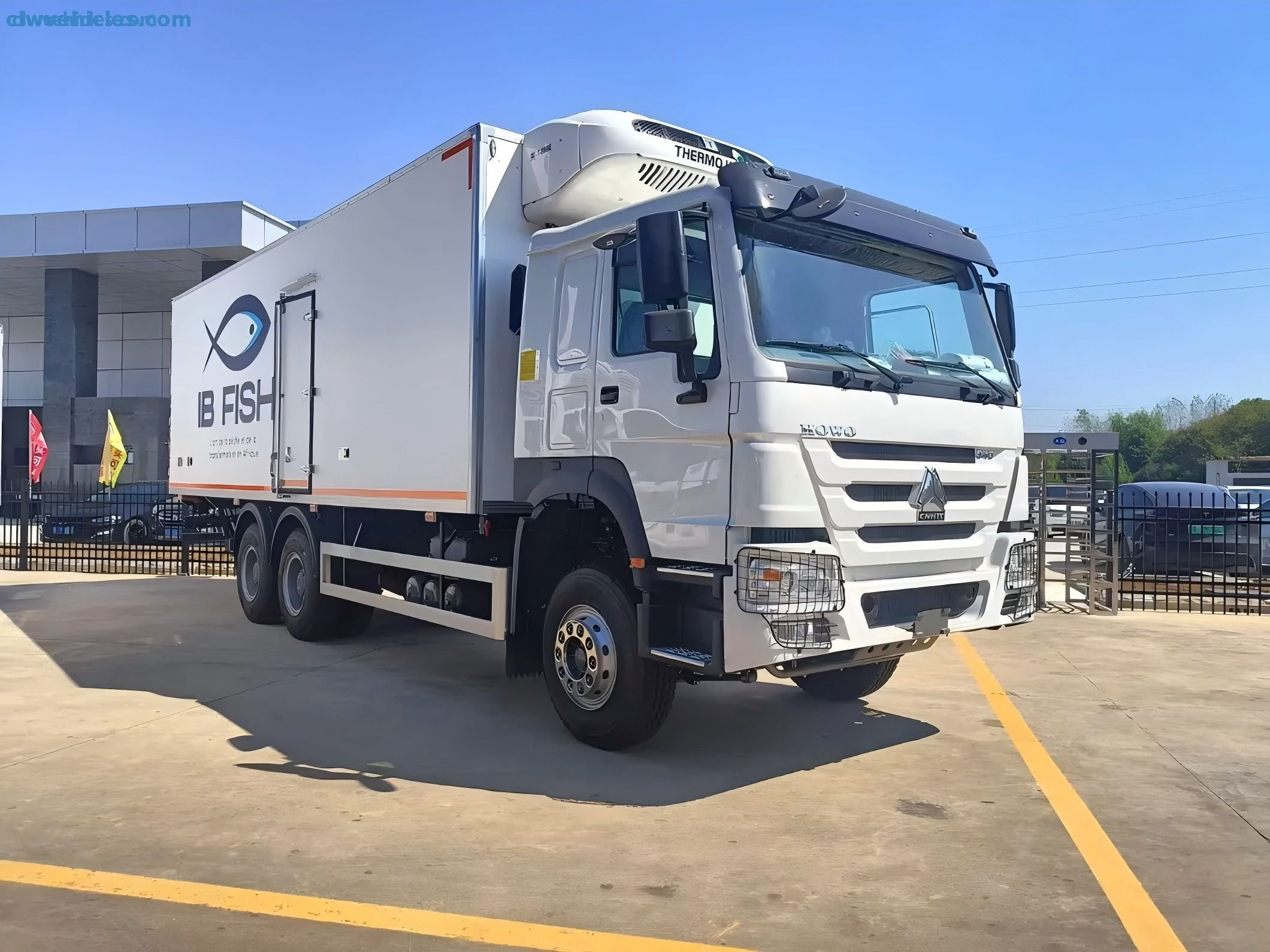

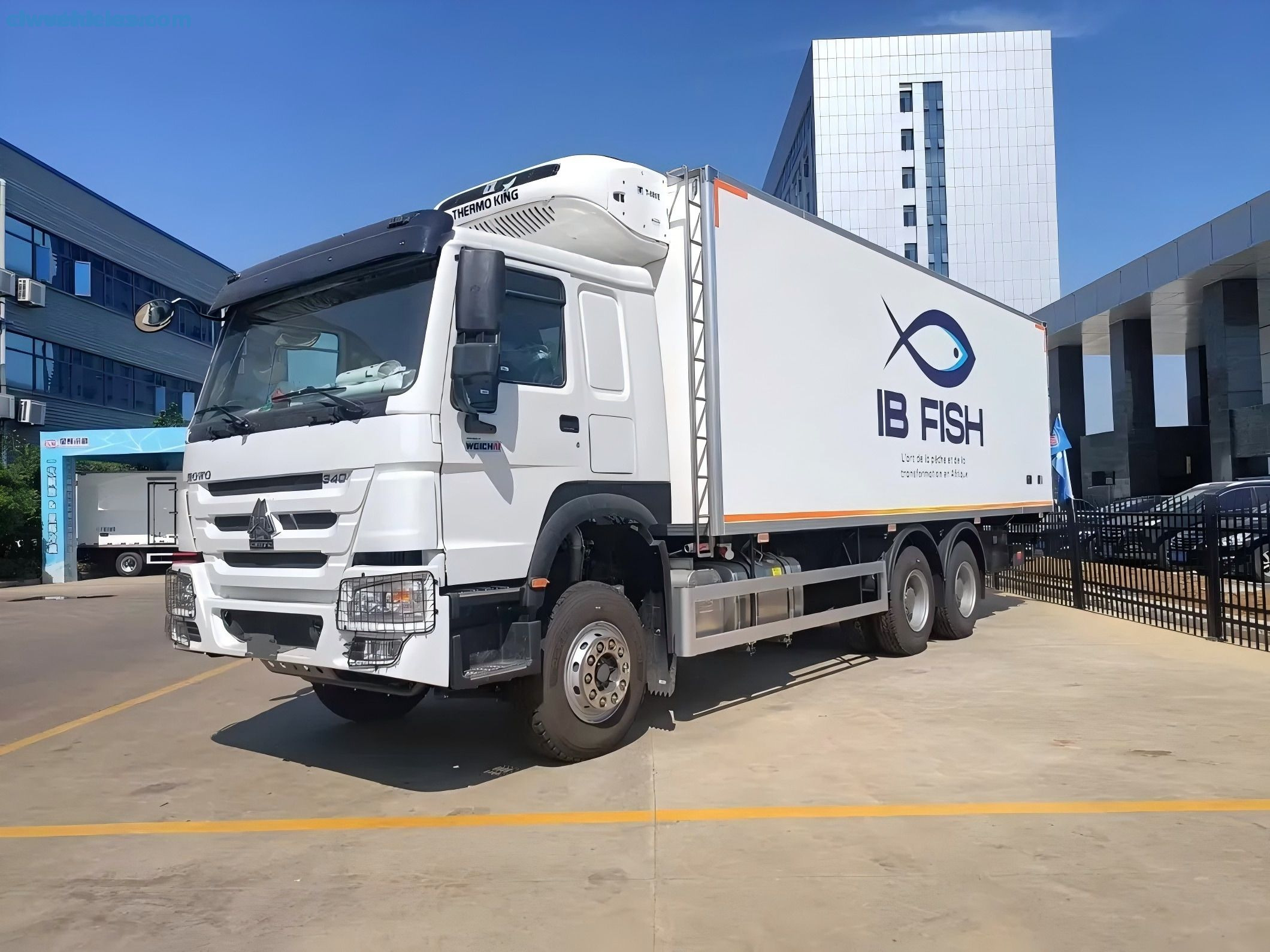

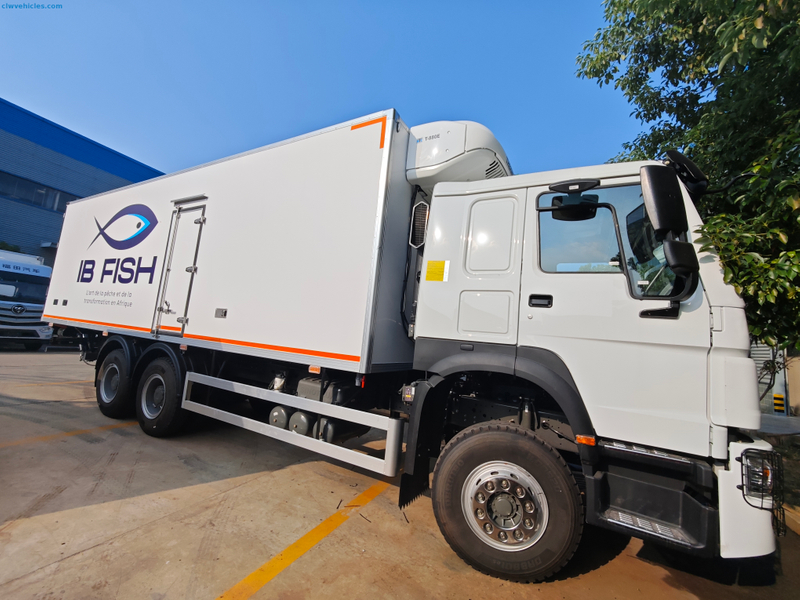

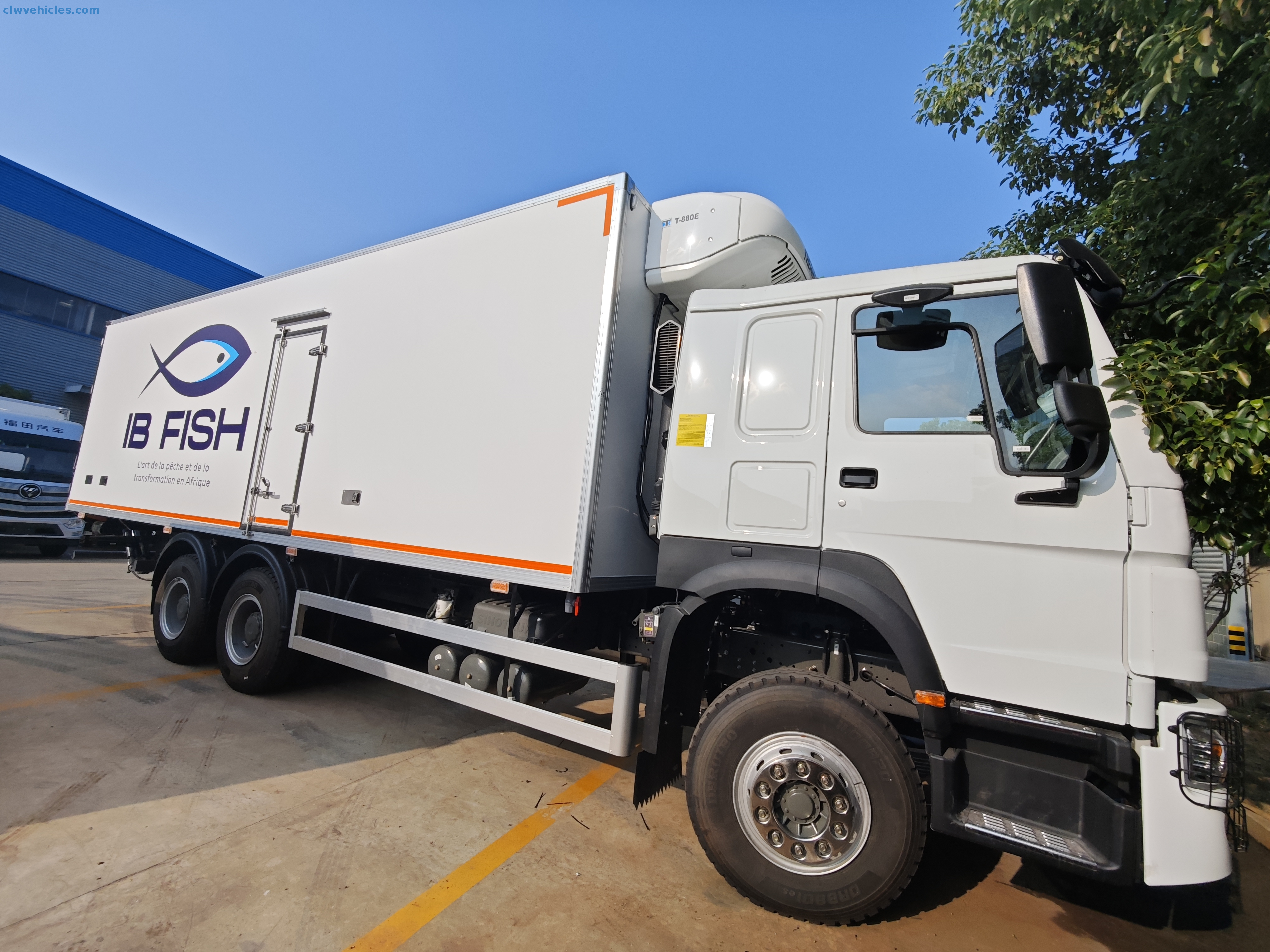

Sinotruk HOWO refrigerated truck: The chassis adopts the HOWO chassis. The overall vehicle dimensions are 12000x2600x3980mm, with a wheelbase of 4125 + 1350mm.
The engine is wp10.340e32, with a horsepower of 340 and a displacement of 9.726L. It has 10 forward gears and 2 reverse gears, and the tires are 11.00R20 18pr.
Upper-mounted device: The main devices are the refrigeration unit and the refrigerated compartment body. The size of the cargo compartment is 9400x2600x3980mm. The thickness of the compartment body is 5 - 8mm. The inner material is fiberglass reinforced plastic, and the outer material is color steel plate. The interlayer of the compartment body is filled with 8cm polyurethane foam, and there are stainless steel corner protectors.
There is a built-in refrigeration unit, and refrigeration units of other brands with the same power can be optionally installed. The side protection material is Q235A carbon steel. Optionally, rear ventilation slot aluminum guide rails, meat hook compartments, and tailgates can be installed.
Main Technical Parameters：
| vehicle Description | Brand | CLW |
| GVW（kg） | 24900 | |
| Curb Weight（kg） | 10900 | |
| Loading Weight（kg） | 13805 | |
| Overall Dimension（mm） | 9780*2500*3335 | |
| Wheelbase（mm） | 4125+1350 | |
| Axle Load（kg） | 7500/18000 | |
| Top Speed（km/h） | 90 | |
| Chassis Brand | HOWO | |
| Chassis Model | ZZ3257V434GF1 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.340E32 |
| Hp | 340 | |
| Emission Standard | Euro 3 | |
| Displacement/Output（ml/kw） | 9725/250 | |
| Fuel Type | Diesel | |
| Rate Speed（rpm） | 2200 | |
| Maximum Torque（N·m） | 1250 | |
| Maximum Torque Speed（rpm） | 1400-1600 | |
| Gearbox Brand | Howo | |
| Gearbox | 10Forward/2Reverse Gear | |
| Tyre | 11.00R20 18PR | |
| Van | Box Size(mm) | 6080*2440*2450 |
| Material | Fiberglass | |
| Insulating Layer | 8cm Polyrethane Foam | |
| Refrigerator | Brand | Cool speed |
| Applicable Temperature | -20°~0° | |
| Remarks | Part Optional:Ventilation Slot | |
| Hook | ||
| External Power Supply | ||
| Side Door | ||
Optional tailgate：
The weight of the tailgate is 550 kg. The horizontal length of the tailgate in the retracted state is 295 mm. When the tailgate is selected, only the rear protection with a cross-sectional dimension of Φ121 is used. The material of the rear protection is Q235. The connection method is welding. The ground clearance is 470 mm. Optional refrigeration unit with equivalent power from other manufacturers. Optional fixing method of side protection crossbars. Side protection: material Q235, bolted connection. Rear lower protection: material Q235, bolted connection. Cross-sectional dimension is 120×60 mm. Ground clearances are 480 mm, 460 mm, and 440 mm.
