Iveco
CLW
CLW5180AV1
Product Description：
Iveco Amublance — Data empowerment enables zero -time-lag emergency response.

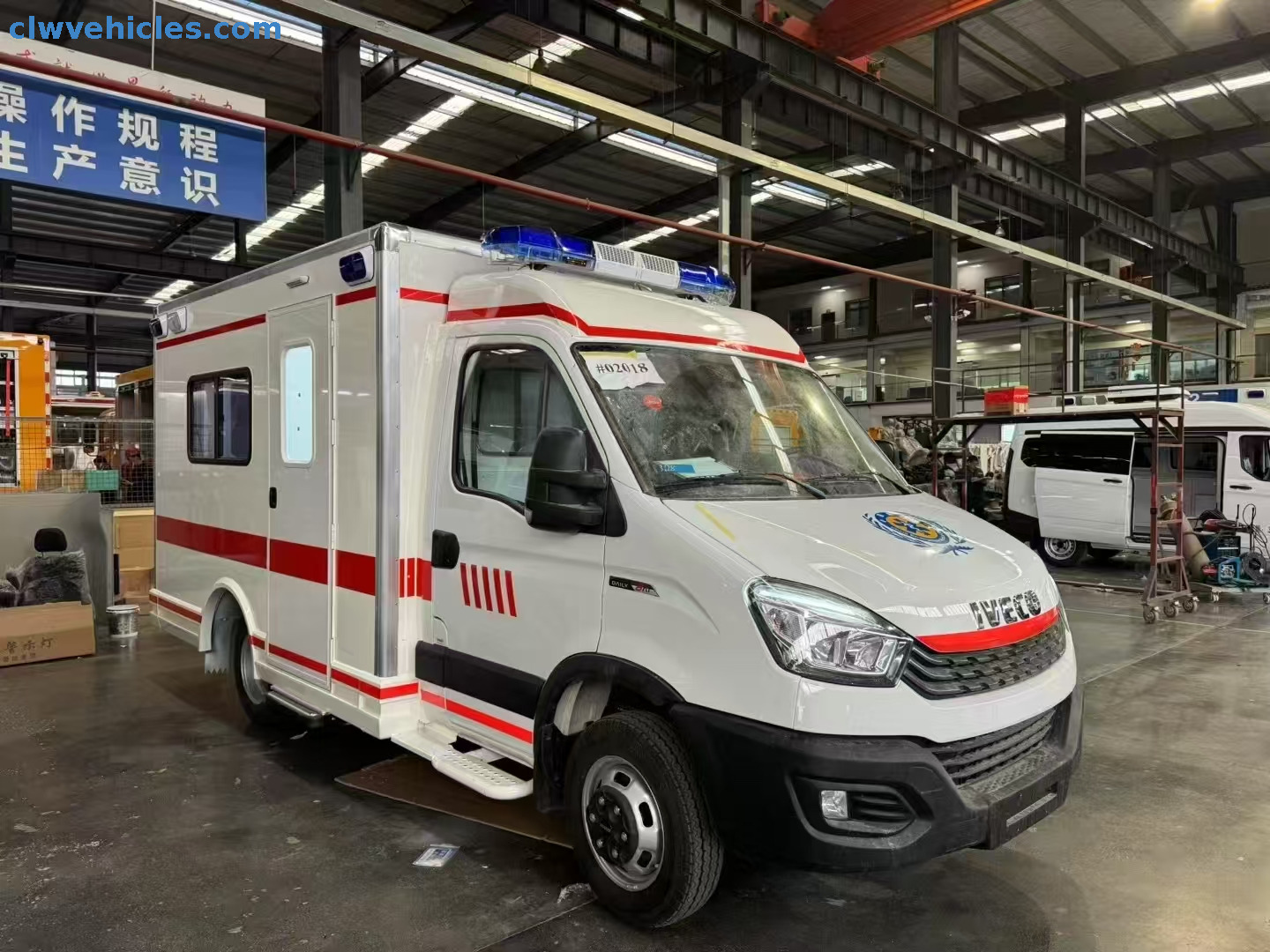

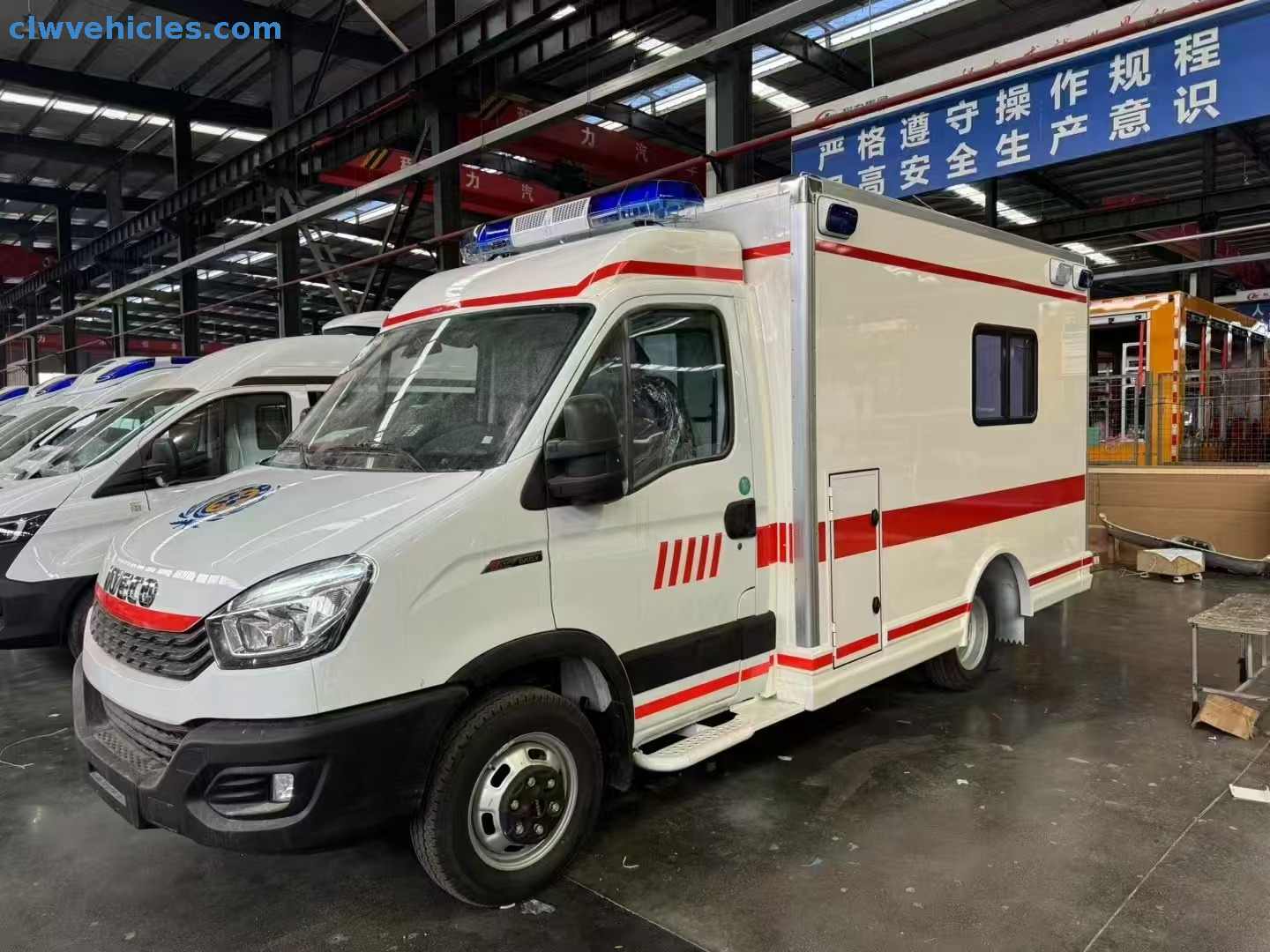

The IVECO Daily Xing pure electric monitoring ambulance is refitted from the long-axis model of the Daily Xing launchedby Nanjing IVECO.
The rated power of the drive motor is 70KW,and the peak power is 150KW.
It is equipped with trafficcongestion assistance,cruise control,a fatigue driving monitoring and early warning system,automatic inductionheadlights,LEDrear position lights,and daytime running lights.
It adopts a load-bearingbody with anintegrated,cage-typeframe structure,designed in accordance with European safety collision standards.
It features a lightweight body designwith high-strength tensile steel and PHS hot-formed steel.
The overall body has a low center of gravity,making it morestable,effectively ensuring the safety of the driver.
The medical cabin has a large space and a reasonable design.
The wholevehicle adopts the leading medical vehicle refittingtechnologyin China.
Advance safety configurations:
The ambulance is equipped with a variety of advanced safety systems,including the Electronic Stability Program(ESP)combined withElectronic Brake Assist(EBA)and Hill Hold Control(HHC),Automatic Emergency Braking,Lane Departure Warning with Lane KeepingAssist System,Blind Spot Detection System(BSD+Blind Spot Warning),as well as a Fatigue Driving Monitoring and Early WarningSystem.These features ensure that the vehicle can provide excellent safety performance under various driving conditions.
A robust vehicle body design and structure:
It adopts an integrated,cage-type frame structure load-bearing body and complies with European safety collision design standards.The vehicle body is made of high-strength tensile steel and PHS hot-formed steel,achieving a lightweight design.The overall vehiclebody has a low center of gravity,making it more stable and providing additional safety guarantees for the driver.

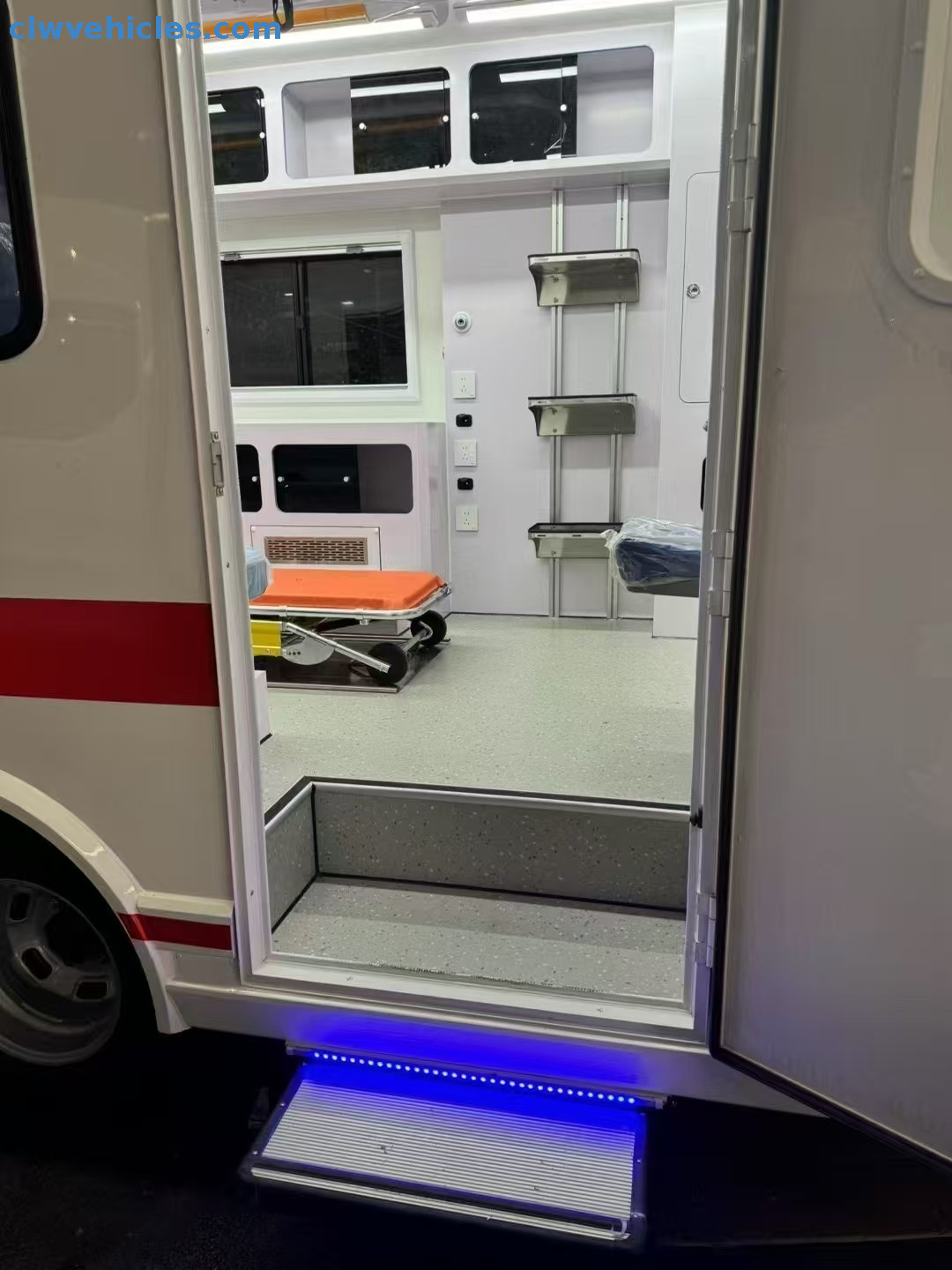

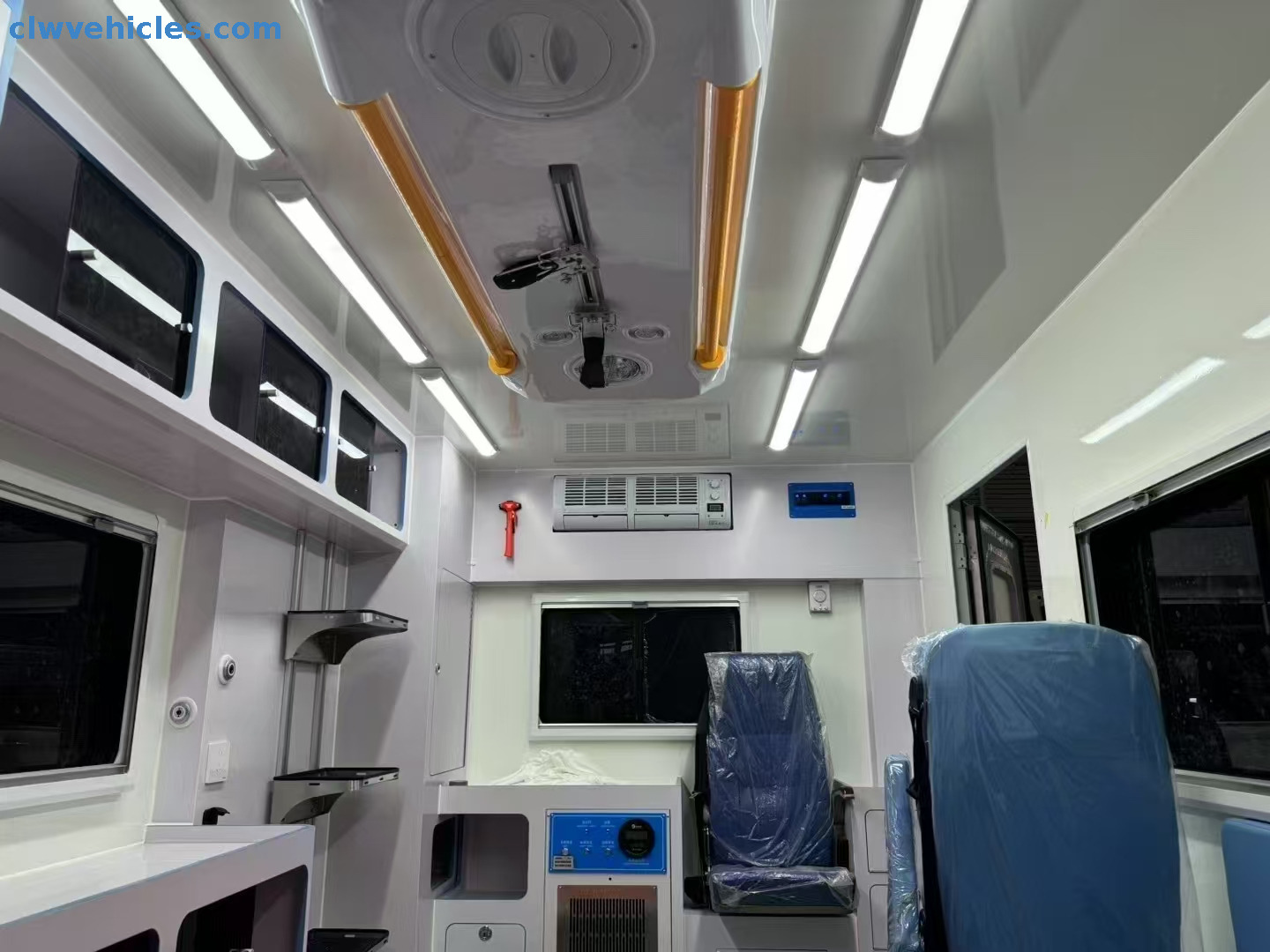

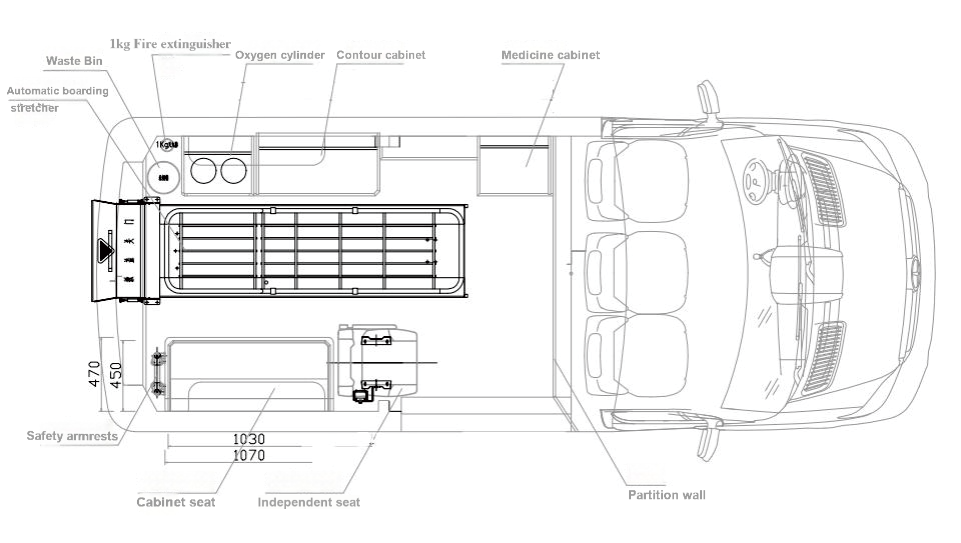

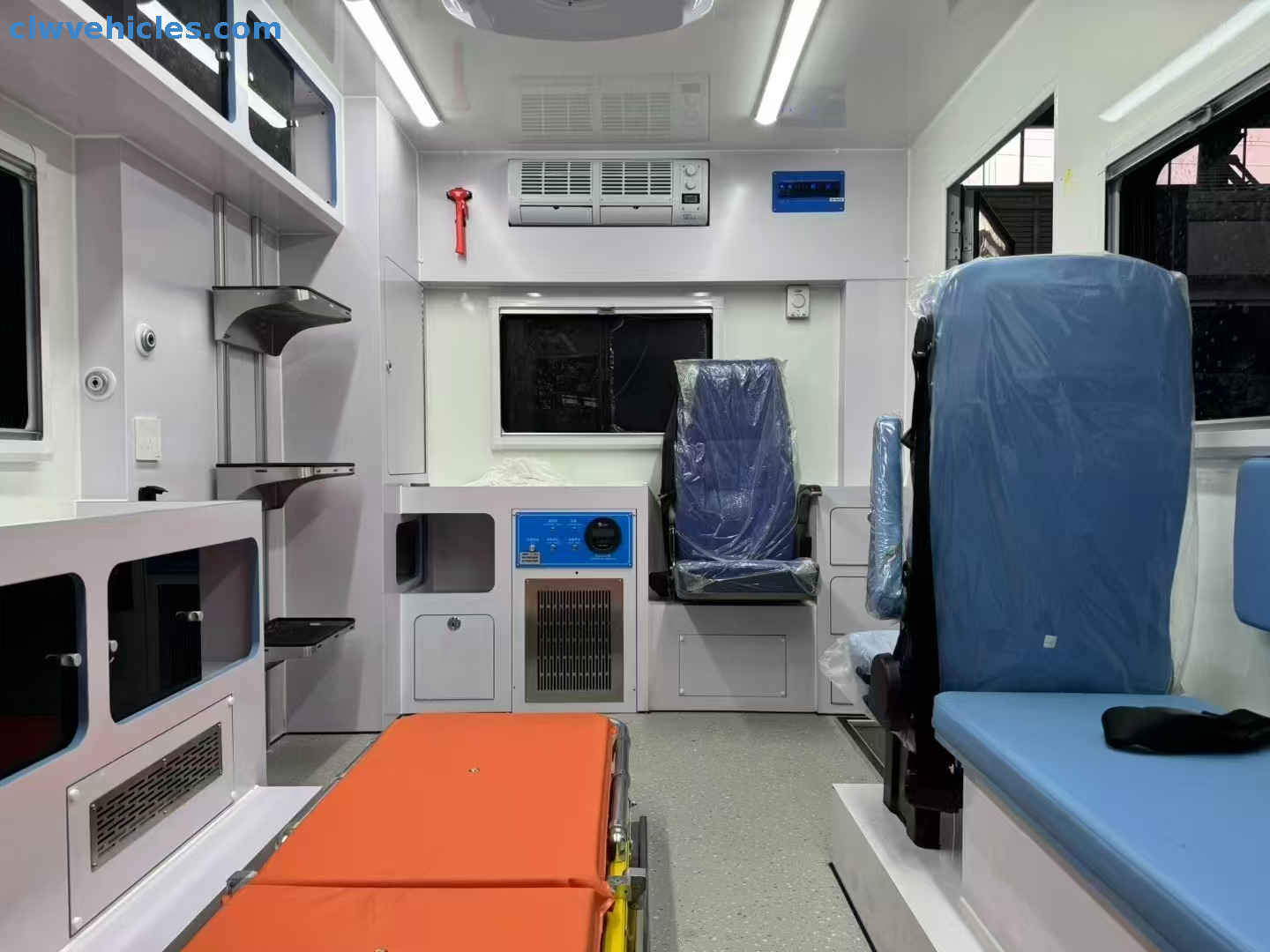

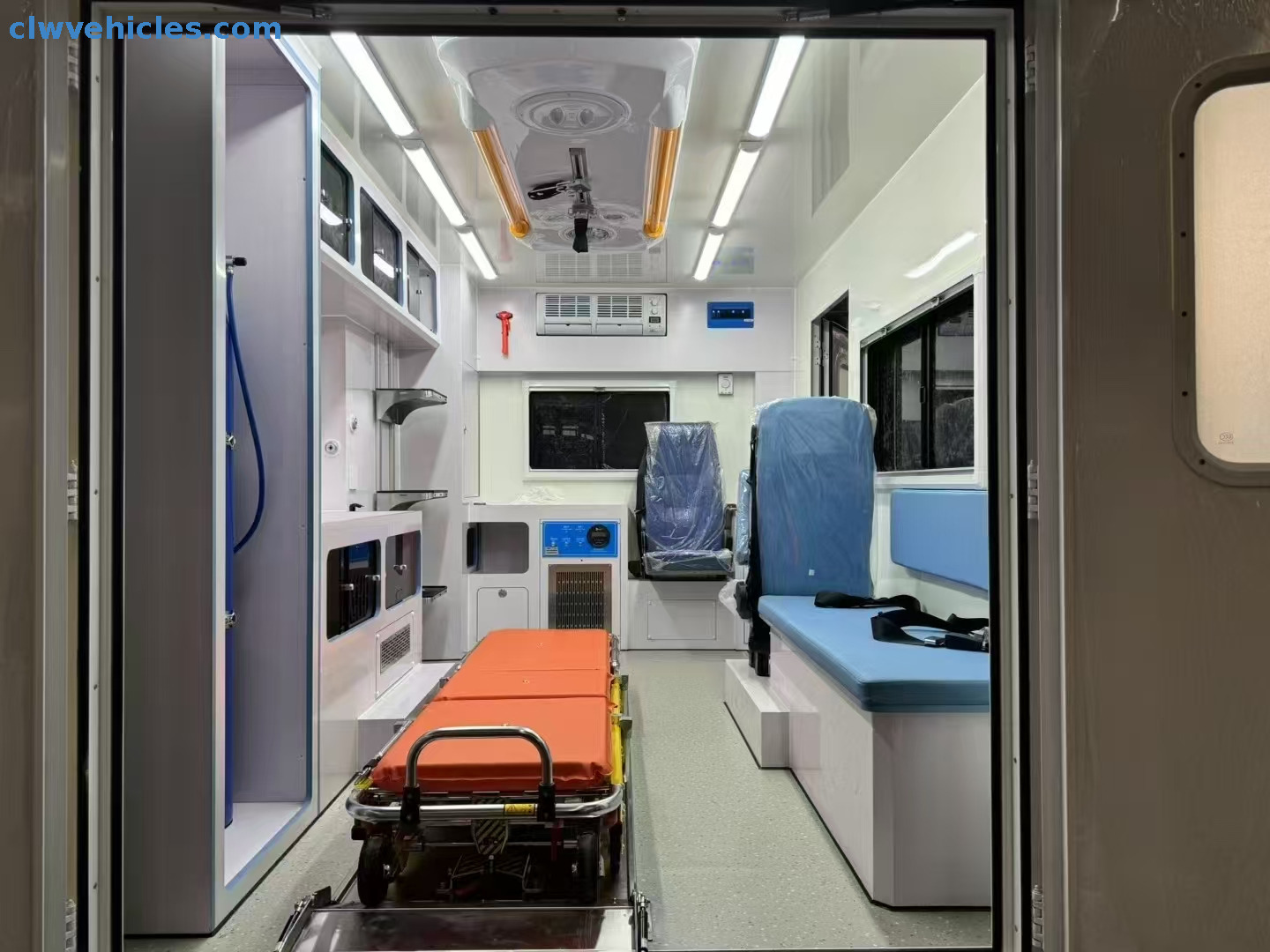

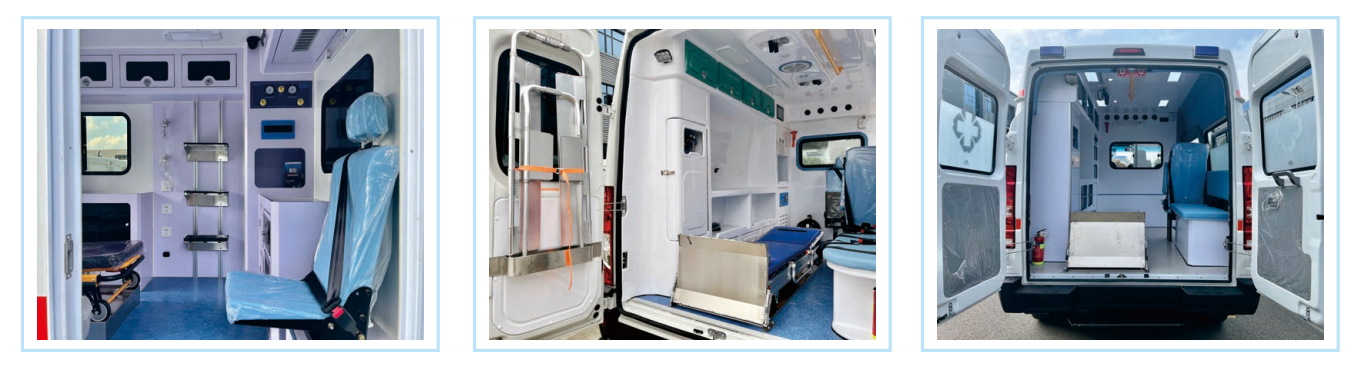

Spacious medical cabin and leading refitting technology
The medical cabin of this ambulance is spacious and reasonably designed,capable of accommodating various medicalequipment.Theeentire vehicle adopts the leading medical vehicle refitting technology in China,making it suitable for various hospitals and emergencycenters.
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Brand Iveco 4x2 Modular Ambulance |
| Driving Type | 4x2 |
| Color | White or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 4490 |
| Curb Weight(kg) | 3420 |
| Dimensions | |
| Wheelbase(mm) | 3300 |
| Front/Rear Overhang(mm) | 1002/1688 |
| Approach/Departure Angle | 23/11 |
| Overall Dimension(mm) | 5990x2330x2770 |
| Max Speed(km/h) | 130 |
| Engine | |
| Engine Model | F1CE8481K |
| Engine Type | Supercharged inter cooler, in-line 4 cylinders |
| Max.Output(kw) | 125(170hp) |
| Drive Line | |
| Transmission | 5 forwards,2 reverse gear |
| Booster Type | Hydraulic boost |
| Brake | Front (ventilated disc type)/ Rear (Disc type) |
| Axle | |
| Axle | 1610/2880 |
| Tire Specification | |
| Tire Specification | 195/75R16LT 10PR; 6 tires |
| Front Wheel Track(mm) | 1725 |
| Rear Wheel Track(mm) | 1538 |
| Number of Leaf Springs | -/7 |
| Standard Configuration | |
| Transit Type | 1. Portable folding stretcher |
2. One medicine cabinet | |
3. One fixed installation oxygen cylinder | |
4. Two infusion hooks | |
5. One sterilamp | |
6. One waste bin | |
7. Two single seats | |
8. One set long chair(2 seat cushion, soft back and seat belt) | |
9. One set middle partition with sliding window | |
10. One set full blue warning lamp alarm on the top of the front | |
11. Two 12V light lamps | |
12. One inverter | |
13. One group 220V power socket | |
14. Medical wear-resistant plastic leather floor | |
15. Sign the ambulance cross | |
16. Air conditioning and heater | |
| ICU | 1. Long line of rescue warning lights and all around flashing lights |
2. Automatic carriage stretcher | |
3. Fold stretcher | |
4. Oxygen supply system: oxygen cylinder and oxygen cylinder cabinet, quick interface | |
5. Integral medical cabinet on the left | |
6. Work seat, escort seat | |
7. One sterilamp | |
8. Two infusion hooks | |
9. One 1000W inverter | |
10. External power supply system | |
11. Ventilation fan | |
12. Two 12v lighting lamps | |
13. Two 220V power sockets | |
14. One set of power control panel | |
15. Middle partition with observation window | |
16. Flushable medical wear-resisting floor | |
17. One waste bin | |
18. Car body advertising and ambulance identificatio | |
19. Air conditioning and heater | |
