ISUZU
CLW
CLW5180OT7

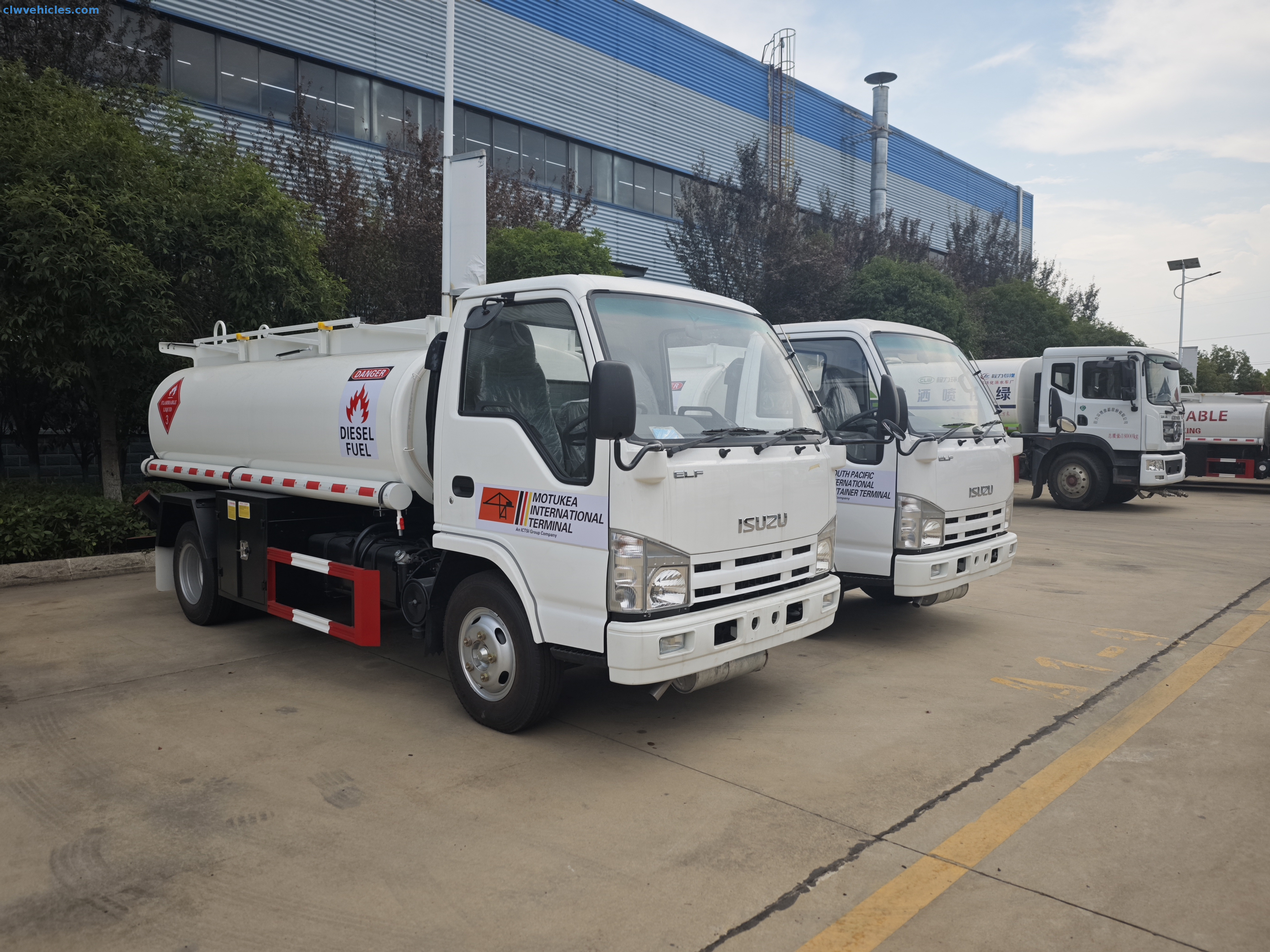

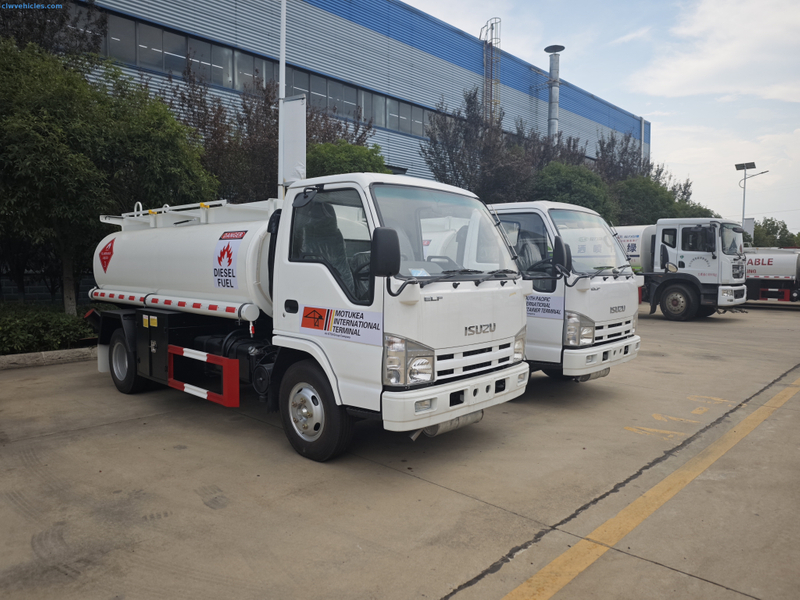

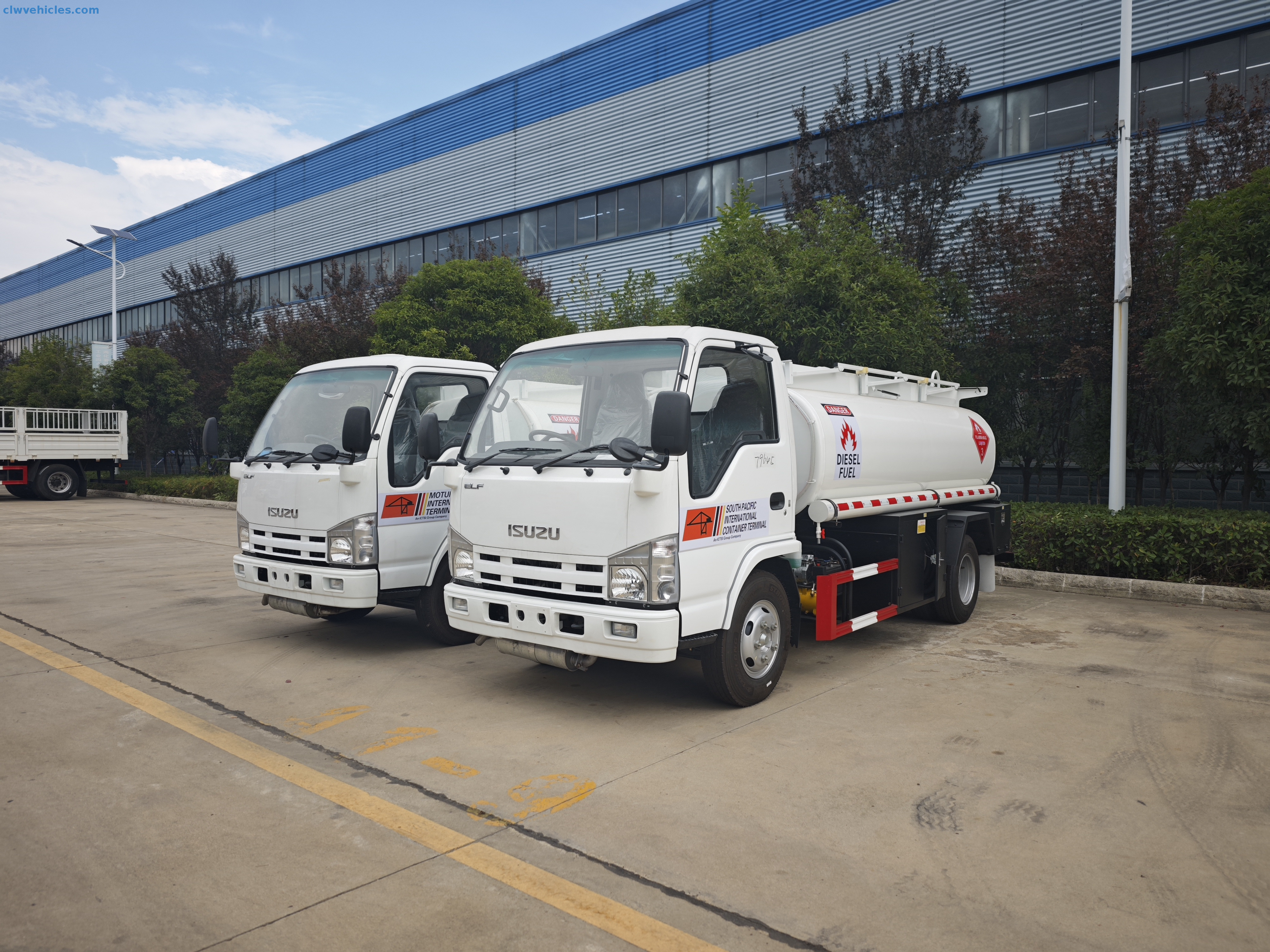

The ISUZU 100P 4x2 5cbm Oil Tanker Truck from CLW Group is engineered for fuel distribution, petrol station refilling, and bulk oil transport. With its robust ISUZU 100P chassis, 125hp turbocharged engine, and 5,000-liter tank capacity, it ensures safe, efficient, and reliable petroleum logistics.
Whether you are delivering diesel, gasoline, or kerosene, this ISUZU tanker truck is built with carbon steel or aluminum alloy tanks, advanced vapor recovery, and bottom loading systems, making it the preferred choice for oil companies, distributors, and service fleets.
Fuel-Specific Design – 5,000L tank capacity with 2 compartments for flexible fuel distribution.
Safe Loading & Discharge – Equipped with pneumatic bottom valves, API adapters, and vapor recovery system.
⚙ Durable Tank Build – Carbon steel Q235 (optional aluminum alloy) with 4–5mm reinforced thickness.
Efficient ISUZU Engine – JE493ZLQ6K, 125hp turbocharged + intercooling for power and fuel economy.
Compliance Ready – Meets urban and rural road fuel delivery standards with reliable braking and steering.
Enhanced Safety – Emergency venting system, anti-overflow protection, and lockable outlet box.
General Parameters
Model: CLW Brand ISUZU 4x2 Oil Tank Truck
GVW: 7,350 kg
Payload: 4,000 kg
Curb Weight: 3,220 kg
Dimensions: 6000 × 2050 × 2500 mm
Wheelbase: 3,360 mm
Speed: Max 89 km/h
Engine & Transmission
Engine: JE493ZLQ6K, 125hp, 93 kW
Type: Turbocharged, intercooled, water-cooled, direct injection
Transmission: MSB-5M (5 forward + 1 reverse)

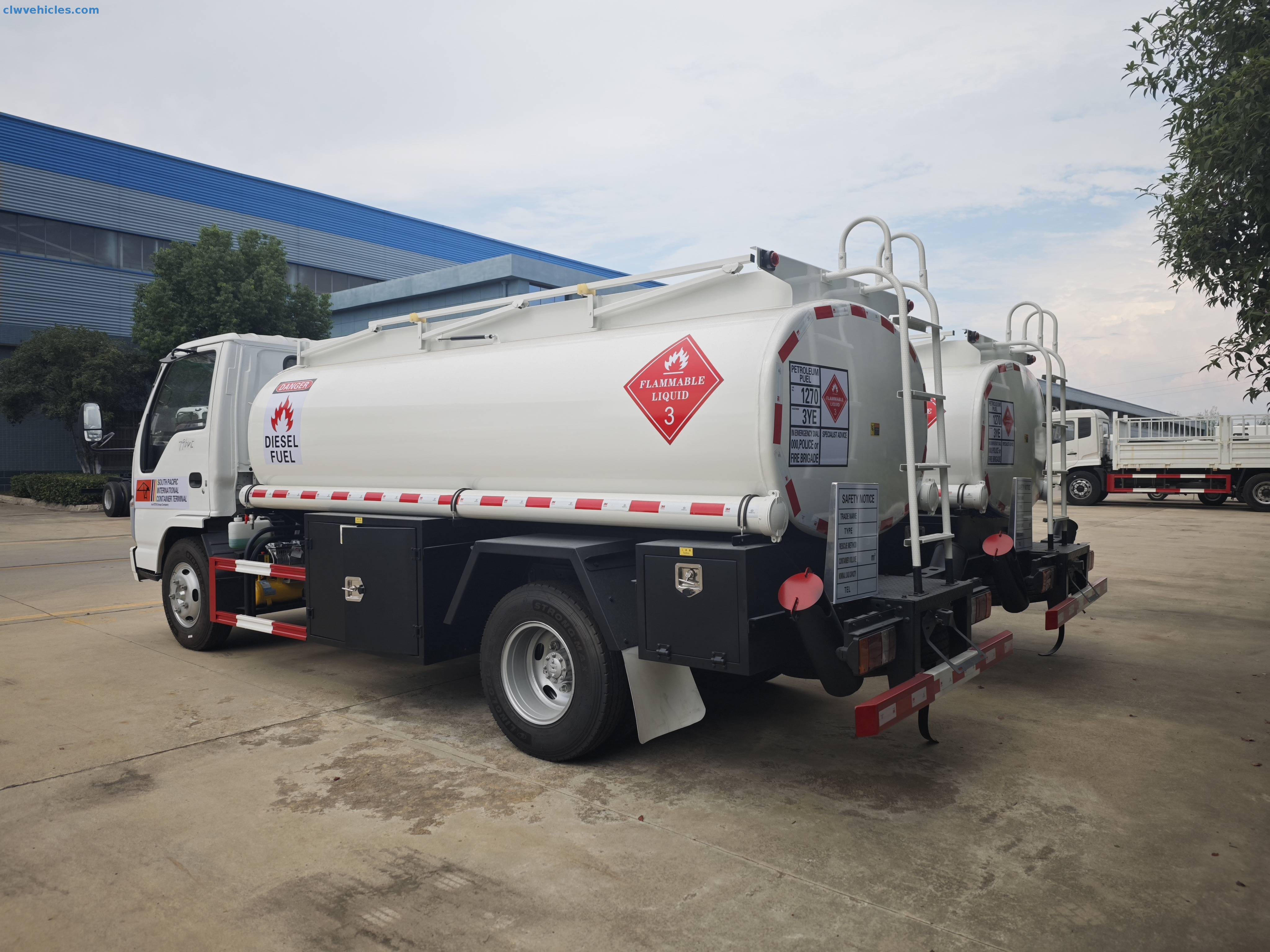

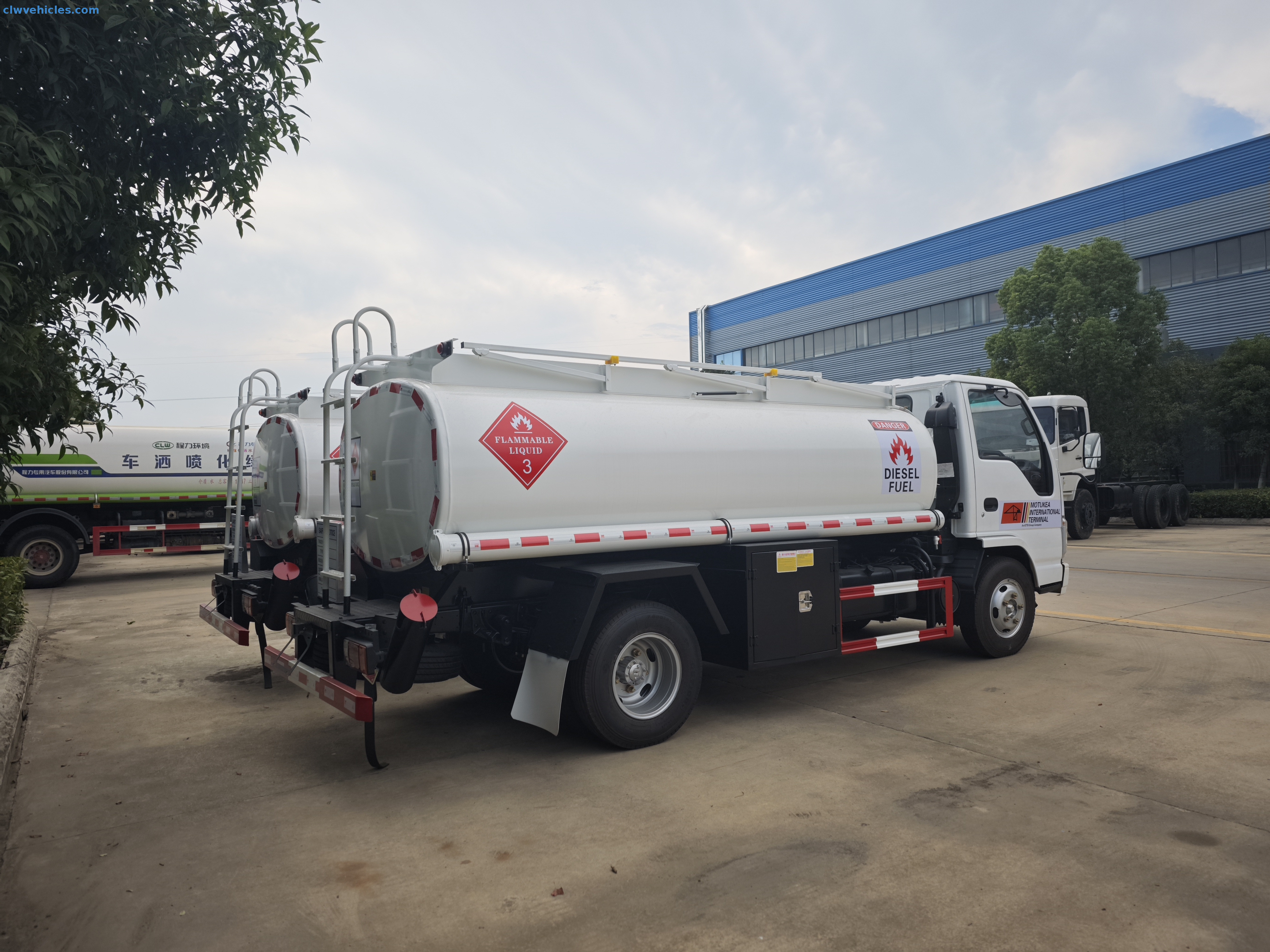

Tank Configuration
Volume: 5 cbm (4.75 m³ effective capacity)
Material: Carbon steel Q235 or optional aluminum alloy
Compartments: 2
Thickness: Head 4mm, shell 5mm, partition 5mm, breaker plate 4mm
Manholes: 2 × 20-inch with vacuum & emergency vents

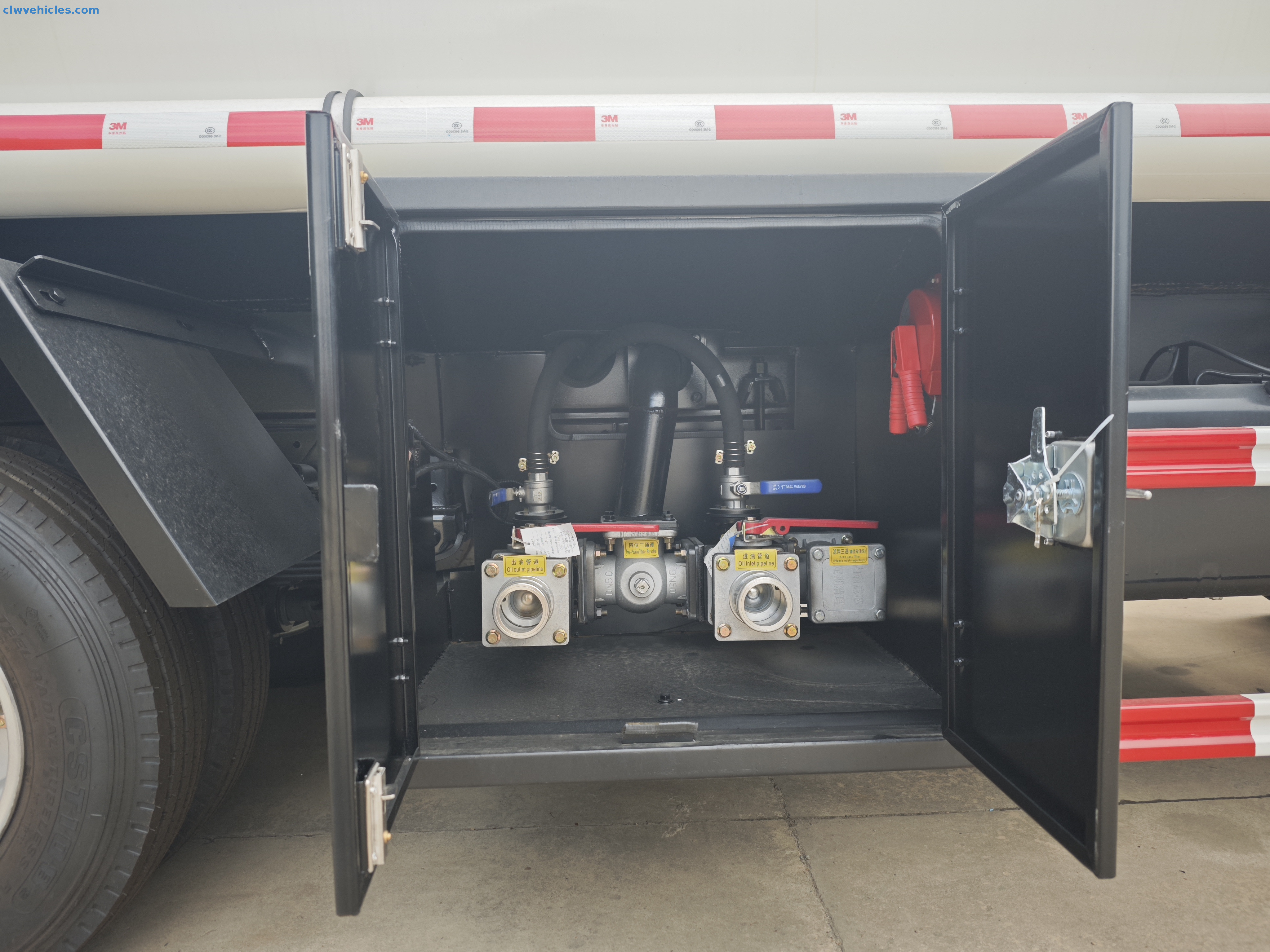

Fuel Loading & Discharge System
Bottom loading with 2× 4-inch pneumatic bottom valves
2× 4-inch API adapters with dust covers
Gravity discharge system with aluminum alloy pipelines
Outlet box with collapsible door and lock
Safety Systems
Vapor recovery: pneumatically controlled dual vents + 3-inch pipeline
Emergency vent system
Protective covers for manholes
Brake: dual-line air brake system
Tire: 7.00R16LT 14PR, 6+1 spare
Q1: What is the tank capacity of the ISUZU 100P Oil Tanker Truck?
A1: It has a 5,000-liter (5cbm) fuel tank, divided into 2 compartments for flexible distribution.
Q2: What type of fuel can it transport?
A2: This tanker is designed for diesel, gasoline, kerosene, and other petroleum-based fuels.
Q3: Is the tank made of carbon steel or aluminum?
A3: The standard build is Q235 carbon steel, but aluminum alloy is also available for lighter weight and corrosion resistance.
Q4: How does the fuel discharge system work?
A4: It uses a bottom loading + gravity discharge system with pneumatic valves and API adapters for fast and safe operation.
Q5: What safety systems are included?
A5: Equipped with emergency vents, vapor recovery system, protective covers, and lockable outlet box to ensure maximum safety.
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU 4x2 Oil Tank Truck |
| Driving Type | 4x2 |
| Color | White or based on client's request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 7350 |
| Rated Payload Weight(kg) | 4000 |
| Curb Weight(kg) | 3220 |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Front/Rear Overhang(mm) | 1090/1550 |
| Approach/Departure Angle | 18/15 |
| Overall Dimension(mm) | 6000*2050*2500 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | JE493ZLQ6K |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 93kw(125hp) |
| Drive Line | |
| Transmission | MSB-5M; 5 forwards,1 reverse gear |
| Axle | |
| Axle(kg) | 2635/4715 |
| Tire Specification | |
| Tire Specification | 7.00R16LT 14PR; 6+1 spare tire |
| Front Wheel Track(mm) | 1565 |
| Rear Wheel Track(mm) | 1508 |
| Number of Leaf Springs | 7/5+6 |
| Upper Body | |
| Fuel Tank | |
| Capacity(cbm) | 3850*1580*1060mm; 4.75cbm |
| Tank Material | Carbon steel Q235(Aluminum alloy) |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| Thickness(mm) | Head is 4mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 2 |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. |
| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
