ISUZU
CLW
CLW5180ROF3
Product Description：
Quick Bin Swaps – Containers can be loaded, locked, and swapped in under two minutes, minimizing downtime.
High Payload – Handles 4 m³ steel bins with up to 8 tons capacity, dumping at a 51° angle for efficient unloading.
Multi-Scenario Use – From city streets to industrial yards, this hook lift garbage truck adapts easily to municipal waste routes, construction debris, and temporary roll-off jobs.
ISUZU 4KH1CB6HB Euro 6 diesel engine
Power: 132 HP, Torque: 290 N·m
5-speed manual gearbox (MSB-5MT) + reverse
Top speed: 90 km/h
Dimensions: 5,550 × 2,150 × 2,315 mm
Wheelbase: 3,365 mm
Approach/Departure Angles: 21° / 22°
Axles: 3,000 kg front / 5,280 kg rear
Tires: 7.50R16LT for stable support
Power steering for effortless maneuvering
Air-brake system with vacuum boost ensures safe stops under load
Hydraulic Lift Power – 16 MPa working pressure for fast and stable bin handling
Operator-Friendly Controls – Manual control box for precise, reliable operation
No Extra Equipment Needed – Load, transport, and dump without forklifts, ramps, or additional staff
Fast Operation – Swap bins in minutes, boosting route efficiency
Compact Design – Navigates tight alleys, narrow streets, and busy job sites
Durable Build – Strong steel chassis and reinforced axles ensure stability
Eco-Friendly Power – Euro 6 engine for reduced emissions and compliance
Trusted CLW Quality – Backed by global after-sales service and spare parts supply
For city waste management companies, construction contractors, or roll-off service providers, the ISUZU 4×2 Hook Lift Garbage Truck offers the perfect balance of compact size, strong performance, and flexible container handling. It’s a smart investment for anyone looking to improve efficiency in modern waste transport.
Technical Specifications of the CLW Hook arm garbage truck：
| Main Technology Parameter | |
| Model Name | CLW Group ISUZU 4x2 roll-on-off garbage Transport truck |
| Driving Type | 4x2 |
| Color | Olive drab color or based on client’s request. |
| Weights | |
| GVW(kg) | 8280 |
| Rated Payload Weight(kg) | 4385 |
| Curb Weight(kg) | 3700 |
| Dimensions | |
| Wheelbase(mm) | 3365 |
| Overall Dimension(mm) | 5550*2150*2315 |
| Front/Rear Overhang(mm) | 1120/1065 |
| Approach/Departure Angle | 21/22 |
| Max speed(km/h) | 90 |
| Engine | |
| Engine model | 4KH1CB6HB |
| Emission standard | Euro 6 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-4 cylinders, diesel |
| Displacement(L) | 2.999 |
| Max. output (kw) | 97(132hp) |
| Drive Line | |
| Transmission | MSB-5MT ;5 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 3 tons |
| Rear axle | Dena 5.28 tons |
| Tire specification | |
| Tire specification | 7.50R16LT 14PR; 6+1 spare tire |
| Front Wheel Track(mm) | 1640 |
| Rear Wheel Track(mm) | 1650 |
Upper Body | |
| Lifting Capacity | 8T |
| Dumping Angle | 51° |
| Garbage Bin Volume | 4 cbm |
| Material | Carbon Steel |
| Maximum Working Pressure | 16MPa |
| Control | Hydraulic Manual |
| Discharge Method | Rear Dumping |
1.Garbage Bin with different size options of waste collection truck: 2cbm to 8cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.

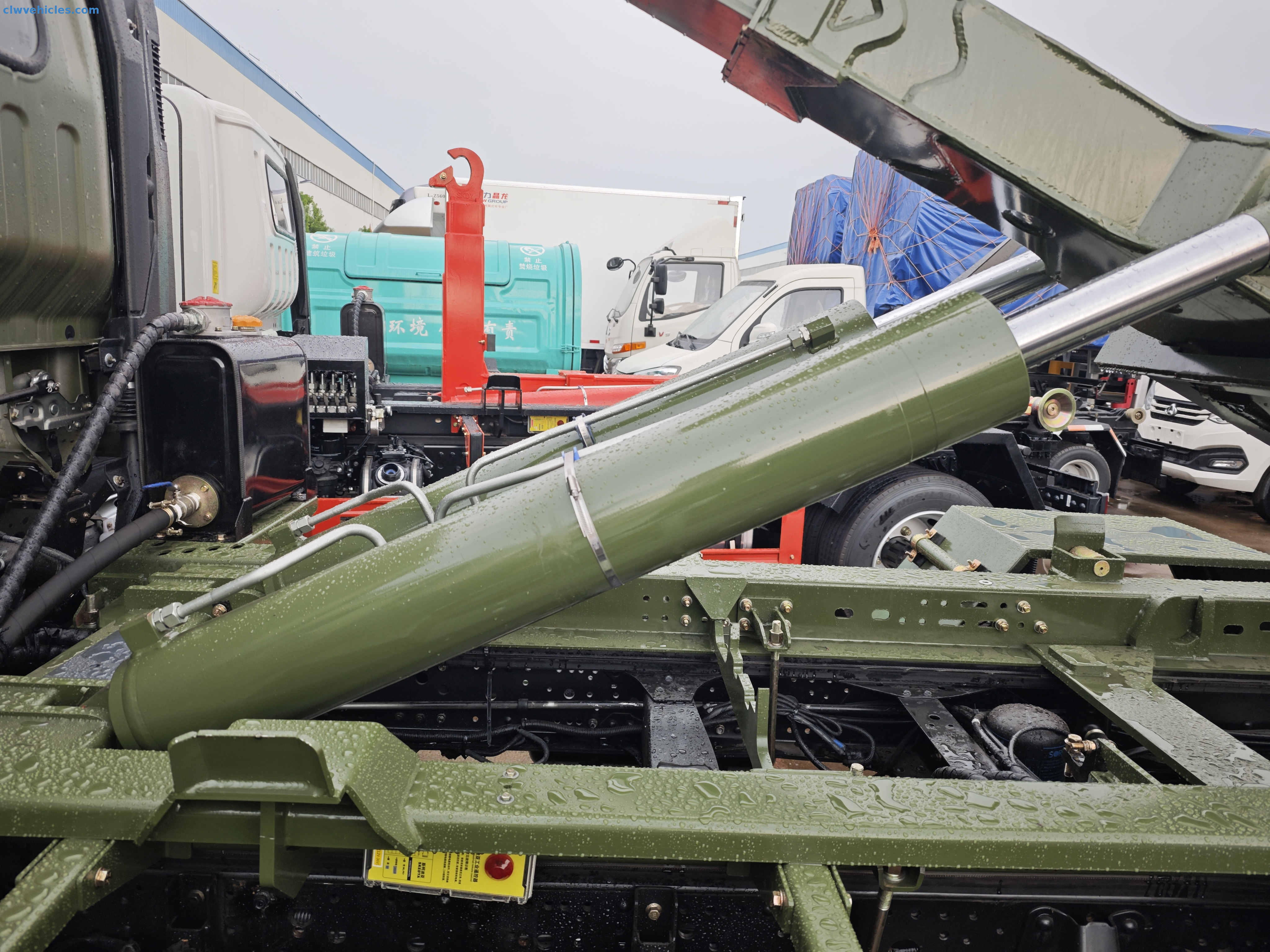

5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
