ISUZU
CLW
CLW5180AV4
The ISUZU 4×4 Box Ambulance from CLW Group is designed to deliver life-saving capability wherever traditional ambulances cannot reach. When emergencies occur in mountains, forests, mining areas, rural regions, or flood-damaged roads, its high-clearance 4×4 powertrain ensures that medical teams can reach patients quickly and safely.

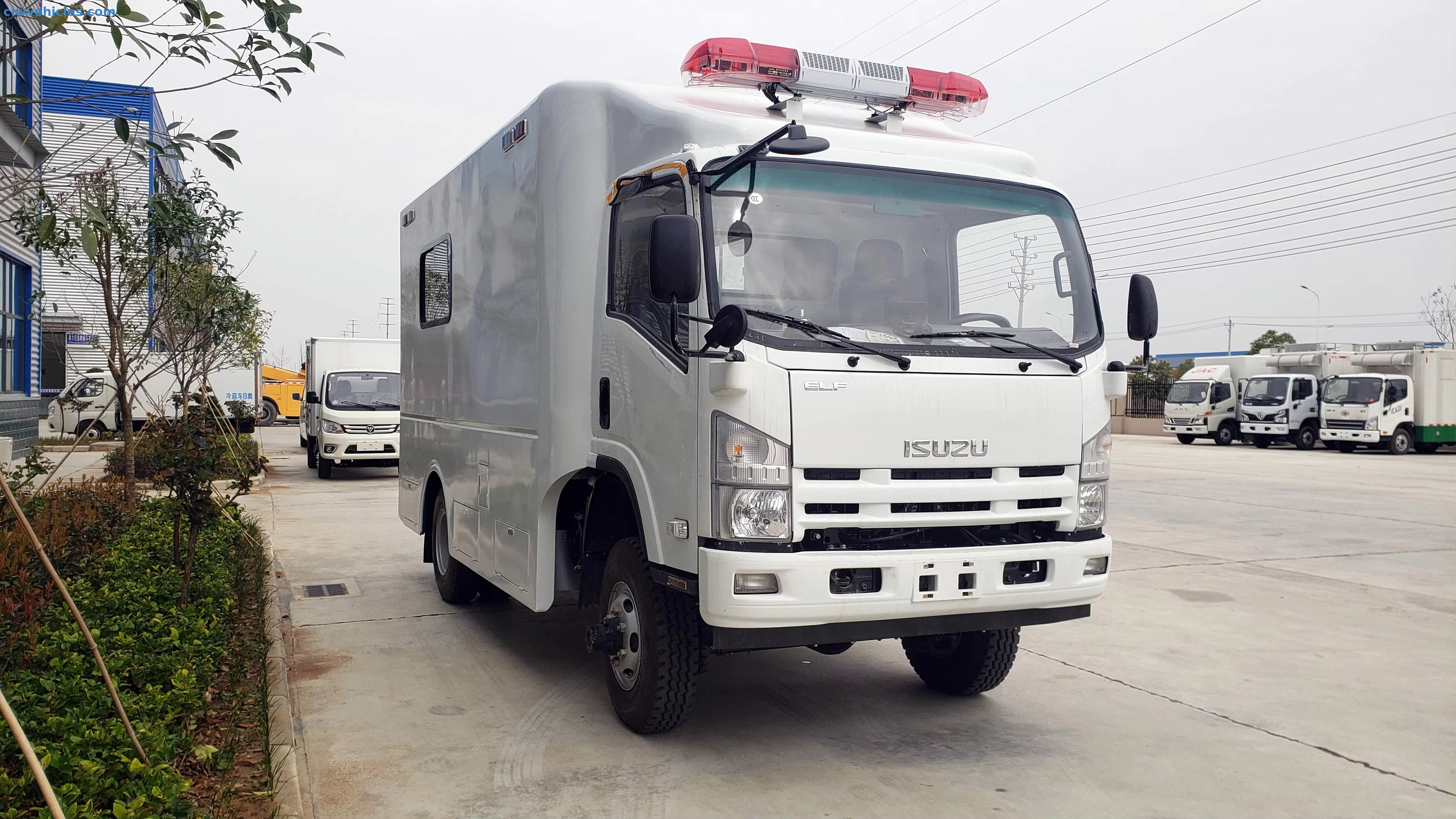

Built on an ISUZU 4×4 platform with a GVW of 8,280 kg and a 3,360 mm wheelbase, the vehicle provides stable handling on uneven roads.
The 4HK1-TCG61 turbo-intercooled diesel engine outputs 139 kW (189 hp), paired with an MLD-6Q 6-speed manual transmission, delivering strong, controlled performance in tough conditions. Heavy-duty 7.50R16LT tires and leaf-spring suspension (6/6+6) ensure a stable ride even under full medical load.

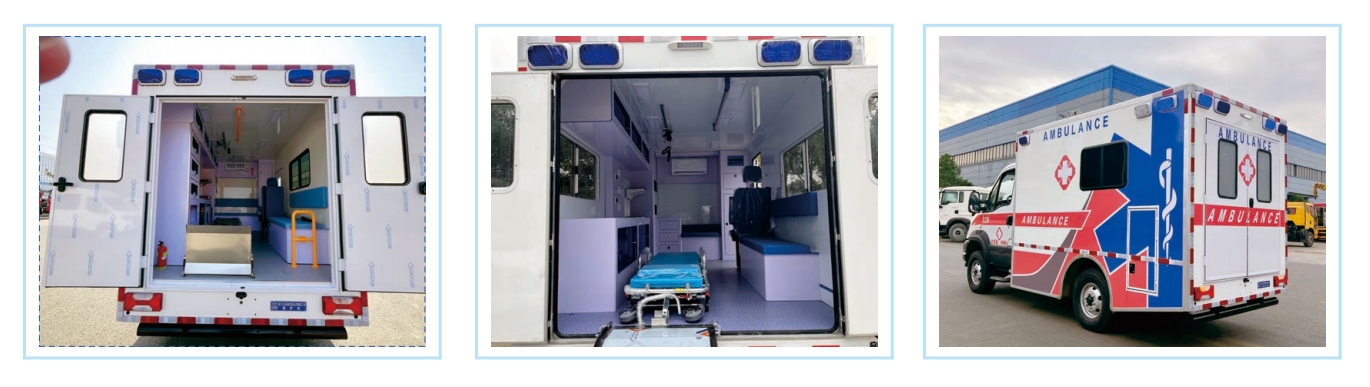

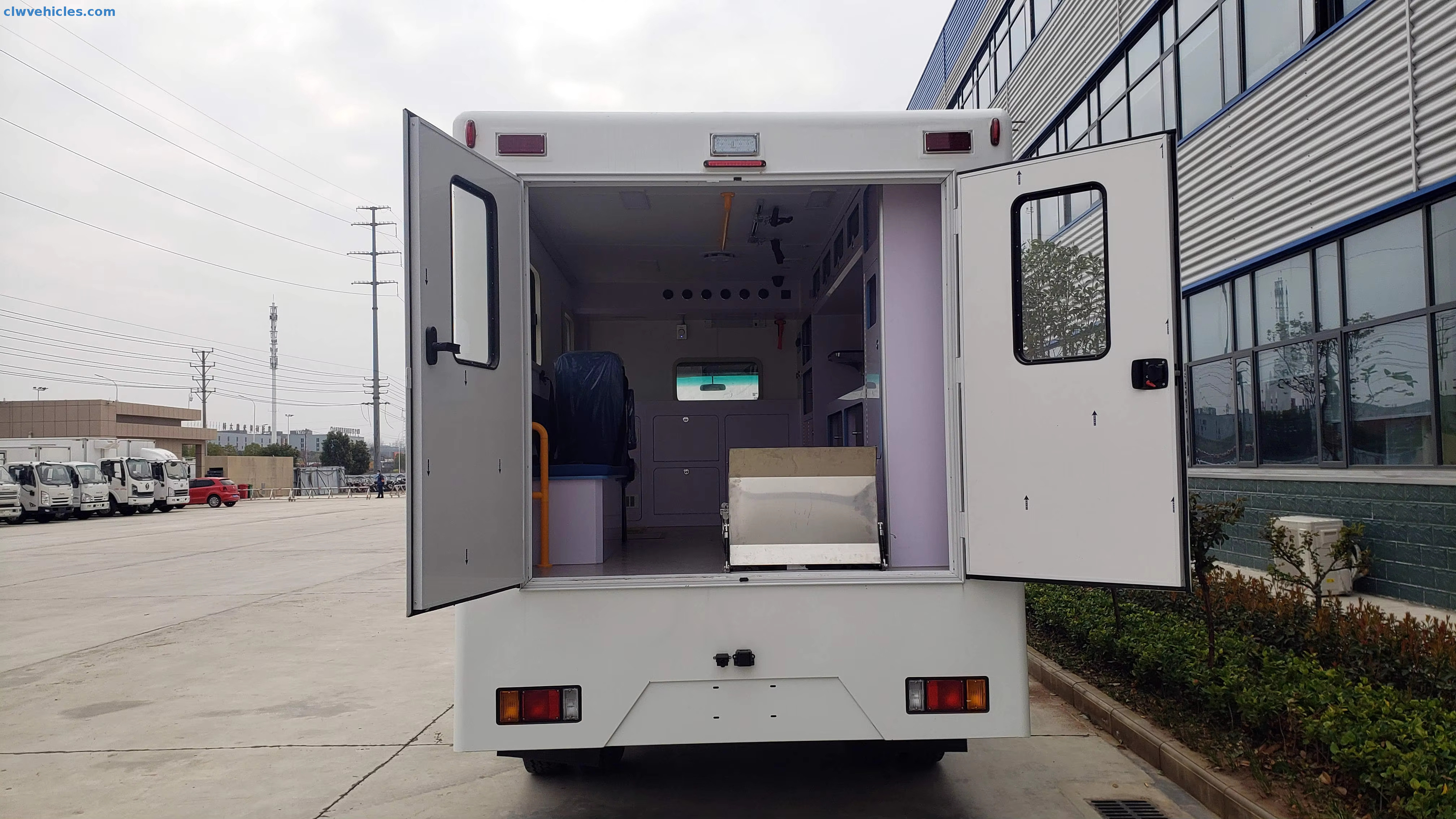

The medical cabin utilizes a reinforced steel frame, featuring a sliding side door and wide double rear doors to support fast stretcher loading and smooth personnel movement. The weather-sealed design protects equipment and patients during all-weather operations.
Inside the medical compartment:
All-aluminum stretcher system rated 181 kg, with secure locking
Two 10 L oxygen cylinders with pressure regulators, humidifier bottles, and ventilator interface
500 W DC-AC converter with 220V/12V sockets to power medical devices
UV disinfection lamp, antibacterial flooring, and easy-clean interior surfaces
Independent rear AC/heating system for climate control
Overhead infusion racks, equipment cabinets, grab rails, safety hammer, and fire extinguisher
Frosted glass on 2/3 of the windows to protect patient privacy
Everything is arranged to support field rescue, patient stabilization, and continuous treatment during transport.
This ambulance is ideal for:
Disaster relief organizations
Military medical units
Mining or oilfield emergency response
Hospitals serving remote regions
Field medical missions
It provides the durability of an off-road vehicle combined with the functionality of a mobile treatment room.
Emergency transportation from remote or off-road locations
Disaster-zone rescue operations
Mountain, forest, and rural medical response
Field medical stations and humanitarian missions
On-site treatment during accidents or natural disasters
Military and government emergency deployment
True off-road capability with ISUZU 4×4 chassis
Fully functional medical cabin for real on-site treatment

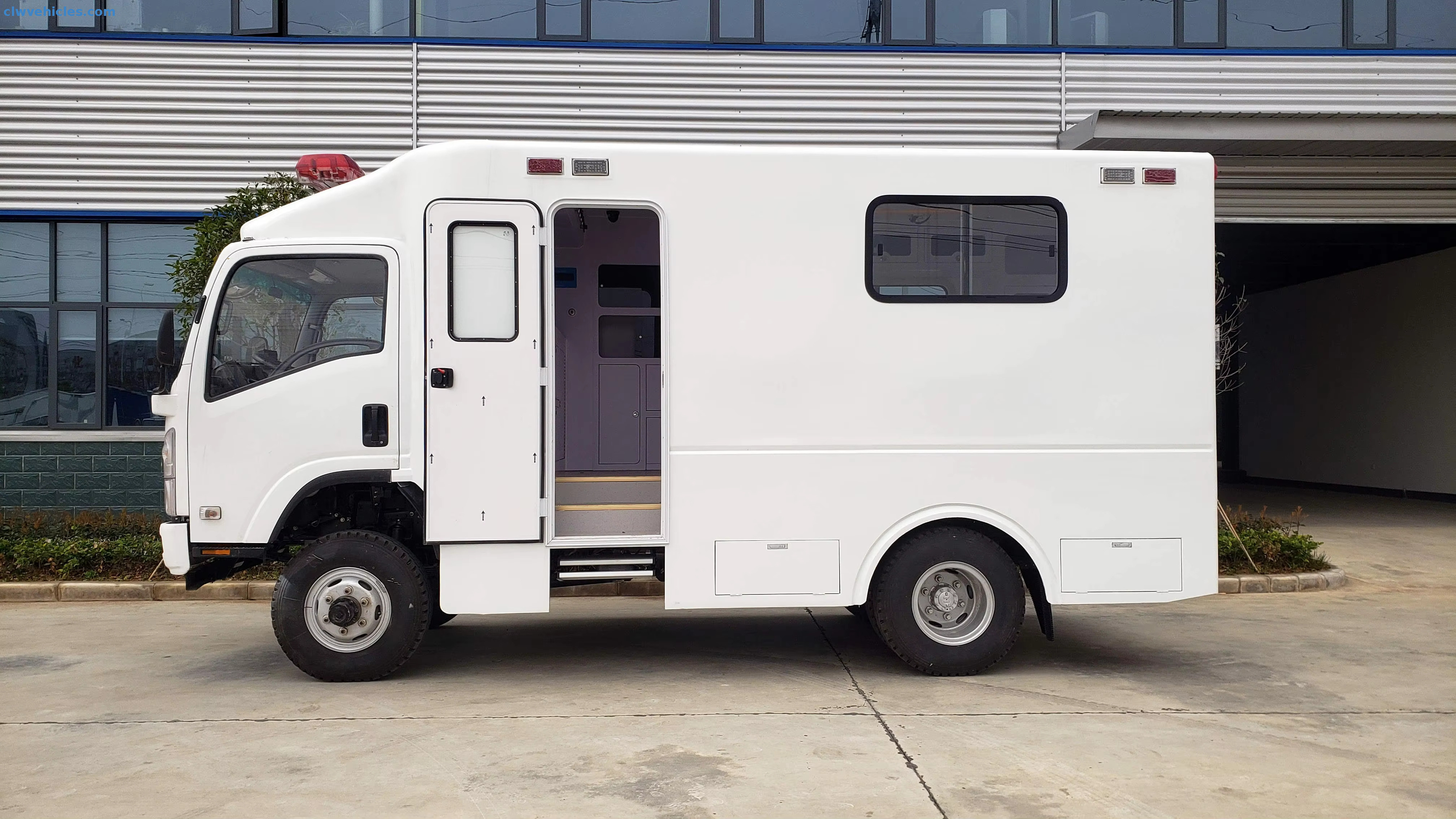

Reinforced body structure with easy access through sliding and rear double doors
Complete oxygen system with dual cylinders and interfaces
Reliable ISUZU engine and drivetrain for long-term stability
Independent climate control for patient comfort
Efficient interior layout with cabinets, grab rails, and safe equipment storage
Enhanced privacy and visibility with frosted medical cabin windows
Integrated warning lamps and sirens for clear emergency signaling
The ISUZU 4×4 Box Ambulance from CLW Group has been widely exported and deployed in regions requiring tough, dependable, and professional medical transport solutions, including:
Mountainous and rural regions
Areas with seasonal floods or poor road infrastructure
Emergency projects and humanitarian programs
Its proven reliability and robust ISUZU powertrain have earned strong feedback across various international rescue applications.
Q1: Can the medical configuration be customized?
Yes. Interior layout, equipment cabinets, external design, warning lights, and medical devices can be customized based on local regulations and medical standards.
Q2: Do you support different exterior colors or branding?
Yes. The vehicle can be customized with your required color, medical logos, and reflective striping.
Q3: Is the ambulance suitable for harsh or remote environments?
Absolutely. The 4×4 drivetrain, strong suspension, and durable frame are designed specifically for off-road medical missions.
Q4: What medical equipment is included?
It includes a stretcher system, oxygen system, AC/DC power supply, disinfection lamp, climate control, cabinets, warning light system, and other fixtures based strictly on your provided specifications.
Q5: Can the ambulance support continuous patient care during transport?
Yes. The power sockets, oxygen supply, lighting, and functional medical layout support ongoing treatment during movement.
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Group ISUZU 4x4 Hospital Medical Ambulance |
| Driving Type | 4x4 |
| Color | White or based on client’s request. |
| Number of Cabs | 8 |
| Weights | |
| GVW(kg) | 8280 |
| Curb Weight(kg) | 6250 |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Front/Rear Overhang(mm) | 1002/1688 |
| Approach/Departure Angle | 23/11 |
| Overall Dimension(mm) | 5990*2530*3750 |
| Max Speed(km/h) | 110 |
| Engine | |
| Engine Model | 4HK1-TCG61 |
| Engine Type | Supercharged inter cooler, in-line 4 cylinders |
| Max.Output(kw) | 139(189hp) |
| Drive Line | |
| Transmission | MLD-6Q; 6 forwards,1 reverse gear |
| Booster Type | Hydraulic boost |
| Brake | Air brake |
| Axle | |
| Axle | 3000/5280 |
| Tire Specification | |
| Tire Specification | 7.50R16LT 14PR; 6 tires |
| Front Wheel Track(mm) | 1640 |
| Rear Wheel Track(mm) | 1655 |
| Number of Leaf Springs | 6/6+6 |
| Medical warning appearance | |

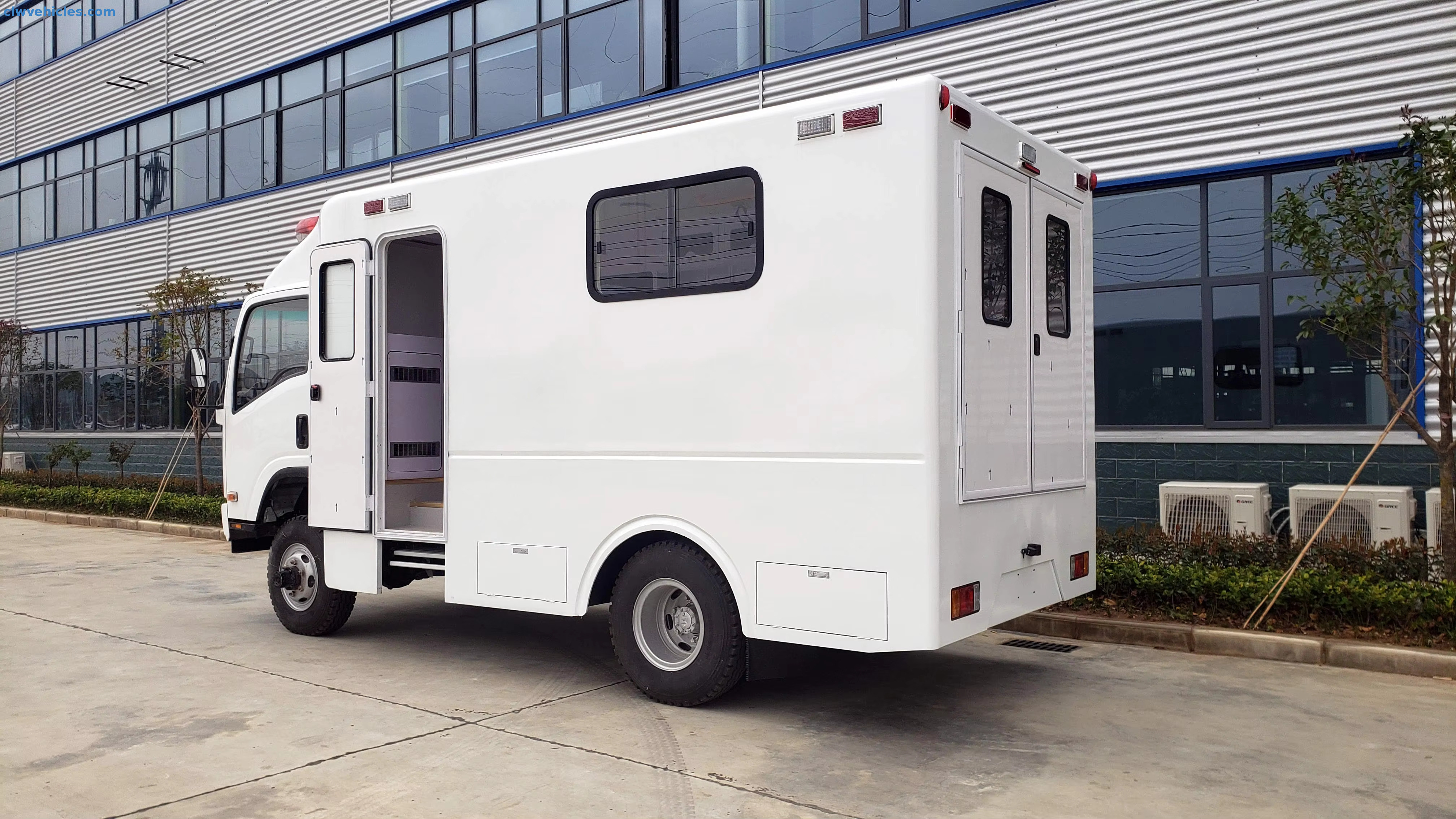

| Bodywork | Using steel reinforced frame structure design, safe and reliable. The right side of the car body is equipped with a sliding door, and the rear end is equipped with a double open tail door structure, and the opening width is large, which is convenient for the doctor and patient personnel and stretchers. |
| Vehicle appearance | The whole body is white, the front, both sides and the rear door of the Red Cross logo, all around the body color strip, bright color, eye-catching, effective warning. Medical cabin glass paste 2 / 3 frosted cellophane, effectively protect patient privacy. |

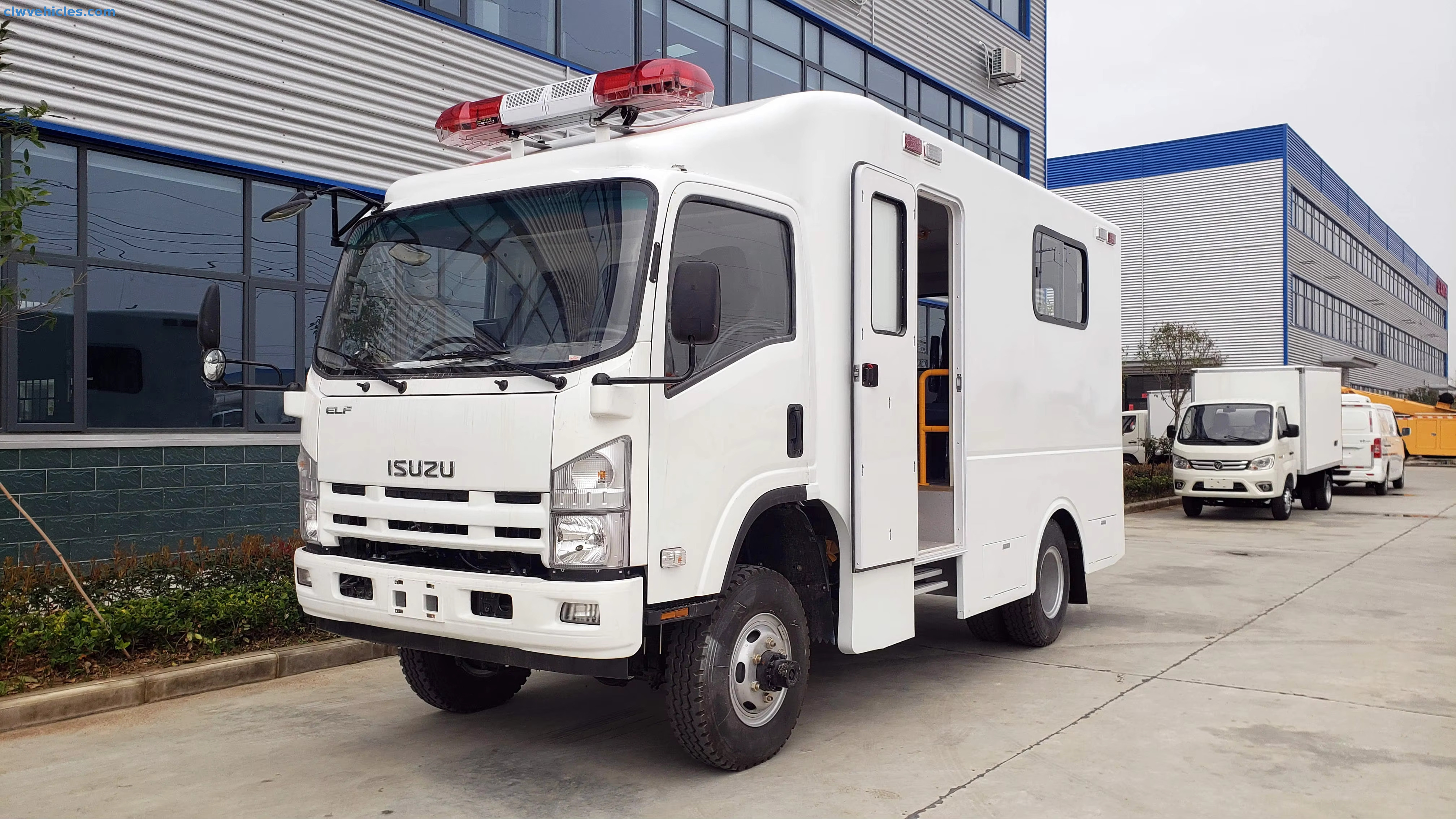

| Warning lamp | Streamline integrated LED alarm light assembly (polymer material injection molding), alarm horn power 100W, wire-controlled controller, equipped with LED lamp set. Blue flashing lights are installed on both sides and on the tail for effective warning. |
| Medical cabin ambulance facilities | |
| Ambulance system | Automatic car stretcher: all-aluminum alloy profile skeleton, comfortable soft stretcher mattress, light and strong, bearing 181kg, convenient, stable and easy up and down. The medical cabin has two suspended infusion bottle holders on the top, with a load-bearing capacity of 2.5kg, beautiful shape and reliable quality |
| Medical oxygen-based control system | The rescue compartment is equipped with an oxygen tank cabinet with two 10L steel oxygen cylinders, nominal pressure of 15 MPA (light weight, easy to load and replace), and equipped with two single table pressure reducing valves, two German oxygen terminals, a ventilator interface and a wall oxygen inhaler. The patient can control the oxygen amount when oxygen inhalation, and equipped with humidified bottles to provide the patient with moist oxygen, more conducive to the patient oxygen inhalation. |
| Medical appliances system | |
| Headlamp | 412V cabin lights, with stable light source and large irradiation surface. |
| Dc-to-ac converter | Con-board sine wave 500W, stable frequency, stable voltage, stable output power, provide power supply for vehicle equipment; 2 groups of 220V / 12V multi-function socket (can be connected to two / three holes, AC / DC). |
| Disinfection lamp 1 intelligent and regular ultraviolet ray disinfection, to ensure the health and safety of the cabin. | |
| Air circulation system | |
| 1 set of rear air conditioning and rear heating device, independent control of heating and cooling, according to the need to reasonably regulate the cabin temperature. | |
| Medical cabin cabinet interior configuration | |
| Midpartition wall assembly | The new environmental protection material (light weight, environmental protection, can be used twice) will be installed between the cab and the medical compartment, which separate the front and rear carriages, and an observation window is provided on the partition wall for easy observation and communication. |

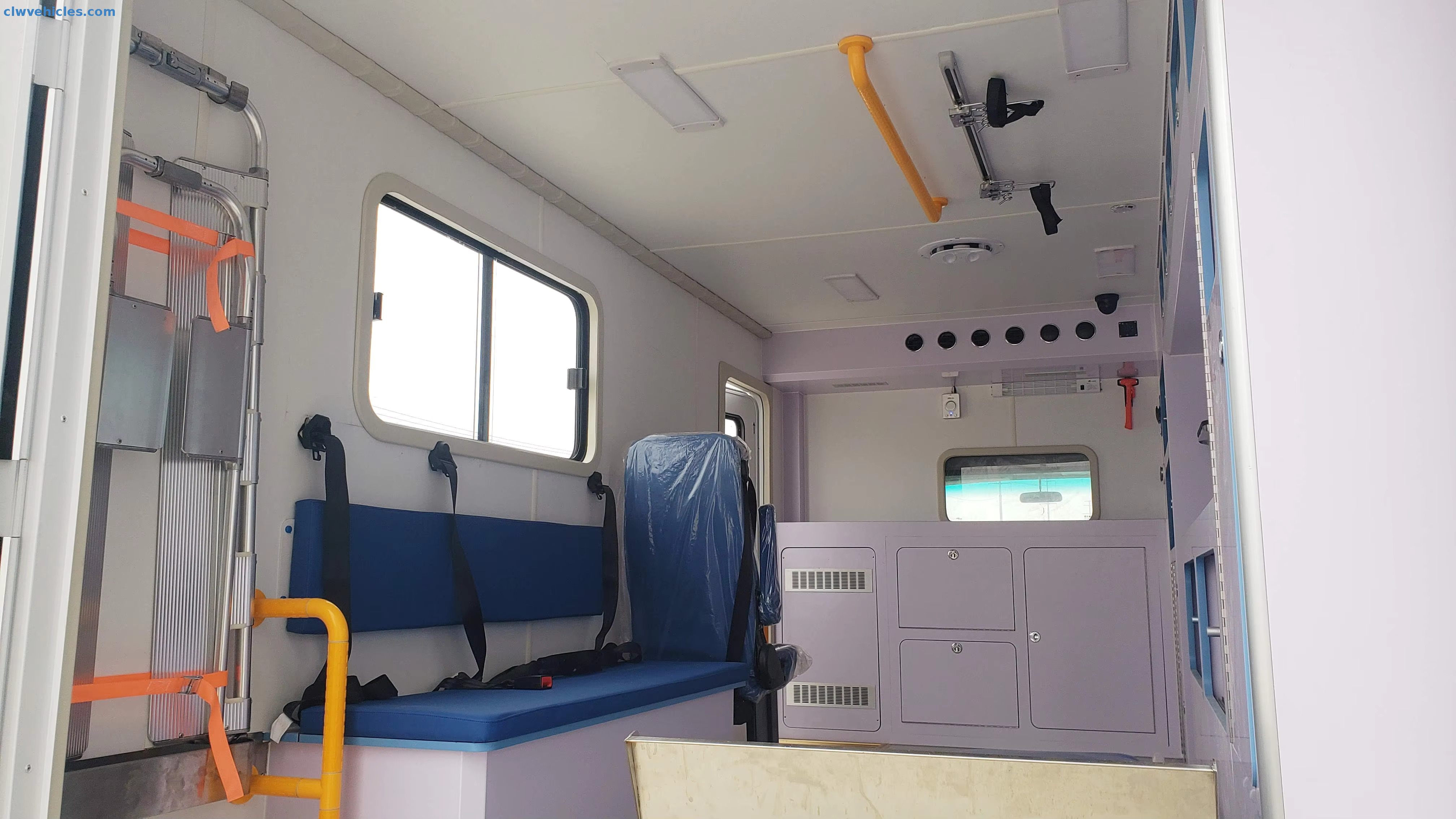

| Medical cabin interior decoration | The original car interior, a single seat on the right side of the rear cabin, a long cabinet, blue blue imitation leather, the seat is comfortable, the car is equipped with a safety hammer, to ensure the safety of the car members in an emergency. |

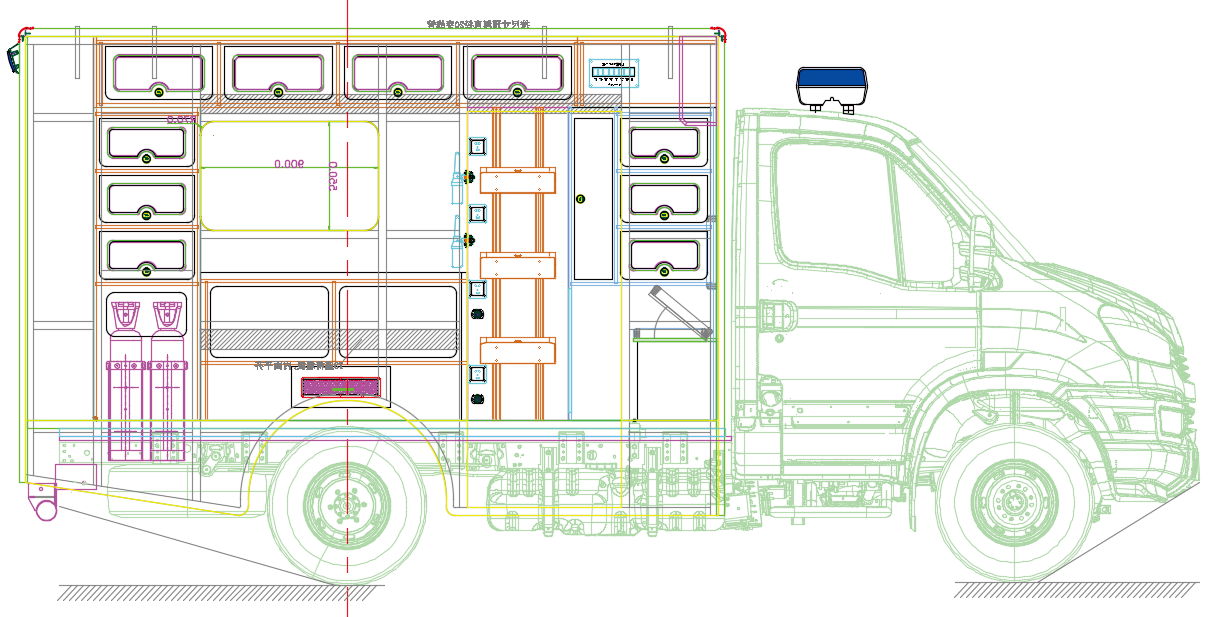

| Cabinet assembly | On the left side of the medical cabin, install a set of long equipment cabinet made of new environment-friendly materials. The cabinet is equipped with space cabinet and other storage space. The medical equipment can be placed on the surface of the cabinet, with large capacity, simple and beautiful; In front of the long equipment cabinet, there is a set of oxygen tank made of new environmental protection materials, and the cabinet can accommodate 210L oxygen tank. |
| Medical floor | Using the new light body ground decoration material (light weight, environmental protection, can be used twice), the floor is waterproof, anti-corrosion, wear-resistant, antibacterial, convenient for the cleaning and finishing of medical staff. |
| Accessory equipment | |
| Grab rail | Install 1 long strip handrail on the top of the medical bay. |
| Fire extinguisher | Place a 1 KG fire extinguisher on the rear left side of the medical cabin. |
| Long bar cabinet | On the right side of the medical cabin, install a set of long cabinet, blue leather, and two-point safety belt. |
