ISUZU
CLW
CLW5180WT5
Product Description：
ISUZU 4x2 6cbm Watering Truck – Compact Power for Precision Water Management
Built for Urban Efficiency and Beyond
The ISUZU Watering Truck is a versatile workhorse designed to tackle municipal maintenance, construction site dust control, and agricultural irrigation with unmatched agility. Perfect for watering city parks, suppressing road dust, or nurturing greenbelts, this CLW Group Water Truck combines compact dimensions with robust performance. Its 6.12-cubic-meter tank and advanced spraying systems ensure efficient water distribution, making it ideal for tight urban spaces and rural projects alike.
Reliable Chassis, Engineered for Demands
Built on ISUZU's trusted 4x2 chassis, this water sprinkler truck delivers power and precision. The 4HK1-TCG61 engine generates 139kW (189hp), optimized for stop-and-go urban routes while maintaining fuel efficiency. Paired with an ISUZU MLD 6-speed manual transmission, drivers enjoy smooth gear transitions and responsive control. Reinforced MAN-technology axles (4-ton front/7-ton rear) and 235/75R17.5 tires (10+1 spare) provide stability under load, while the air brake system with vacuum pump ensures safety during frequent stops.
Smart Water Systems: Built to Perform
The CLW Group Water Tank Truck features a 4mm-thick high-strength carbon steel tank (customizable to customer needs), designed to resist corrosion and endure rugged use. Equipped with a WeiLong low-pressure pump, it delivers a 50m³/h flow rate with a 28m head, ensuring powerful water delivery for sprinkling, firefighting, or cleaning. The galvanized pipes prevent rust, while the electric power take-off system allows seamless integration of the pump with the truck’s power supply.
Operator-Friendly Design
With an 18°/14° approach/departure angle, this watering tank truck navigates curbs, potholes, and uneven terrain effortlessly. The compact 6,770mm frame and power steering make it agile in crowded streets, while the 30/45kW mounted motor ensures reliable performance for extended operations.
Why Choose This ISUZU Water Sprinkler Truck?
From ISUZU's engineering excellence to CLW Group's expertise in water solutions, this water tanker delivery vehicle excels in durability, adaptability, and ease of use. Whether maintaining urban greenery, cooling construction sites, or supporting firefighting efforts, it's built to deliver results—efficiently, reliably, and without compromise.
Main Technical Parameters
| Main Technology Parameter | |
| Model Name | CLW Group ISUZU Watering Truck |
| Driving Type | 4x2 |
| Color | White or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 9100 |
| Rated Payload Weight(kg) | 5270 |
| Curb Weight(kg) | 3700 |
| Dimensions | |
| Wheelbase(mm) | 3815 |
| Front/Rear Overhang(mm) | 1160/1960 |
| Approach/Departure Angle | 18/14 |
| Overall Dimension(mm) | 6770x2200x2600 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | 4HK1-TCG61 |
| Emission Standard | Euro 5 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Max.Output(kw) | 139(189hp) |
| Drive Line | |
| Transmission | ISUZU MLD; 6Forward/1Reverse Gear |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes or air brakes) |
| Axle | |
| Axle (kg) | 4tons/7tons |
| Tire Specification | |
| Tire Specification | 235/75R17.5 |
| Front Wheel Track(mm) | 1610 |
| Rear Wheel Track(mm) | 1555 |
| Number of Leaf Springs | 3/3+2 |
| Upper Body | |
| Volume | 6.12m³ |
| Tank Size | 3400*1900*1300mm |
| Raw Material | High-strength carbon steel(thickness 4mm) or according to customer's requests |
| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 28m |

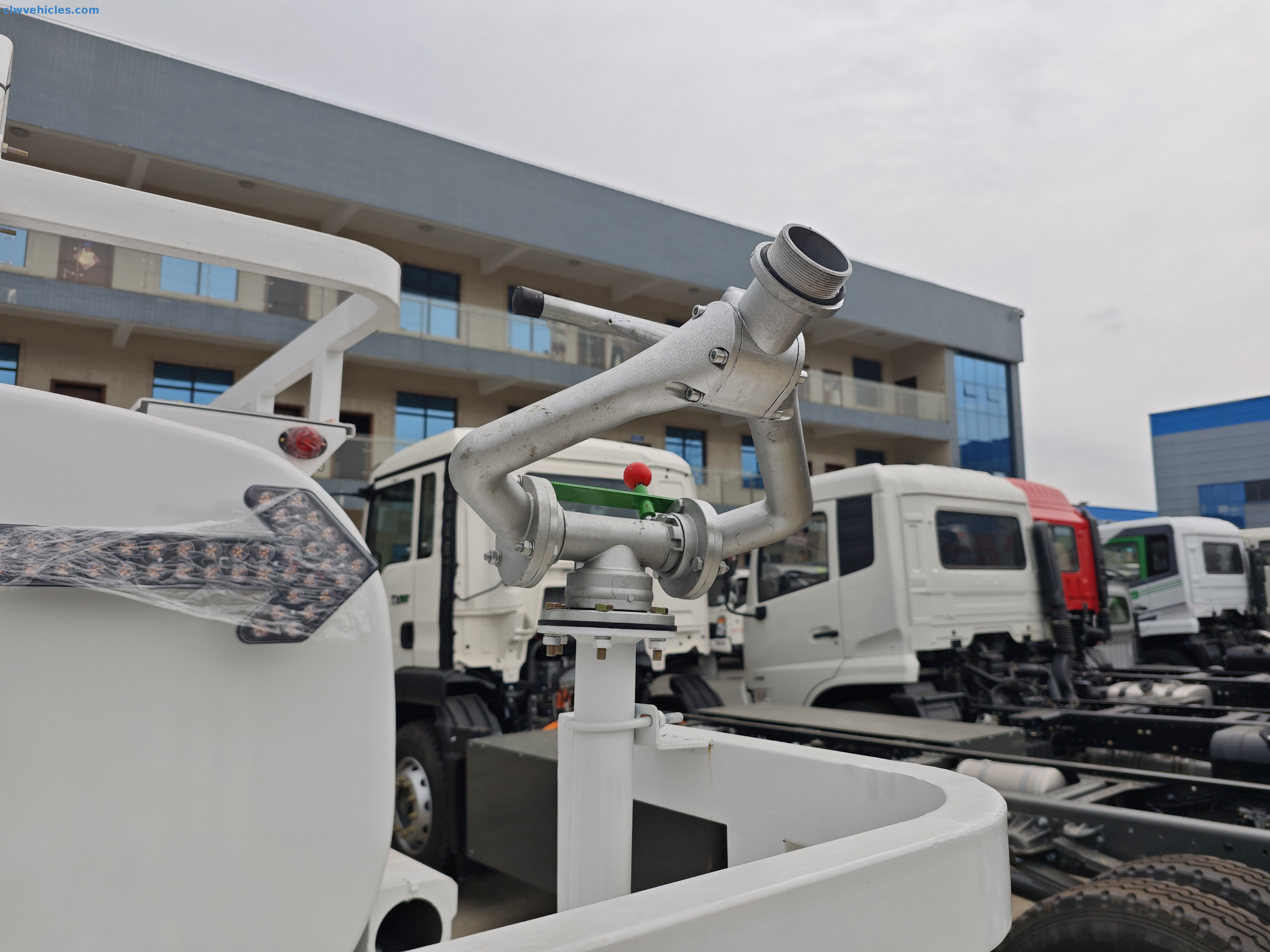

| Optional Configuration | 1.Fog Cannon could be available |
| 2.Tanker material could be customized | |
