ISUZU
CLW
CLW5250SC8

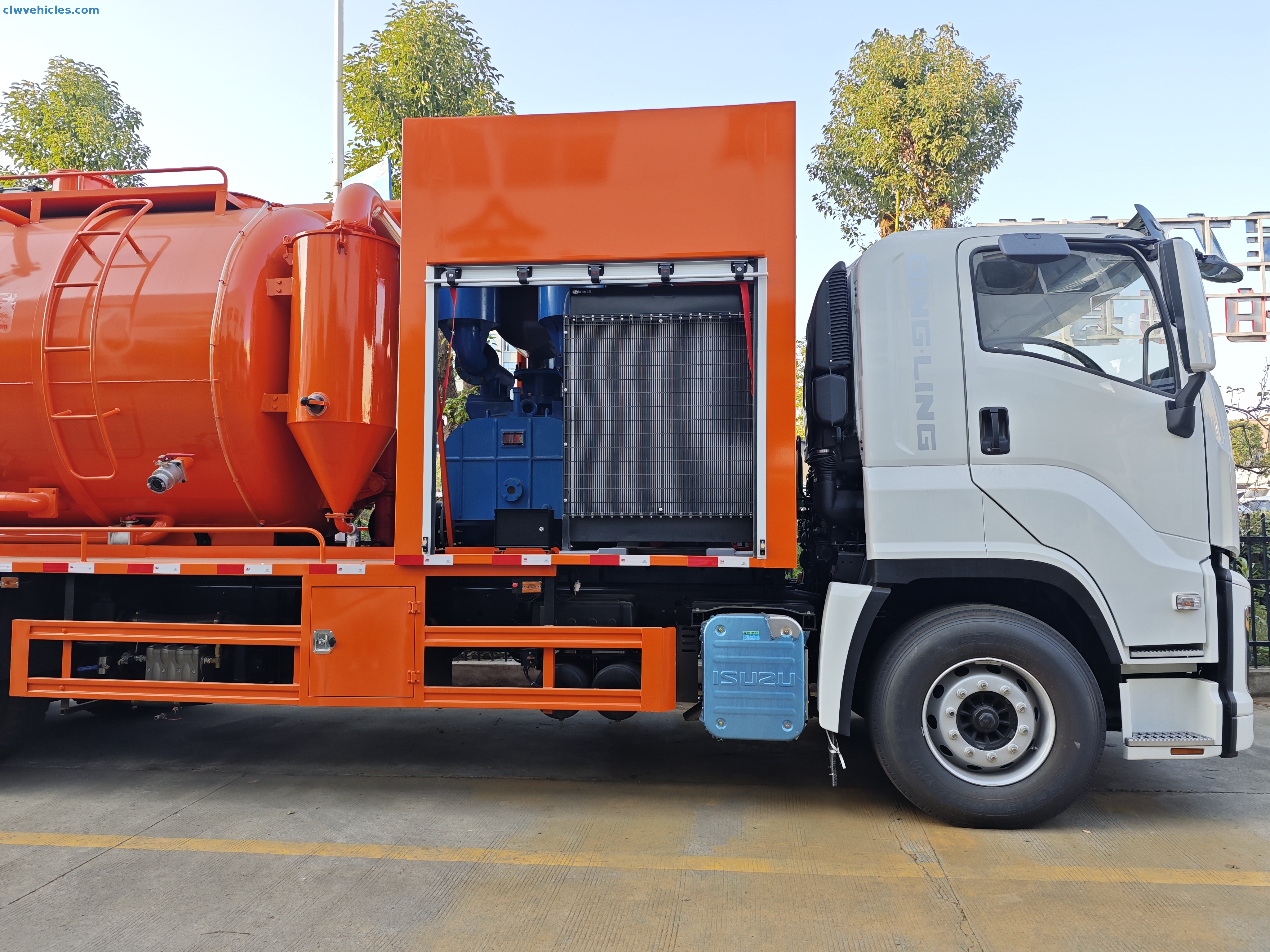

This vehicle is mainly used for sewer cleaning and sewage suction. Its main special devices are vacuum pumps and tanks.
The external dimensions of the tank (length of the straight section × diameter) (in mm) are 5400 × 2150. The front section of the tank is the clean water tank (with a straight section length of 2400 mm), and the rear section is the sewage tank (with a straight section length of 3000 mm). The two tanks are independent and cannot be fully loaded at the same time. The clean water tank is used for the cleaning function, and the sewage tank is used for the sewage suction function. The total capacity of the clean water tank is 7.5 cubic meters, and its effective volume is 7.37 cubic meters. The total capacity of the sewage tank is 9.3 cubic meters, and its effective volume is 9.21 cubic meters.
The materials for the side and rear guards are both Q235, welded. The cross-sectional dimension of the rear guard is 200 × 50 mm, and the lower edge is 500 mm above the ground.
Optional styles for the guardrail on the top of the tank, optional side cleaning pipes, optional hydraulic opening style for the rear tank opening, optional rear valves, optional rear cleaning pipe reel styles, and the rear arrow lights are optional parts.
Optional positions for the inclined suction sewage pipe on the right side of the tank and the manure inspection window, optional styles for the auxiliary engine, and optional structural styles for the rear of the tank.
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU 6x4 Van Body Truck |
| Driving Type | 6x4 |
| Color | white and orange or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 7370 |
| Curb Weight(kg) | 17500 |
| Dimensions | |
| Wheelbase(mm) | 4650+1370 |
| Front/Rear Overhang(mm) | 1370/2710 |
| Approach/Departure Angle | 17/10 |
| Overall Dimension(mm) | 10100x2550x3850 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 6HK1-TCG60 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 221(300hp) |
| Drive Line | |
| Transmission | 10 forwards,2 reverse gear,10JSD180 |
| Axle | |
| Axle | 7000/18000/18000 |
| Tire Specification | |
| Tire Specification | 295/80R22.5 18PR; 10+1 spare tire |
| Front Wheel Track(mm) | 2060 |
| Rear Wheel Track(mm) | 1855/1855 |
| Number of Leaf Springs | 7/10 |
| Upper Body | |
| Van Box Size(mm) | 5400x2150 |
| Box Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Sewage Tank Volume | 9.5m³ |
| Water Tank Volume | 7.3m³ |
| SewageTank Material | 5mm thickness;Q235A |
| Water Tank Material | 5mm thickness;Q235A |
| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
| Other Key Parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
1. Slowly insert the suction pipe into the sewage well or sewage pool. The insertion depth should be appropriate to avoid the pipe mouth being blocked.
2. Start the vacuum pump and control the suction speed by operating the valve. Pay attention to observing the liquid level of the suction tank.
3. During the suction process, always pay attention to the working sound and temperature of the vacuum pump. If there is any abnormality, stop the machine immediately for inspection.
Discharge operation:
1. After arriving at the designated discharge location, stop the vehicle and pull the handbrake.
2. Open the discharge valve and slowly discharge the sewage. Pay attention to controlling the discharge speed and direction.
3. After the discharge is completed, close the discharge valve and clean the discharge pipe.
