ISUZU
CLW
CLW5180RV15

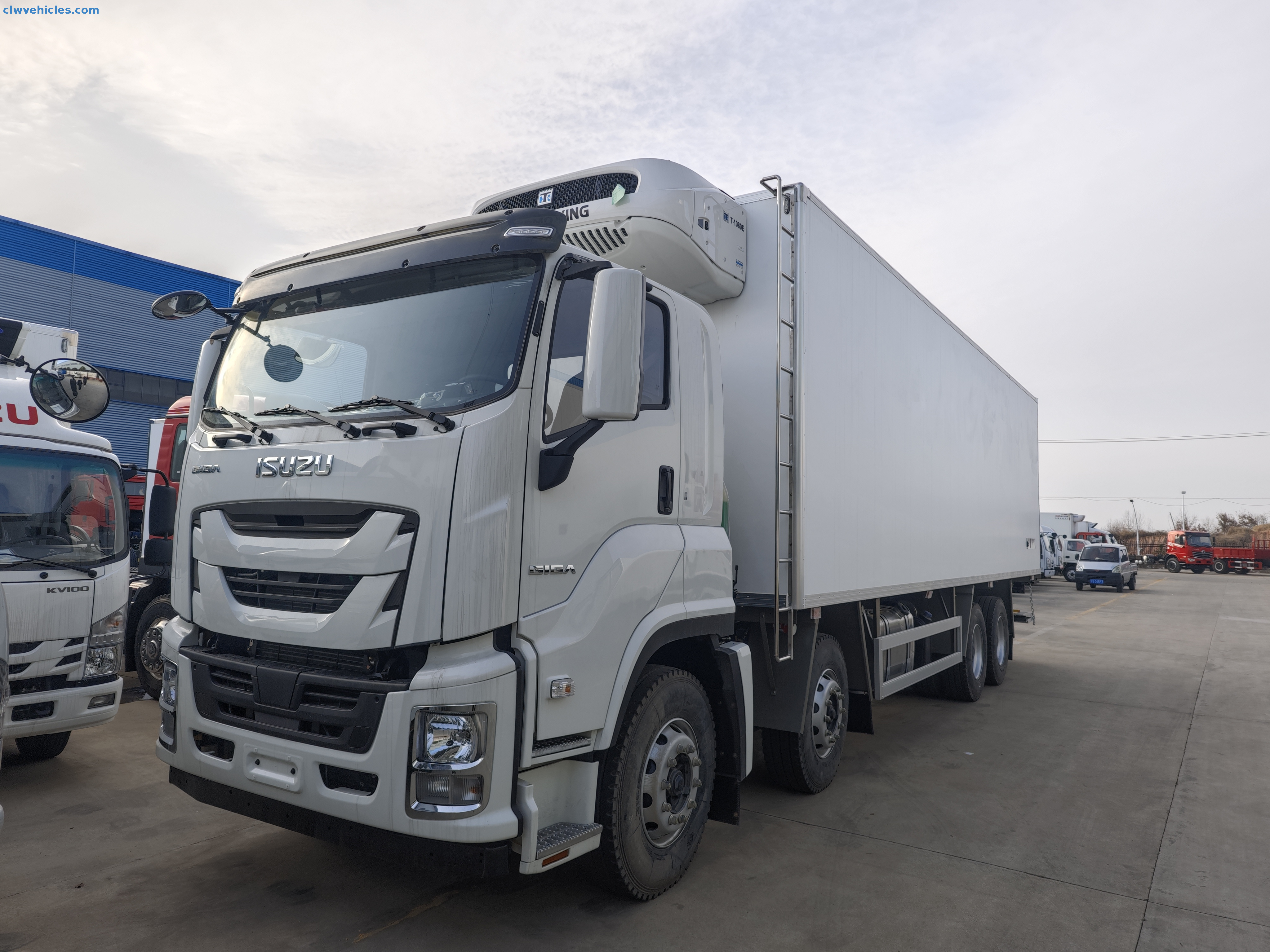

The CLW Brand ISUZU 8x4 Cooling Reefer Truck is designed to meet the demanding needs of cold chain logistics, frozen food distribution, and temperature-sensitive cargo delivery. Built on ISUZU's proven 8x4 heavy-duty chassis, this refrigerated truck ensures exceptional durability, high payload capacity, and stable performance for long-haul transport.
Powered by the 6WG1-TCG61 460hp turbocharged and intercooled diesel engine, paired with a FAST 12-speed transmission, it delivers superior fuel efficiency and reliability even under full load conditions.
The refrigerated cargo box measures 9550 × 2420 × 2370mm, constructed with fiberglass panels and an 8cm polyurethane foam insulation layer, ensuring excellent thermal retention. Equipped with a Thermo King refrigeration unit (temperature range -20°C to +30°C, airflow 3300m³/hr, refrigerant R-404A), the truck guarantees stable cooling for meat, dairy, seafood, pharmaceuticals, and fresh produce.
Optional features such as side doors, external power supply, and ventilation slots enhance flexibility, making it a trusted choice for logistics fleets, supermarkets, and cold storage companies.
Large Capacity – 32,000kg GVW and over 17,000kg payload for maximum cargo efficiency.
Powerful Engine – ISUZU 6WG1-TCG61, 460hp with turbocharged intercooling for heavy-duty transport.
High-Performance Refrigeration – Thermo King system with -20°C to +30°C temperature control.
Durable Insulated Box – Fiberglass construction with 8cm polyurethane foam insulation ensures stable cold retention.
Flexible Configurations – Optional side doors, external power supply, and ventilation slots for different logistic needs.
Reliable Drivetrain – FAST 12-speed gearbox and power steering for smooth operation and control.
General Parameters
Model: CLW Brand ISUZU 8x4 Cooling Reefer Truck
GVW: 32,000 kg
Rated Payload: 17,220 kg
Curb Weight: 14,650 kg
Overall Dimensions: 12,000 × 2,600 × 3,990 mm
Wheelbase: 1850 + 4575 + 1370 mm
Max Speed: 89 km/h

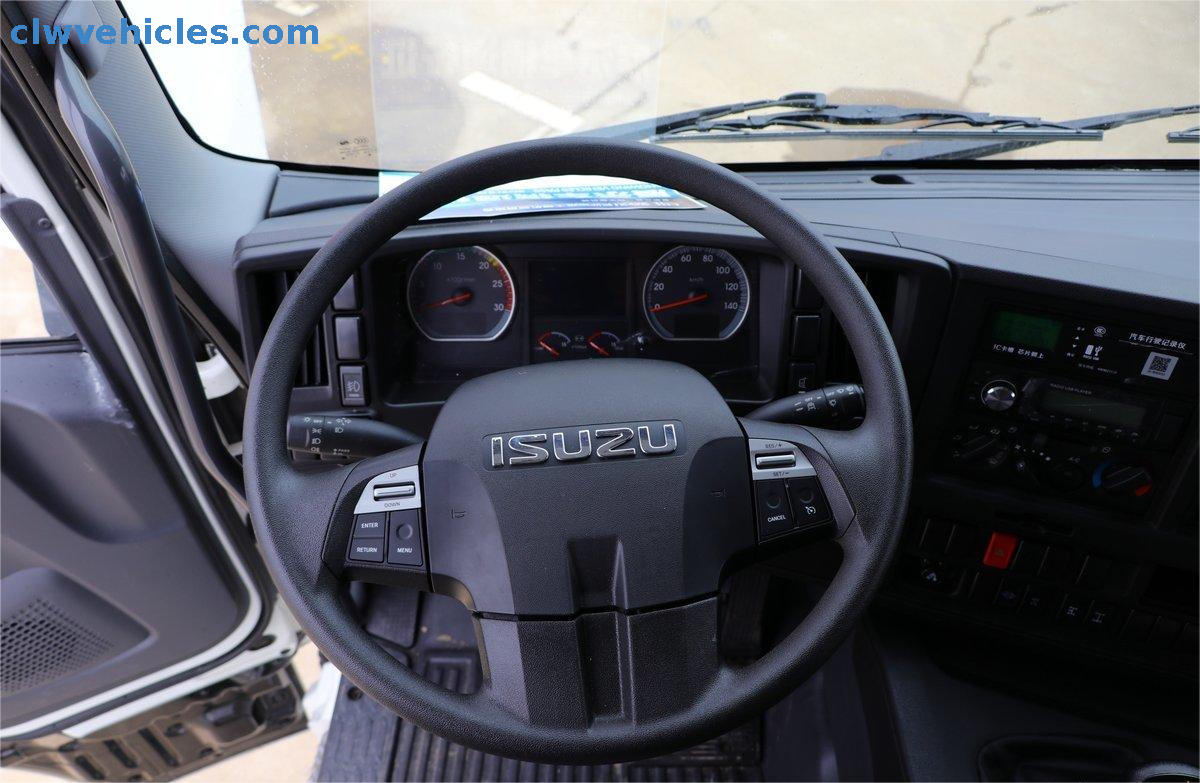

Cab: Double cabin, LHD, with A/C
Engine & Transmission
Engine Model: ISUZU 6WG1-TCG61
Power: 460 hp (338 kW)
Type: In-line, turbocharged, intercooled, water-cooled
Displacement: 15.6L
Transmission: FAST 12 forward + 2 reverse gears
Chassis & Axle
Driving Type: 8x4
Axle Load: 6500 / 6500 / 19000 kg
Tires: 12R22.5 18PR (12+1 spare)
Suspension: Leaf spring (3/3/-/-)
Reefer Body Configuration
Box Size: 9550 × 2420 × 2370 mm
Material: Fiberglass with polyurethane foam insulation (8cm)
Refrigeration Unit: Thermo King
Temperature Range: -20°C to +30°C
Airflow: 3300 m³/hr
Refrigerant: R-404A
Options: Side door, ventilation slot, external power supply
Q1: What is the payload capacity of the ISUZU 8x4 Reefer Truck?
A1: It has a rated payload of 17,220 kg, making it suitable for bulk cold chain transport.
Q2: What is the cooling range of the refrigeration unit?
A2: The Thermo King unit provides a wide range from -20°C to +30°C, suitable for frozen, chilled, and fresh goods.
Q3: What is the insulation thickness of the cargo box?
A3: The refrigerated box uses 8cm polyurethane foam insulation for excellent temperature retention.
Q4: Can I customize the truck with extra features?
A4: Yes, options include side doors, external power supply, and ventilation slots to match your transport needs.
Q5: What industries is this truck best suited for?
A5: It is ideal for cold chain logistics, supermarkets, frozen food suppliers, pharmaceutical transport, and large distribution fleets.
Main Technical Parameters:
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU 4x2 Cooling Reefer Truck |
| Driving Type | 4x2 |
| Color | white or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 32000 |
| Rated Payload Weight(kg) | 17220 |
| Curb Weight(kg) | 14650 |
| Dimensions | |
| Wheelbase(mm) | 1850+4575+1370 |
| Front/Rear Overhang(mm) | 1370/2835 |
| Approach/Departure Angle | 17/10 |
| Overall Dimension(mm) | 12000x2600x3990 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 6WG1-TCG61 |
| Engine Type | In-line, four cylinders, turbocharged with intercooler |
| Max.Output(kw) | 338(460hp) |
| Drive Line | |
| Transmission | 12 forwards,2 reverse gear,FAST Brand |
| Steering | Power steering |
| Axle | |
| Axle | 6500/6500/19000 |
| Tire Specification | |
| Tire Specification | 12R22.5 18PR; 12+1 spare tire |
| Front Wheel Track(mm) | 2060/2060 |
| Rear Wheel Track(mm) | 1855/1855 |
| Number of Leaf Springs | 3/3/-/- |
| Upper Body | |
| Van Box Size(mm) | 9550x2420x2370 |
| Box Material | Fiberglass |
| Insulating Layer | 8cm polyurethane foam |
| Refrigerator Brand | Thermo King |
| Applicable Temperature | -20~+30°C |
| Airflow(m³/hr) | 3300 |
| Refrigerant Type | R-404A |
| Dimensions(WxHxD) (mm) | 1888x919x618 |
| Remark | Part Optional:Ventilation Slot |
| Hook | |
| External power supply | |
| Side Door | |


Optional tailgate:
The roof of the carriage is closed and cannot be opened. The front mask, front combination lamps, front bumper can be selected according to the chassis. Mirrors and a one-and-a-half-row cab can be selected. A deflector and side doors can be selected. The side door can be a single door, double door or no door, and a built-in refrigeration unit can be selected. Insulated composite panels can be selected. Door locks can be selected as 2 bars and 2 locks or 4 bars and 4 locks.
Fuel tanks, batteries, urea tanks, and air storage cylinders can be selected for left and right installation positions according to the chassis. A hydraulic tailgate can be selected. The horizontal length of the retracted state is 290mm, and the mass of the hydraulic tailgate is 450kg. The materials of the side and rear lower protective devices are Q235 and are connected to the frame by bolts. The cross-sectional dimensions of the rear lower protective device (mm): 120×60. Ground clearance: 450mm. When a hydraulic tailgate is selected, the rear protection is three-segmented and welded to the frame. Other models of refrigeration units with equivalent power can be selected.
