ISUZU
CLW
CLW5180AWP13

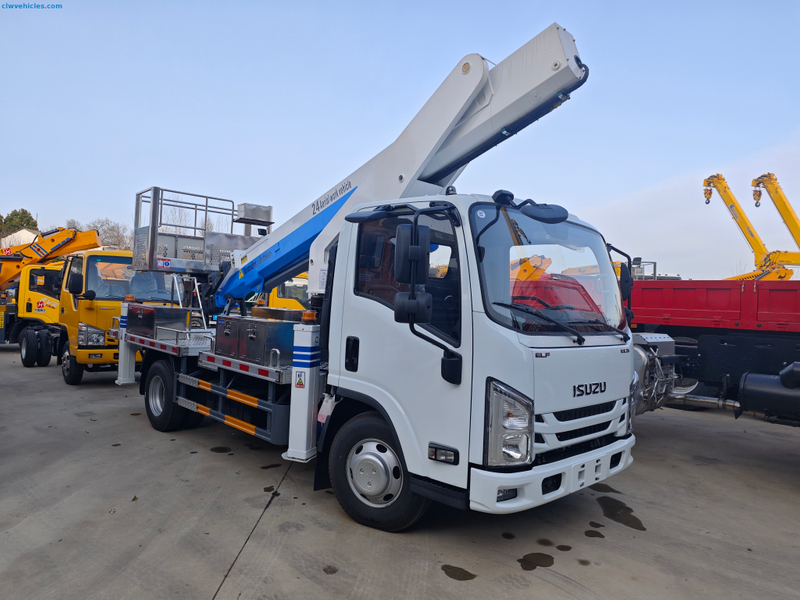

The CLW Group ISUZU 4x2 Aerial Work Platform Truck is built for professional high-altitude operations, ensuring safety, stability, and efficiency. Ideal for municipal projects, electrical utilities, telecom servicing, building repairs, and tree trimming, this aerial lift truck is engineered for versatile use in both urban streets and field job sites.
Powered by a 125hp ISUZU JE493ZLQ6K turbocharged engine with a 6-speed manual transmission, it offers excellent fuel economy and reliable performance under demanding conditions. The compact body (5998 × 2090 × 3300 mm) and 8,280 kg GVW provide excellent maneuverability in narrow spaces, making it highly practical for city infrastructure projects.
The upper structure is equipped with a 24-meter four-section hexagonal boom, 360° continuous slewing system, and dual operation modes (ground + bucket + remote). With a 200 kg bucket capacity and optional insulated bucket, it provides safe and efficient lifting for both standard and electrical maintenance tasks.
Designed with hydraulic outriggers (front V + rear H type) and an emergency backup system, this ISUZU aerial platform truck ensures maximum operator safety and stability even under Class 4 wind conditions.
Whether you need it for power line maintenance, streetlight repair, telecom installation, or municipal tree care, the ISUZU 4x2 aerial work platform truck is a reliable partner for high-altitude operations.
Durable ISUZU Chassis – Strong 4x2 chassis with excellent maneuverability in city and narrow job sites.
Powerful Engine – 125hp ISUZU JE493ZLQ6K engine with turbocharging and intercooling for efficiency.
High Working Range – 24m working height, 12m operating range, suitable for multiple industries.
Flexible Operation – 360° slewing, dual control system (bucket + ground), and wireless remote option.
Safe and Stable – Hydraulic outriggers, emergency system, and Class 4 wind resistance.
Versatile Applications – Ideal for municipal, electrical, telecom, building, and landscaping projects.
General Parameters
Model: CLW Brand ISUZU 4x2 Aerial Work Platform Truck
GVW: 4,495 kg
Curb Weight: 4,365 kg
Dimensions: 5998 × 2090 × 3300 mm
Wheelbase: 3,360 mm
Max Speed: 89 km/h
Cab: Double cab, 2 passengers
Engine & Transmission
Engine Model: JE493ZLQ6K
Power: 125 hp (93 kW)
Type: Turbocharged, water-cooled, 4-stroke diesel
Transmission: 6 forward + 2 reverse gears
Steering: Power steering
Brake: Air brake system
Upper Body Configuration
Working Height: 24 m
Operating Range: 12 m
Bucket Load: 200 kg (optional insulated bucket)
Boom Type: 4-section hexagonal telescopic arm
Slewing Device: 360° continuous rotation (bucket + upper structure)
Outriggers: 4 hydraulic outriggers (front V + rear H type), 4200 mm horizontal span, 4000 mm vertical span
Control System: Ground + bucket operation + wireless remote
Control Voltage: 12V
Maximum Wind Resistance: Class 4
Emergency Device: Yes
Q1: What is the maximum working height of the ISUZU aerial work platform truck?
A1: It can reach up to 24 meters, covering most municipal and industrial high-altitude tasks.
Q2: What industries commonly use this aerial platform truck?
A2: It is widely used for streetlight installation, electrical maintenance, telecom servicing, tree trimming, and building repair.
Q3: How stable is the truck during operation?
A3: It is equipped with front V + rear H type hydraulic outriggers and can safely operate under Class 4 wind conditions.
Q4: Does it have remote operation capability?
A4: Yes, it features dual operation systems (bucket + ground) and an optional wireless remote control for safer handling.
Q5: What is the bucket capacity, and can it be used for electrical work?
A5: The bucket has a 200 kg capacity and can be upgraded to an insulated bucket for electrical maintenance tasks.
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU Aerial Work Platform Truck |
| Driving Type | 4x2 |
| Color | White or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 4495 |
| Curb Weight(kg) | 4365 |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Front/Rear Overhang(mm) | 1090/1548 |
| Approach/Departure Angle | 20/11 |
| Overall Dimension(mm) | 5998x2090x3300 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | JE493ZLQ6K |
| Engine Type | Water-cooled, four-stroke |
| Max.Output(kw) | 93(125hp) |
| Drive Line | |
| Transmission | 6 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle | |
| Axle | 1840/2655 |
| Tire Specification | |
| Tire Specification | 7.00R16LT 10PR; 6+1spare tire |
| Front Wheel Track(mm) | 1565 |
| Rear Wheel Track(mm) | 1508 |
| Number of Leaf Springs | 7/5+6 |
| Upper Body Configuration | |
| Platform Working Height | 24m |
| Maximum Operating Height | 3m |
| Maximum Operating Range | 12m |
| Boom Type | 4-section hexagonal working arm,synchronous telescopic |
| Outtrigger | 4 pcs,front V+rear H type hydraulic outtriggers |
| Span:4200mm horzontal,4000mm vertical | |
| Bucket(kg) | 200 (optional insulation buket) |
| Slewing Device | Two-way 360° continuous slewing |
| 360° slewing bucket | |
| Operating System | Up and down operation both on ground and in bucket |
| Wireless remote control+platform operatio+manual 3 groups of operating | |
| Control Voltage | 12V |
| Maximum Working Wind Speed | Class 4 wind |
| Emergency Device | yes |
