Production Description:

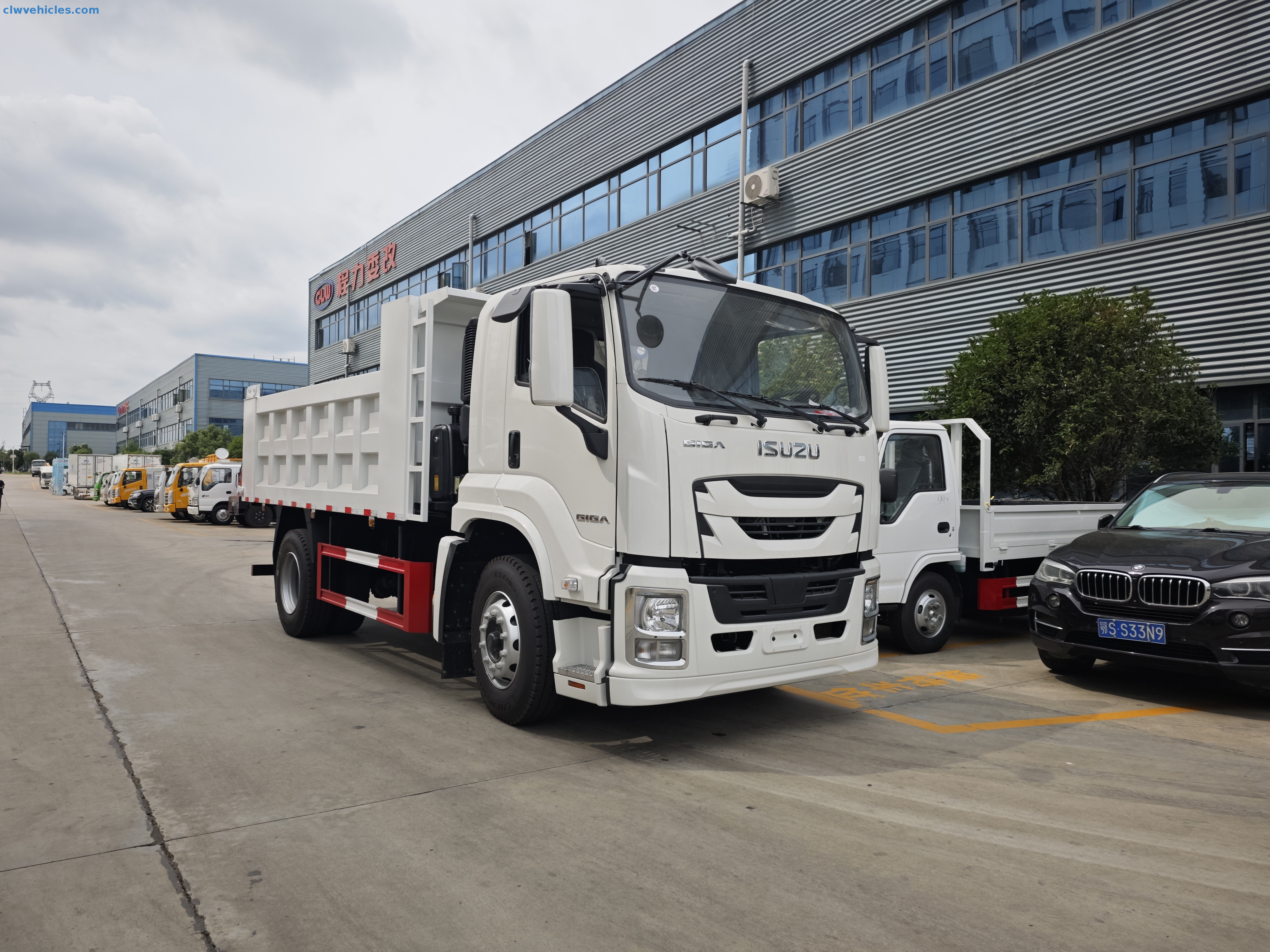

ISUZU GIGA 4×2 Dump Truck – Power, Precision, and Durability
Built for Heavy Loads and Tight Work Zones
The ISUZU GIGA 4×2 Dump Truck from CLW Group is designed to handle tough jobs while staying agile in compact spaces. Perfect for construction sites, urban streets, mountain roads, and mining projects, this dump truck combines raw power, safety, and reliability—helping you move more material, faster.
Chassis, Engine & Transmission – Reliable Power on Every Job

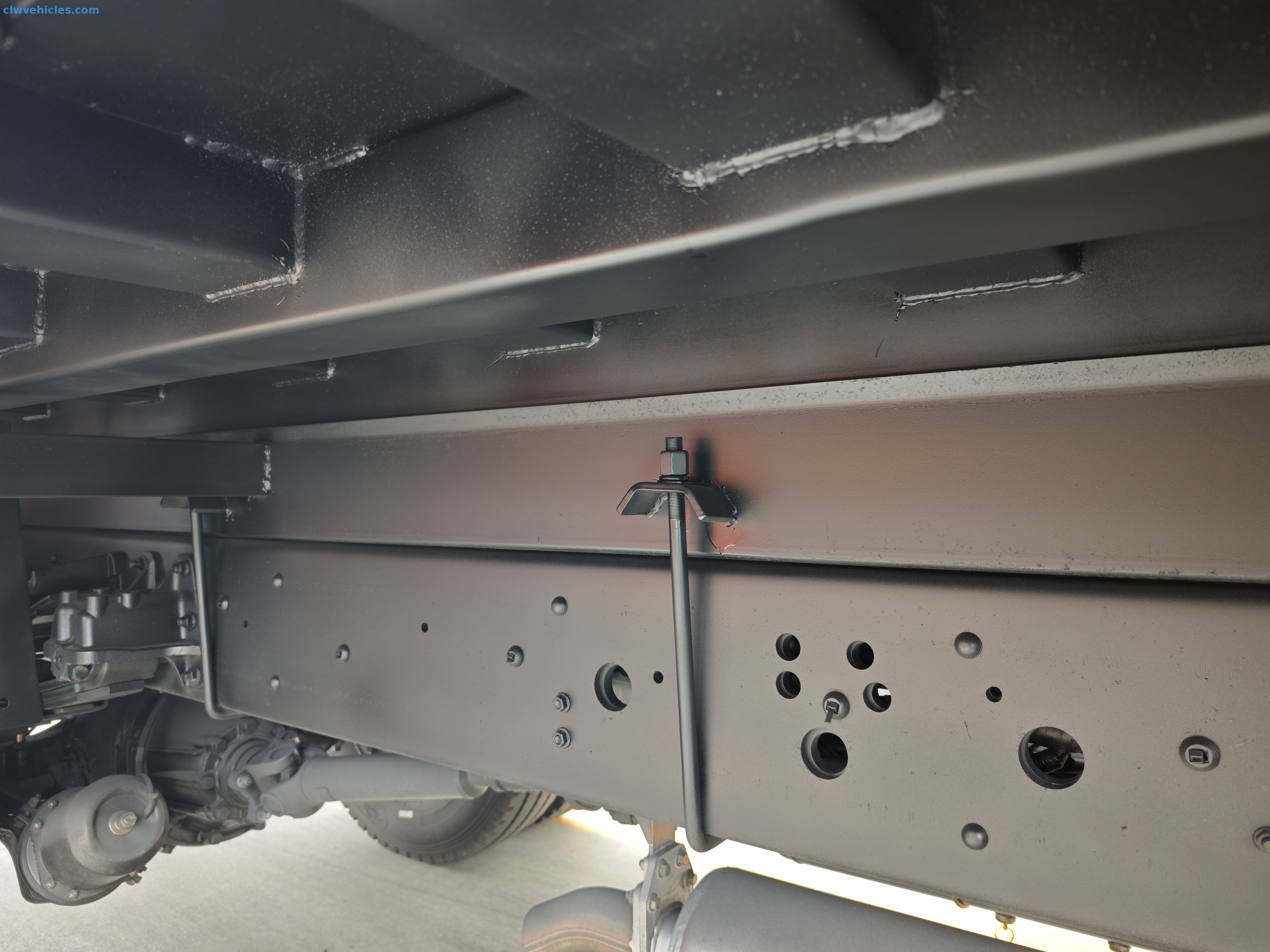

Rugged ISUZU Chassis: Supports 22 000 kg GVW with an 8 500 kg curb weight, 4 600 mm wheelbase, and generous approach/departure angles. Maneuver steep grades or rough terrain with ease.
6UZ1‑TCG61 Engine: 9.8 L, 6-cylinder diesel engine with 279 kW rated power and 1 800 N·m torque at 2 000 rpm. Euro 6 compliant for fuel-efficient yet powerful performance.
12-Speed FAST Manual Gearbox: Smooth, precise shifting for stop-and-go sites or highway travel up to 89 km/h. Combined with power steering and reinforced axles (9 t front, 13 t rear) for stable handling under full loads.
Heavy-Duty Tipper Body – Built to Last

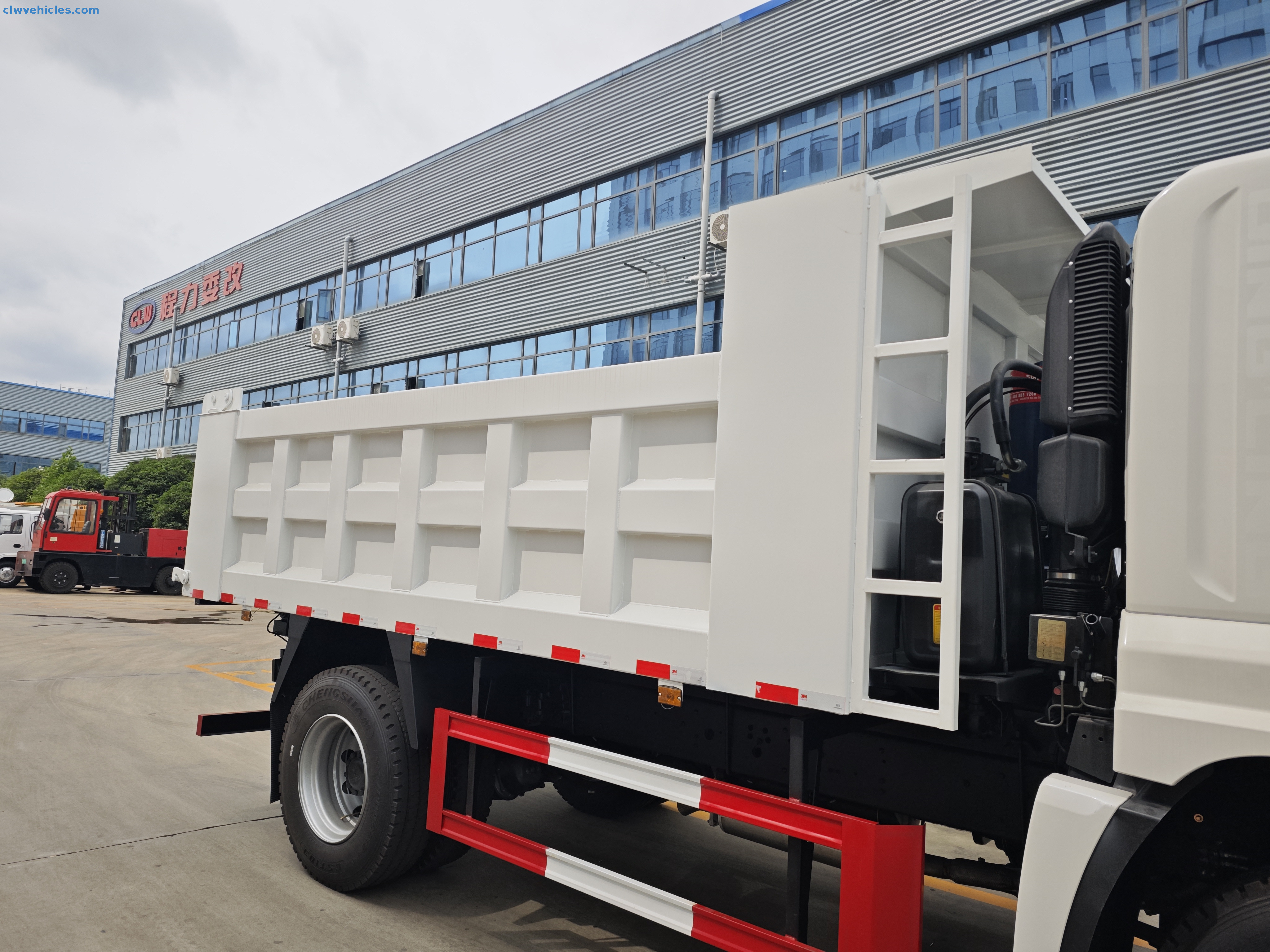

Cargo Box: 4,600 × 2,500 × 1,500 mm, Q235 carbon steel, 6 mm side walls, 8 mm floor plate.
Hydraulic Lifting: Front-lift cylinder allows fast, safe dumping cycles.
Durability: Engineered for continuous loading, hauling, and tipping, reducing downtime and maintenance needs.
Operator Comfort & Features

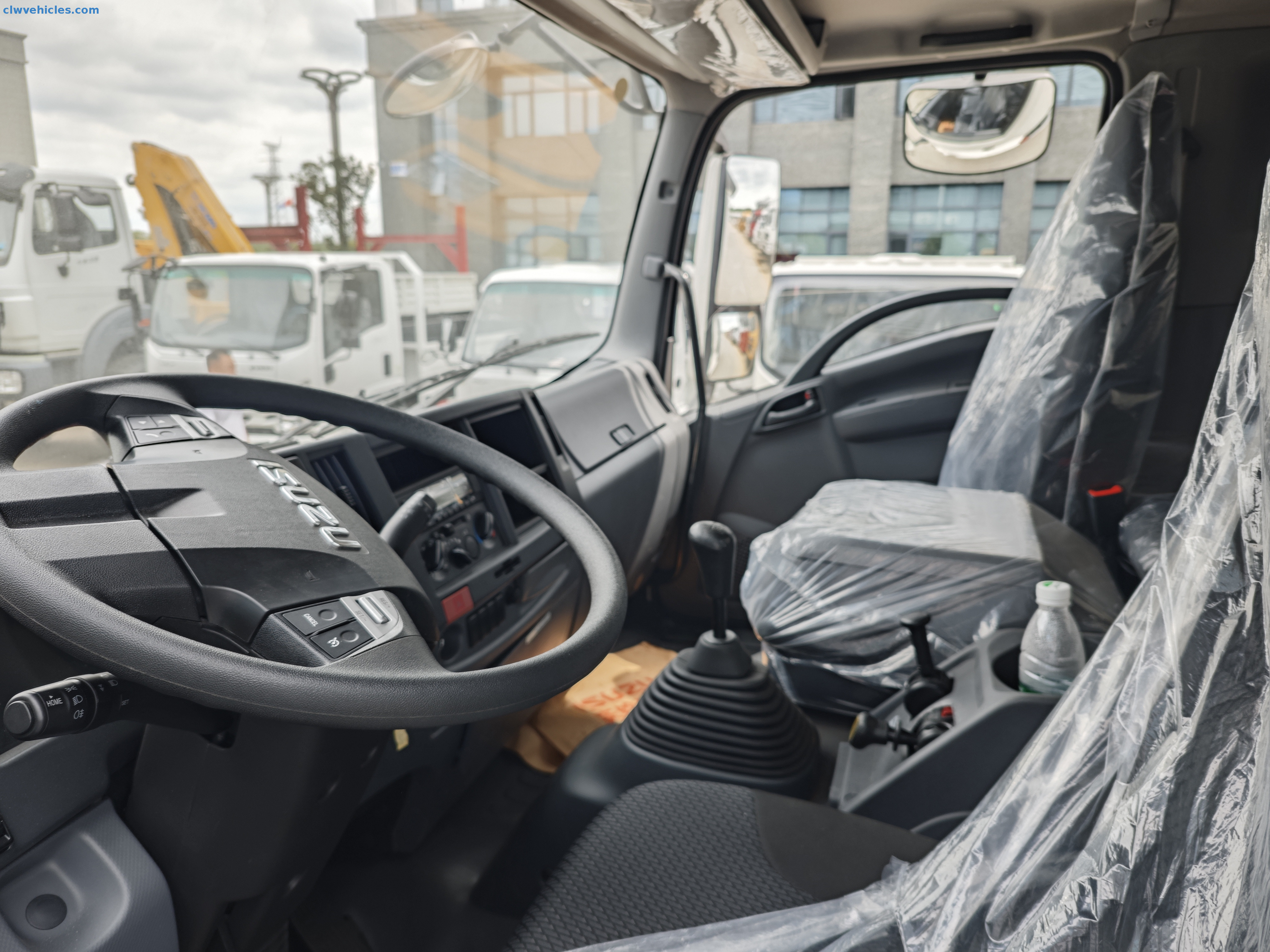

Cabin: VC61 sleeper cab with air conditioning, Bluetooth, laminated glass, and LED daytime running lights.
Ease of Use: Intuitive controls, stable chassis, and smooth hydraulic operation reduce fatigue during long shifts.
Why Choose This ISUZU Dump Truck?
Versatile Performance: Handles both heavy-duty sites and tight urban work zones.
Power & Efficiency: Euro 6 engine with 12-speed gearbox balances fuel economy and hauling strength.
Rugged Construction: Reinforced chassis, durable axles, and robust leaf springs ensure reliability.
Driver Comfort: Spacious sleeper cab with modern controls for long shifts.
CLW Group Quality: Backed by global support for uptime and peace of mind.
From robust engine torque to a reliable tipper body, the ISUZU GIGA 4×2 Dump Truck is your go-to solution for moving materials efficiently and safely—day after day, site after site.
Main Technical Parameters：
| Vehicle Description | Brand | CLW Group |
| GVW(kg) | 22000 |
| Curb Weight(kg) | 8500 |
| Loading Weight(kg) | 13150 |
| Overall Dimension(mm) | 7650*2500*3100 |
| Wheelbase(mm) | 4600 |
| Axle Load(kg) | 9000/13000 |
| Top Speed(km/h) | 105 |
|
| Chassis Brand | ISUZU |
| Cabin | Single,RHD,with A/C |
| Engine | Model | 6UZ1-TCG61
|
| HP | 380 |
| Emission Standard | Eu 6 |
| Displacement/Output(ml/kw) | 9839/279 |
| Fuel Type | Diesel |
| Maximum Torque(N·m) | 1800 |
| Gearbox | FAST Brand; 12Forward/2Reverse Gear |
| Tyre | 295/80R22.5; 6+1 spare tire |
|
| Dump | Box Dimension(mm) | 4600*2500*1500 |
| Box | Manufacturers | ChengLi Special Automobile Co.,Ltd |
| Configuration(mm) | Side: 6mm; floor: 8mm |
| Material | Q235 Carbon steel |
| Cabin | Brand | ISUZU |
| Model | GIGA VC61 |
| Seat | 2 seat, one sleeper,AC,laminated glass, multi function steering wheel |
| Color | According to costomer |
