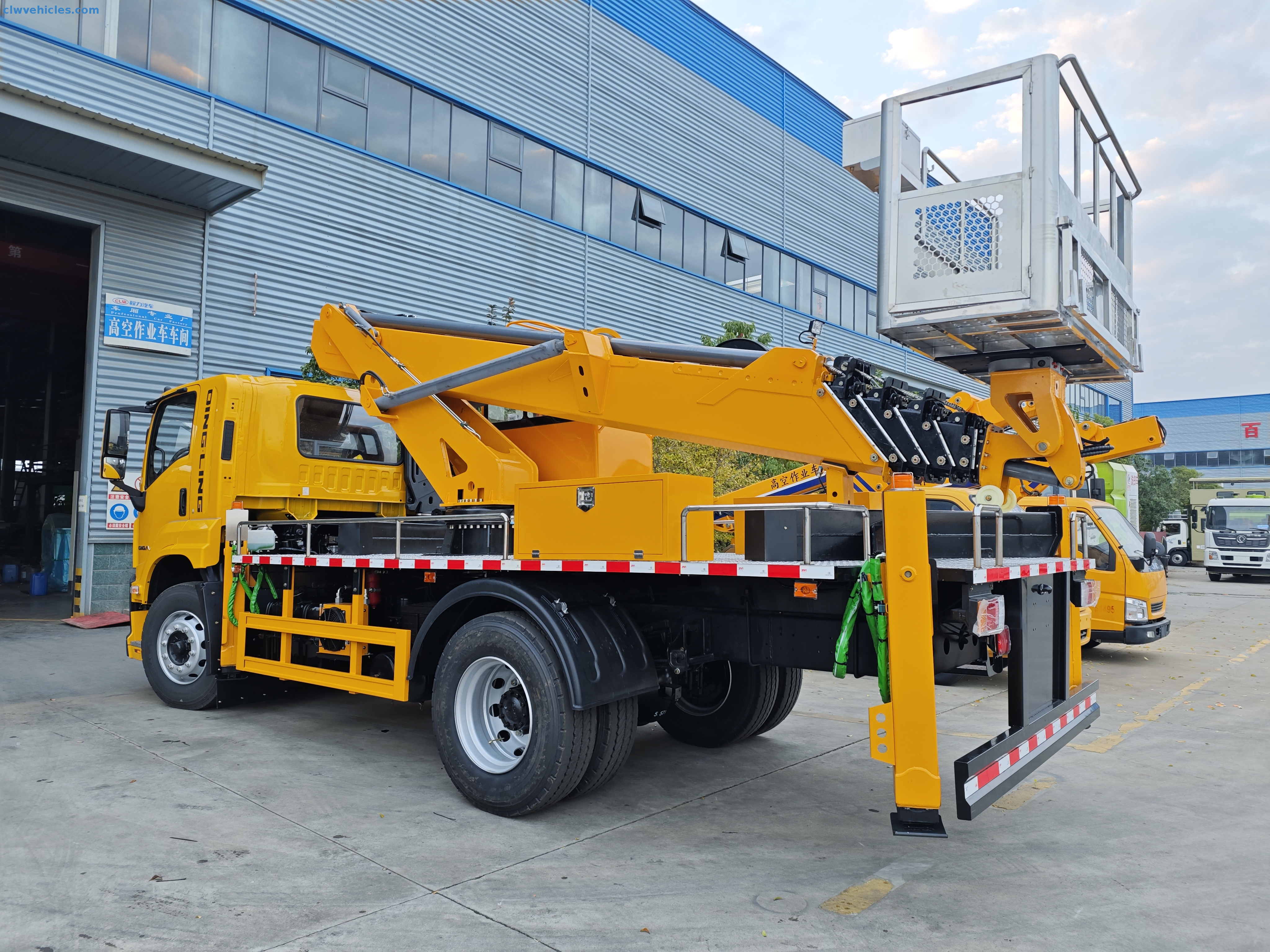

ISUZU GIGA 4x2 GKS24 24m Aerial Work Platform Truck

Product Description：

CLW ISUZU Giga 4x2 Aerial Work Platform Truck

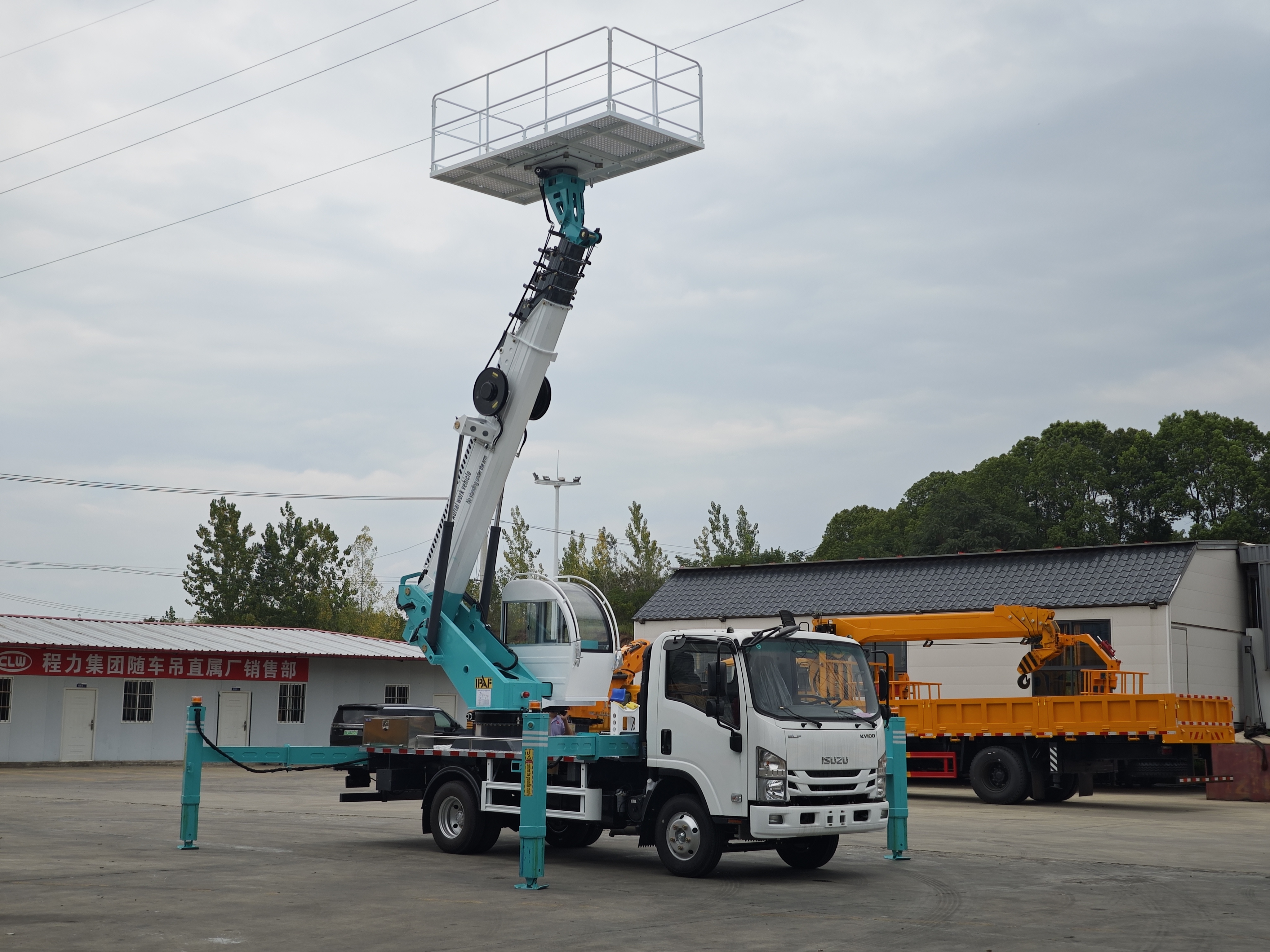

Looking for a reliable and safe solution to work at heights? The CLW ISUZU Giga 4x2 Aerial Work Platform Truck is built to make high-altitude tasks easier, faster, and safer. Perfect for telecom tower maintenance, street lighting, urban construction, and industrial applications, this truck gives operators a stable platform to complete jobs efficiently at heights up to 24 meters.

Powerful Chassis and Engine

Built on the durable ISUZU Giga 4x2 chassis, this truck delivers strength, stability, and reliability in all work conditions. The 4HK1-TCG60 engine with 205hp (151kW) and 647 Nm torque ensures smooth performance even during heavy-duty operations. Equipped with an 8-forward, 2-reverse gearbox and power steering, the truck is easy to maneuver in tight city streets or industrial sites. Its air brake system adds safety for both drivers and job sites, while the well-balanced axles (6500/11500) and robust suspension provide stability under load.

Advanced Aerial Platform and Boom

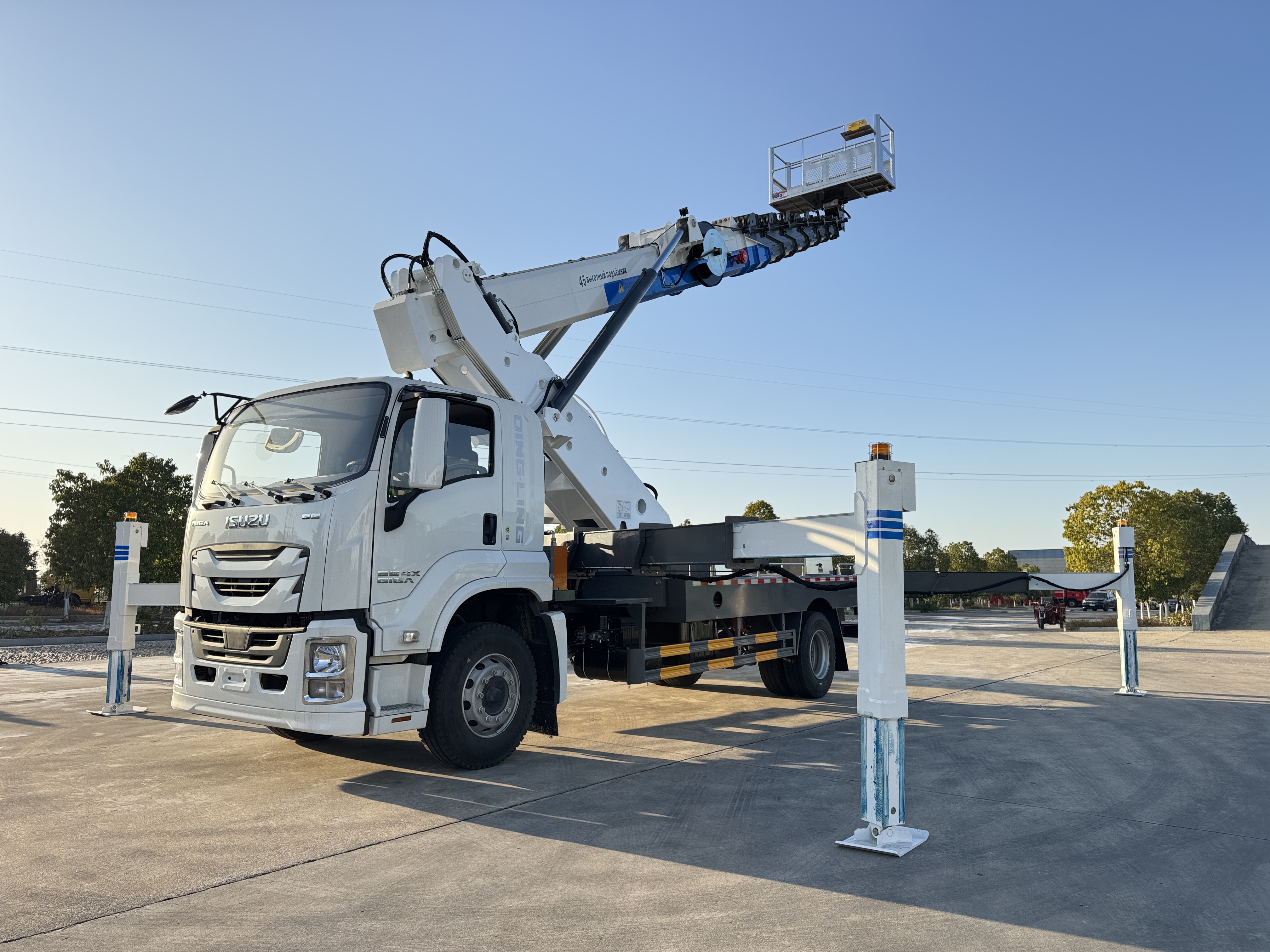

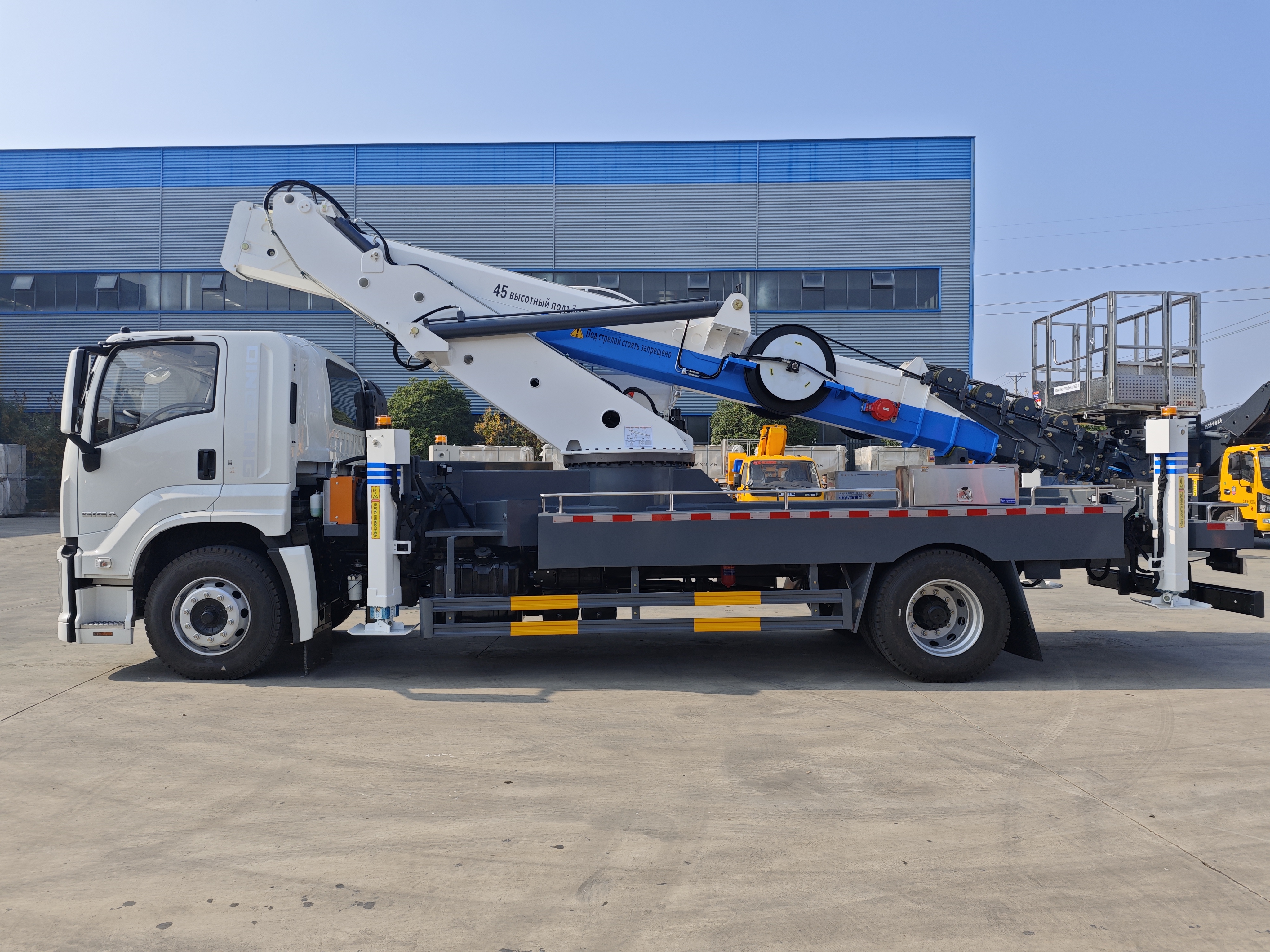

The truck features a 4-section hexagonal telescopic boom for precise and synchronized extension. The platform working height reaches 24 meters, with a maximum operating range of 12 meters and a safe height clearance of 3 meters for nearby tasks. The 200kg bucket (optional insulated) rotates 360° continuously, allowing full flexibility during maintenance or installation. Four hydraulic outriggers (front V-type + rear H-type) provide exceptional stability with a horizontal span of 4200mm and vertical span of 4000mm.

Flexible Controls and Safety Features

Operators can control the platform both from the ground or inside the bucket using wireless remote, platform operation, or manual three-group controls. The system supports safe operation in winds up to Class 4, and emergency stop devices are included to ensure maximum safety during every job.

Why Choose This ISUZU Giga 4x2 Aerial Work Truck?

• Maximum working height of 24 meters for high-altitude maintenance

• Durable ISUZU chassis and Euro-compliant engine for long-term reliability

• 360° continuous slewing bucket with optional insulated bucket

• Four hydraulic outriggers for safe, stable operation

• Multiple control options for convenience and safety

• Ideal for telecom, urban construction, industrial maintenance, and public utilities

The CLW ISUZU Giga 4x2 Aerial Work Platform Truck combines power, precision, and safety, making it the ideal choice for companies and municipalities looking to upgrade their fleet with a robust, versatile, and high-performing aerial work solution.

Main Technical Parameters：

Main Technology Parameter
Model Name	CLW Brand ISUZU Aerial Work Platform Truck
Driving Type	4x2
Color	Yellow or based on client's request.
Number of Cabs	2
Weights
GVW(kg)	18000
Curb Weight(kg)	17805
Dimensions
Wheelbase(mm)	5550
Front/Rear Overhang(mm)	1335/2960
Approach/Departure Angle	15/8
Overall Dimension(mm)	10345x2550x3850
Max Speed(km/h)	89
Engine
Engine Model	4HK1-TCG60
Engine Type	Common rail system;EGR+DOC+DPF+SC
Rated Torque(Nm)	647
Rated Speed(rpm)	2600
Max.Output(kw)	151(205hp)
Drive Line
Transmission	8 forwards,2 reverse gear
Steering	Power steering
Brake	Air brake system
Axle
Axle	6500/11500
Tire Specification
Tire Specification	295/80R22.5 18PR; 6+1spare tire
Front Wheel Track(mm)	1960
Rear Wheel Track(mm)	1855
Number of Leaf Springs	7/7+7
Upper Body Configuration
Platform Working Height	24m
Maximum Operating Height	3m
Maximum Operating Range	12m
Boom Type	4-section hexagonal working arm,synchronous telescopic
Outtrigger	4 pcs,front V+rear H type hydraulic outtriggers
	Span:4200mm horzontal,4000mm vertical
Bucket(kg)	200 (optional insulation buket)
Slewing Device	Two-way 360° continuous slewing
	360° slewing bucket
Operating System	Up and down operation both on ground and in bucket
	Wireless remote control+platform operatio+manual 3 groups of operating
Control Voltage	12V
Maximum Working Wind Speed	Class 4 wind
Emergency Device	yes
