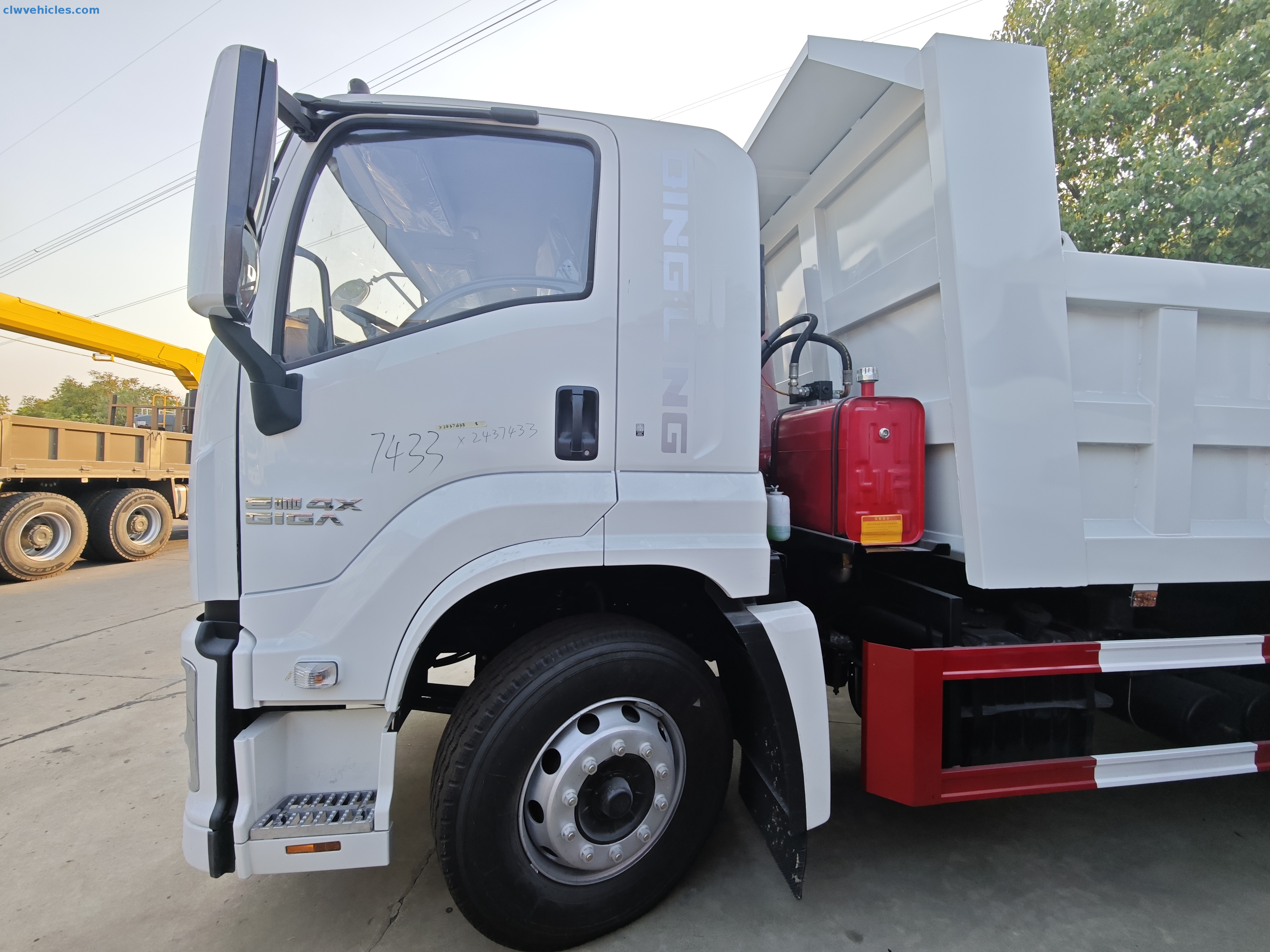

ISUZU GIGA 4x2 10cbm dump truck
Product Description:
This ISUZU GIGA 4x2 dump truck has an Isuzu Giga 4x2 chassis. The tires equipped are 295/80R22.5 18PR. The overall vehicle size is 8000x2530x3000mm, and the wheelbase reaches 5550mm. Its engine is model 4HK1-TCG60, with a horsepower of 205 and a displacement of 5.193L.
The main part of the upper-mounted device is the cargo box body. The cargo box size is 4000x2350x1000mm, with a volume of 9.4cbm. It is made of carbon steel. The side plate thickness is 6mm, and the bottom plate thickness is 8mm. It is T700 ultra-high-strength automotive steel, which is sturdy and durable and can withstand a large weight and pressure of cargo.
The side protection material is steel plate Q235 and is connected to the carriage floor by bolts. The rear protection material is steel plate SAPH440 with a plate thickness of 3.2mm. The rear protection bracket is connected to the end of the longitudinal beam of the frame by bolts. The rear protection section size is 150×49.7(mm), and the ground clearance is 413mm, providing good safety protection for vehicle driving.
In addition, the body color and cab color of this vehicle can be customized to meet users' personalized needs. The dump method of the dump truck is rear dumping, which is convenient to operate and is suitable for various construction sites and transportation scenarios.
Main Technical Parameter:
| Vehicle Description | Brand | CLW |
| GVW(kg) | 18000 |
| Curb Weight(kg) | 7155 |
| Loading Weight(kg) | 10650 |
| Overall Dimension(mm) | 8000x2530x3000 |
| Wheelbase(mm) | 5550 |
| Axle Load(kg) | 6500/11500 |
| Top Speed(km/h) | 95 |
|
| Chassis Brand | QL |
| Chassis Model | QL1180JQFR |
| Cabin | Single,LHD,with A/C |
| Engine | Model | 4HK-TCG60 |
| HP | 205 |
| Emission Standard | Eu 6 |
| Displacement/Output(ml/kw) | 5193/151 |
| Fuel Type | Diesel |
| Maximum Torque(N·m) | 647 |
| Gearbox | 6Forward/1Reverse Gear |
| Tyre | 7.00R16LT 14PR |
|
| Dump | Box Dimension(mm) | 4000x2350x1000 |
| Box | Manufacturers | ChengLi Special Automobile Co.,Ltd |
| Volume(cbm) | 9.5 |
| Configuration(mm) | side:6,bottom:8 |
| Material | Carbon steel |
| Side Door | According to costomer |
| Cabin | Brand | Isuzu |
| Model | Flat proof |
| Seat | 3 |
| Color | According to costomer |
