Product Description：

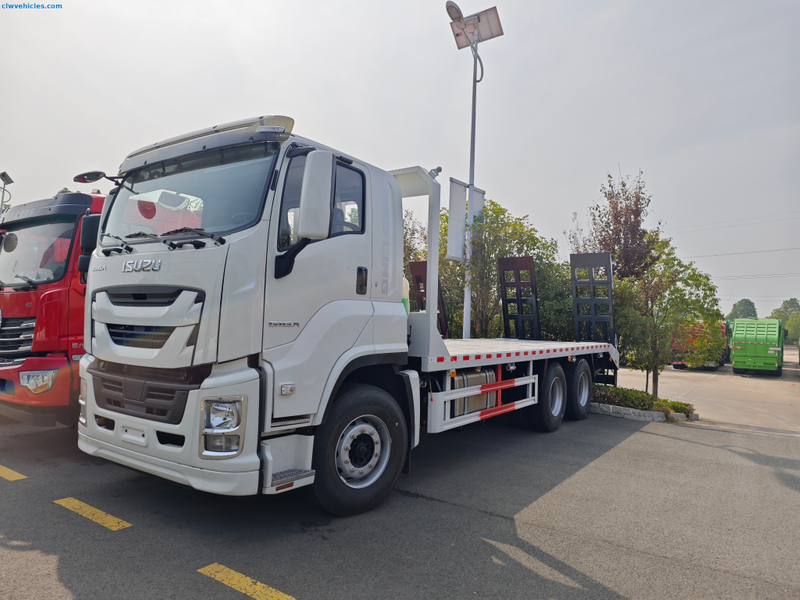

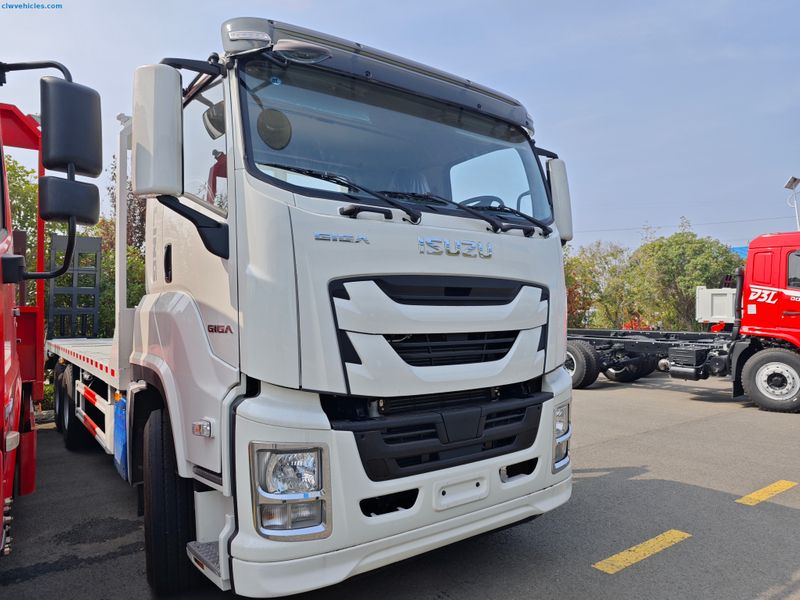

This ISUZU GIGA Wrecker Truck is mainly used for towing road breakdown vehicles and illegal vehicles. The main special devices are flat plates, winches, steel wire ropes. Optional equipment includes towing arms and lifting cranes. The materials of the left and right side protection devices are Q235 carbon steel. The connection method is bolt connection. The rear lower protection is replaced by the special device towing arm. The ground clearance is 470mm.
Main Technical Parameters
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 |
| Curb Weight(kg) | 16500 |
| Overall Dimension(mm) | 9800x2540x3055 |
| Wheelbase(mm) | 4565+1370 |
| Axle Load(kg) | 7000/13000 |
| Top Speed(km/h) | 95 |
|
| Chassis Brand | ISUZU |
| Cabin | Single,LHD,with A/C |
| Engine | Model | 6WG1-TCG51 |
| HP | 460 |
| Emission Standard | Euro 5 |
| Displacement/Output(ml/kw) | 15681/338 |
| Fuel Type | Diesel |
| Rate Speed(rpm) | 2060 |
| Gearbox | 10Forward/2Reverse Gear |
| Tyre | 12.00R20 18PR |
|
| Wrecker Structure Parameters |
|
|
| Flatbed System | Flatbed Load Capacity (kg) | 20000 |
| Flatbed External Size(LXW) (mm) | 7600x2500 |
| Min angle between flatbed and floor | 8° |
| Towing System | Max Towing Capacity (kg) | 25000 |
| Max Towing capacity under full extension (kg) | 1800 |
| Max effecitve length of towing arm (mm) | 1700 |
| Extension stroke of towing arm (mm) | 1340 |
| Extend-retract of folding angle (°) | -6~8 |
| Max distance from towing folk to the floor under full extension (mm) | 1000 |
| Winch System | Quantity (pcs) | 1 |
| Rated Tractive force for each (kN) | 100 |
| Steel Wire Rope Spec. | 12-6X19S-FC1670BZS |
| Dia. of Steel wire rope (mm) | φ12 |
| Length of Steel wire rope (m) | 25 |
| Min linear speed of Steel wire rope(m/min) | 3.23 |
