ISUZU
CLW
CLW5250RV1

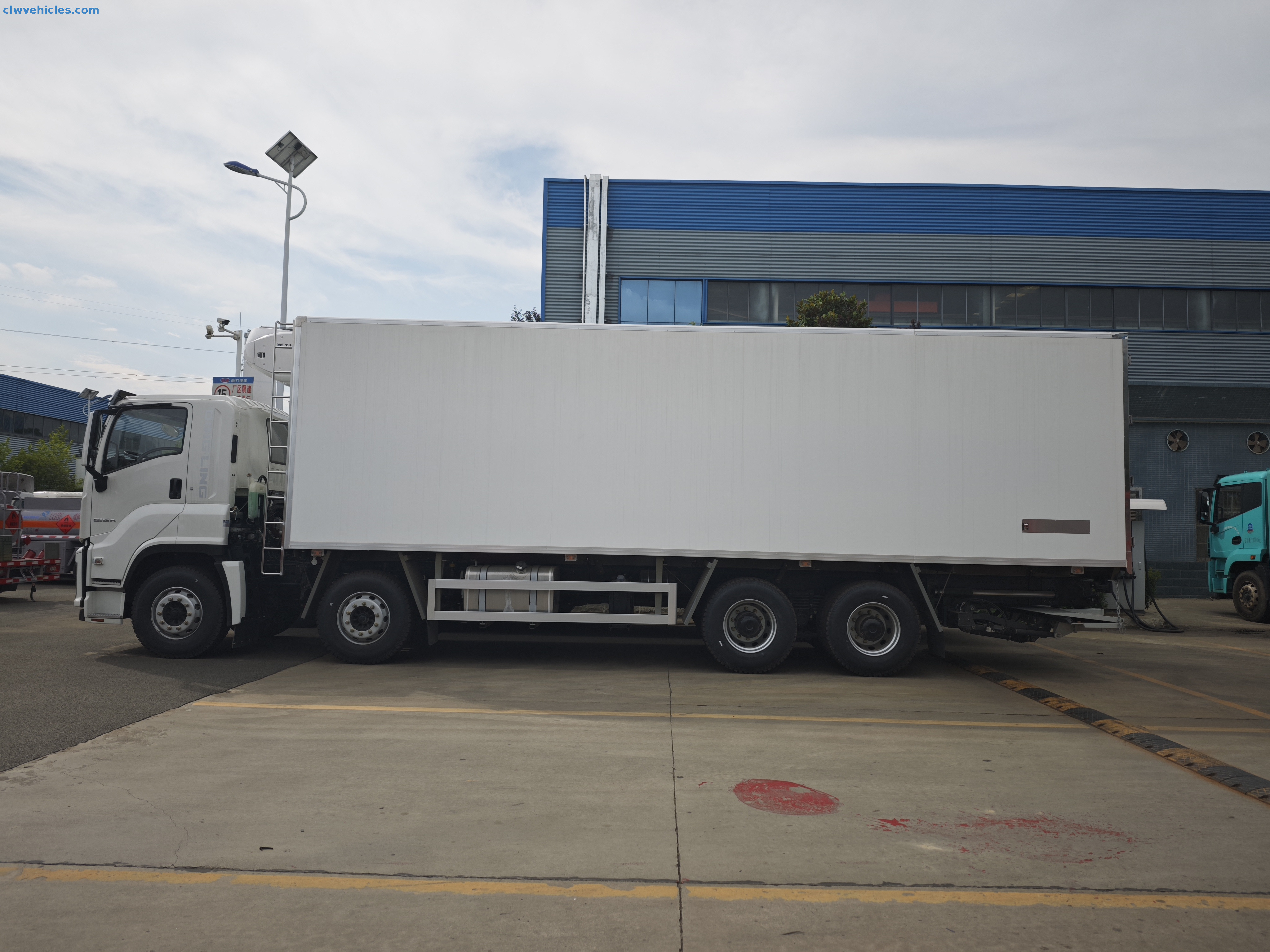

The ISUZU GIGA 8×4 Cooling Reefer Truck from CLW Group is engineered to transport large volumes of perishable goods safely and efficiently. With a robust ISUZU chassis, reliable Thermo King refrigeration system, and a spacious insulated box, this truck ensures your cargo—fruit, seafood, meat, or dairy—remains fresh across long distances.
National supermarket distribution
Frozen seafood and meat transport
Restaurant and catering supply
Long-haul dairy and beverage delivery
The 9.55 m refrigerated box supports temperatures from –20 °C to +30 °C, making it suitable for both chilled and frozen goods, including mixed loads.
Heavy-Duty Foundation: GVW 32,000 kg, triple-axle setup (6,500 kg + 6,500 kg + 19,000 kg) for stable transport
Wheelbase: 1,850 + 4,575 + 1,370 mm
Top Speed: 89 km/h
Engine: ISUZU 6WG1-TCG61 turbocharged diesel, 460 HP, 2,000 N·m torque
Transmission: FAST 12-speed manual with 2 reverse gears
Driver Comfort: Ergonomic cab with A/C, durable suspension with leaf springs, 12R22.5 18PR tires for road confidence
High-Capacity Insulated Box: 9,550 × 2,420 × 2,370 mm, 80 mm polyurethane foam, fiberglass construction

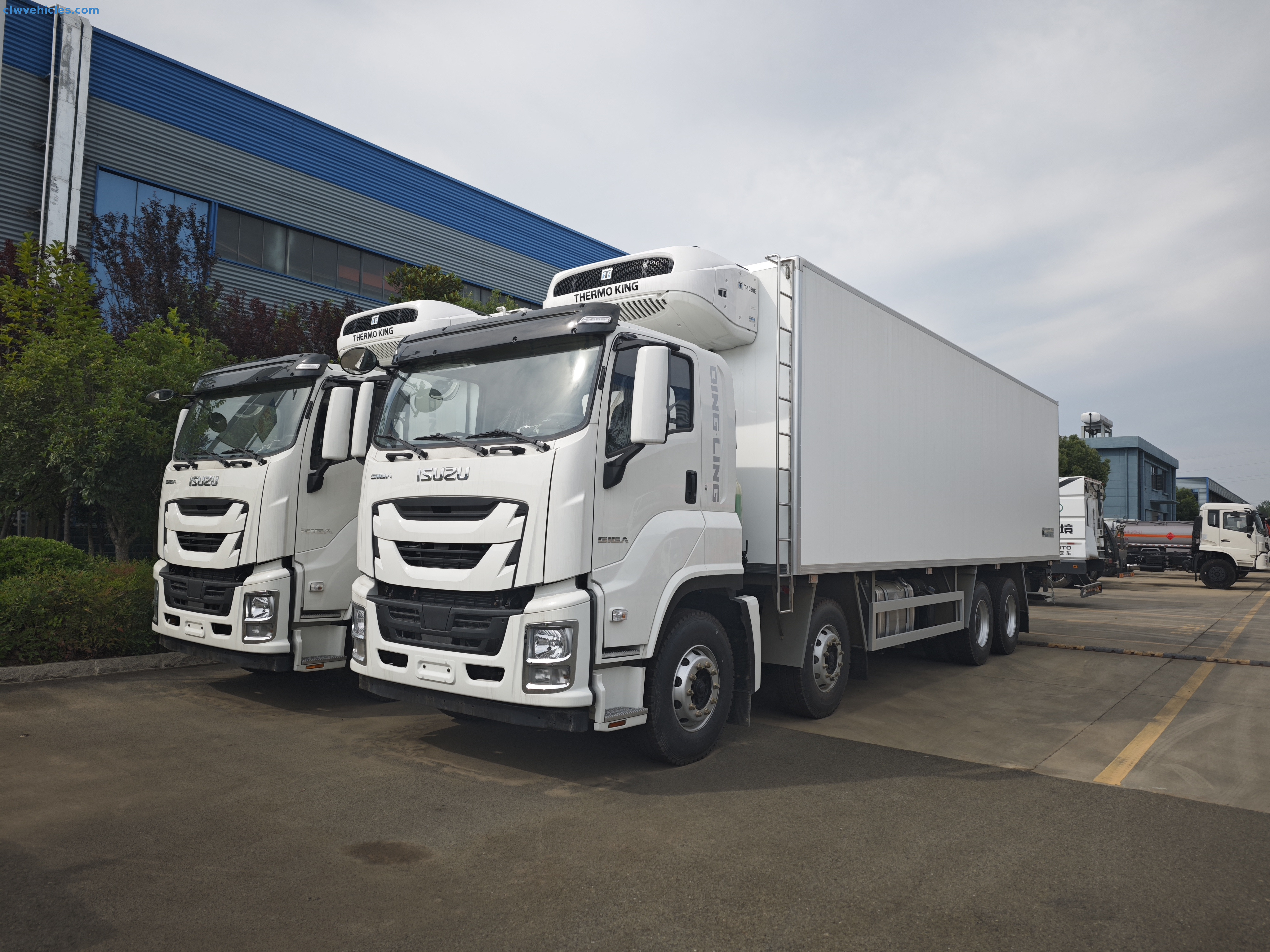

Thermo King Cooling System: 3,300 m³/hr airflow, R-404A refrigerant, temperature control from –20 °C to +30 °C
Custom Features:
Hydraulic tailgate for safe loading/unloading of large cargo
Bottom ventilation slots for improved airflow and cargo preservation
Side doors for multi-point delivery
Optional meat hooks, external standby power, and client-specific logo design
Massive Payload: Up to 17,220 kg of chilled or frozen goods per trip
Consistent Cooling: Thermo King refrigeration ensures stable temperatures
Proven ISUZU Performance: Heavy-duty chassis and powerful drivetrain
Flexible & Reliable: Customizable refrigerated body meets diverse cold-chain demands
Export Experience: Successfully delivered to North Africa (Algeria) and Central Asia, demonstrating international reliability
Tailored Design: Special attention to details, optional hydraulic tailgate, ventilation slots, and personalized logo design
Efficient long-haul cold chain performance with minimal downtime
Enhanced driver comfort for extended routes
Easy loading/unloading via hydraulic tailgate
Optimized airflow in cargo box for uniform cooling
Versatile side doors for multiple delivery points
Q1: What temperature range can the ISUZU GIGA 8×4 Cooling Reefer Truck handle?
A1: It operates between –20 °C and +30 °C, suitable for both frozen and chilled goods.
Q2: Can the truck handle large-volume cargo safely?
A2: Yes, the 9.55m refrigerated box and 460HP engine support up to 17,220 kg of goods per trip.
Q3: Are there customization options available?
A3: Absolutely. Options include hydraulic tailgate, bottom ventilation slots, side doors, meat hooks, external standby power, and client-specific logo designs.
Q4: Has this truck been exported internationally?
A4: Yes, it has been successfully exported to North Africa (Algeria) and Central Asia, including Kazakhstan and Kyrgyzstan.
Q5: How does the hydraulic tailgate benefit operations?
A5: It facilitates safe and efficient loading/unloading of large or heavy cargo, reducing manual labor and operational time.
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU 8*4 Cooling Reefer Truck |
| Driving Type | 8*4 |
| Color | white or based on client's request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 32000 |
| Rated Payload Weight(kg) | 17220 |
| Curb Weight(kg) | 14650 |
| Dimensions | |
| Wheelbase(mm) | 1850+4575+1370 |
| Front/Rear Overhang(mm) | 1370/2835 |
| Approach/Departure Angle | 17/10 |
| Overall Dimension(mm) | 12000x2600x3990 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 6WG1-TCG61 |
| Engine Type | In-line, four cylinders, turbocharged with intercooler |
| Max.Output(kw) | 338(460hp) |
| Drive Line | |
| Transmission | 12 forwards,2 reverse gear,FAST Brand |
| Steering | Power steering |
| Axle | |
| Axle | 6500/6500/19000 |
| Tire Specification | |
| Tire Specification | 12R22.5 18PR; 12+1 spare tire |
| Front Wheel Track(mm) | 2060/2060 |
| Rear Wheel Track(mm) | 1855/1855 |
| Number of Leaf Springs | 3/3/-/- |
| Upper Body | |
| Van Box Size(mm) | 9550x2420x2370 |
| Box Material | Fiberglass |
| Insulating Layer | 8cm polyurethane foam |
| Refrigerator Brand | Thermo King |
| Applicable Temperature | -20~+30°C |
| Airflow(m³/hr) | 3300 |
| Refrigerant Type | R-404A |
| Dimensions(WxHxD) (mm) | 1888x919x618 |
| Remark | Part Optional:Ventilation Slot |
| Hook | |
| External power supply | |
| Side Door | |
Optional tailgate：
The roof of the carriage is closed and cannot be opened. The front mask, front combination lamps, front bumper can be selected according to the chassis. Mirrors and a one-and-a-half-row cab can be selected. A deflector and side doors can be selected. The side door can be a single door, double door or no door, and a built-in refrigeration unit can be selected. Insulated composite panels can be selected. Door locks can be selected as 2 bars and 2 locks or 4 bars and 4 locks.

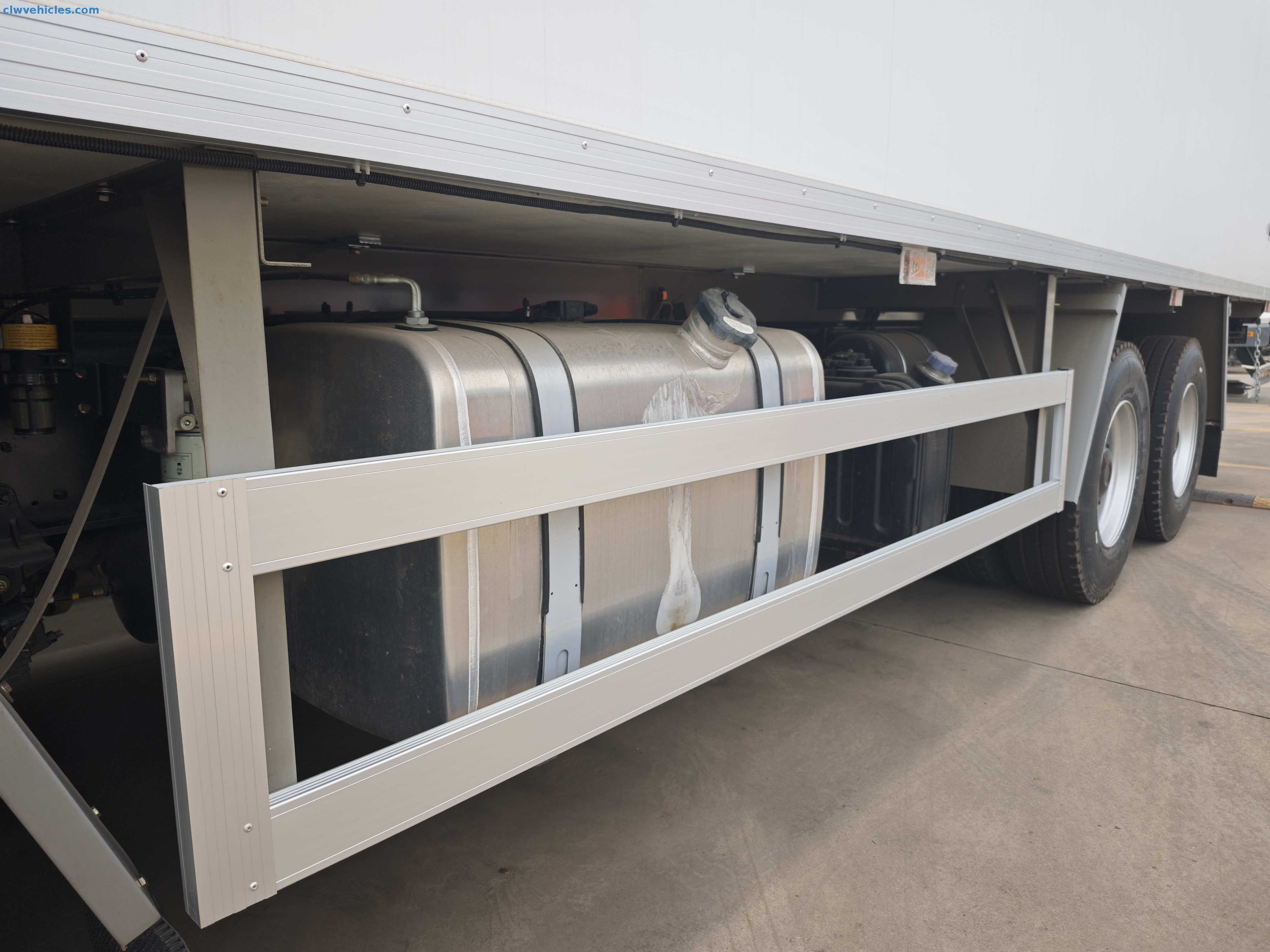

Fuel tanks, batteries, urea tanks, and air storage cylinders can be selected for left and right installation positions according to the chassis. A hydraulic tailgate can be selected. The horizontal length of the retracted state is 290mm, and the mass of the hydraulic tailgate is 450kg. The materials of the side and rear lower protective devices are Q235 and are connected to the frame by bolts. The cross-sectional dimensions of the rear lower protective device (mm): 120×60. Ground clearance: 450mm. When a hydraulic tailgate is selected, the rear protection is three-segmented and welded to the frame. Other models of refrigeration units with equivalent power can be selected.
