ISUZU
CLW
CLW5180AWP15

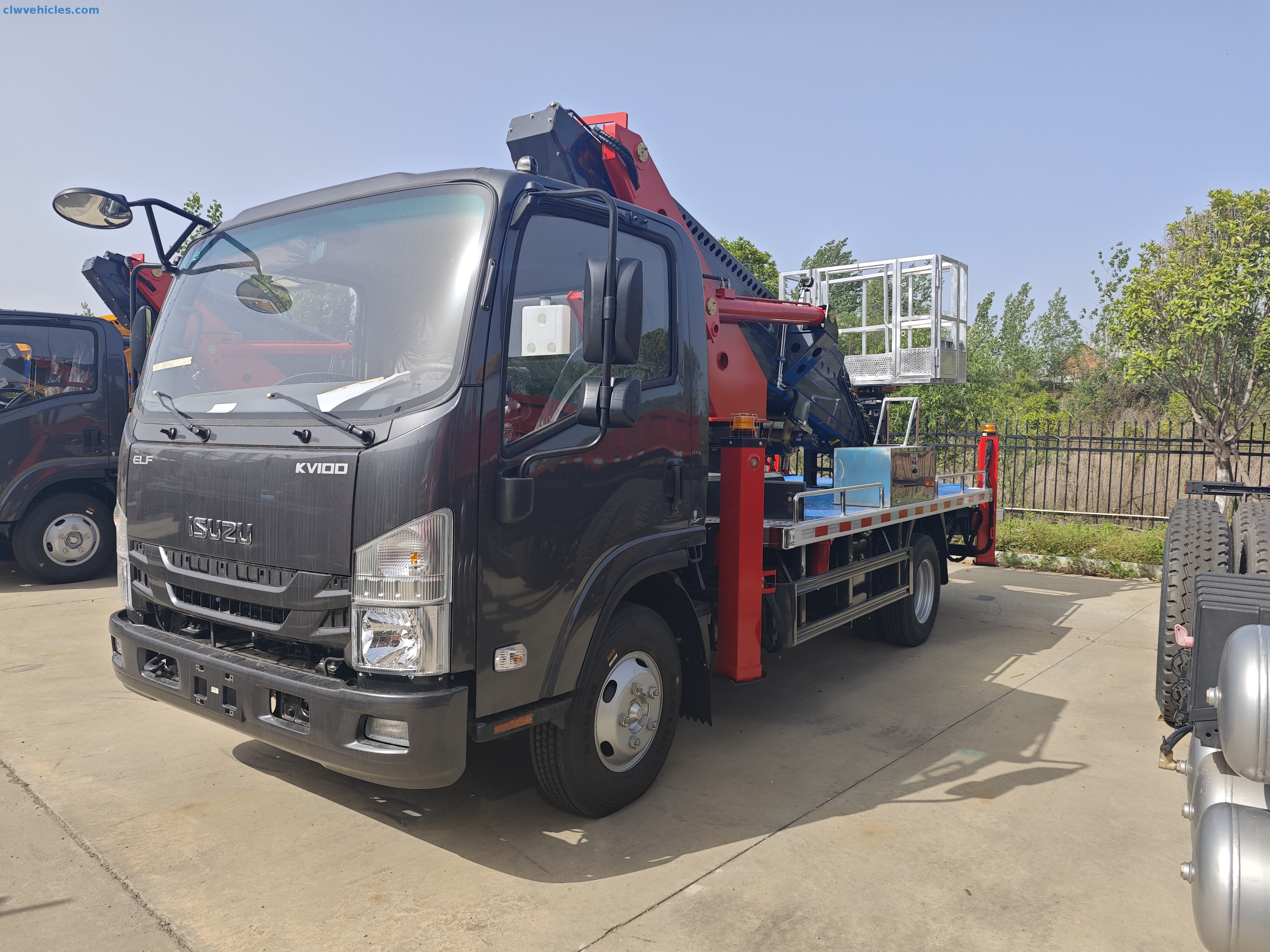

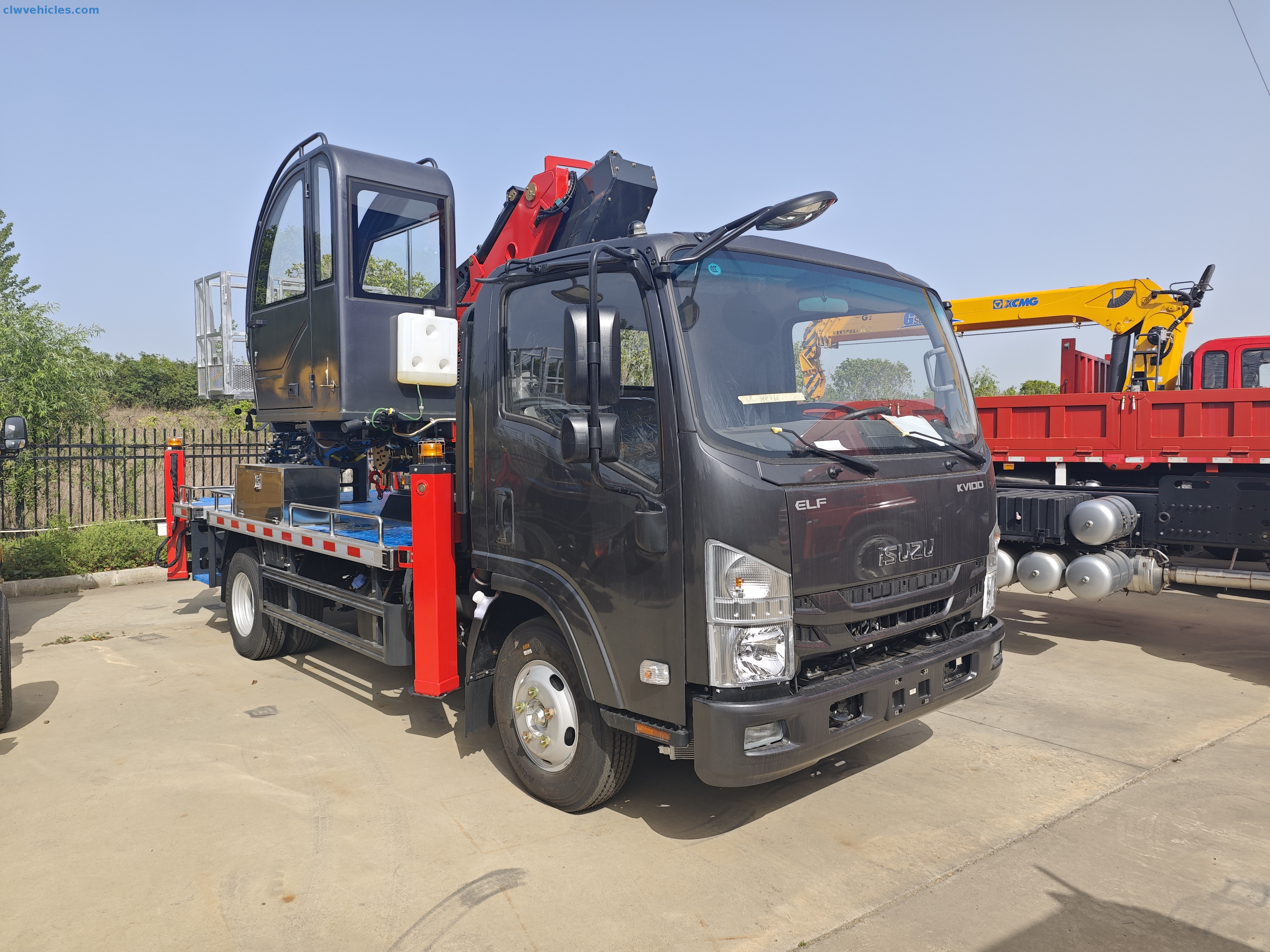

When maintenance or construction takes you above ground level, the Isuzu 4×2 Aerial Work Platform Truck delivers the reach, control, and confidence your team needs. Designed for power utilities, telecom companies, city service departments, and construction contractors, this 24-meter aerial lift combines Isuzu’s proven chassis with a precision-engineered hydraulic boom system for outstanding performance and safety.
Built on the durable Isuzu 4×2 chassis, the truck features a 4HK1CN6LB 120hp turbocharged diesel engine paired with a 6-speed MLD-6Q manual transmission, ensuring smooth and efficient operation even on uneven worksites. With dual working stations (ground and platform) and wireless remote control, operators have complete flexibility and stability at every height.
The four-section hexagonal boom, 360° slewing system, and V+H-type outriggers provide exceptional range and balance, while the anti-tip structure, air brake system, and emergency descent device prioritize operator safety during all tasks.
✅ 24m Working Height, 12m Horizontal Range – Perfect for utility poles, streetlights, signage, and building facades.
✅ Triple Control Modes – Operate from the platform, ground, or via wireless remote for maximum flexibility.
✅ 360° Continuous Slewing System – Smooth, full-circle operation for precision positioning.
✅ Safety & Stability – Reinforced V+H outriggers, anti-tip structure, and reliable air brake system.
✅ Efficient 120hp Isuzu Diesel Engine – Turbocharged power optimized for urban and off-road use.
✅ Compact & Maneuverable – At only 8.06m long, easily navigates city streets and tight job sites.
✅ Ergonomic & Reliable – Comfortable operation controls, corrosion-resistant structure, and long service life.
| Category | Details |
|---|---|
| Model Name | CLW Brand Isuzu 4×2 Aerial Work Platform Truck |
| Driving Type | 4×2 |
| Color | Black or customized |
| GVW (kg) | 8,280 |
| Curb Weight (kg) | 8,085 |
| Overall Dimensions (mm) | 8,060 × 2,480 × 3,200 |
| Wheelbase (mm) | 3,815 |
| Front/Rear Overhang (mm) | 1,120 / 2,475 |
| Approach/Departure Angle (°) | 23 / 10 |
| Max Speed (km/h) | 89 |
| Engine Model | 4KH1CN6LB |
| Power | 88 kW (120 hp) |
| Engine Type | Water-cooled, four-stroke, turbocharged diesel |
| Transmission | 6 forward, 2 reverse gears |
| Steering | Power steering |
| Brake System | Air brake |
| Front/Rear Axle (kg) | 3,000 / 5,280 |
| Tires | 7.50R16LT 14PR (6 + 1 spare) |
| Front/Rear Wheel Track (mm) | 1,640 / 1,655 |
| Leaf Springs | 6 / 6+6 |
| Platform Working Height | 24 m |
| Maximum Operating Height | 25 m |
| Maximum Operating Range | 12 m |
| Boom Type | 4-section hexagonal telescopic boom |
| Outriggers | 4 pcs (Front V + Rear H), 4,200mm horizontal / 4,000mm vertical span |
| Bucket Capacity | 200 kg (optional insulated bucket) |
| Slewing Device | 360° continuous slewing (two-way) |

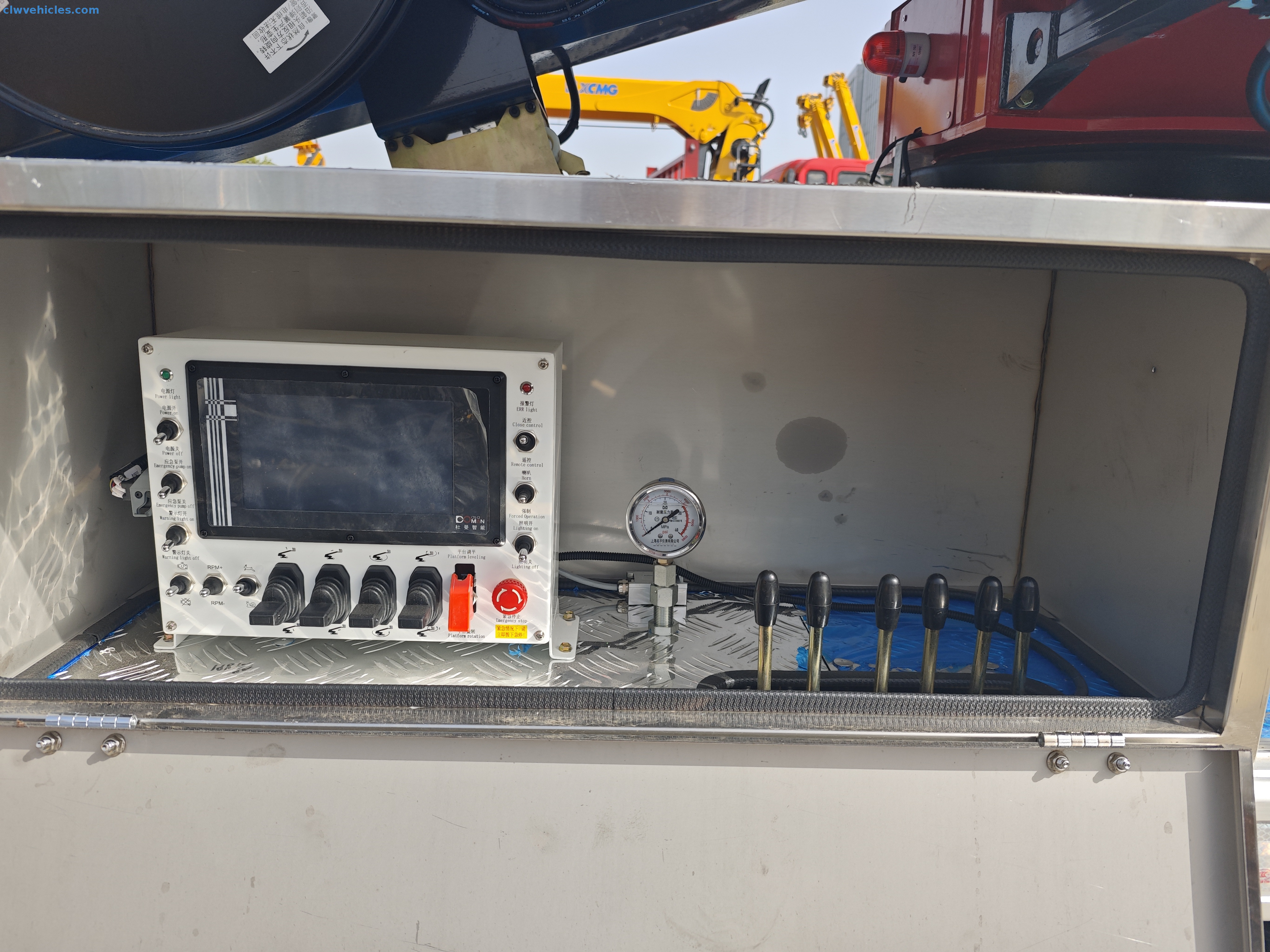

| Operating System | Ground, bucket, and wireless remote controls |
| Control Voltage | 12V |
| Max Working Wind Speed | Class 4 |
| Emergency Device | Equipped |
Q1: What is the maximum working height of the Isuzu aerial work platform truck?
A1: The truck can reach up to 24 meters vertically and 12 meters horizontally.
Q2: How is the platform operated?
A2: The operator can control it from the platform, the ground, or remotely using a wireless controller.
Q3: Is the bucket insulated for electrical work?
A3: Yes, an optional insulated bucket is available for high-voltage environments.
Q4: What safety systems does this truck include?
A4: It includes 4 hydraulic outriggers, an anti-tip chassis design, an air brake system, and an emergency descent device.
Q5: Can this truck be customized for different working conditions?
A5: Yes, customization options include platform insulation, tool storage, lighting, and hydraulic system upgrades.
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Brand ISUZU Aerial Work Platform Truck |
| Driving Type | 4x2 |
| Color | Black or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 8280 |
| Curb Weight(kg) | 8085 |
| Dimensions | |
| Wheelbase(mm) | 3815 |
| Front/Rear Overhang(mm) | 1120/2475 |
| Approach/Departure Angle | 23/10 |
| Overall Dimension(mm) | 8060x2480x3200 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 4KH1CN6LB |
| Engine Type | Water-cooled, four-stroke |
| Max.Output(kw) | 88(120hp) |
| Drive Line | |
| Transmission | 6 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle | |
| Axle | 3000/5280 |
| Tire Specification | |
| Tire Specification | 7.50R16LT 14PR; 6+1spare tire |
| Front Wheel Track(mm) | 1640 |
| Rear Wheel Track(mm) | 1655 |
| Number of Leaf Springs | 6/6+6 |
| Upper Body Configuration | |
| Platform Working Height | 24m |
| Maximum Operating Height | 3m |
| Maximum Operating Range | 12m |
| Boom Type | 4-section hexagonal working arm,synchronous telescopic |
| Outtrigger | 4 pcs,front V+rear H type hydraulic outtriggers |
| Span:4200mm horzontal,4000mm vertical | |
| Bucket(kg) | 200 (optional insulation buket) |
| Slewing Device | Two-way 360° continuous slewing |
| 360° slewing bucket | |
| Operating System | Up and down operation both on ground and in bucket |
| Wireless remote control+platform operatio+manual 3 groups of operating | |
| Control Voltage | 12V |
| Maximum Working Wind Speed | Class 4 wind |
| Emergency Device | yes |
