Product Description：

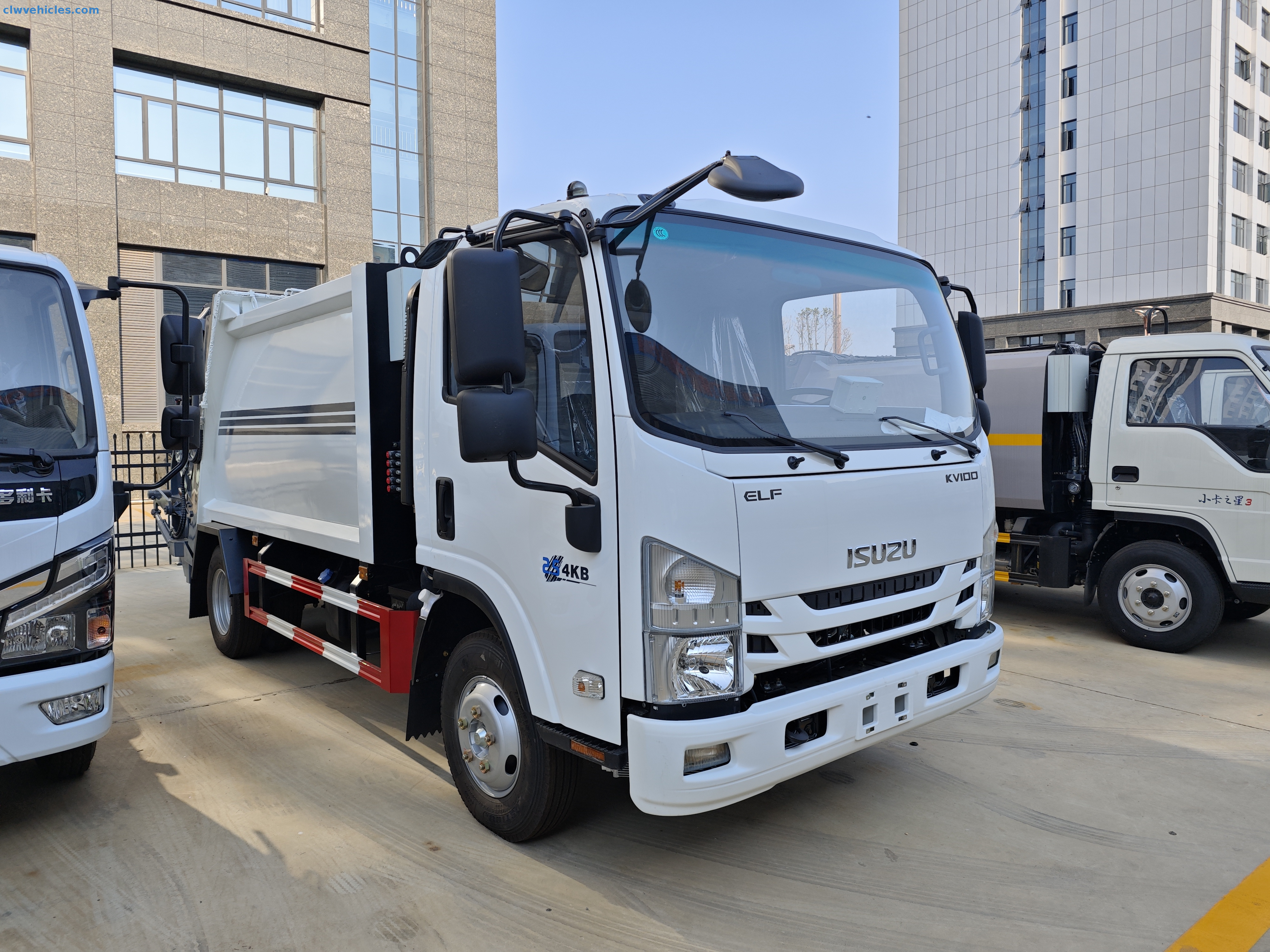

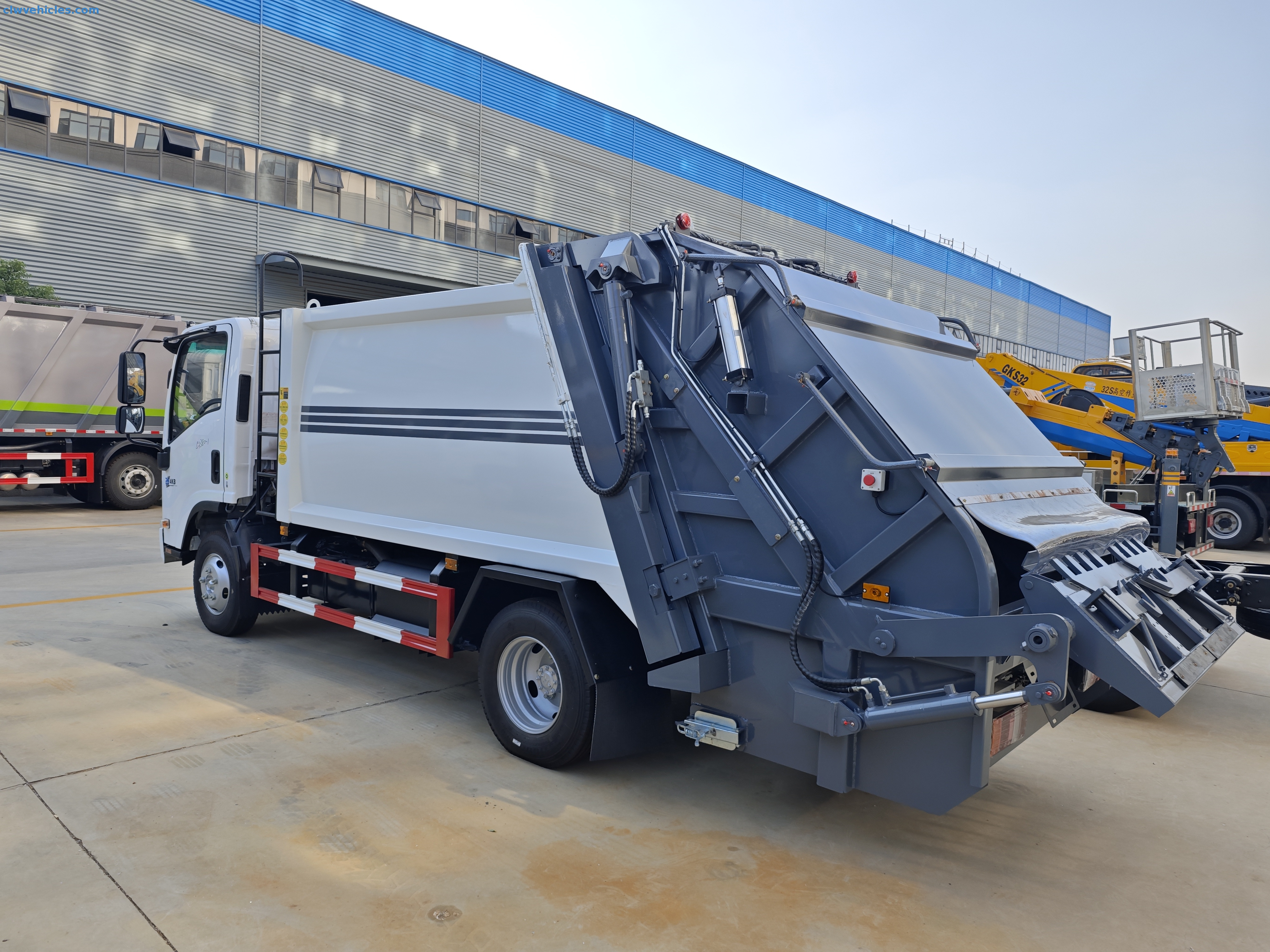

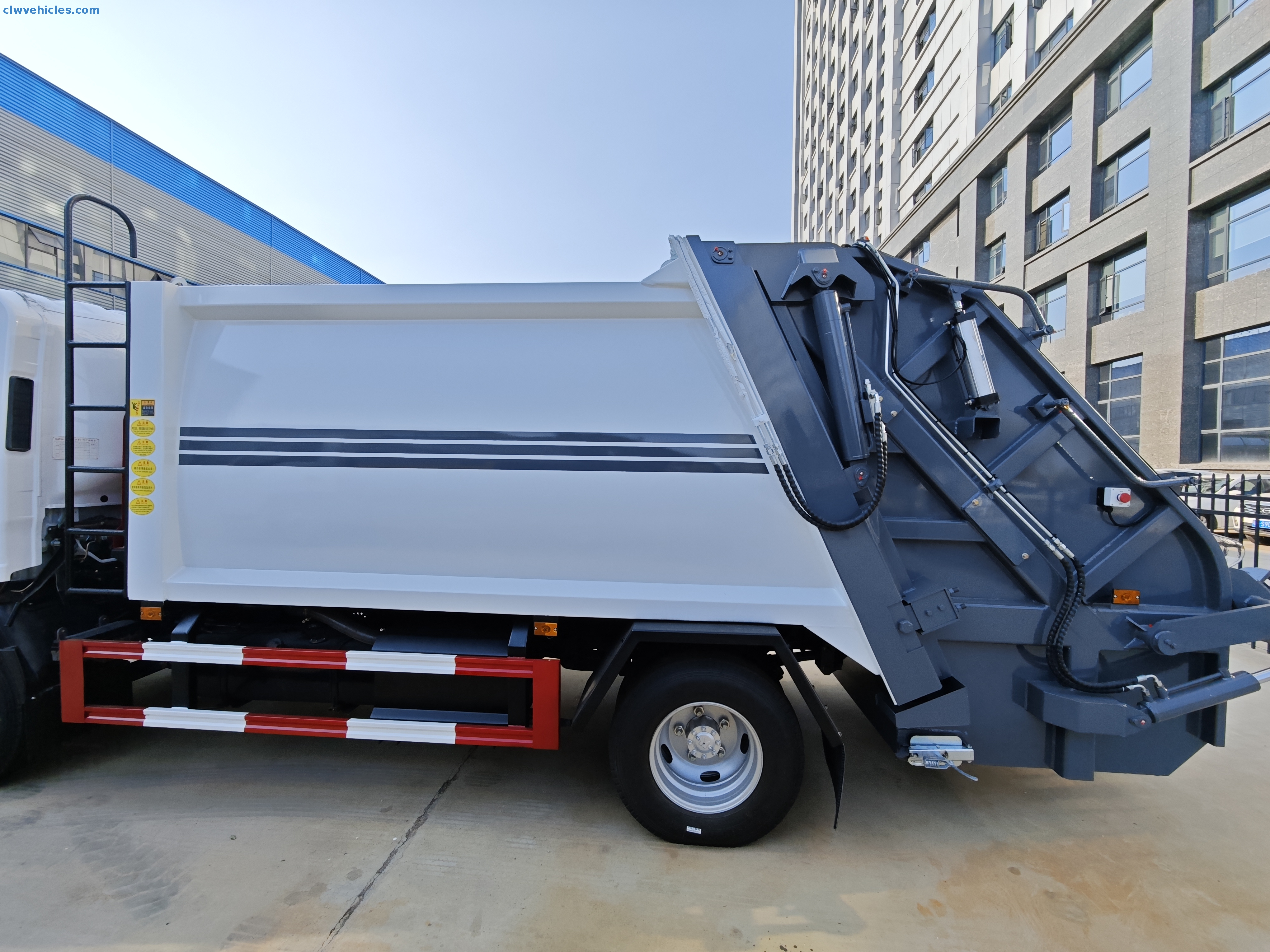

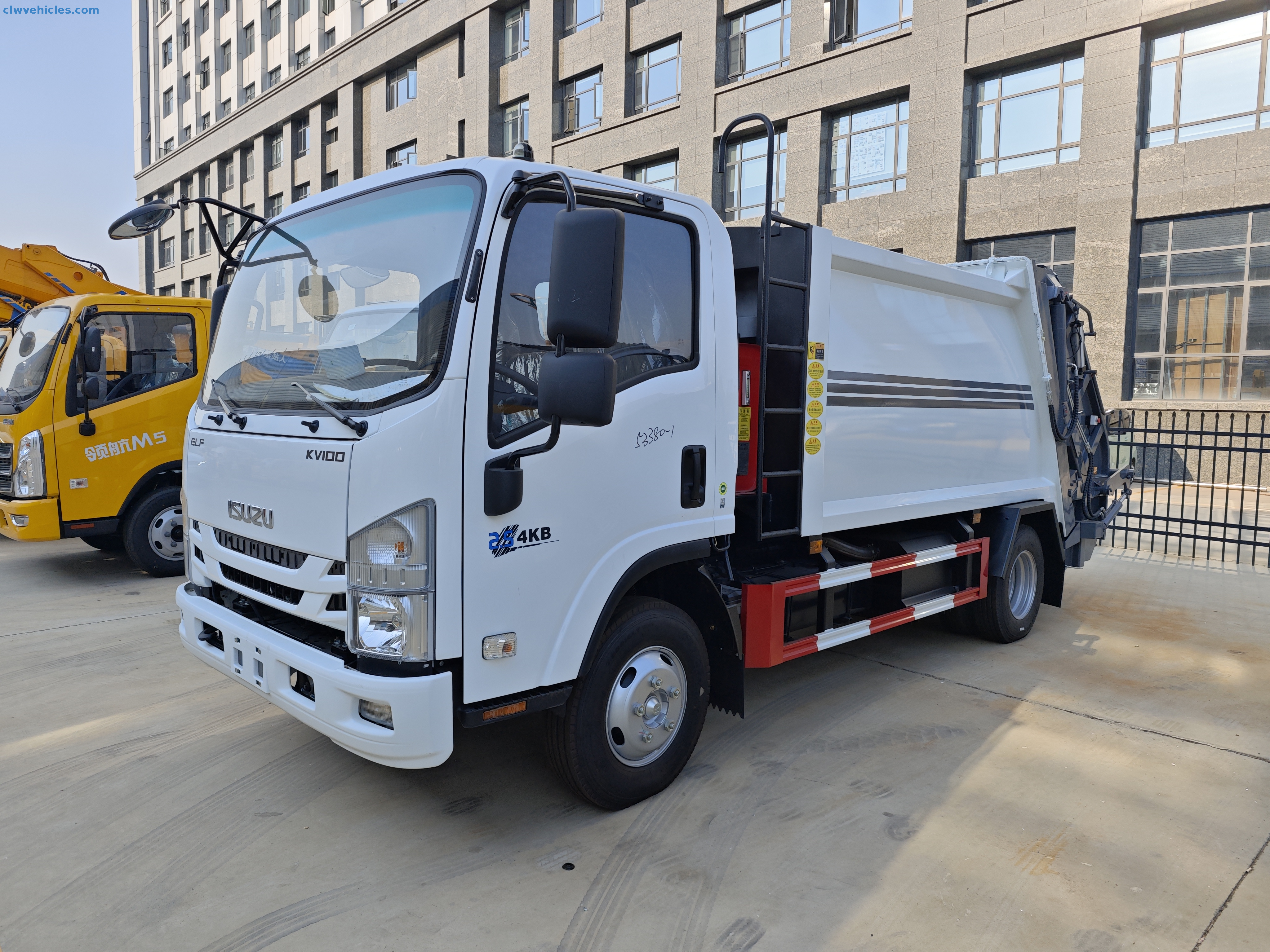

ISUZU 8cbm Garbage Compactor Truck – Compact Power for Urban Waste Solutions
Built to Tackle Urban Waste Challenges
The ISUZU Garbage Compactor Truck is engineered to streamline waste collection in densely populated areas, making it ideal for municipal services, residential complexes, and commercial zones. Designed for efficiency, this CLW Group Garbage Compactor Truck combines a compact footprint with robust performance, ensuring seamless garbage transfer and compaction. Its rear-loading system and high compression ratio (0.6-0.8t/m³) maximize payload capacity while minimizing landfill trips, addressing both environmental and operational
demands.
Agility Meets Reliability: Chassis & Powertrain
Built on ISUZU's proven 4x2 chassis, this trush compactor truck excels in maneuverability. The 4KH1CN6HB engine delivers 97kW (132hp) of reliable power, optimized for stop-and-go urban routes. Paired with a 5-speed manual transmission, the truck ensures smooth gear transitions and precise control, even in narrow streets. Reinforced MAN-technology axles (3-ton front/5.28-ton rear) and 7.50R16LT 14PR tires (6+1 spare) provide stability under load, while the air brake system enhances safety during frequent stops. With a 19°/10° approach/departure angle and responsive power steering, navigating tight spaces becomes effortless.
Smart Design for Maximum Efficiency: Upper Structure

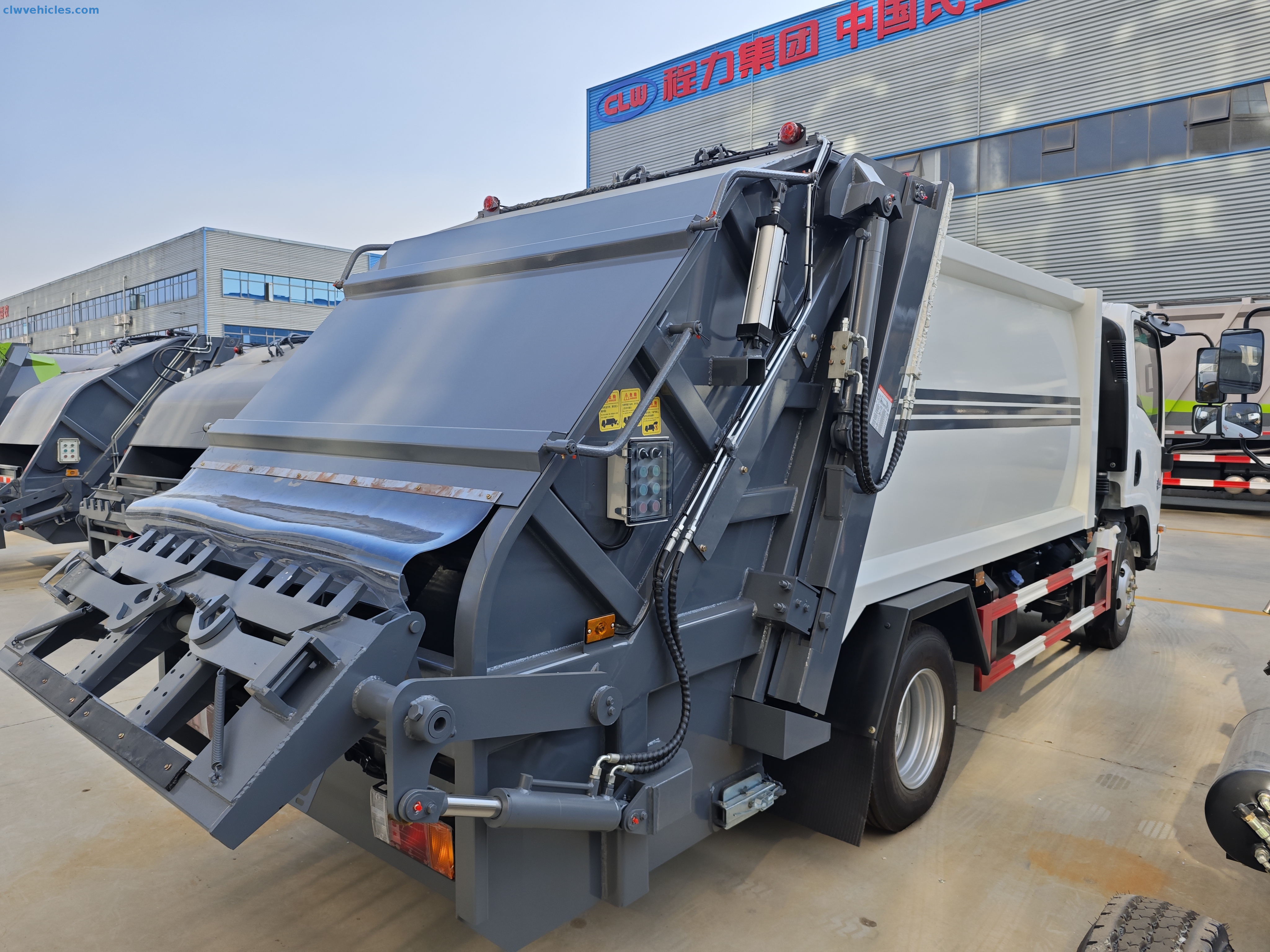

The CLW Group Garbage Compactor Truck features an 8-cubic-meter waste compartment, constructed from durable Q235 steel (4mm sides, 5mm base) to withstand harsh materials. Its rear-loading flip-over mechanism supports versatile bin configurations, effortlessly handling combinations like two 240L bins or one 180L + one 300L bin, ensuring adaptability across diverse collection routes. Waste is compacted efficiently, reducing volume by up to 40%, and discharged cleanly via a hydraulically powered push plate, minimizing spillage and secondary pollution.
Innovative Features for Seamless Operation
Operators benefit from a PLC-integrated control system, enabling semi-automated compression cycles and reducing manual intervention. The truck's compact dimensions (6815x2200x2650mm) and 3365mm wheelbase strike a balance between cargo capacity and urban-friendly mobility, while the air brake system ensures reliable stopping power in all conditions. A dedicated sewage tank captures all compaction fluids, adhering to strict environmental standards.
Why Choose This ISUZU Garbage Truck?
From its ISUZU-engineered durability to CLW Group's waste management expertise, this waste compactor truck excels in reliability, efficiency, and operator convenience. Whether compacting household waste or managing commercial refuse, it delivers unmatched performance in space-constrained environments. With a focus on reducing operational costs and environmental impact, it's the smart choice for modern waste logistics.
Technical Specifications of the CLW Group ISUZU 8cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Brand Isuzu 4x2 8cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 8280 |
| Rated payload weight(kg) | 2555 |
| Curb weight(kg) | 5530 |
| Dimensions | |
| Wheelbase(mm) | 3365 |
| Overall Dimension(mm) | 6815x2200x2650 |
| Max speed(km/h) | 90 |
| Engine | |
| Engine model | 4KH1CN6HB |
| Emission standard | Euro 5 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-4 cylinders, diesel |
| Displacement(L) | 2.999 |
| Max. output (kw) | 97(132hp) |
| Drive Line | |
| Transmission | 5 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 3 tons |
| Rear axle | Dena 5.28 tons |
| Tire specification | |
| Tire specification | 7.50R16LT 14PR |
| Garbage compactor box | |
| Volume | 8 cbm |
| Raw material | Q235, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |

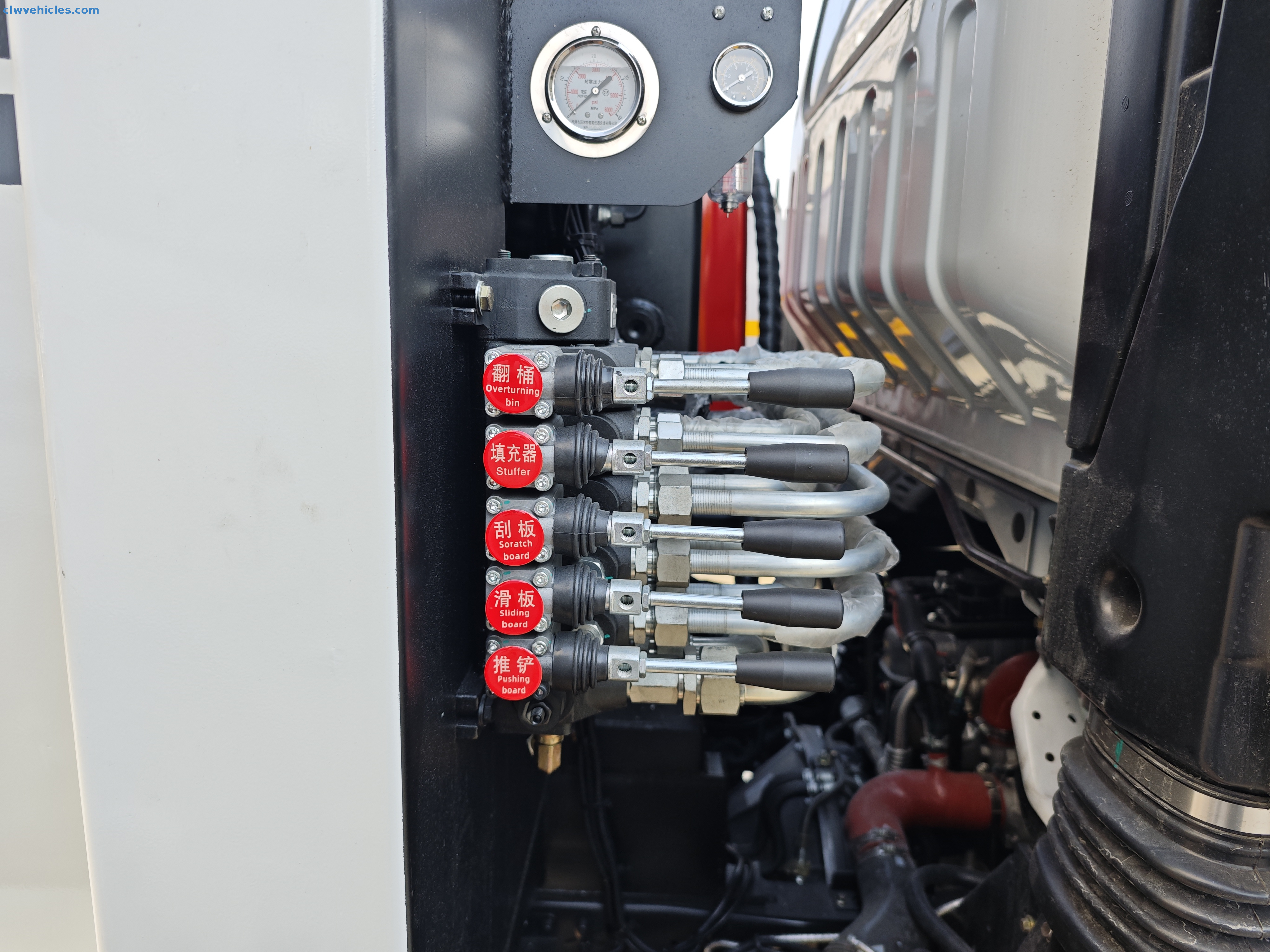

| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
