ISUZU
CLW
CLW5180TBC10
Product Description：

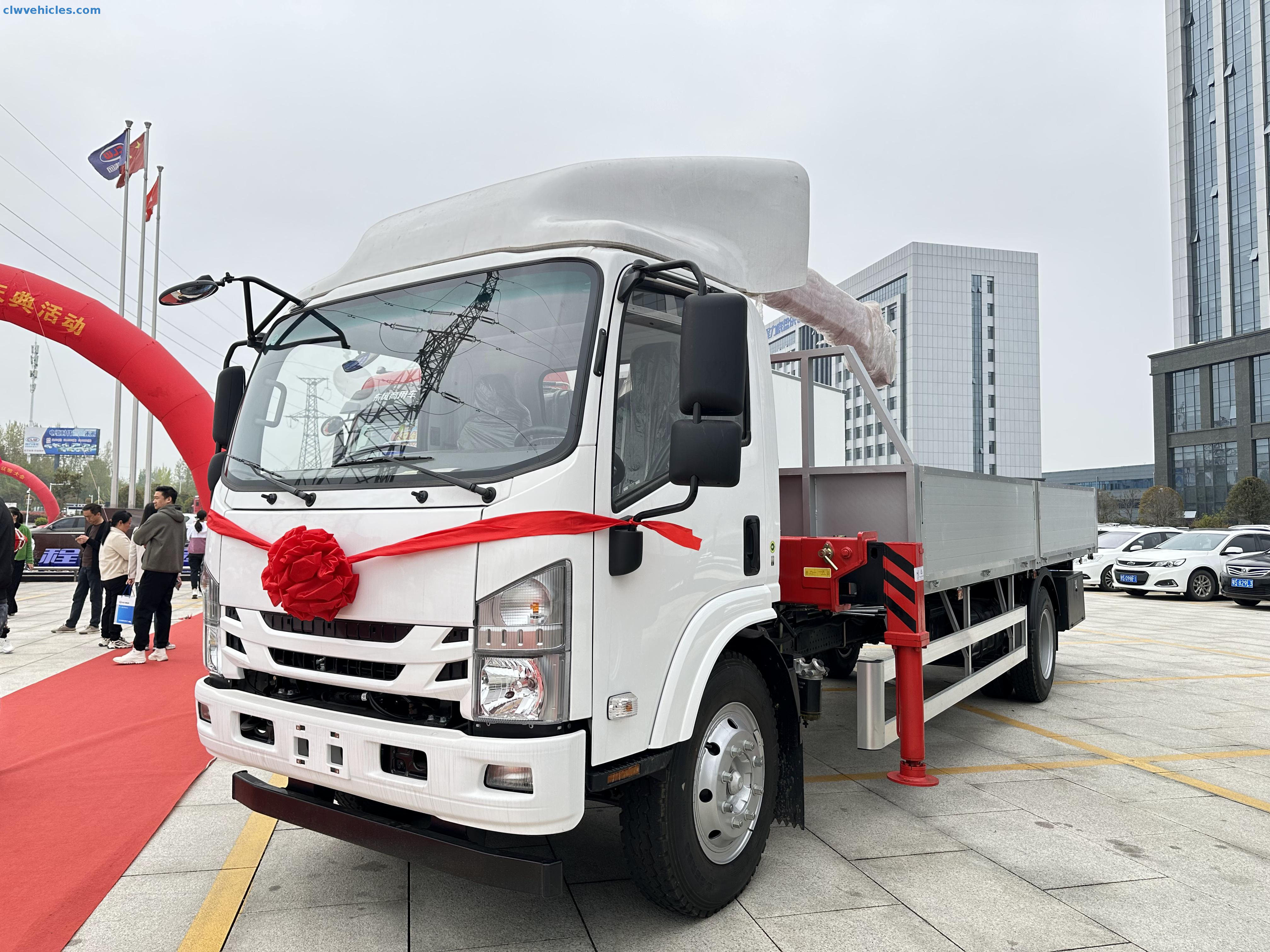

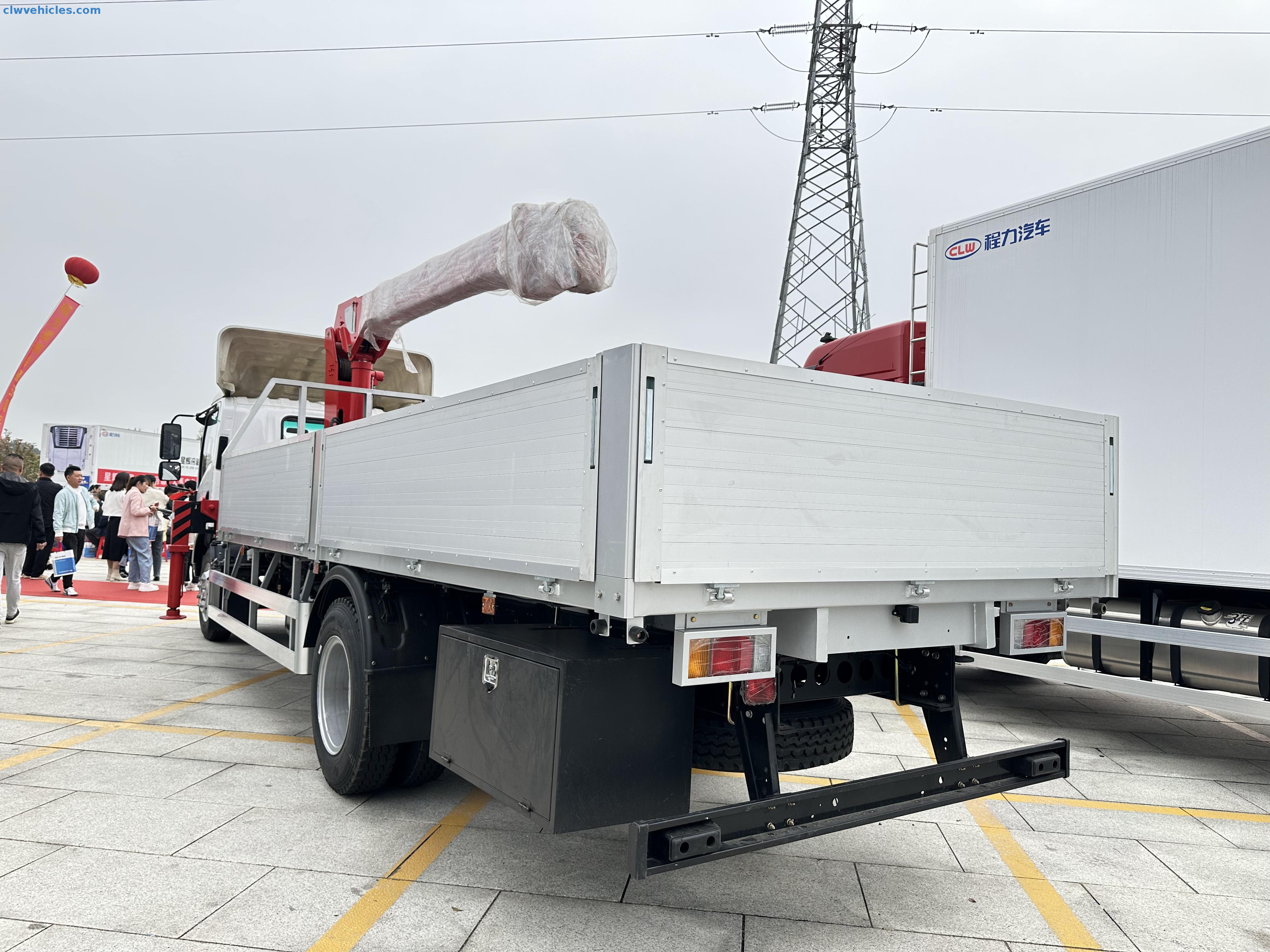

ISUZU 4×2 Aluminum Alloy Cargo Truck with Telescopic Boom Crane – Lightweight Lifting Meets Reliable Hauling
When you need to transport materials and set them in place with one truck, the ISUZU 4×2 Aluminum Alloy Cargo Truck Mounted Telescopic Boom Crane from CLW Group is your go‑to solution. This versatile truck‑mounted crane combines a lightweight, corrosion‑resistant cargo body with a powerful telescopic boom—perfect for construction sites, small warehouses, and maintenance crews.

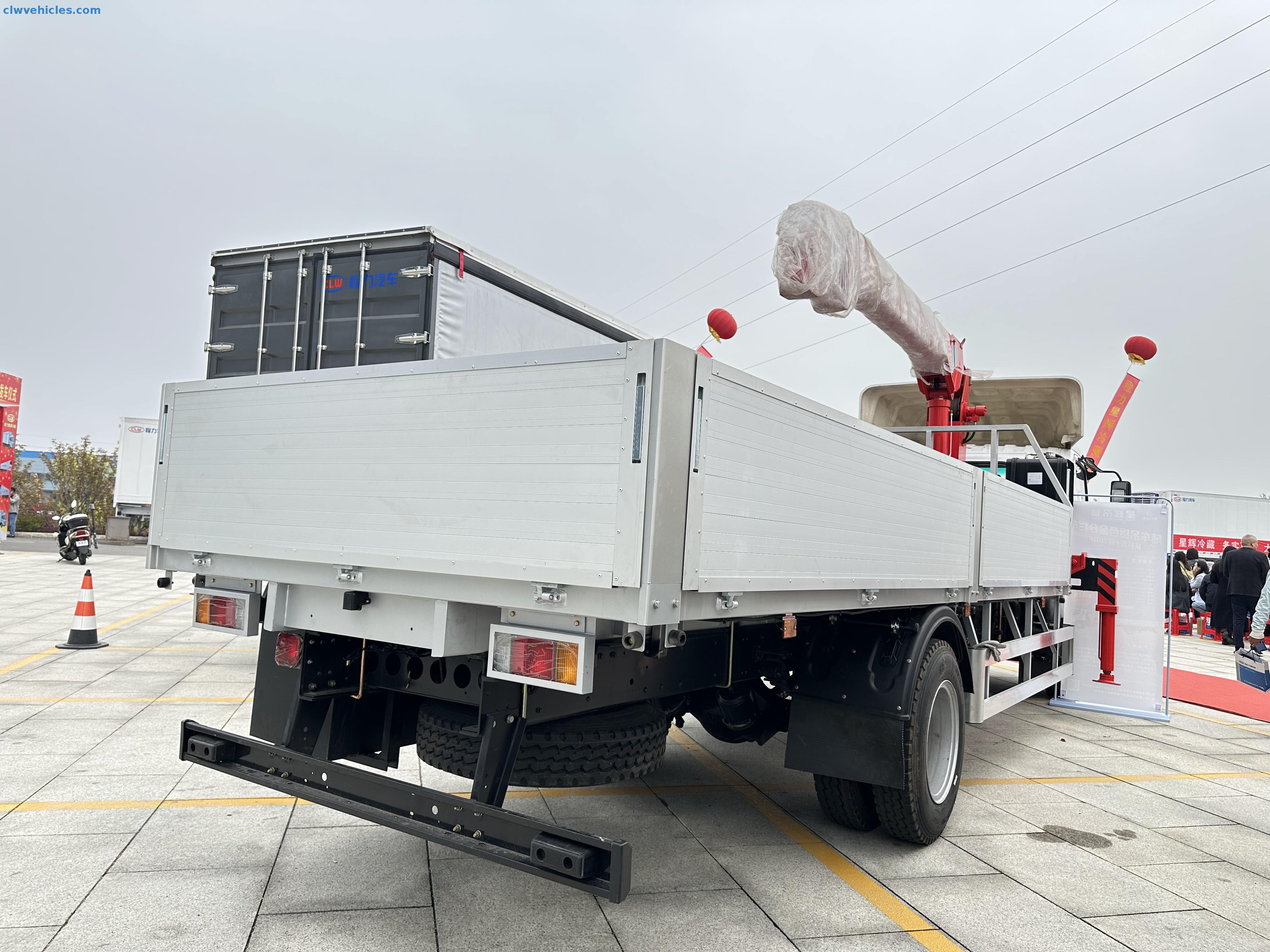

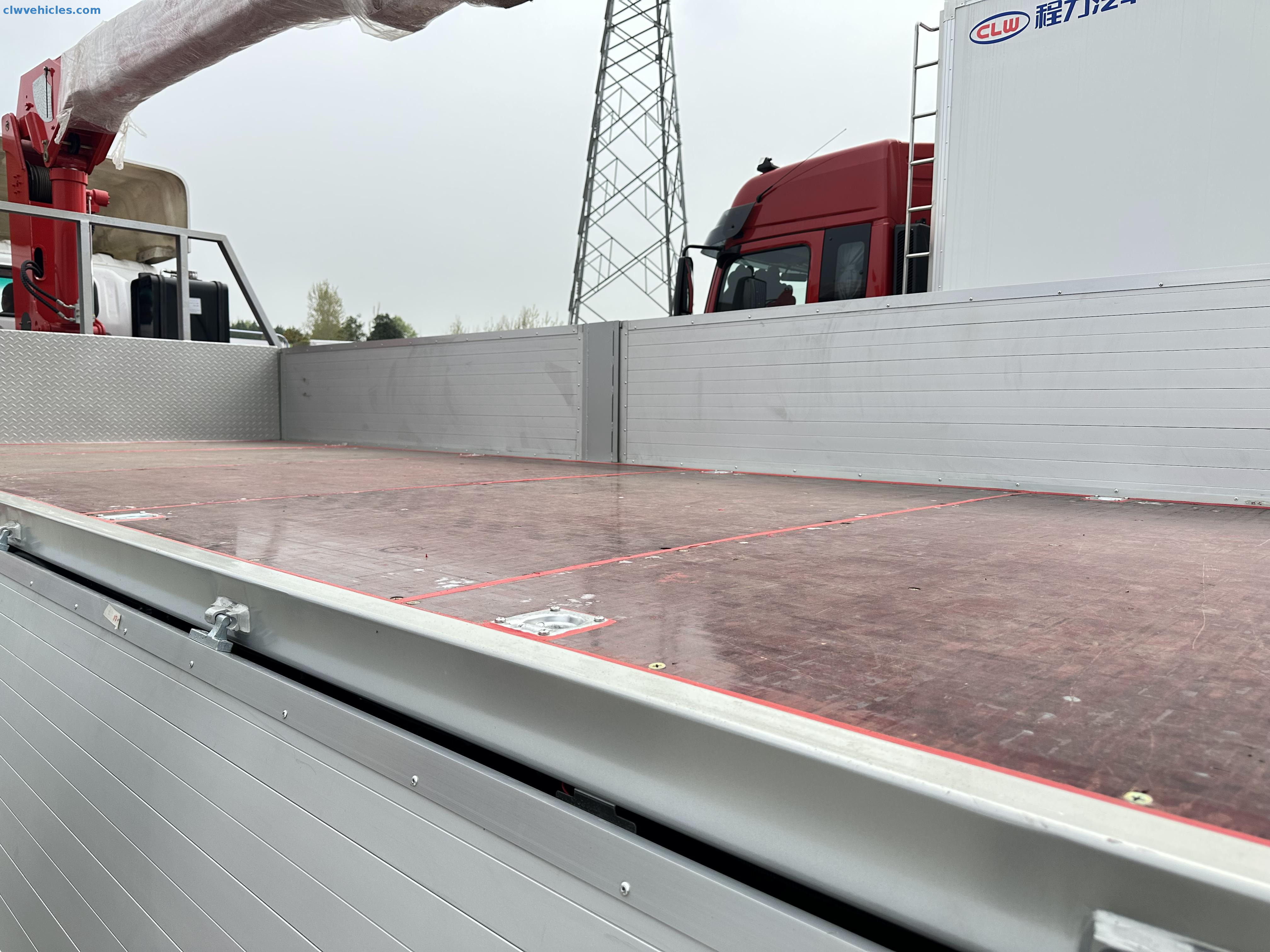

Imagine delivering pallets of piping, then hoisting them onto rooftop racks—all with the same vehicle. This Truck with Crane handles both tasks seamlessly. As an ISUZU crane truck, it works great for setting air‑conditioning units, lifting light machinery, or positioning materials in tight spaces. Its compact 7 030 × 2 400 × 3 200 mm footprint and 4.3 m × 2.3 m × 0.55 m aluminum alloy cargo box make it a nimble Straight Arm Crane Truck on city streets or rural roads.
Built on the trusted ISUZU QL1110ANMAY 4×2 chassis, this rig carries an 8 280 kg GVW with a 3 000 kg front axle and 5 280 kg rear axle. Under the hood sits the 4HK1CN6HB Euro 6 diesel engine, pumping out 97 kW (132 HP) and 290 N·m of torque for smooth acceleration under load. Paired with the ISUZU MLD 6‑speed manual gearbox, you get precise shifts whether you’re creeping into position or cruising at up to 89 km/h. Six 7.50R16LT tires (plus spare) and a 3 815 mm wheelbase deliver stable handling and responsive braking.
The SPS16000 telescopic boom mounts directly behind the cab, offering a 7 000 kg maximum lift and a 16 MT lifting moment. With an 11.8 m reach and a 4.5 m basic boom, it places loads exactly where you need them. A 55 L/min hydraulic pump at 24 MPa, fed from a 100 L oil tank, ensures fast, smooth operation. Outriggers span 5 300 mm for rock‑solid stability with quick setup.

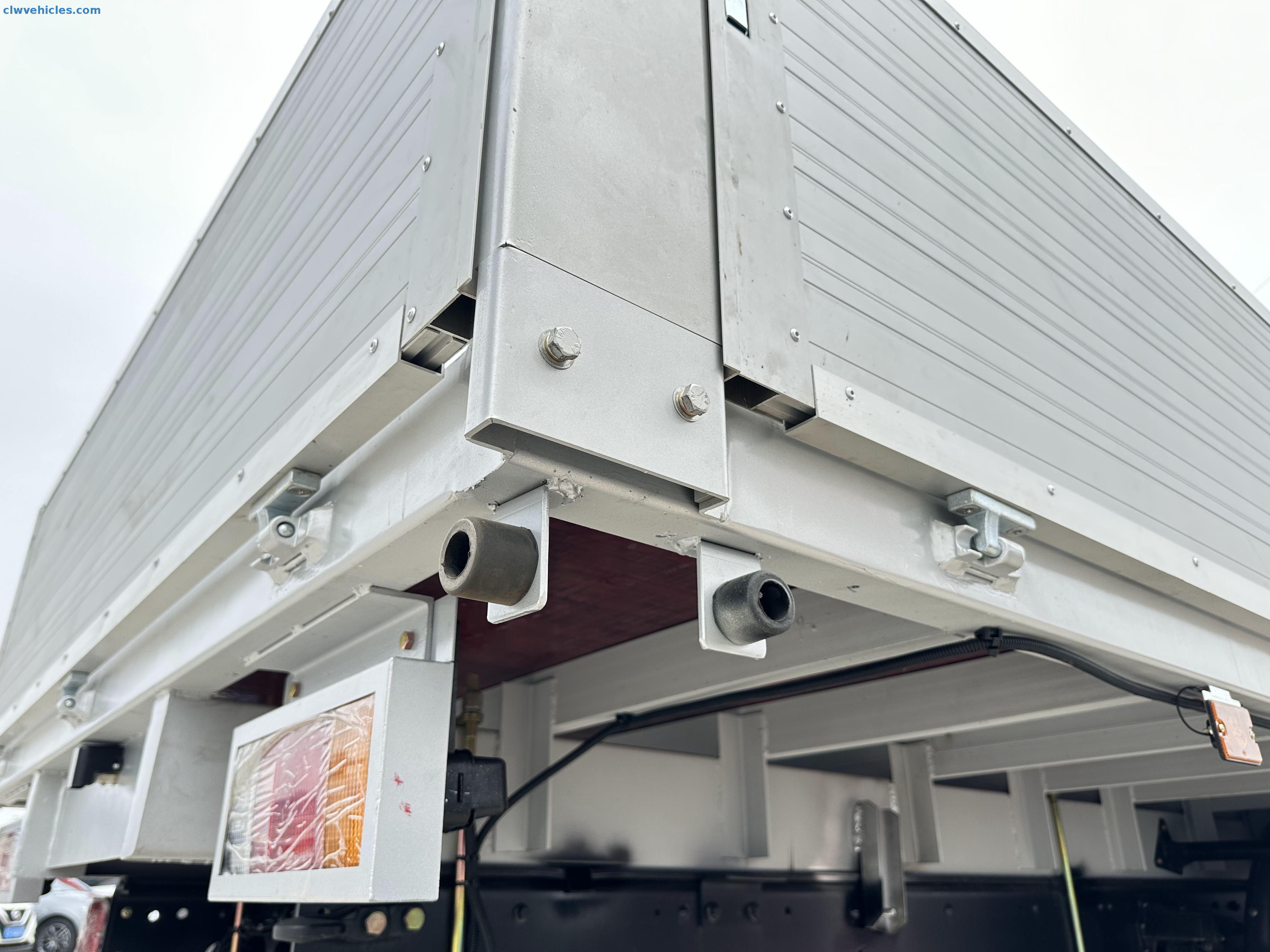

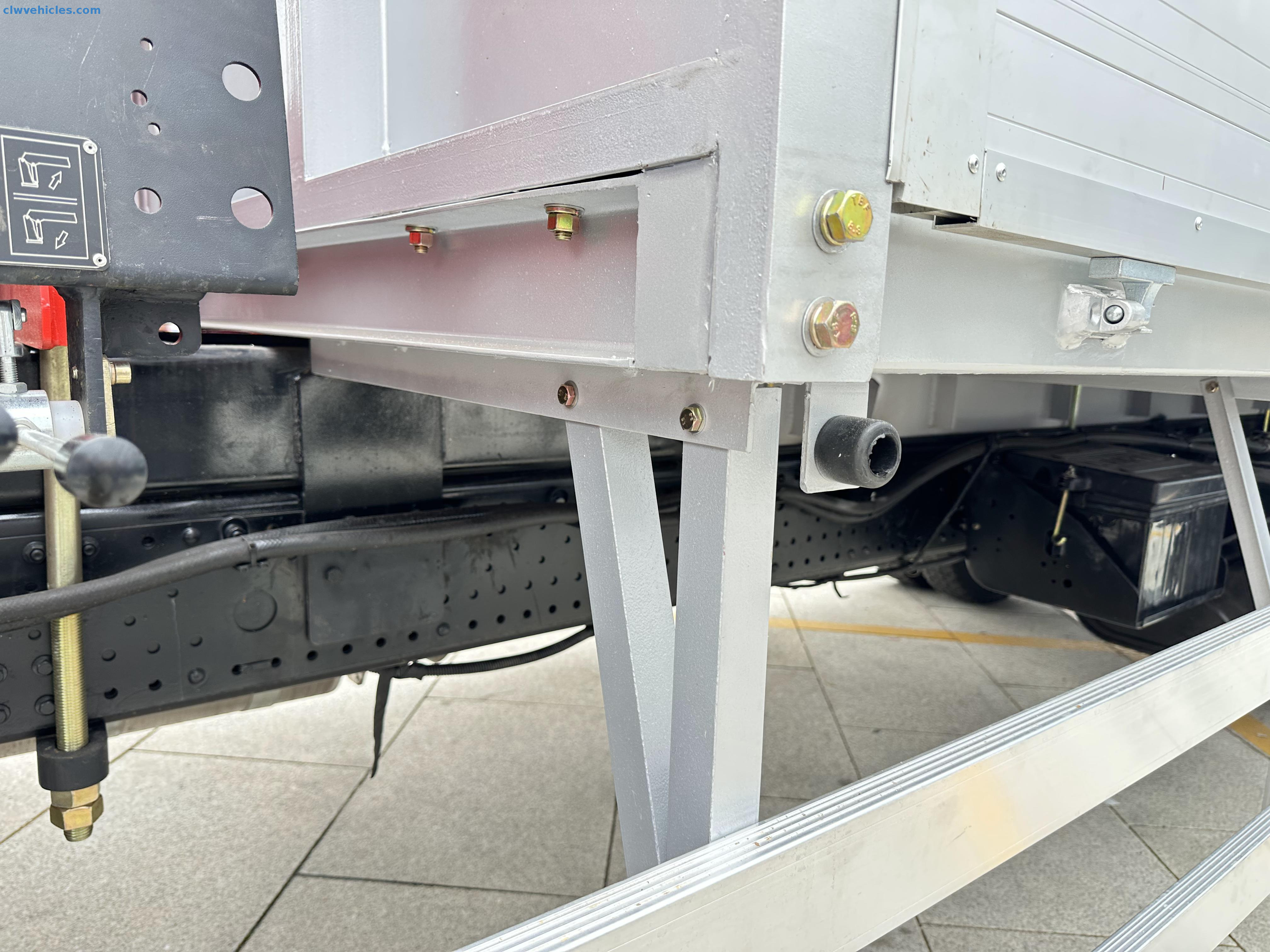

Lightweight, Corrosion‑Resistant Body: Aluminum alloy box reduces vehicle weight and maintenance.
Dual‑Role Efficiency: Haul and lift with one clw group crane truck, cutting rental costs.
Compact & Agile: Ideal as a 4×2 truck‑mounted crane in tight work zones.
Reliable Performance: ISUZU drivetrain plus robust crane components ensure uptime.
For businesses needing a dependable xcmg truck crane‑style solution on an ISUZU platform, this truck‑mounted crane delivers unmatched flexibility and performance day in, day out.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 8280 | |
| Payload Weight(kg) | 4600 | |
| Overall Dimension(mm) | 7030*2400*3200 | |
| Wheelbase(mm) | 3815 | |
| Front/Rear Wheel Track(mm) | 1640/1655 | |
| Axle Load(kg) | 3000/5280 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 4300*2300*550 | |
| Chassis Brand | ISUZU | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4HK1CN6HB |
| HP | 132 | |
| Emission Standard | Eu 6 | |
| Displacement/Output(ml/kw) | 2999/97 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2900 | |
| Maximum Torque(N·m) | 290 | |
| Gearbox | ISUZU MLD6-Speed 6Forward/1Reverse Gear | |
| Tyre | 7.50R16LT 14PR 6+1 spare tire | |
| Crane | Crane Model | SPS16000 |
| Max Lifting Moment(MT) | 16 | |
| Max Lifting Capacity(kg) | 7000 | |
| Max Lifting Height(m) | 11.8 | |
| Length of Basic Boom(m) | 4.5 | |
| Max oil flow of hydraulic system(L/min) | 55 | |
| Max pressure of hydraulic system(Mpa) | 24 | |
| Oil tank capacity(L) | 100 | |
| Outrigger span(mm) | 5300 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
