| Availability: | |
|---|---|
| Quantity: | |
ISUZU
CLW
CLW5180RT2

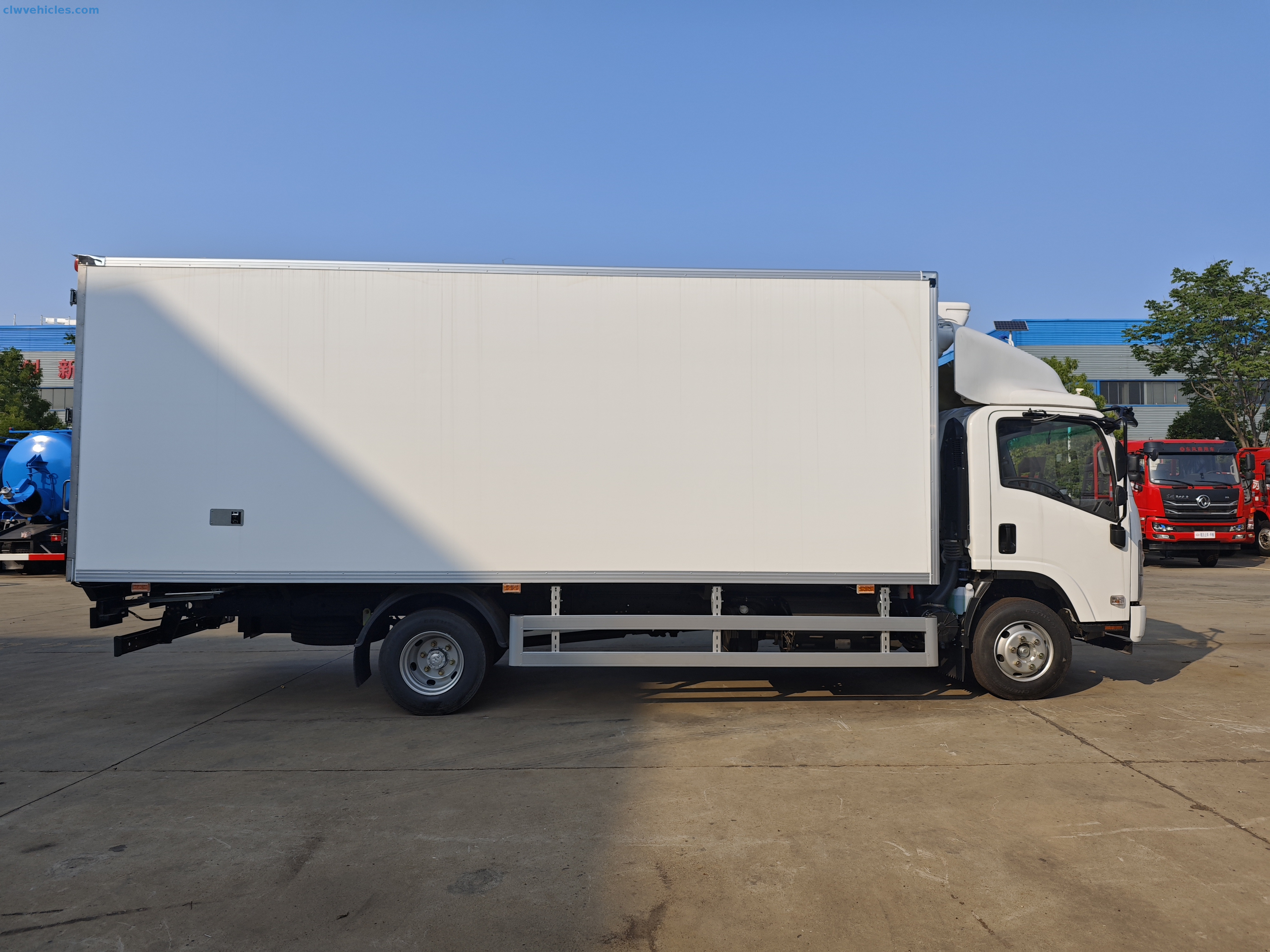

When it comes to transporting perishable goods, the ISUZU KV100 4×2 Refrigerated Truck ensures freshness from loading dock to destination. Built by CLW Group and powered by ISUZU's renowned chassis, this refrigerated van truck is designed for efficient, reliable, and cost-effective cold-chain logistics.
Whether you're delivering fresh produce, dairy products, meat, pharmaceuticals, or frozen seafood, the KV100 keeps your cargo at precise temperatures — ensuring safety, quality, and freshness across every delivery mile.
Compact yet capable, the ISUZU KV100 Reefer Truck is the perfect choice for city logistics and regional supply chains. Its manageable dimensions of 7,190 × 2,430 × 3,300 mm and 3.8-meter wheelbase make it highly maneuverable, ideal for navigating narrow urban streets or crowded loading bays.
With a gross vehicle weight (GVW) of 8,280 kg, it balances load capacity with smooth handling, offering dependable performance in both city and highway conditions.
Under the hood, a Euro 6 4KH1CN6HB 3.0L turbo diesel engine delivers 132 horsepower and 280 N·m torque, giving you powerful yet fuel-efficient operation.
Paired with a 5-speed manual transmission, it ensures quick acceleration and steady cruising at speeds up to 105 km/h, while maintaining compliance with modern emission standards.
Equipped with 7.50R16LT heavy-duty tires, the truck maintains stability and traction even under full loads or varied terrain.

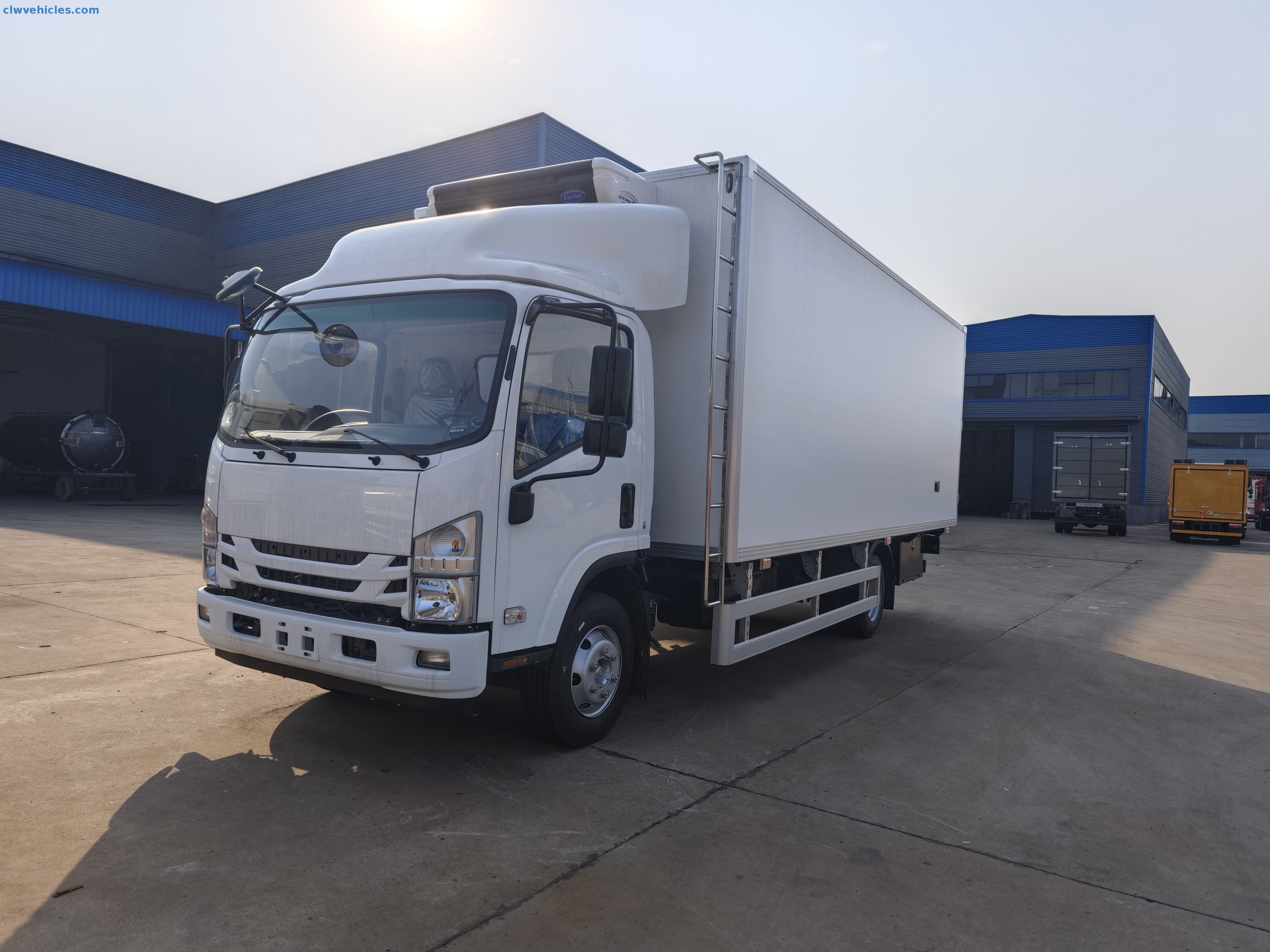

The Citimax 700 cooling unit forms the heart of this refrigerated system, capable of maintaining interior temperatures between –20°C and +30°C.

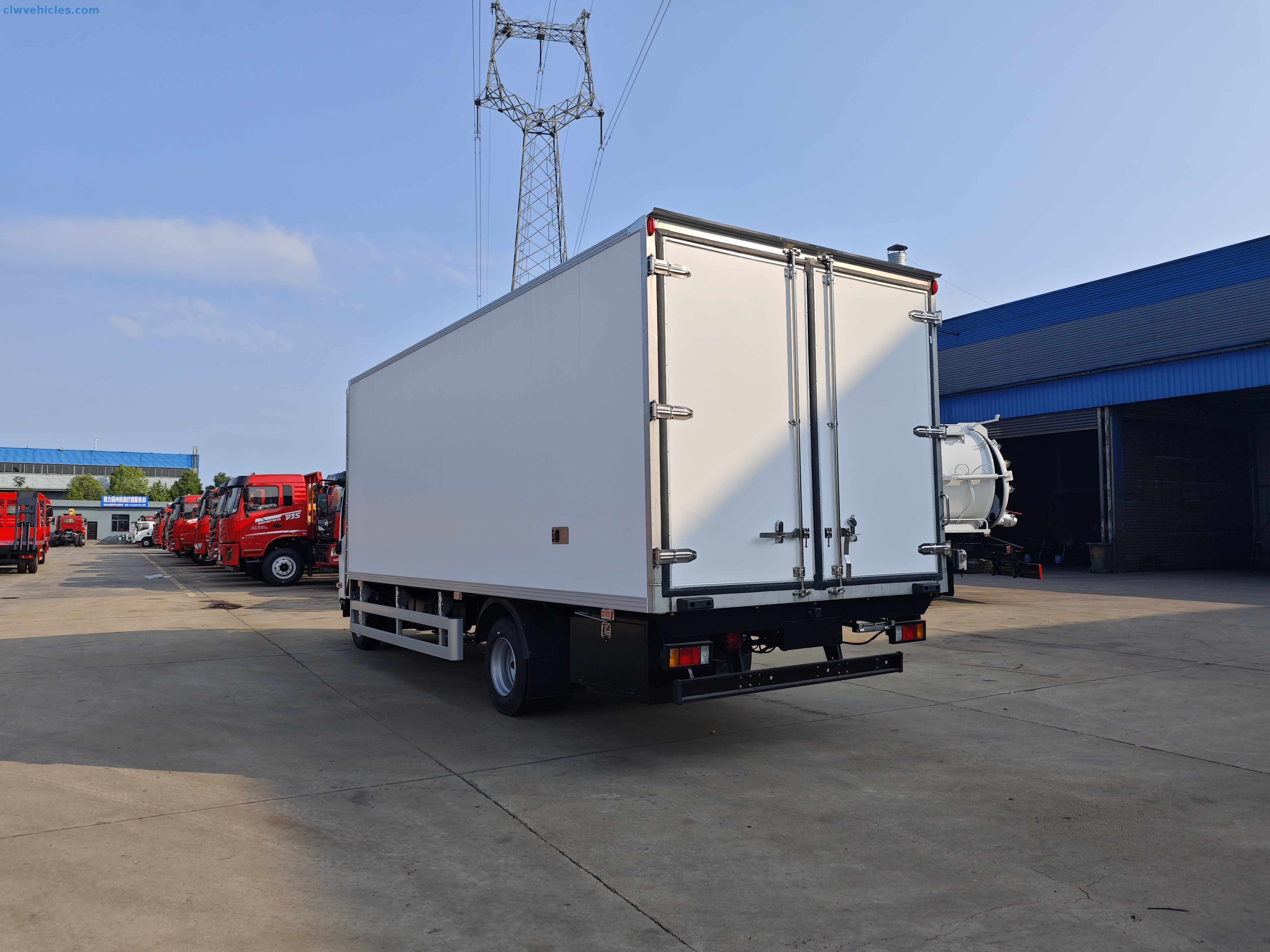

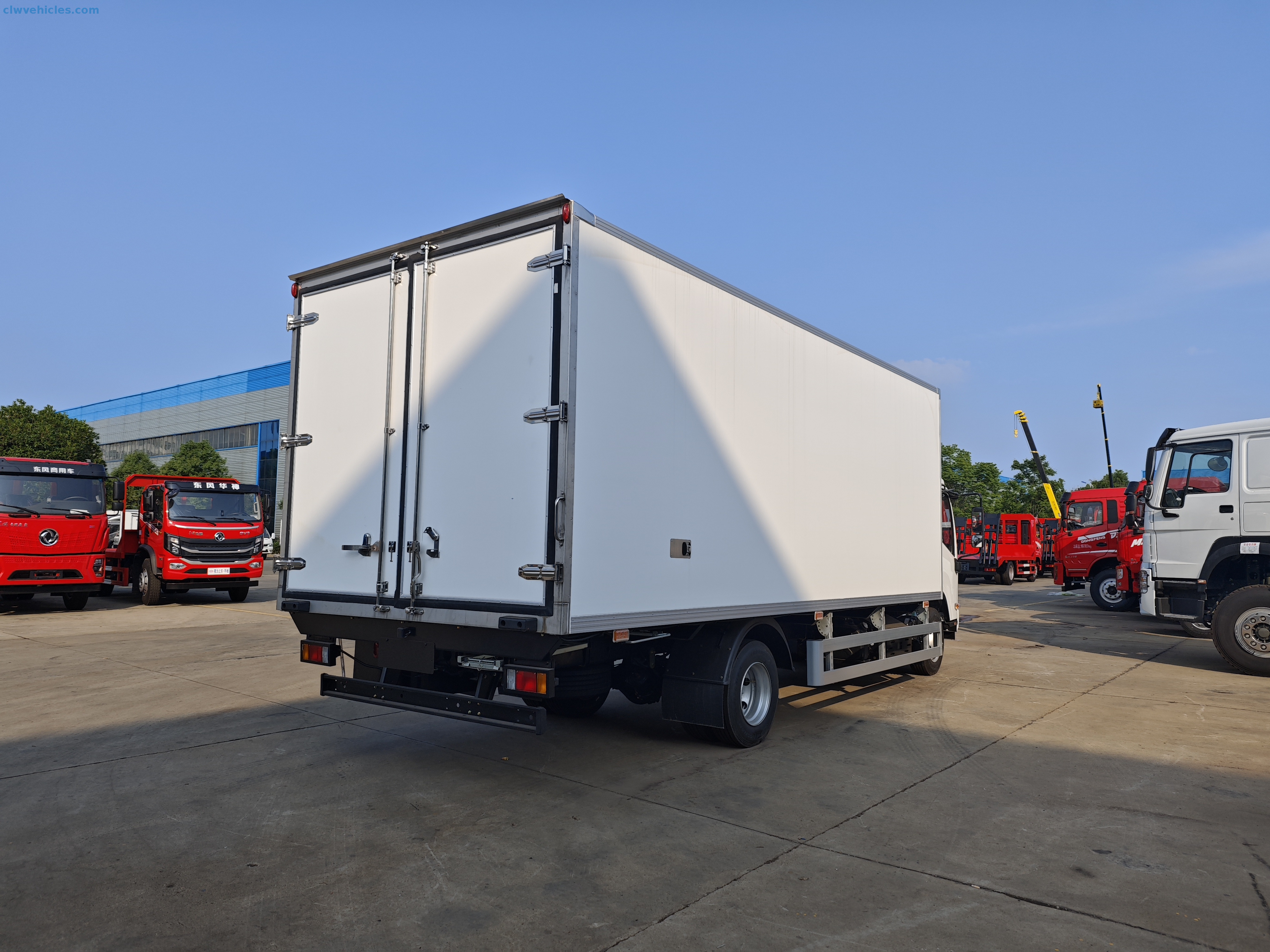

The fiberglass-reinforced insulated cargo box (5,150 × 2,250 × 2,100 mm) includes 80mm polyurethane foam insulation, ensuring minimal temperature loss even in tropical climates.
Optional configurations include:
Side door for quick access during frequent deliveries
Ceiling hooks for hanging meat or produce
External power-inlet for stationary refrigeration
Air vents for improved air circulation and humidity control
From morning market runs to pharmaceutical distribution, this ISUZU Refrigerated Box Truck excels where temperature precision and reliability matter most.
CLW Group's advanced assembly standards and ISUZU's global engineering ensure that your goods stay perfectly chilled, no matter the road ahead.
Wide Temperature Range: Maintains –20°C to +30°C for both chilled and frozen transport.
Fuel-Efficient Engine: 3.0L Euro 6 diesel provides low emissions and reliable performance.
Durable Refrigeration Box: 80mm polyurethane insulation for superior cooling retention.
Compact but Capable: Ideal for urban routes, markets, and regional deliveries.
Flexible Customization: Options for multi-temperature zones, side doors, and ceiling rails.
Trusted ISUZU Foundation: Backed by proven chassis engineering and global service support.
Low Maintenance, High Uptime: Designed for continuous daily operation with minimal downtime.
| Category | Specifications |
|---|---|
| Model | ISUZU KV100 4×2 Refrigerated Truck |
| Brand | CLW / ISUZU |
| GVW (kg) | 8,280 |
| Overall Dimensions (mm) | 7,190 × 2,430 × 3,300 |
| Wheelbase (mm) | 3,800 |
| Engine | ISUZU 4KH1CN6HB, Euro 6 |
| Displacement / Power | 3.0 L / 132 HP |
| Torque | 280 N·m (1,500–2,900 rpm) |
| Transmission | 5-speed manual (5F + 1R) |
| Top Speed | 105 km/h |
| Fuel Type | Diesel |
| Cooling Unit | Citimax 700 |
| Temperature Range | –20°C to +30°C |
| Cargo Box Size (mm) | 5,150 × 2,250 × 2,100 |
| Insulation Thickness | 80 mm polyurethane foam |
| Tires | 7.50R16LT (6 + 1 spare) |
Q1: What is the temperature range of the ISUZU KV100 refrigerated truck?
A1: It can maintain temperatures between –20°C and +30°C, suitable for both frozen and chilled goods.
Q2: Can I use this truck for city deliveries?
A2: Yes, its compact body and short wheelbase make it ideal for urban environments with limited space.
Q3: What kind of cooling system does it use?
A3: It uses the Citimax 700 refrigeration unit, known for its stable performance and quick cooling.
Q4: Is it fuel-efficient?
A4: Yes, the Euro 6 3.0L diesel engine offers a strong balance between power and fuel economy.
Q5: Can the cargo box be customized?
A5: Absolutely. Options include side doors, partitioned compartments, ceiling hooks, and external power connectors.
Main Technical Parameter
| Vehicle Description | Brand | CLW |
| GVW(kg) | 8280 | |
| Curb Weight(kg) | 4000 | |
| Loading Weight(kg) | 4085 | |
| Overall Dimension(mm) | 7190*2430*3300 | |
| Wheelbase(mm) | 3815 | |
| Axle Load(kg) | 3000/5280 | |
| Top Speed(km/h) | 105 | |
| Chassis Brand | ISUZU | |
| Chassis Model | CLW5080XLCQL5 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4KH1CN6HB |
| HP | 132 | |
| Emission Standard | Euro 6 | |
| Displacement/Output(ml/kw) | 2999/97 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2600 | |
| Maximum Torque(N·m) | 280 | |
| Maximum Torque Speed(rpm) | 1500-2900 | |
| Gearbox | 5Forward/1Reverse Gear | |
| Tyre | 7.50R16LT 14PR | |
| Van | Box Size(mm) | 5150*2250*2100 |
| Material | Fiberglass | |
| Insulating Layer | 8cm Polyrethane Foam | |
| Refrigerator | Brand | Citimax 700 |
| Applicable Temperature | -20°~30° | |
| Remarks | Part Optional:Ventilation Slot | |
| Hook | ||
| External Power Supply | ||
| Side Door | ||
