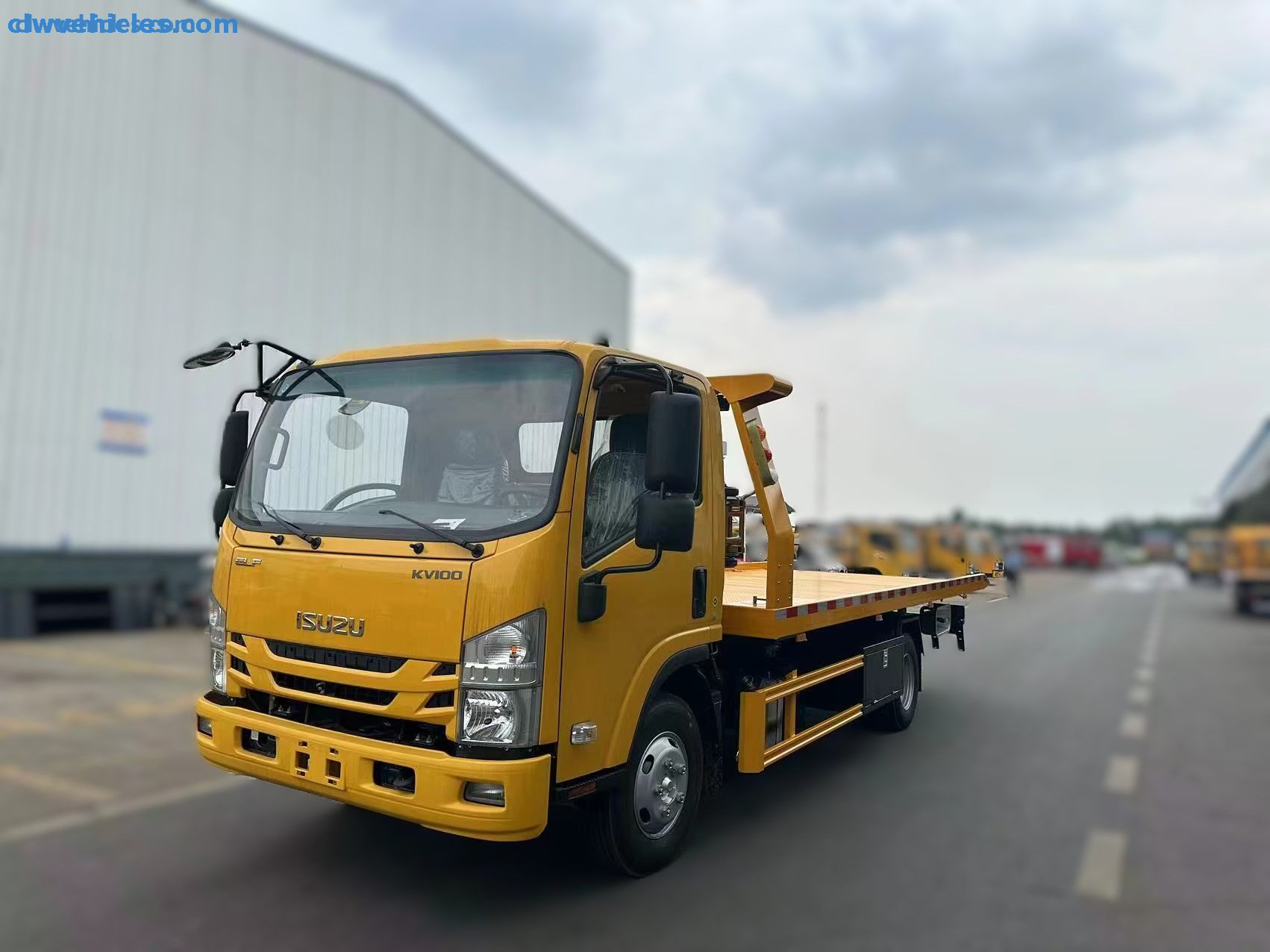

Main Technical Parameters
| Vehicle Description | Brand | CLW |
| GVW(kg) | 9780 |
| Curb Weight(kg) | 4780 |
| Overall Dimension(mm) | 7450*2300*2300 |
| Wheelbase(mm) | 3815 |
| Axle Load(kg) | 3000/5000 |
| Top Speed(km/h) | 95 |
|
| Chassis Brand | I-Su-Zu |
| Chassis Model | QL1110ANMAY |
| Cabin | Single,LHD,with A/C |
| Engine | Model | 4KH1CN6LB |
| HP | 120 |
| Emission Standard | Euro 6 |
| Displacement/Output(ml/kw) | 2999/88 |
| Fuel Type | Diesel |
| Rate Speed(rpm) | 2900 |
| Maximum Torque(N·m) | 290 |
| Maximum Torque Speed(rpm) | 1500-2900 |
| Gearbox | 5Forward/1Reverse Gear |
| Tyre | 7.50R16LT 14PR |
|
| Platform Configuration | L*W(mm) | 5400*2300 |
| Operating Stroke(mm) | 2680 |
| Min.Angle of Slope(°) | 8 |
| Rated Loading Weight(kg) | 3000 |
| Rated Winch Traction Weight(kg) | 3500 |
| Length Of Steel Wire Rope(m) | 21 |
| Ground Clearance Of Cage Floor | 470 |
| Hoisting Organ | Maximum Length Of Extended Boom(mm) | 1300 |
| Rated Lifting Weight(kg) | 2500 |
| Maximum Extended Lifting Weight(kg) | 1250 |
| Rated Traction Weight(kg) | 7100 |
| Elevation Of Boom(upper/lower) | 9°~-10° |
