ISUZU
CLW
CLW5180CB6
Product Description：

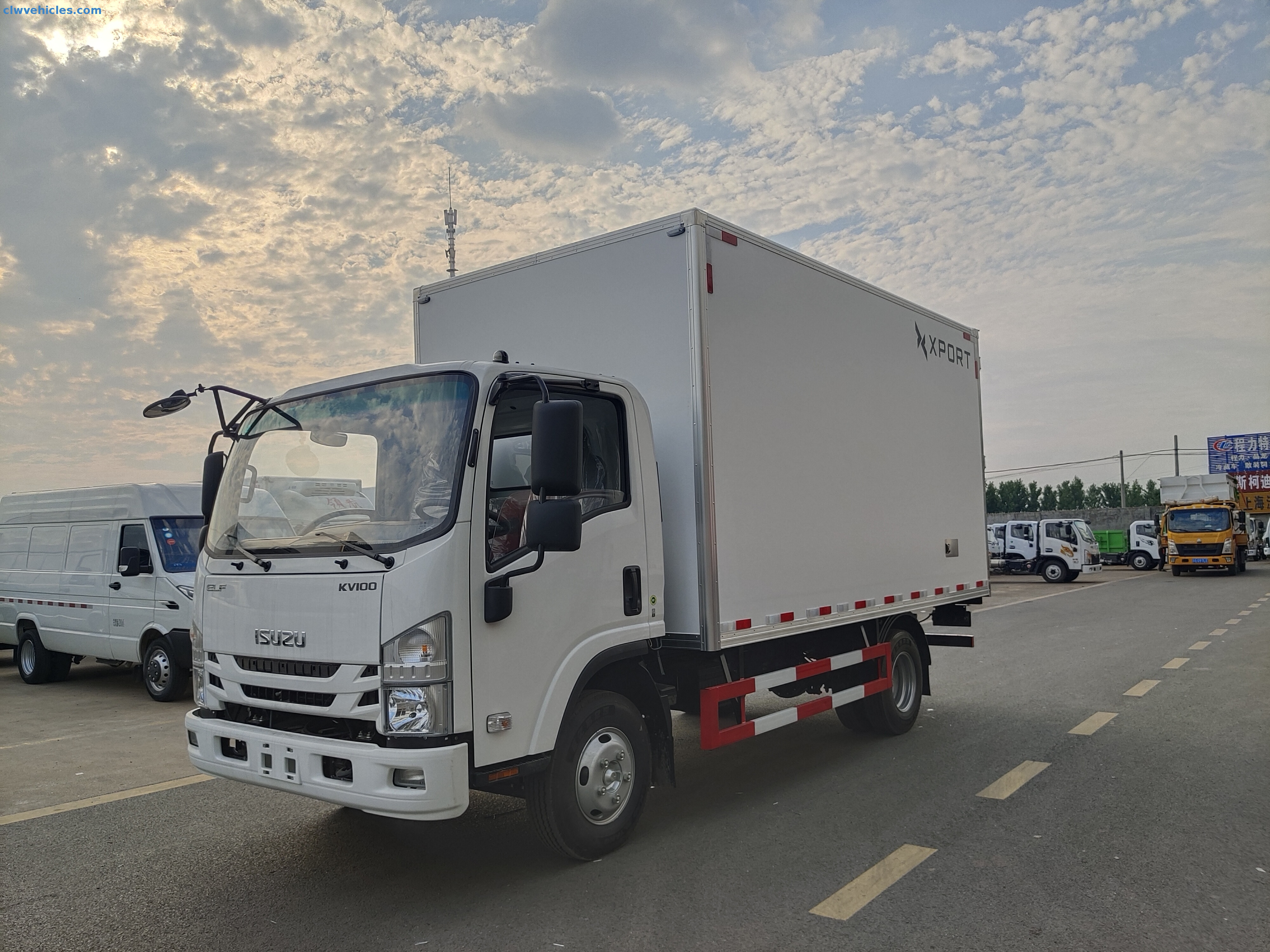

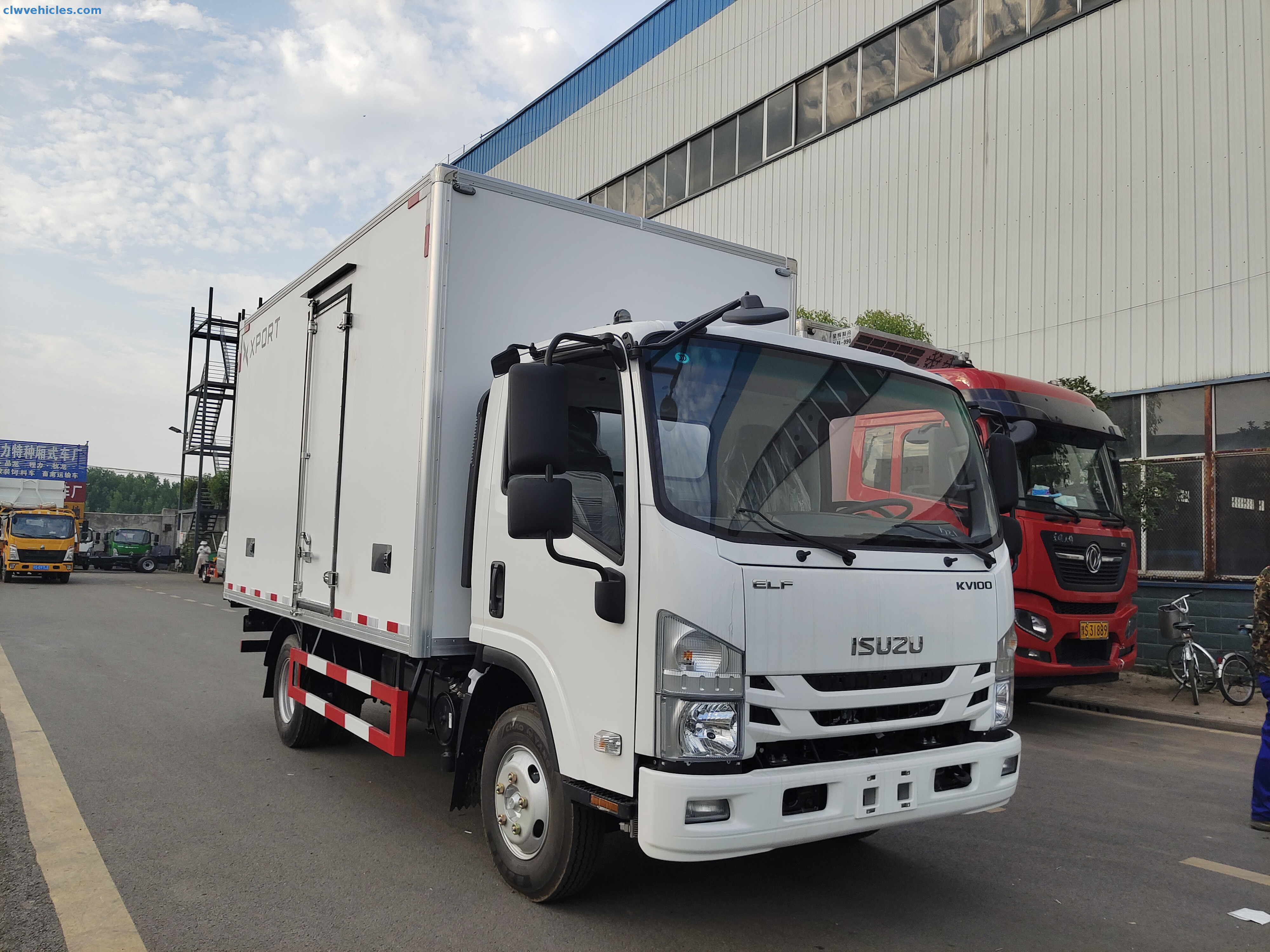

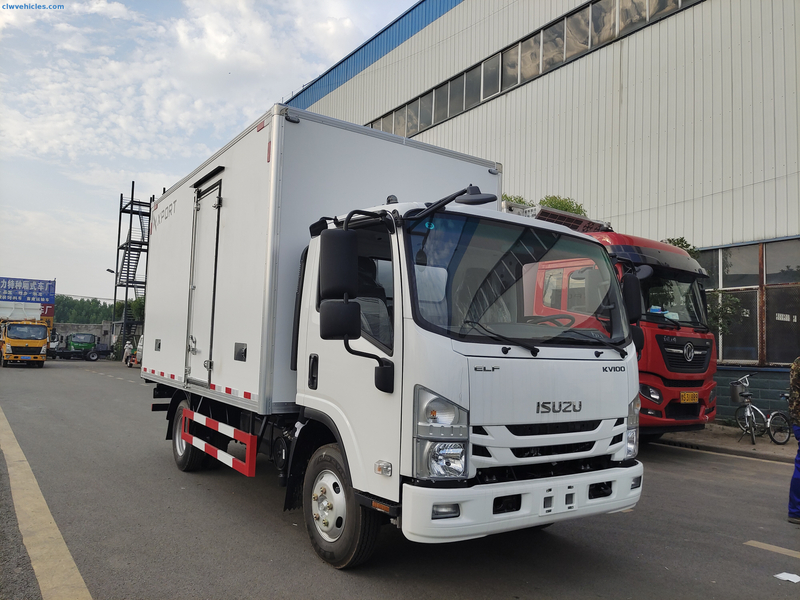

ISUZU KV100 4×2 Van Box Truck – Your Reliable Cube Van for Everyday Cargo
When you need a rugged yet nimble cargo box truck for local deliveries, the ISUZU KV100 4×2 Van Box Truck from CLW Group is the perfect fit. Ideal for moving everything from parcels to furniture, this cube vans truck combines Isuzu's legendary durability with a spacious, secure box—making it a top choice for businesses that demand efficiency and peace of mind.
This cube van shines on tight city streets and suburban routes alike. With an overall length of 5.995 m and a turning radius optimized by its 3.360 m wheelbase, it slips into loading docks and back alleys without hassle. A top speed of 100 km/h means you can keep up with traffic on highways, too.
At its heart is the trusted Isuzu QL1110ANMAY chassis, carrying a 5,995 kg GVW with room for 2,705 kg of payload. Under the hood, the 4HK1CN6LB diesel engine delivers 120 HP and 280 N·m of torque, meeting Euro 5 emissions standards. Mated to a smooth 5‑speed gearbox, this isuzu cargo box truck offers responsive acceleration, fuel efficiency, and reliable performance—day in, day out. Power steering, ABS, and six sturdy 7.00R16LT tires (plus spare) keep you safe and steady, even when fully loaded.

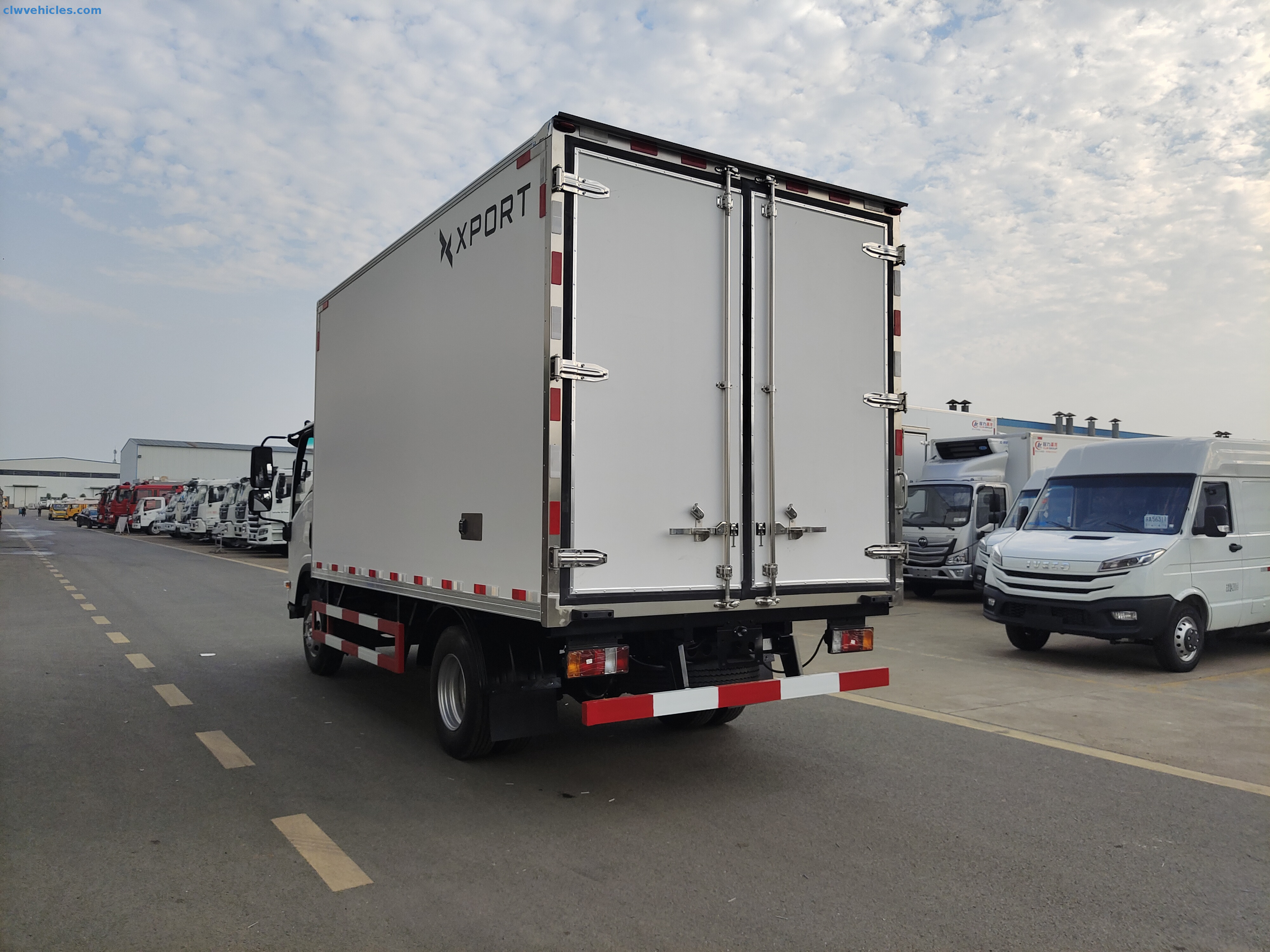

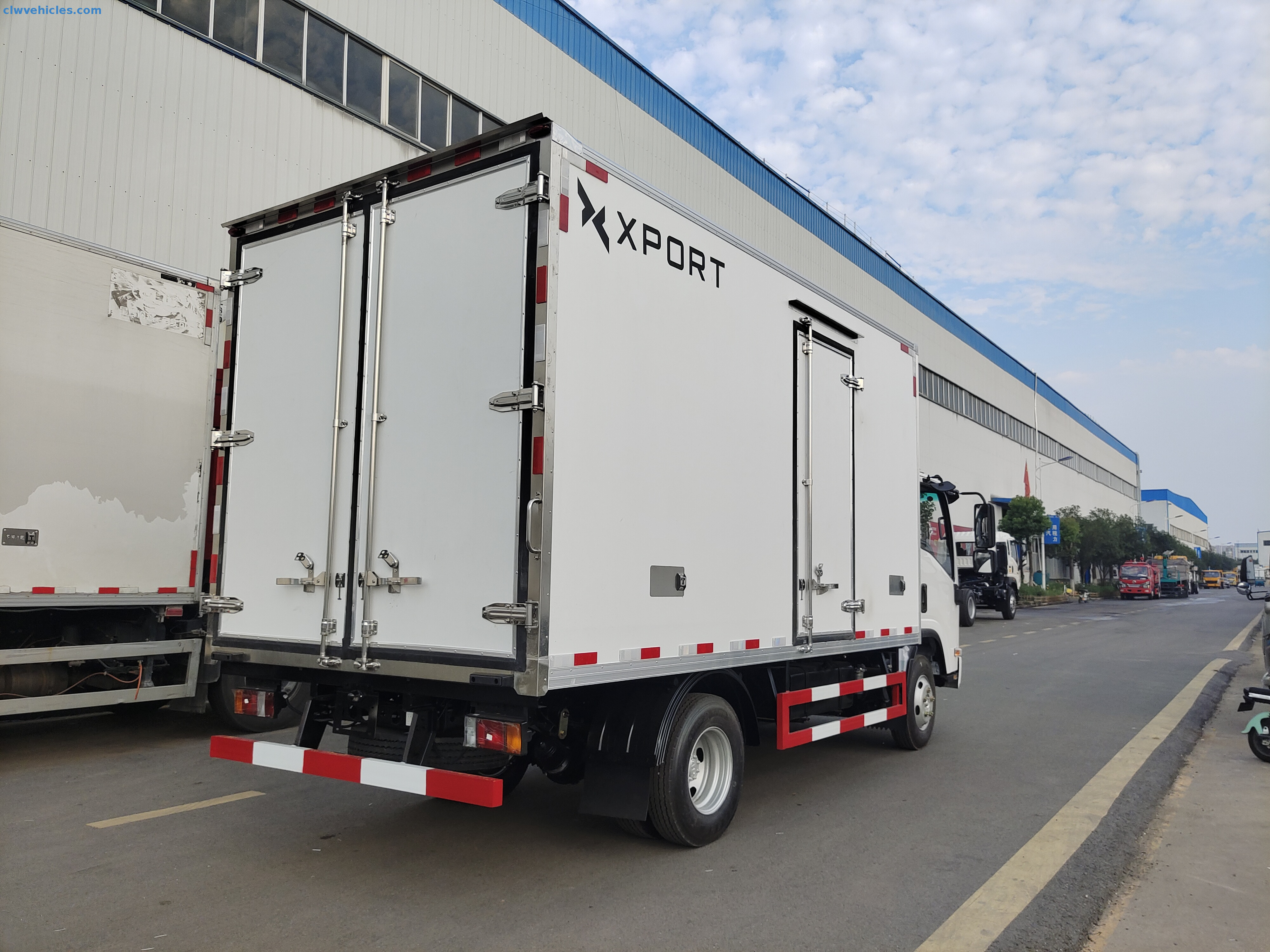

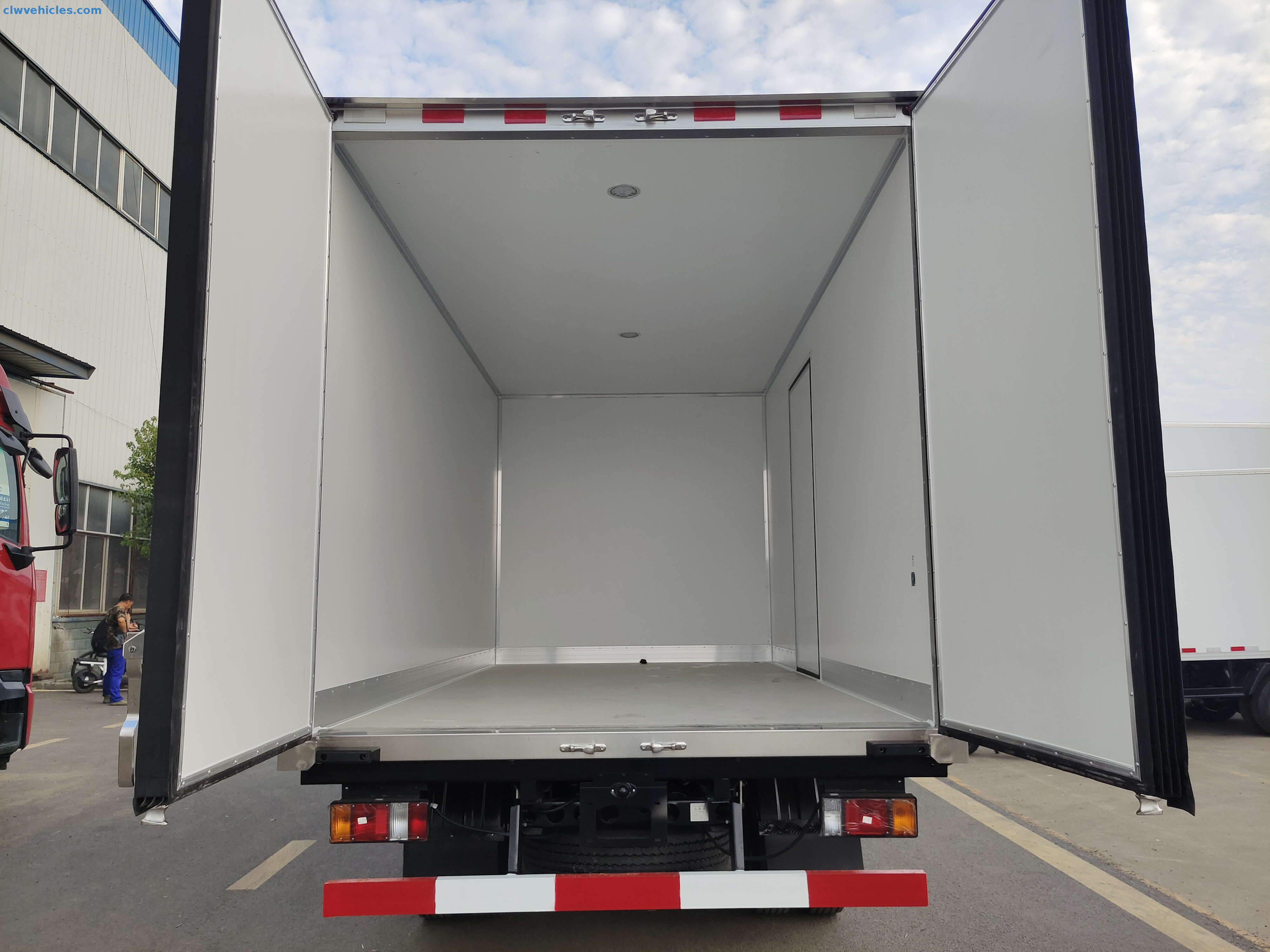

The box measures 3.78 m × 2.10 m × 2.05 m, crafted from 5 mm–thick carbon steel (or stainless steel on request). Its reinforced corners and smooth interior walls protect your cargo and make loading quick and simple. The cube vans design maximizes usable space, letting you stack pallets or secure odd‑shaped items with ease. An anti‑slip floor and interior tie‑down points ensure everything stays put in transit.
Versatile Workhorse: Perfect as a small–medium delivery truck, moving goods, equipment, or supplies.
Compact Yet Capable: Cube van dimensions with a high payload capacity.

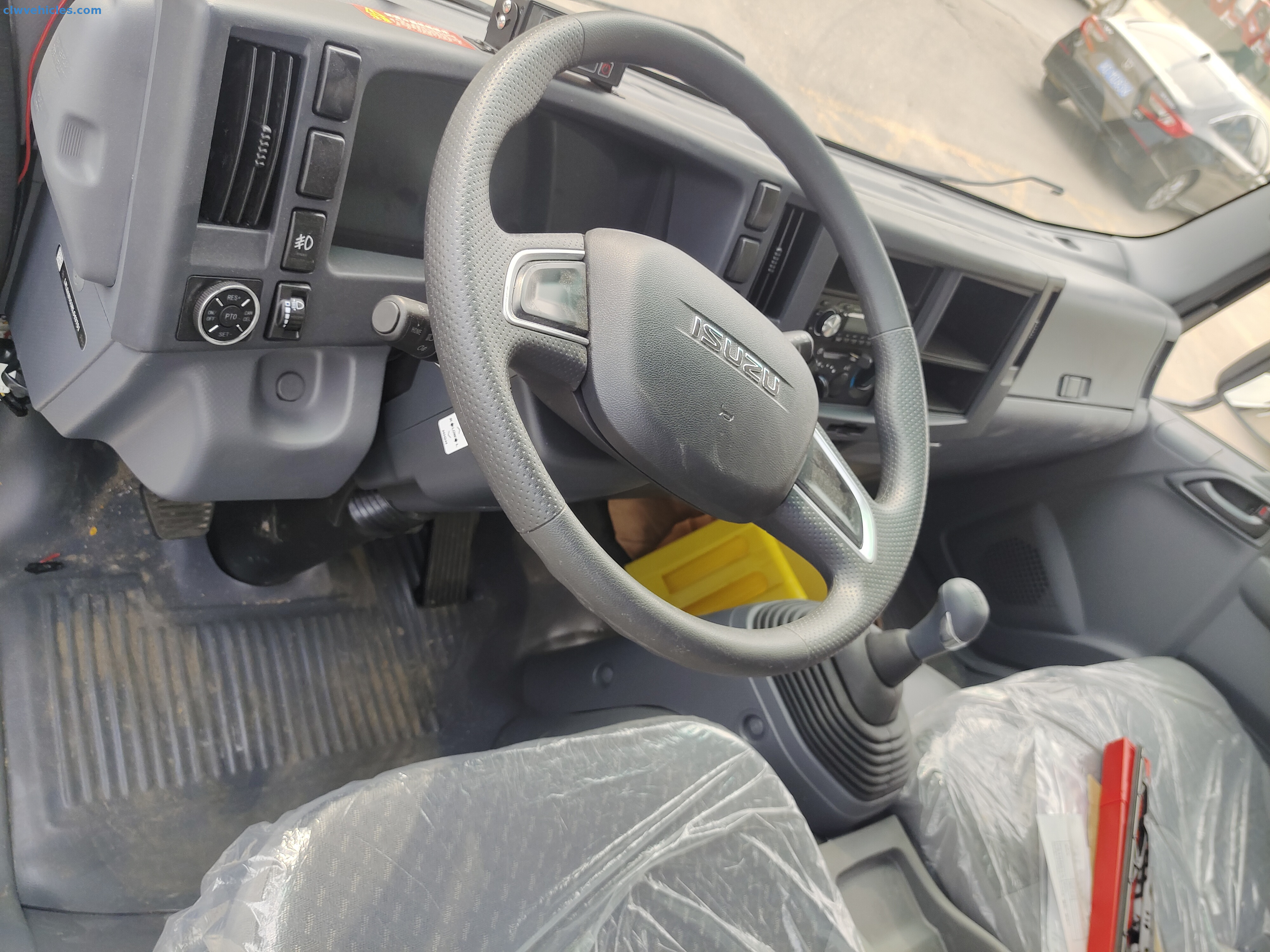

Driver Comfort: Single‑row cabin with air conditioning and ergonomic seats.
Durable Build: CLW Group quality and Isuzu reliability combine for low maintenance and high uptime.
For businesses that count on prompt, protected deliveries, the ISUZU KV100 Cube Van Truck delivers—literally. It,s the smart, high quality cube vans solution that keeps your logistics running smoothly.
| Vehicle Description | Brand | CLW |
| GVW(kg) | 5995 | |
| Curb Weight(kg) | 3160 | |
| Loading Weight(kg) | 2705 | |
| Overall Dimension(mm) | 5995*2160*3100 | |
| Wheelbase(mm) | 3360 | |
| Front/Rear Overhang(mm) | 1090/1545 | |
| Approach/Departure Angle | 20/16 | |
| Axle Load(kg) | 2175/3820 | |
| Number of Cabs | 2 | |
| Top Speed(km/h) | 100 | |
| Chassis Brand | ISUZU | |
| Chassis Model | QL1110ANMAY | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4HK1CN6LB |
| HP | 120 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(ml/kw) | 5193/88 | |
| Fuel Type | Diesel | |
| Maximum Torque(N·m) | 280 | |
| Gearbox | 5Forward/1Reverse Gear | |
| Tyre | 6+1spare tire; 7.00R16LT 14PR | |
| Front Wheel Track(mm) | 1565 | |
| Rear Wheel Track(mm) | 1508 | |
| Van | Box Size(mm) | 3780*2100*2050 |
| Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 5 | |
