ISUZU KV100
CLW
CLW5180GC12
Technical Specifications of the CLW ISUZU 6cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Brand Isuzu 4x2 6cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 8280 |
| Rated Payload Weight(kg) | 2635 |
| Curb Weight(kg) | 5450 |
| Dimensions | |
| Wheelbase(mm) | 3365 |
| Front/Rear Overhang(mm) | 1120/1950 |
| Approach/Departure Angle | 23/12 |
| Overall Dimension(mm) | 6715x2200x2380 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | 4KH1CN6HB |
| Emission Standard | Euro 3 |
| Engine Type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of Cylinders | straight-4 cylinders, diesel |
| Displacement(L) | 2.999 |
| Max. Output (kw) | 97(132hp) |
| Drive Line | |
| Transmission | 5 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front Axle | Dena 3 tons |
| Rear Axle | Dena 5.28 tons |
| Tire Specification | |
| Tire Specification | 7.50R16LT 14PR |
| Front Wheel Track(mm) | 1640, 1690 |
| Rear Wheel Track(mm) | 1655 |
| Number of Leaf Springs | 6/6+6 |
| Garbage Compactor Box | |
| Volume | 6 cbm |
| Raw Material | Q235, side is 4mm, and bottom is 5mm. |
| Loading Method | 1.Optional rear-mounted bucker tipping mechanism(120L,240L,360L,660L nad 1100L) 2.Optional garbage hopper tipping mechanism |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：

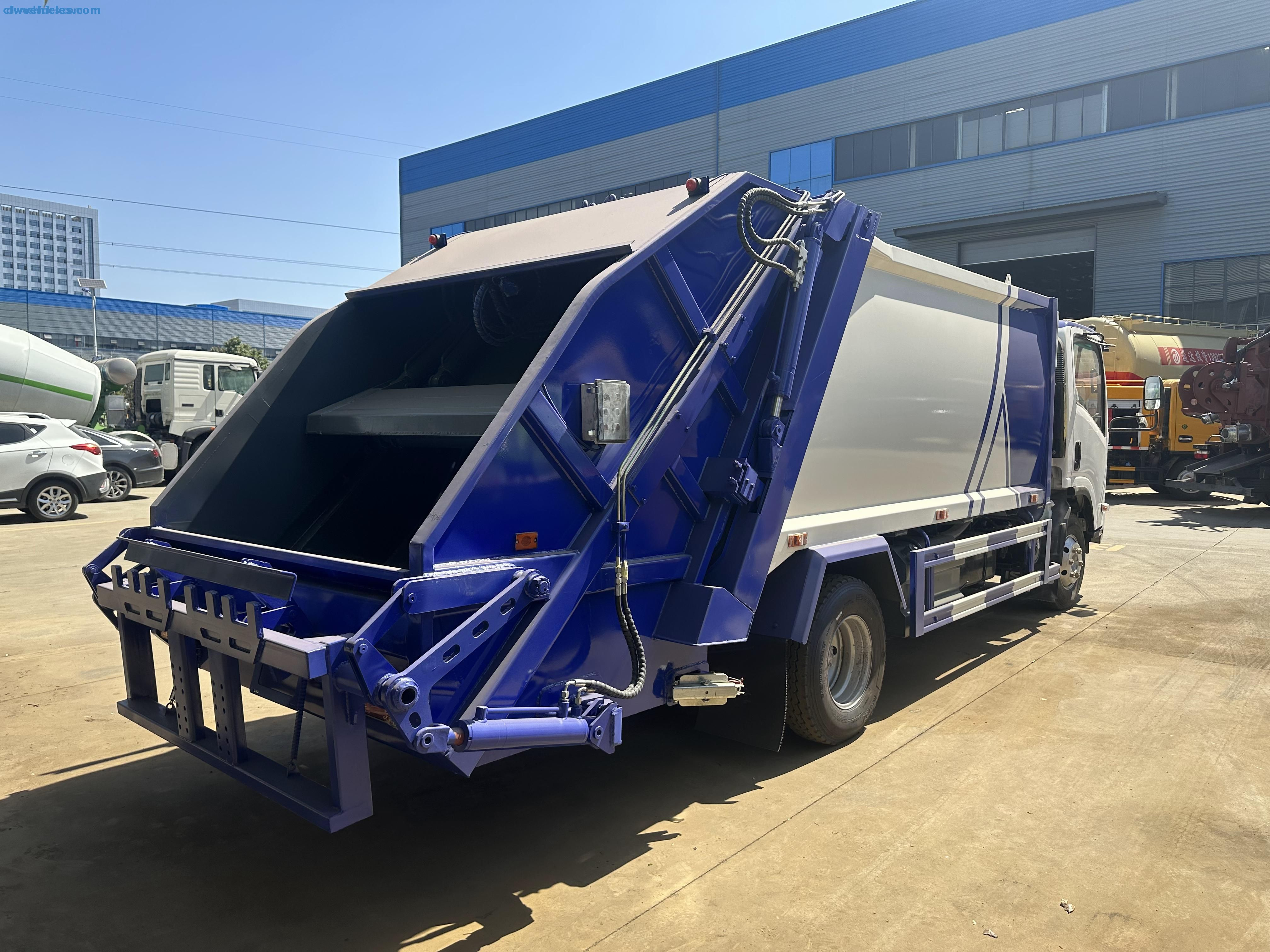

Comprehensive Introduction to Isuzu 4×2 Garbage Compactor Truck
1. Vehicle Positioning and Core Advantages
The Isuzu 4×2 garbage compactor truck is a specialized vehicle designed for urban sanitation and community waste transportation. Built on the internationally renowned Isuzu chassis, it features a high-strength body structure and intelligent control system, with high-efficiency compression, robust durability, and user-friendly operation as its core strengths. It significantly enhances waste transfer efficiency, reduces labor costs, and serves as an ideal choice for modern sanitation operations.
---
2. Body Design and Material Engineering
1. High-Strength Body Structure
- Material Selection: The main body uses Q235 carbon steel, offering exceptional pressure resistance and corrosion tolerance for long-term heavy-duty operations.
- Reinforced Zoning Design:
- Baseplate: 5mm thickness for enhanced load-bearing capacity and resistance to leakage corrosion.
- Sides and Roof: 4mm high-strength steel plates balance lightweight construction with impact resistance.
- Tailgate and Compaction Plates: 4mm and 5mm high-strength steel, respectively, ensuring structural stability during waste discharge and compaction efficiency.
- Sealing Technology: Double-layer sealing at welded joints prevents odor diffusion and liquid leakage, complying with environmental standards.
2. Compaction System Performance
- Compression ratio exceeding 3:1, significantly increasing single-load capacity and reducing transport frequency.
- Fluid dynamics-optimized compaction plates ensure uniform waste distribution, preventing localized overloading.
---
3. Chassis and Power Configuration
1. Isuzu Chassis
- 4×2 drive configuration (rear-wheel drive), balancing urban maneuverability and load capacity. Optimized wheelbase minimizes turning radius for narrow-street operations.
- Global Quality Assurance: Isuzu chassis are renowned for high reliability and low failure rates, maintaining stable performance under prolonged use.
2. Versatile Power Options
- Standard Engine: Equipped with the 4KH1-CN6HB engine, delivering 132 HP with excellent fuel efficiency and compliance with China VI emission standards.
- Customizable Options: Supports alternative engine models to meet regional emission regulations and operational demands.
---
4. Loading and Control Systems
1. Multi-Functional Operation Modes
- Rear-Integrated Design: Enables loading-compaction-discharge workflows with minimal manual intervention.
- Bidirectional Compression Technology: Uniform waste density via dual-direction compaction, preventing spillage during transit.
2. Three-Mode Intelligent Control
- In-Cab Control: Integrated touchscreen dashboard displays real-time compaction status and load capacity, enabling one-touch operations.
- Side Manual Control: Hydraulic control panel for precise adjustments in complex scenarios.
- Remote Wireless Control: 10-meter-range remote allows single-operator handling, improving safety and efficiency.
---
5. Ergonomic Design and Applications
1. Driver Comfort
- Spacious cab with air conditioning, shock-absorbing seats, and multi-function steering wheel reduces driver fatigue.
- Intuitive control layout with clear labeling ensures ease of use for beginners.
2. Versatile Application Scenarios
- Urban Sanitation: Ideal for large-scale waste collection in main roads and commercial districts.
- Communities and Campuses: Agile access to residential areas, schools, and industrial parks for daily waste management.
- Emergency Response: Efficiently handles sudden waste surges (e.g., post-events or festivals).
---
6. After-Sales Service and Added Value
- Warranty Policy: Core components covered by a 3-year/100,000 km warranty, supported by nationwide service networks.
- Environmental Contribution: Reduces transport carbon emissions via compaction, aligning with "dual-carbon" goals.
---
Summary: The Isuzu 4×2 garbage compactor truck, with its high-strength build, intelligent controls, adaptable power, and brand credibility, stands as a benchmark in sanitation. It meets demands for efficiency, sustainability, and cost-effectiveness, serving as a powerful ally in modern urban management.
