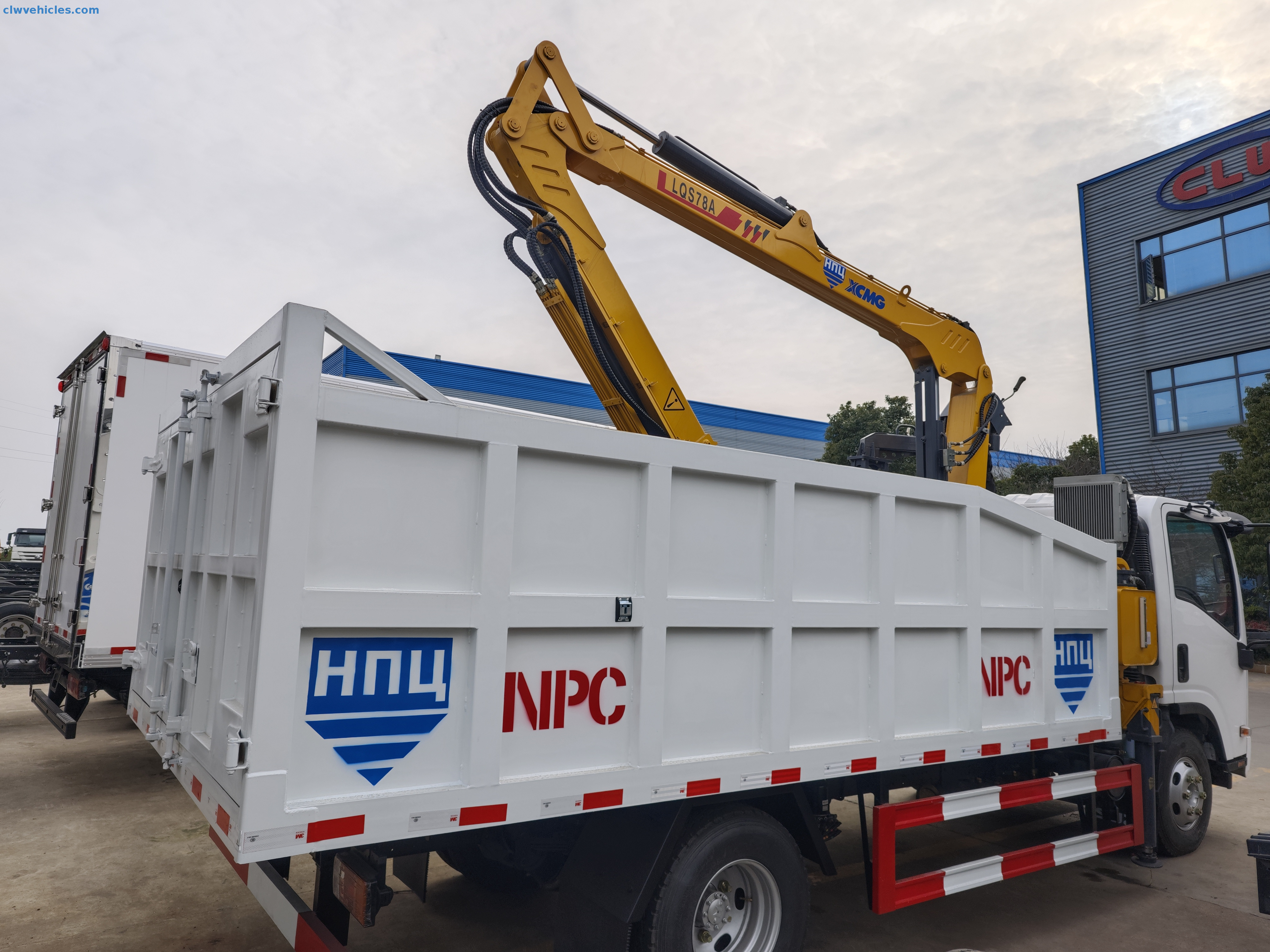

Product Description:
1. Installation of speed limiting device: A speed limiting device is installed, and its speed limit is 89 kilometers per hour.
2. Description of optional configurations: The vehicle can be optionally equipped with a chassis with a wheelbase of 3815 mm, and the tire specification is 315/80R22.5.
3. Details of side and rear protection:
- Side protection: The material is Q235 steel plate, which is connected to the crossbeam of the carriage by bolts.
- Rear protection: The material is SAPH440 steel plate with a thickness of 4.0 mm. The connection method is that the rear protection bracket is connected to the rear end of the longitudinal beam of the vehicle frame by bolts. The cross-sectional dimension of the rear protection is 190×50 mm, and the ground clearance is 495 mm.
4. Parameters of the crane:
- Model: LQS78A.
- Mass: 950 kg.
- Maximum lifting load: 3500 kg.
Main Technology Parameters:
| Main Technology Parameter |
| Model Name | CLW Brand ISUZU 4x4 Grab Garbage Truck |
| Driving Type | 4x4 |
| Color | white or based on client’s request. |
| Number of Cabs | 2 |
| Weights |
| GVW(kg) | 8280 |
| Rated Payload Weight(kg) | 2120 |
| Curb Weight(kg) | 5885 |
| Dimensions |
| Wheelbase(mm) | 3815 |
| Front/Rear Overhang(mm) | 1220/1980 |
| Approach/Departure Angle | 21/17 |
| Overall Dimension(mm) | 6955x2450x3650 |
| Max Speed(km/h) | 89 |
| Engine |
| Engine Model | 4KH1CN6HB |
| Engine Type | In-line, four cylinders, turbocharged with intercooler |
| Max.Output(kw) | 97(132hp) |
| Drive Line |
| Transmission | 6 forwards,1 reverse gear,MLD-6Q |
| Steering | Power steering |
| Axle |
| Axle | 3000/5280 |
| Tire Specification |
| Tire Specification | 8.25R20 16PR; 6+1 spare tire |
| Front Wheel Track(mm) | 1810 |
| Rear Wheel Track(mm) | 1780 |
| Number of Leaf Springs | 3/3+3 |
| Upper Body |
| Cargo Box Size(mm) | 4200x2300x1100 |
| Model | LQS78A |
| Match the Truck | Above 3tons loading truck |
| Assembling Space(mm) | 900 |
| Max Working Weight(kg) | 950 |
| Max Lifting Torque(T.M) | 8.8 |
| Max Lifting Height(m) | 9.5 |
| Max Working Radius(m) | 7.61 |
| Number of Arms | 3 |
| Length(m) | 3.5-7.82 |
| Extending Speed(m.s) | 0.1 |
| Arm Angular Velocity(°/s) | 5.2 |
| Hook Speed(m/min) | 9 |
| Hydraulic Capacity(L) | 45 |
