Production Description:

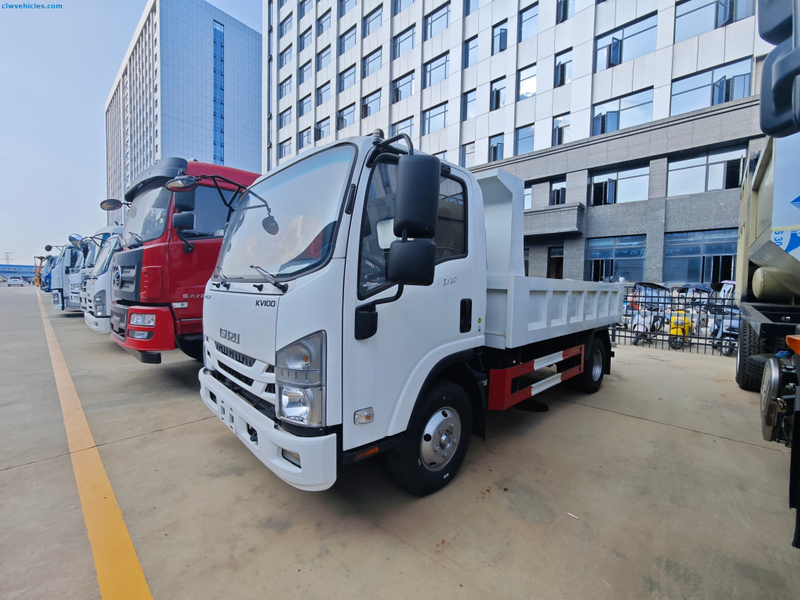

Isuzu ELF KV100 4x2 Dump Truck
1. Chassis & Performance
- Built on the durable Isuzu ELF KV100 chassis, ensuring stability and reliability.
- Equipped with 7.00R16LT 8PR tires for versatile road adaptability and robust support.
- Compact dimensions: 5995×2150×2380mm, enabling agile maneuverability in narrow or urban areas.
2. Engine
- Powered by the 4KH1CN6LB engine delivering 120 HP (88kW) for strong, consistent performance.
- Excels in demanding tasks: high torque for inclines, steady power for highway driving.
- Proven fuel efficiency and market-tested reliability, minimizing operating and maintenance costs.
3. Cargo Box & Customization
- Self-unloading steel cargo box: Dimensions 4205×2050×380mm (3mm side / 4mm base thickness).
- Enhanced by dual 150mm hydraulic cylinders for fast, stable unloading.
- Customizable features:
- Adjustable cargo box thickness (to meet specific load requirements).
- Optional side door for convenient loading/unloading.
- Customizable color schemes (cargo box and cab).
4. Versatility
- Ideal for small construction sites, urban logistics, and diverse transport scenarios. Combines durability, efficiency, and user-centric design for optimized operations.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 7300 |
| Curb Weight(kg) | 2905 |
| Loading Weight(kg) | 4200 |
| Overall Dimension(mm) | 5995×2150×2380 |
| Wheelbase(mm) | 3815 |
| Axle Load(kg) | 2580/4720 |
| Top Speed(km/h) | 95 |
|
| Chassis Brand | QL |
| Chassis Model | QL1080BUKAY |
| Cabin | Single,LHD,with A/C |
| Engine | Model | 4KH1CN6LB |
| HP | 120 |
| Emission Standard | Eu 5 |
| Displacement/Output(ml/kw) | 2999/88 |
| Fuel Type | Diesel |
| Maximum Torque(N·m) | 290 |
| Gearbox | 6Forward/1Reverse Gear |
| Tyre | 7.00R16LT 14PR |
|
| Dump | Box Dimension(mm) | 4205×2050×380 |
| Box | Manufacturers | ChengLi Special Automobile Co.,Ltd |
| Volume(cbm) | 5 |
| Configuration(mm) | side:3,bottom:4 |
| Material | Carbon steel |
| Side Door | According to costomer |
| Cabin | Brand | Isuzu |
| Model | Flat proof |
| Seat | 3 |
| Color | According to costomer |
