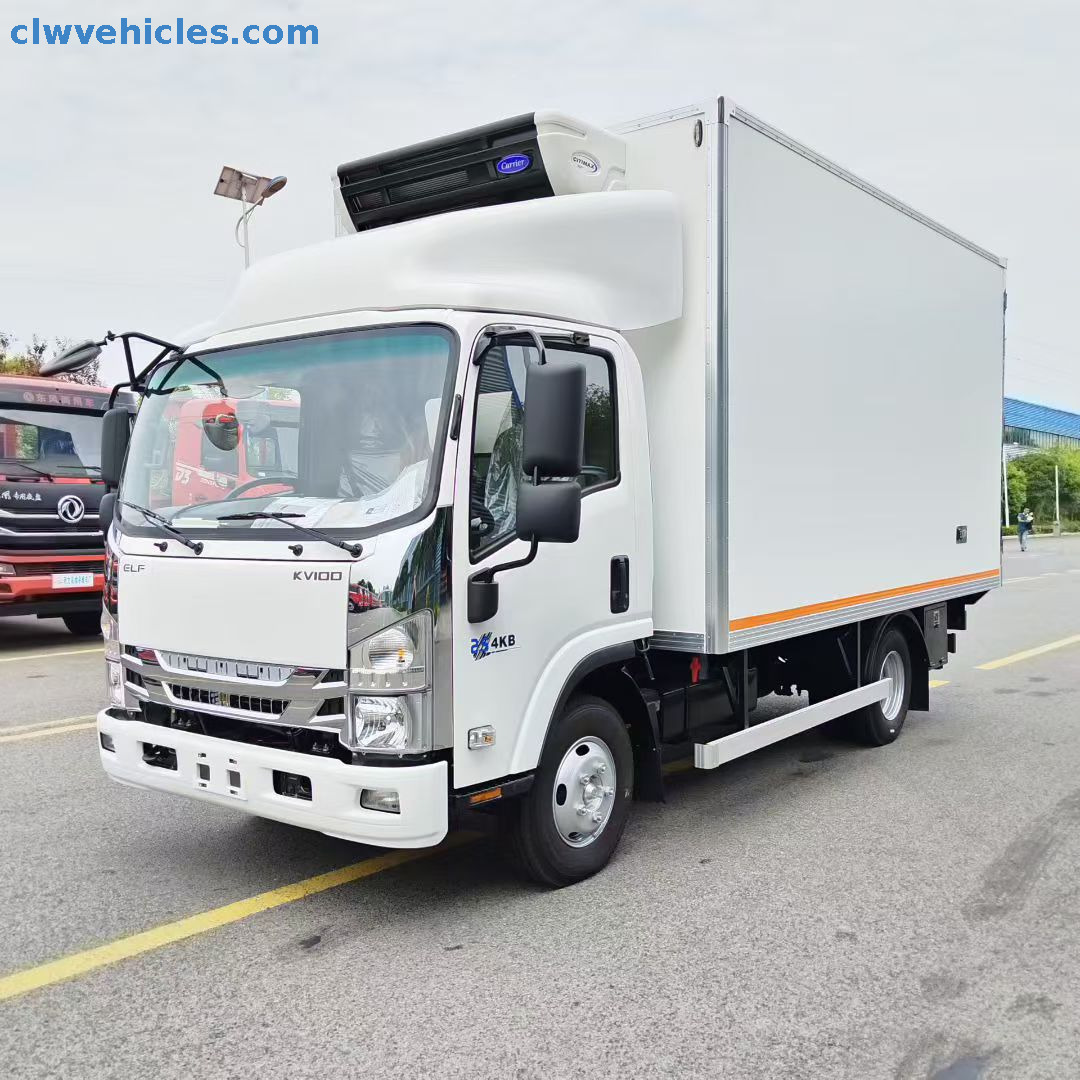

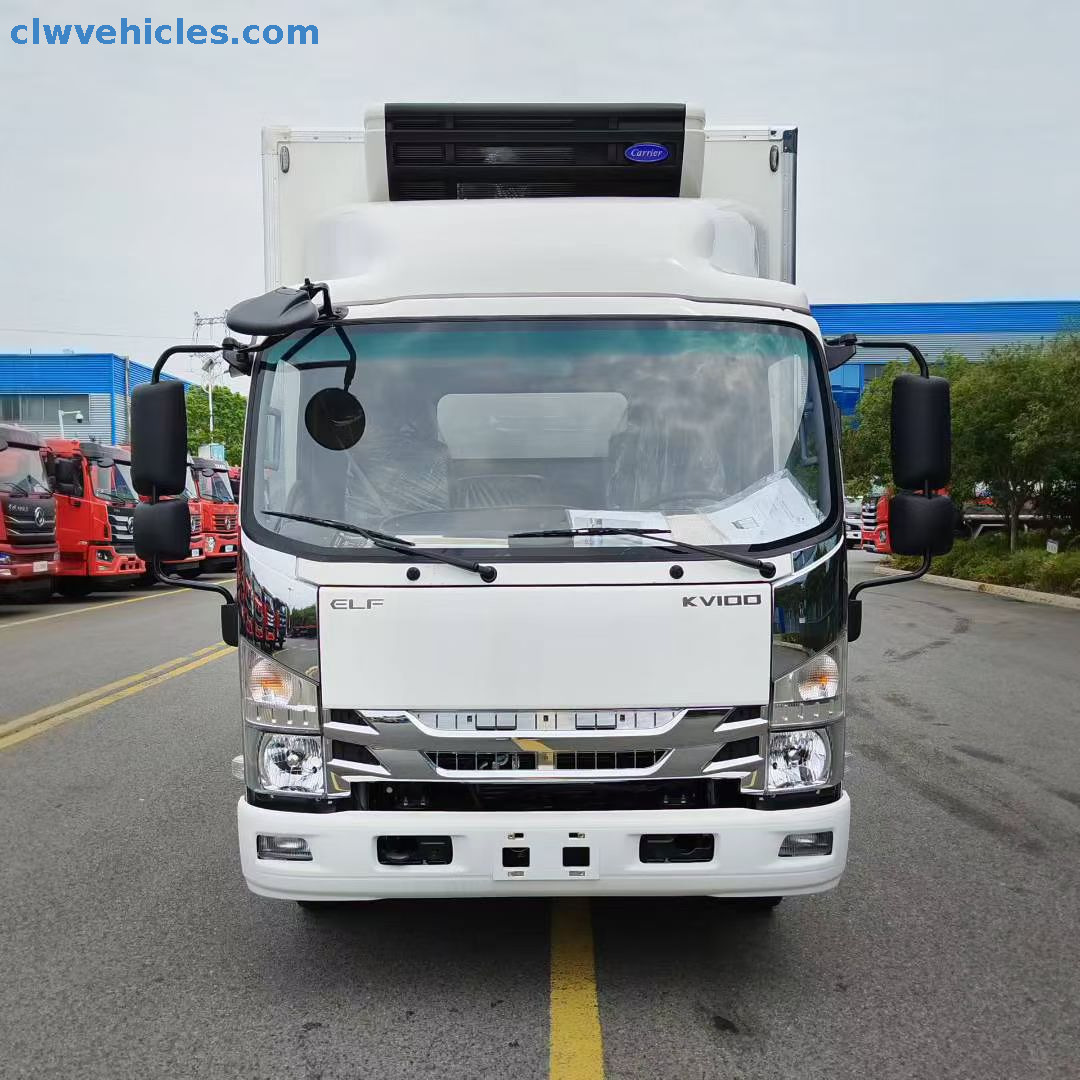

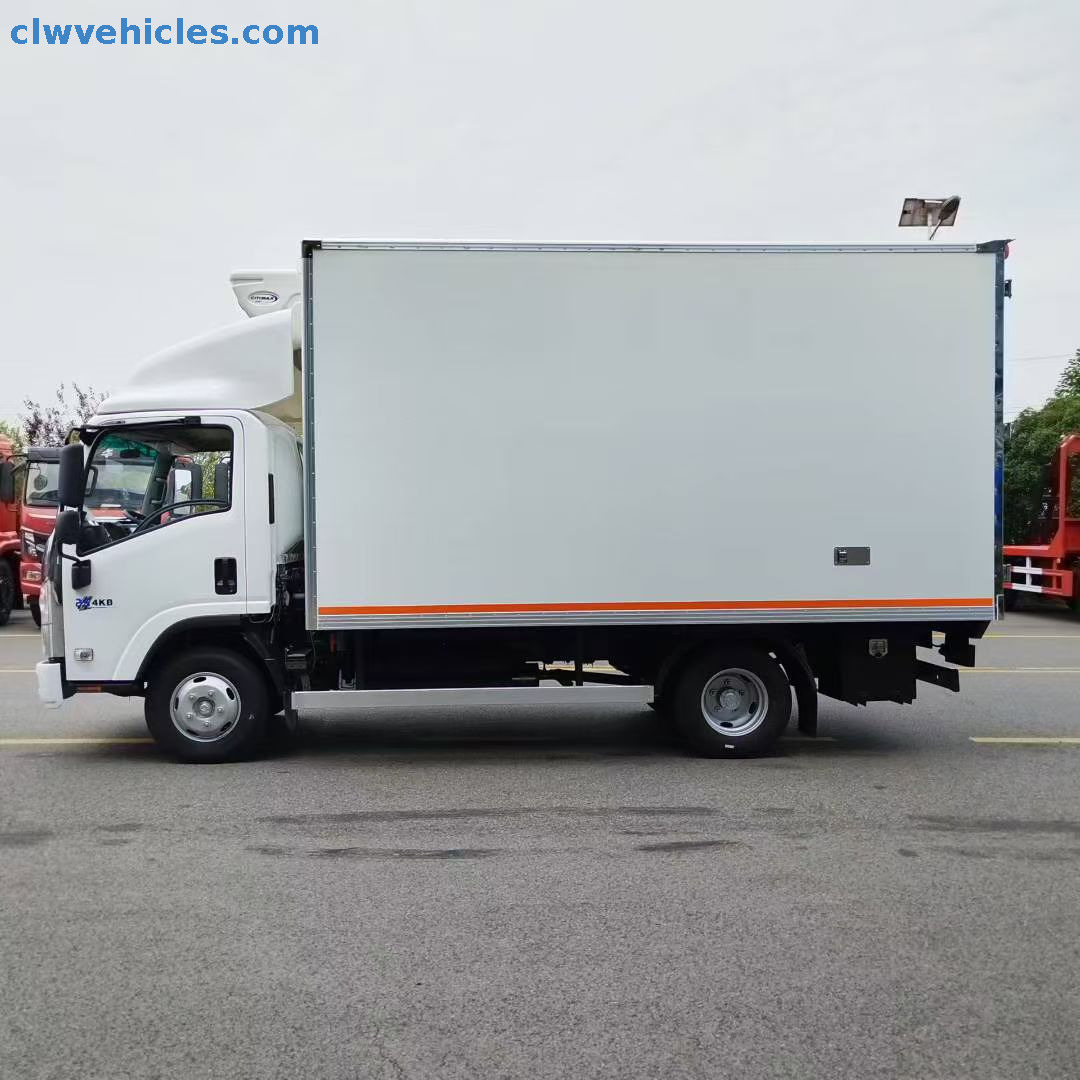

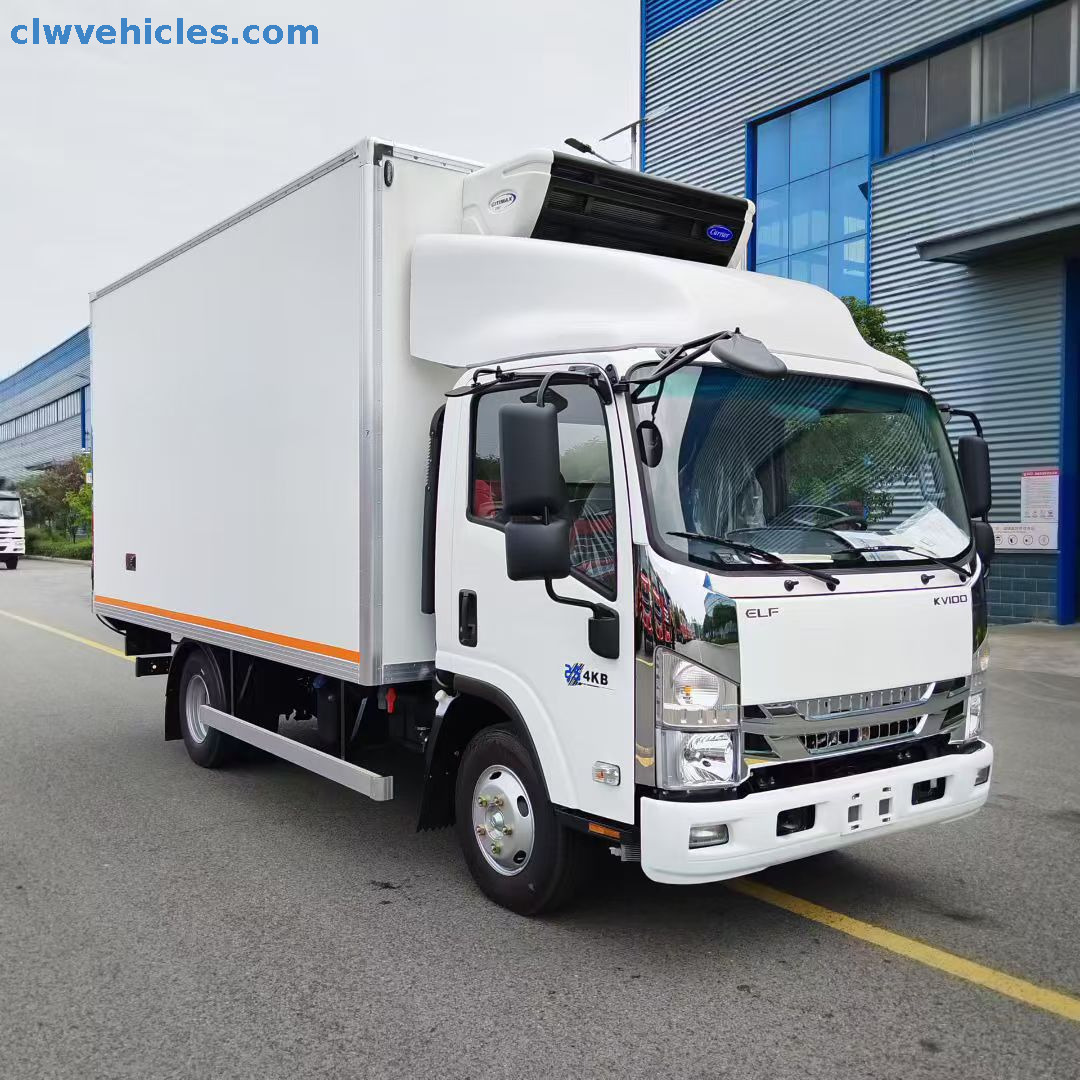

ISUZU New Type KV100 4x2 Citimax700 Refrigerated Truck

ISUZU KV100 4×2 Refrigerated Truck | CLW Group Cold Chain Reefer Truck for -20°C to +30°C Transport

Product Description

The ISUZU KV100 4×2 Refrigerated Truck from CLW Group is designed to meet the growing demands of global cold chain logistics where reliability, temperature stability and fuel efficiency are essential. Built on the ISUZU KV100 chassis, it combines solid engineering with a lightweight, well-insulated cargo box to maintain cargo freshness under varying climatic and operational conditions.

Powering the truck is the ISUZU 4KH1CN6HB diesel engine, delivering 132 HP and 280 N·m of torque while meeting Euro 6 emission standards. This engine is known for its fuel efficiency, durability and smooth performance. Its power output supports both city navigation and extended long-haul routes, ensuring consistent cooling performance even in challenging environments. The 5-speed manual gearbox (5 forward / 1 reverse) offers precise shifts and simplifies driving in tight urban settings, slopes or frequent stop-and-go routes. With a top speed of 105 km/h, the KV100 refrigerated truck maintains efficient delivery schedules.

With a GVW of 8,280 kg, a curb weight of 4,000 kg and a loading weight of 4,085 kg, the vehicle provides ample carrying capacity while retaining excellent maneuverability. The overall dimensions—7,190 × 2,430 × 3,300 mm—and the 3,815 mm wheelbase offer a balanced structure suited for urban distribution centers, supermarkets, restaurants, pharmacies and cold storage warehouses. The axle load configuration (3,000 / 5,280 kg) and 7.50R16LT 14PR tires further enhance vehicle stability under full load conditions.

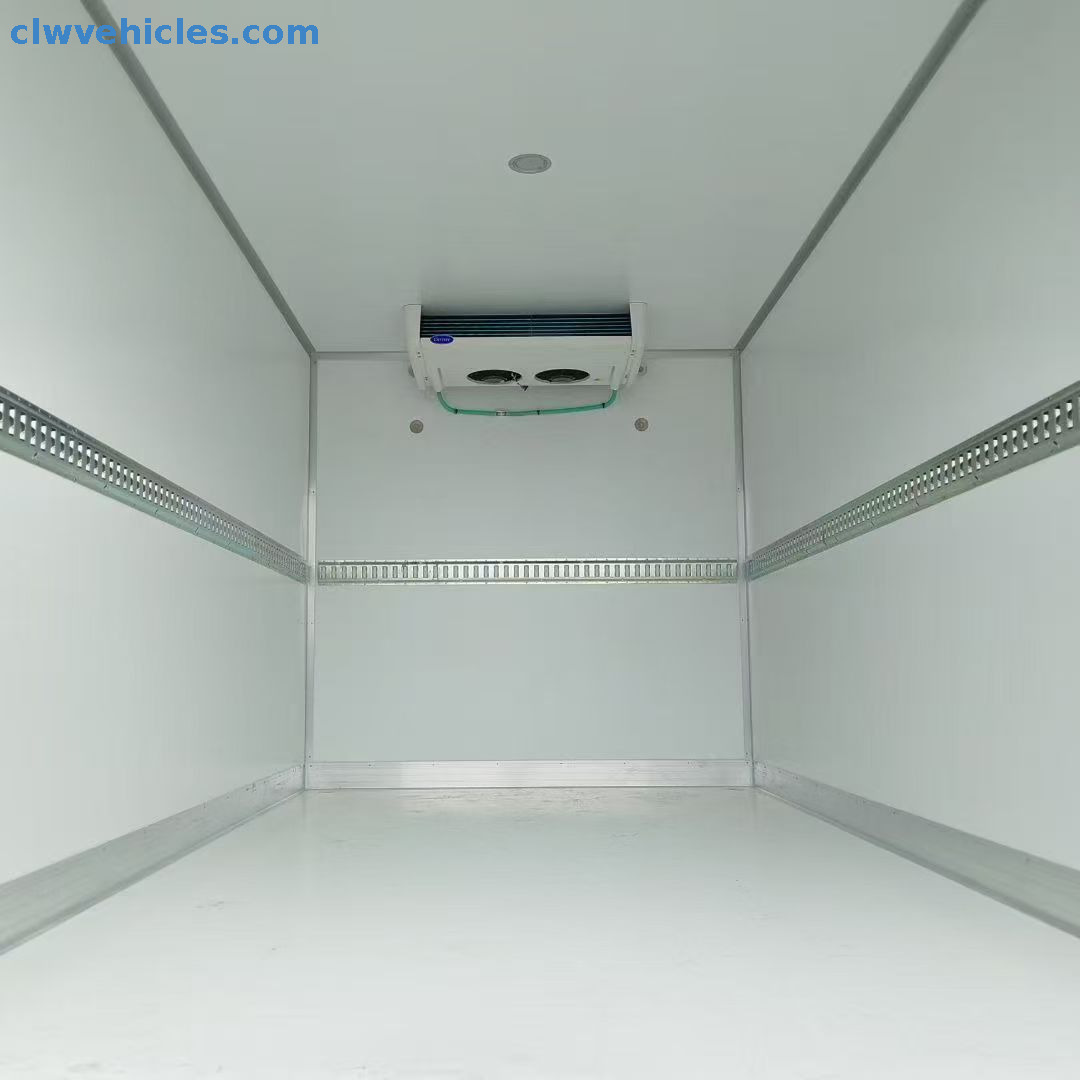

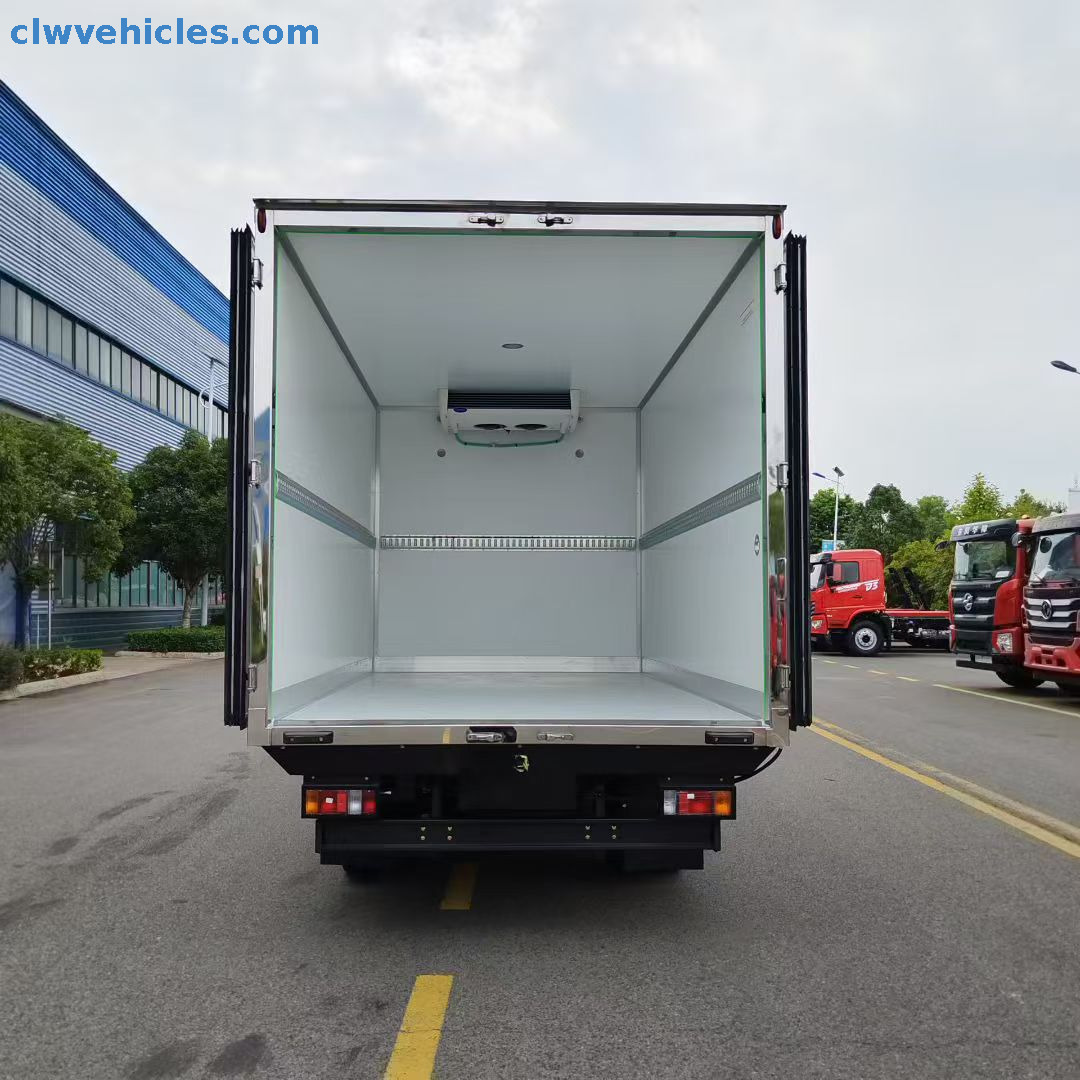

The refrigerated van body measures 5,150 × 2,250 × 2,100 mm and is constructed from high-strength fiberglass panels. This design minimizes weight while providing excellent heat resistance and corrosion protection. The 8 cm polyurethane insulation layer significantly reduces heat transfer and helps maintain consistent internal temperatures even in extreme heat or cold. This makes the truck suitable for regions with large temperature variations, such as Russia and Central Asia, as well as very hot climates in the Middle East.

Cooling is delivered by a Citimax refrigeration unit, capable of maintaining temperatures from -20°C to +30°C depending on cargo needs. This wide range supports diverse industries—from frozen seafood and ice cream to fresh produce and pharmaceuticals. Adjustable temperature control allows operators to set and maintain the required cooling level throughout the journey. The airflow distribution inside the refrigerated space ensures even cooling and prevents hot spots that may compromise cargo quality.

Operational flexibility is enhanced through optional configurations such as airflow ventilation slots, internal hooks, external power supply connections and side door access for multi-point deliveries. An optional hydraulic tailgate can be added to simplify loading and unloading heavy or bulky items. These options make the ISUZU KV100 reefer truck adaptable to different logistics environments and working conditions.

In both short-distance urban delivery and long-distance intercity transport, the KV100 refrigerated truck provides dependable temperature control, efficient performance and low operating costs. Its proven operation in Russia, Central Asia, the Middle East and South America further demonstrates its durability and reliability under diverse climatic challenges.

Applications

• Frozen and chilled food distribution (meat, seafood, ice cream)

• Fresh produce delivery (fruits, vegetables, dairy products)

• Pharmaceutical and medical supply logistics

• Supermarket supply chain management

• Catering and restaurant cold chain delivery

• Cross-border cold chain transportation in extreme climates

Key Advantages

• Euro 6 ISUZU engine: 132 HP with excellent fuel economy and low emissions.

• Wide temperature control range: Citimax unit supports -20°C to +30°C for frozen, chilled and controlled-temperature goods.

• Durable insulated structure: Fiberglass body with 8 cm PU foam provides strong thermal insulation.

• Compact yet capable design: Suitable for dense urban areas while offering over 24 m³ cargo volume.

• Stable and reliable performance: Strong axle load, durable tires and consistent cooling performance.

• Flexible customization: Optional side doors, tailgate, ventilation slots, hooks and external power supply.

• Proven export performance: Successfully used in Russia, Central Asia, Middle East and South America.

Exported Experience

The ISUZU KV100 4×2 Refrigerated Truck has been exported to:

• Russia

• Central Asian countries

• Middle Eastern countries

• Parts of South America

In these regions, it is widely used for:

• Long-distance frozen food transportation in cold climates

• Urban fresh food and pharmaceutical delivery

• Cross-country cold chain routes crossing temperature extremes

• Daily supermarket and wholesale distribution

Customers value its stable cooling performance, durable construction and adaptability to different ambient climates.

FAQ

Q1: What is the temperature range of the refrigeration unit?
A1: The Citimax unit maintains temperatures from -20°C to +30°C.

Q2: What is the size of the refrigerated cargo box?
A2: The box measures 5,150 × 2,250 × 2,100 mm.

Q3: Which engine powers the truck?
A3: The truck uses the ISUZU 4KH1CN6HB Euro 6 engine with 132 HP and 280 N·m torque.

Q4: What is the payload capacity?
A4: The loading capacity is 4,085 kg.

Q5: Is the insulation durable?
A5: Yes. The body uses fiberglass panels with an 8 cm polyurethane insulation layer for strong thermal performance.

Q6: Are customization options available?
A6: Optional features include ventilation slots, external power supply, side doors and a hydraulic tailgate.

Q7: Is this model suitable for cold or hot climates?
A7: Yes. It has been tested in extreme climates from Russia to the Middle East with reliable performance.

Q8: What is the top speed of the truck?
A8: The maximum speed is 105 km/h.

Main Technical Parameter
