Product Description:
Technical Specifications for Commercial Vehicle Configuration
---
1. Speed Limiting Device Installation
A speed limiting device is pre-installed with a preset maximum speed of 89 km/h.
---
2. Optional Configurations
- Chassis: Available with an adjustable wheelbase configuration of 1850 + 4575 + 1370 mm.
- Tires: Optional tire specification 315/80R22.5.
---
3. Protective Structures
A. Side Protection*
- Material: Q235 steel plate.
- Installation: Bolted to the carriage crossbeam.

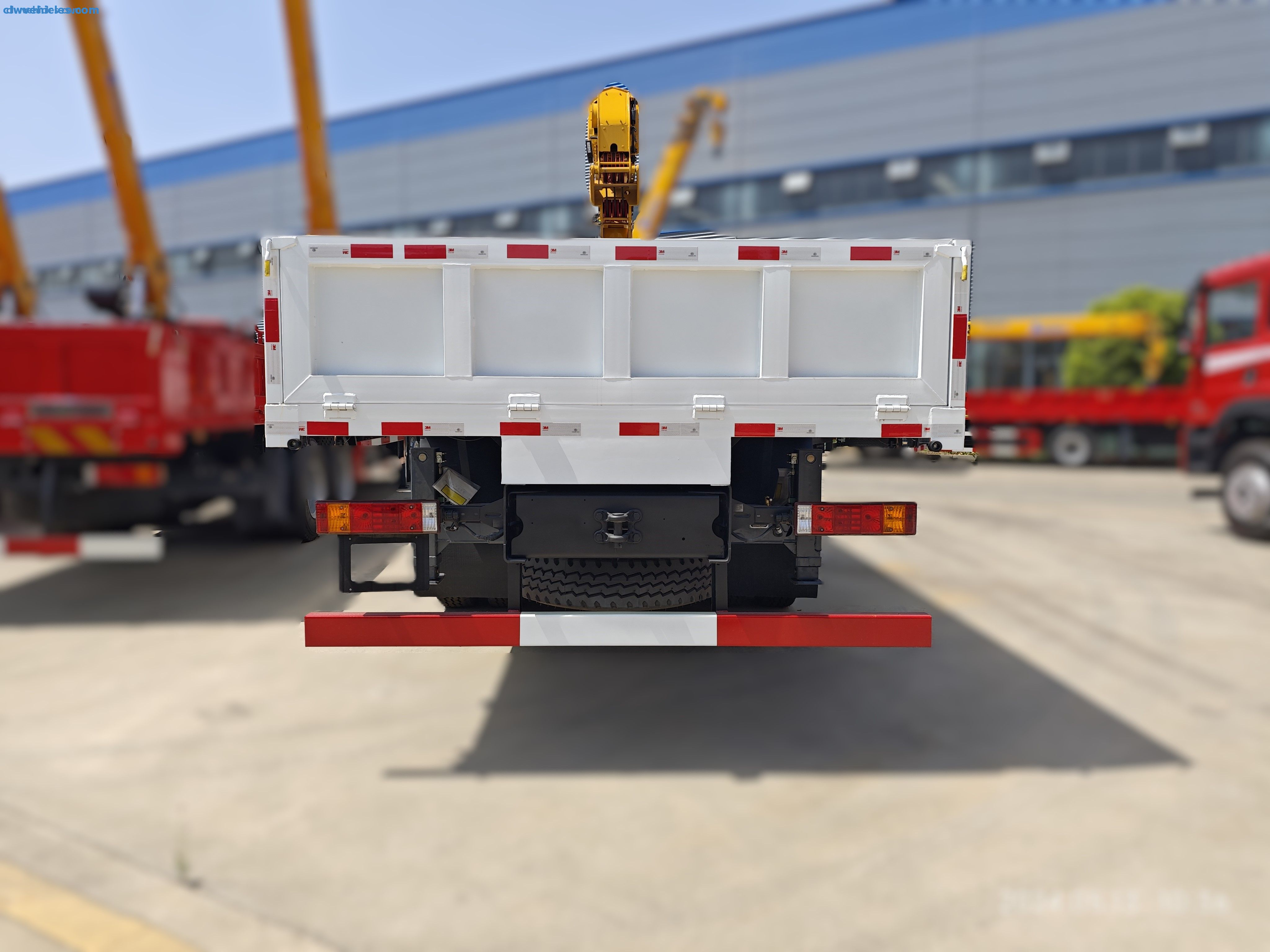

B. Rear Protection
- Material: SAPH440 steel plate (4.0 mm thickness).
- Installation: Brackets bolted to the rear end of the vehicle frame’s longitudinal beam.
- Dimensions: Cross-section of 190 × 50 mm.
- Ground Clearance: 495 mm.
---

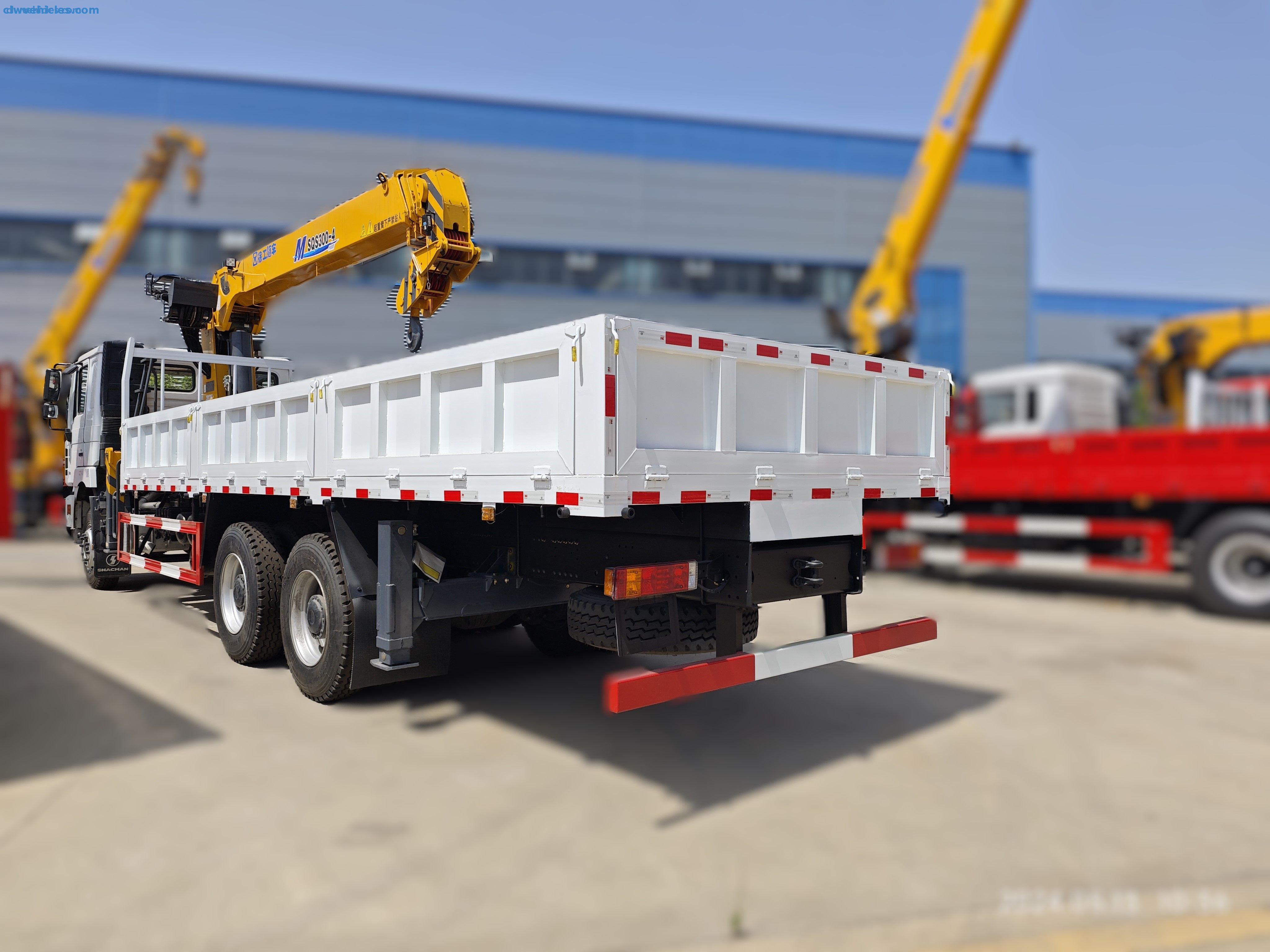

4. Crane Specifications
- Model: GSQS300-5.
- Weight: 4,528 kg.
- Maximum Lifting Capacity: 13,000 kg.
- Customization: Optional installation of truck-mounted cranes from other brands or with varying tonnage capacities.
---
5. Specialized Functions & Components
The truck-mounted crane system comprises:
- Horizontal outriggers
- Vertical outriggers
- Slewing base
- Adjustable boom
Primary Function: Designed for lifting and handling diverse cargo types.
---
Note: All configurations comply with industry standards and safety regulations.
Main Technology Parameters:
| Main Technology Parameter |
| Model Name | CLW Brand ISUZU 8x4 13ton Crane Truck |
| Driving Type | 8x4 |
| Color | white or based on client’s request. |
| Number of Cabs | 3 |
| Weights |
| GVW(kg) | 32000 |
| Curb Weight(kg) | 12500 |
| Dimensions |
| Wheelbase(mm) | 1850+4575+1370 |
| Front/Rear Overhang(mm) | 1370/2590 |
| Approach/Departure Angle | 14/15 |
| Overall Dimension(mm) | 11000x2550x3600 |
| Max Speed(km/h) | 89 |
| Engine |
| Engine Model | 6WG1-TCG61 |
| Engine Type | Common rail system;EGR+DOC+DPF+SC |
| Rated Torque(Nm) | 2060 |
| Max.Output(kw) | 338(460hp) |
| Drive Line |
| Transmission | 12 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle |
| Axle(kg) | 7000/13000/13000 |
| Tire Specification |
| Tire Specification | 315/80R22.5; 12+1spare tire |
| Front Wheel Track(mm) | 2065 |
| Rear Wheel Track(mm) | 1855/1855 |
| Upper Body Configuration |
| Crane Model | GSQS300-5 |
| Max Lifting Capacity(kg) | 13000 |
| Max Hydaulic Outreach(m) | 18.75 |
| Slewing Angle(°) | 360 |
| Stabilizer Spread(mm) | 2474-7582 |
| Installation Space(mm) | 1300 |
| Max Operating Pressure(MPa) | 26 |
| Recommended Pump Capacity(L/min) | 63+40 |
| Oil Tank Capacity(L) | 270 |
| Dead Weight(kg) | 4528 |
