CLW5180LG
ISUZU
87042230

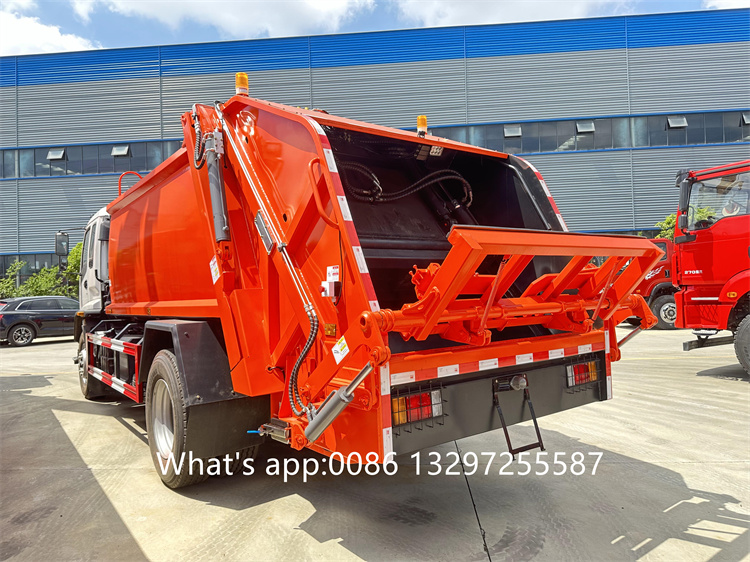

ISUZU fvz garbage compactor truck
Product Advantages:
The whole garbage compactor, the turning mechanism, the filler, etc. all parts are automatically welded by robots. After sandblasting and rust removal, then electrophoresis anti-rust primer. high quality,Long service life.
The whole production process is rigorous and reliable, and the products are firm and durable.
Chassis brand: You can choose ISUZU, JAC, HOWO, SHACMAN, FAW, FOTON, JMC, DF etc.
Loading capacity: 3cbm-25cm
The robot welds the garbage compactor as below:
Main Technology Parameter | |
Model Name | CLW brand 14cbm garbage compactor truck |
Driving Type | 4×2, |
Cabin | ISUZU FVR , one bed, standard roof, manual cab tilting, air conditioning system |
Color | White color or based on client’s request. |
Weights | |
Rated payload weight(kg) | 10000kg |
Curb weight(kg) | 10050 ( Estimated) |
Dimensions | |
Wheelbase(mm) | 4700 |
Overall Dimension(mm) | 8250*2550*3250 ( Estimated) |
Max speed(km/h) | 95 |
Engine | |
Engine model | 6HK1-TCNG40 (FCRI+SCR) |
Emission standard | Euro 5 |
Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
No. of cylinders | straight-6 cylinders, diesel |
Displacement(L) | 7.78 |
Max. output (kw) | 165KW (240HP) |
Drive Line | |
Transmission | ISUZU MLD 6 forwards,1 reverse gear, manual operation |
Steering | Power steering |
Brake | exhaust brake |
Axle | |
Front axle | 6.3 tons |
Rear axle | 13 tons |
Tire specification | |
Tire specification | 10.00R20 standard tire,6 tires+1 spare tire |
Garbage compactor box | |
Volume | 14cbm |
Raw material | Q345 carbon steel, side is 5mm, and bottom is 5mm. |
Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L or 1 unit 770L or 11000L waste bins |
Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
Compacted Ratio | 1:0.75 |
Crushing Force | 9 tons |
Control Method | Double side control box + manual levers PLC and wireless remote control; one-key cycling + half-auto control |
Sewage Tank | One unit |
Others | The bottom box and filler unit are made of thick steel plate. The back filler unit lifting cylinder is equipped with a locking device. The upper part is equipped with a function of repeated compression and bidirectional peristaltic compression, an integrated flashlight operation mode, and a double-sided control box. |
Camera | 2 units; one is for reverse image, and one is for checking the working condition. |
