Isuzu ELF
CLW
CLW50180QL4
Technical Specifications of the CLW 10cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW brand 16cbm garbage compactor truck |
| Driving Type | 4×2, |
| Color | White color or based on client's request. |
| Weights | |
| Rated payload weight(kg) | 8280 |
| Curb weight(kg) | 5950 |
| Dimensions | |
| Wheelbase(mm) | 3815 |
| Overall Dimension(mm) | 7355*2320*2750 |
| Max speed(km/h) | 105 |
| Engine | |
| Engine model | 4KH1CN6LB or 4KH1CN6HB |
| Emission standard | Euro 6 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 2.999L |
| Max. output (kw) | 88/97 (120HP) |
| Drive Line | |
| Transmission | 5 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front axle | Dena 3 tons |
| Rear axle | Dena 5.28 tons |
| Tire specification | |
| Tire specification | 7.50R16LT 14PR |
| Garbage compactor box | |
| Volume | 10 cbm |
| Raw material | Q345 carbon steel, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 660L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 01:00.8 |
| Crushing Force | 13 tons |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |

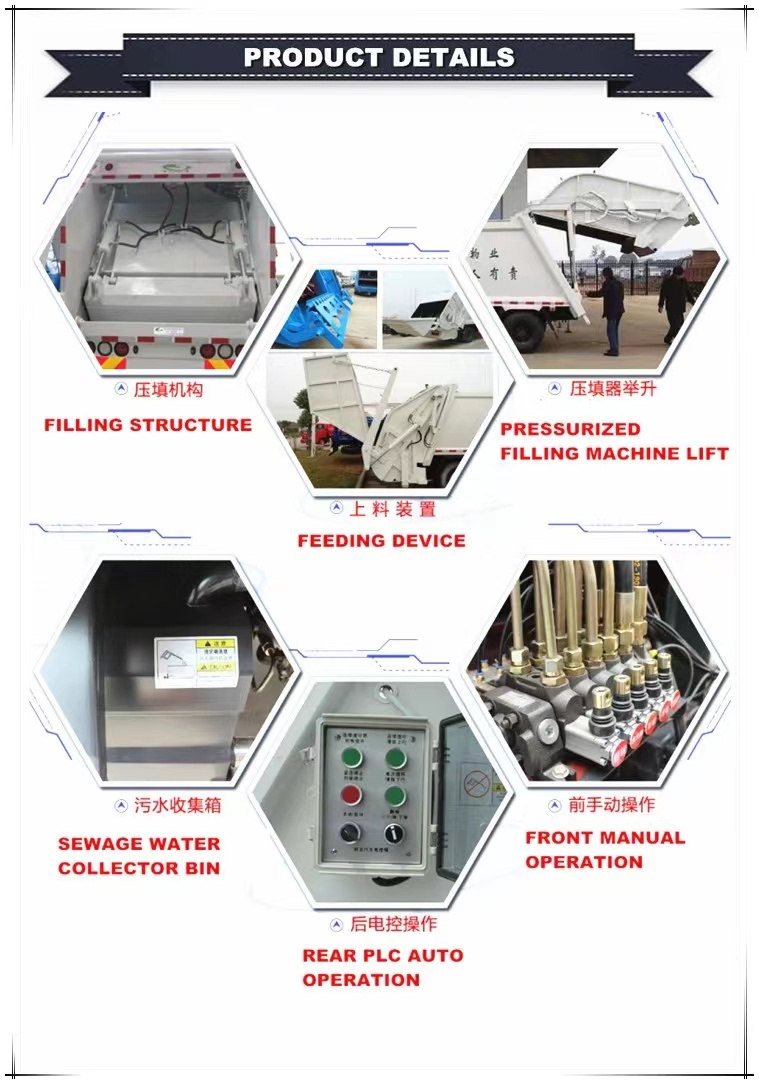

| Others | The bottom box and filler unit are made of thick steel plate. The back filler unit lifting cylinder is equipped with a locking device. The upper part is equipped with a function of repeated compression and bidirectional peristaltic compression, an integrated flashlight operation mode, and a double-sided control box. |
| Camera | 2 units; one is for reverse image, and one is for checking the working condition. |
The upper part of this Dongfeng garbage compression truck is exquisitely and practically designed.
The volume of the garbage bin reaches 10cbm, providing ample space for garbage collection and transportation.
The tank is made of Q345 carbon steel, which has relatively high strength and toughness and can withstand the pressure and impact during the garbage compression process. The thickness of the side of the tank is 4 mm and the bottom is 5 mm. Such a thickness design ensures the firmness and durability of the tank.
In terms of compression performance, the compaction ratio of this vehicle is 1:0.75, meaning that it can efficiently compress garbage, significantly improving transportation efficiency and reducing transportation costs. The powerful compression force of 13 tons can tightly compact the garbage, increasing the amount of garbage transported in a single trip.
In addition, the vehicle is also equipped with a sewage tank, which is specifically used to collect the sewage generated during the garbage compression process to prevent secondary pollution caused by sewage leakage, further enhancing the environmental protection performance of the vehicle.
