Isuzu ELF
CLW
CLW5160TBC1

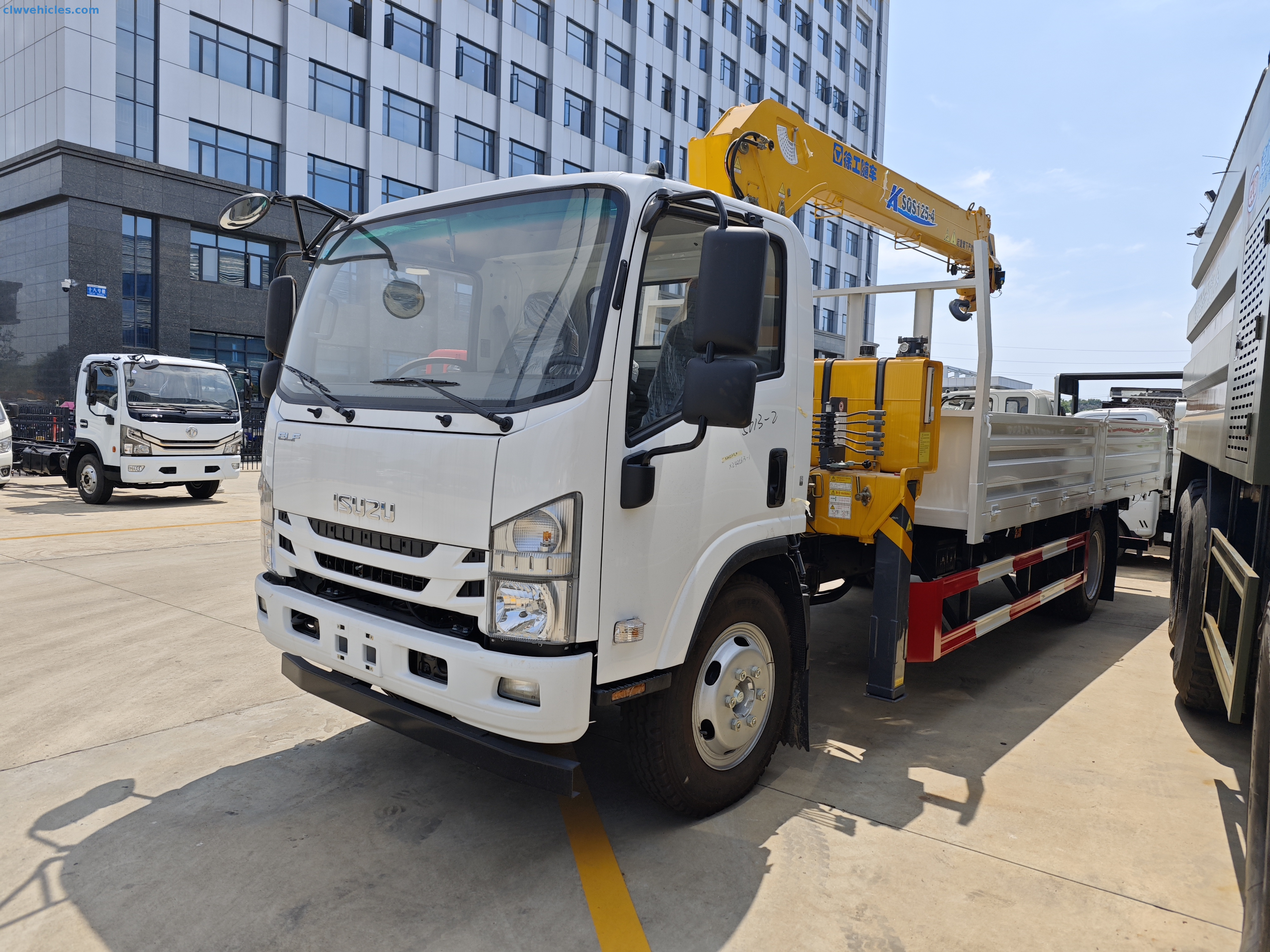

The ISUZU ELF 4x2 XCMG 5-Ton Telescopic Boom Truck-Mounted Crane is designed as a versatile lifting and transport platform for daily work on construction and industrial sites. Built on the ISUZU ELF 4x2 chassis and fitted with an XCMG KSQS125-4 telescopic boom crane, it provides reliable performance, compact dimensions and convenient mobility.
The vehicle adopts a 4×2 driving configuration with a GVW of 8,280 kg, curb weight of 4,990 kg and loading weight of 3,095 kg. With overall dimensions of 7,030 × 2,400 × 3,200 mm and a 3,815 mm wheelbase, the truck offers a balanced layout between chassis, crane and cargo box. This compact size allows the truck to operate efficiently on urban roads, construction sites and industrial facilities where space is limited.
Power is provided by the ISUZU 4HK1-TC51 diesel engine, delivering 190 HP and meeting Euro 5 emission standards. The rated power is 141 kW, with maximum torque of 510 N·m at 1,600 rpm and rated speed of 2,600 rpm. The engine is matched with a manual gearbox offering 6 forward gears and 1 reverse gear, providing smooth power output and good fuel economy for mixed road conditions. The truck uses 7.50R16LT 14PR tires and an axle load distribution of 3,000/5,280 kg, with a top speed of up to 105 km/h, meeting both urban and highway driving needs.
The cabin is a single-row left-hand drive design with air conditioning, offering a practical and comfortable working environment for the driver. The chassis brand is QL with model QL1080BUKAY, widely recognized for reliability in commercial applications.
The lifting system is the core feature of this vehicle. It uses an XCMG KSQS125-4 telescopic boom crane with a maximum lifting capacity of 5,000 kg and a maximum lifting moment of 125 kN·m. The crane provides a maximum hydraulic outreach of 11.2 m and a maximum lifting height of 12.5 m (telescopic boom), supporting a wide range of lifting operations. The slewing angle is 360°, enabling full-circle operation and flexible positioning of loads without repositioning the truck. The crane operates at a maximum working pressure of 22 MPa, with a recommended pump capacity of 40 L/min and an independent oil tank capacity of 90 L to ensure stable hydraulic performance.
The crane installation space is 900 mm, with an optimized layout designed to improve stability and ensure that the boom and chassis work together safely under rated loads. Protective structures made from Q235B carbon steel, welded for strength, enhance durability and resistance to harsh working environments.
Behind the crane, an integrated cargo box is configured with dimensions of 4,100 × 2,300 × 550 mm. This box can carry tools, equipment or supporting materials needed for lifting jobs, allowing the truck to combine transport and lifting functions in one vehicle. This reduces the need for additional support trucks and improves overall work efficiency.
Safety and reliability are also considered in the design. The reinforced boom structure, stable crane–chassis integration and carefully arranged installation space help ensure safe lifting within rated capacity. Components and materials are selected to resist corrosion and meet continuous operational demands. Proper use and maintenance, together with the operating precautions for straight boom truck-mounted cranes, further enhance long-term reliability.
With its compact ISUZU chassis, XCMG 5-ton telescopic boom and practical cargo box, this truck-mounted crane is suitable for contractors, construction companies, logistics operators and maintenance teams that require a flexible lifting and transport solution. It has been successfully applied in Middle Eastern countries, North African countries and some South American countries for various lifting tasks.
Lifting and placing construction materials on building and infrastructure sites
Loading and unloading machinery, steel structures and equipment in logistics yards
Utility and maintenance operations such as installation of poles, signage and small structures
Industrial plant material handling and equipment relocation
Support for small and medium-sized engineering teams requiring mobile lifting capacity
5-ton XCMG telescopic boom: KSQS125-4 crane with 5,000 kg max lifting capacity, 125 kN·m lifting moment and 11.2 m hydraulic outreach.
Full 360° slewing: Full-circle rotation allows multidirectional operation without frequent repositioning of the vehicle.
Reliable ISUZU ELF chassis: 4×2 QL1080BUKAY chassis with 190 HP Euro 5 diesel engine ensures stable performance and good fuel efficiency.
Compact and flexible layout: Overall length of 7,030 mm and 3,815 mm wheelbase enable easy maneuvering in tight work areas and city environments.
Integrated cargo box: 4,100 × 2,300 × 550 mm box provides additional storage space for tools, lifting accessories and small materials.
Durable structure: Q235B carbon steel protective structures and welded construction support long-term operation under demanding conditions.
Balanced performance: Reasonable GVW, axle load and top speed up to 105 km/h make it suitable for both urban and intercity deployment.
The ISUZU 4x2 XCMG 5-Ton Telescopic Boom Truck-Mounted Crane has already been exported to Middle Eastern countries, North African countries and some South American countries. In these regions, it is mainly used for:
Construction lifting on building and infrastructure projects
Loading and unloading equipment and steel materials in logistics and industrial zones
Utility and maintenance work requiring a combination of lifting capacity and road mobility
Feedback from these applications shows that the combination of ISUZU ELF chassis and XCMG KSQS125-4 telescopic boom meets the practical needs of customers under different climatic and working conditions, providing a stable and efficient lifting solution.
Q1: What is the maximum lifting capacity of the crane?
A1: The crane model is XCMG KSQS125-4, with a maximum lifting capacity of 5,000 kg and a lifting moment of 125 kN·m.
Q2: What is the maximum lifting height and outreach?
A2: The telescopic boom provides a maximum lifting height of 12.5 m and a maximum hydraulic outreach of 11.2 m.
Q3: What is the chassis and engine configuration?
A3: The truck uses an ISUZU ELF 4×2 chassis (QL brand, model QL1080BUKAY) with a 4HK1-TC51 diesel engine, 190 HP output, Euro 5 emission standard and 141 kW rated power.
Q4: What are the overall dimensions of the vehicle and cargo box?
A4: The overall dimensions are 7,030 × 2,400 × 3,200 mm, with a wheelbase of 3,815 mm. The integrated cargo box measures 4,100 × 2,300 × 550 mm.
Q5: What is the GVW and loading weight of the truck?
A5: The GVW is 8,280 kg, the curb weight is 4,990 kg and the loading weight is 3,095 kg.
Q6: What is the slewing angle of the crane?
A6: The crane offers 360° slewing for full-circle operation, improving working flexibility around the vehicle.
Q7: What is the working pressure and oil tank capacity of the crane’s hydraulic system?
A7: The maximum operating pressure is 22 MPa, with a recommended pump capacity of 40 L/min and an oil tank capacity of 90 L.
Q8: Are there any operation precautions for this straight boom truck-mounted crane?
A8: Before operation, the crane, wire rope, hydraulic system, vehicle brakes and tire pressure should be checked, and the ground should be confirmed as solid and flat. During operation, follow procedures, ensure the load is firmly bound, avoid overloading, extend/retract the boom carefully and pay attention near maximum angles and radii, especially in windy conditions. After operation, retract and secure the boom, turn off the hydraulic system, park safely and carry out regular maintenance and operator training.
| Vehicle Description | Brand | CLW |
| GVW(kg) | 8280 | |
| Curb Weight(kg) | 4990 | |
| Loading Weight(kg) | 3095 | |
| Overall Dimension(mm) | 7030*2400*3200 | |
| Wheelbase(mm) | 3815 | |
| Axle Load(kg) | 3000/5280 | |
| Top Speed(km/h) | 105 | |
| Chassis Brand | QL | |
| Chassis Model | QL1080BUKAY | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4HK1-TC51 |
| HP | 190 | |
| Emission Standard | Eu 5 | |
| Displacement/Output(ml/kw) | 5193/141 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2600 | |
| Maximum Torque(N·m) | 510 | |
| Maximum Torque Speed(rpm) | 1600 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 7.50R16LT 14PR | |
| Crane | Crane Model | KSQS125-4 |
| Max. lifting moment(kN·m) | 125 | |
| Max lifting capacity(kg) | 5000 | |
| Max hydaulic outreach(m) | 11.2 | |
| Slewing angle(°) | 360 | |
| Max operating pressure(MPa) | 22 | |
| Recommended pump capacity(L/min) | 40 | |
| Oil tank capacity(L) | 90 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
