ISUZU
CLW
CLW5180RV19

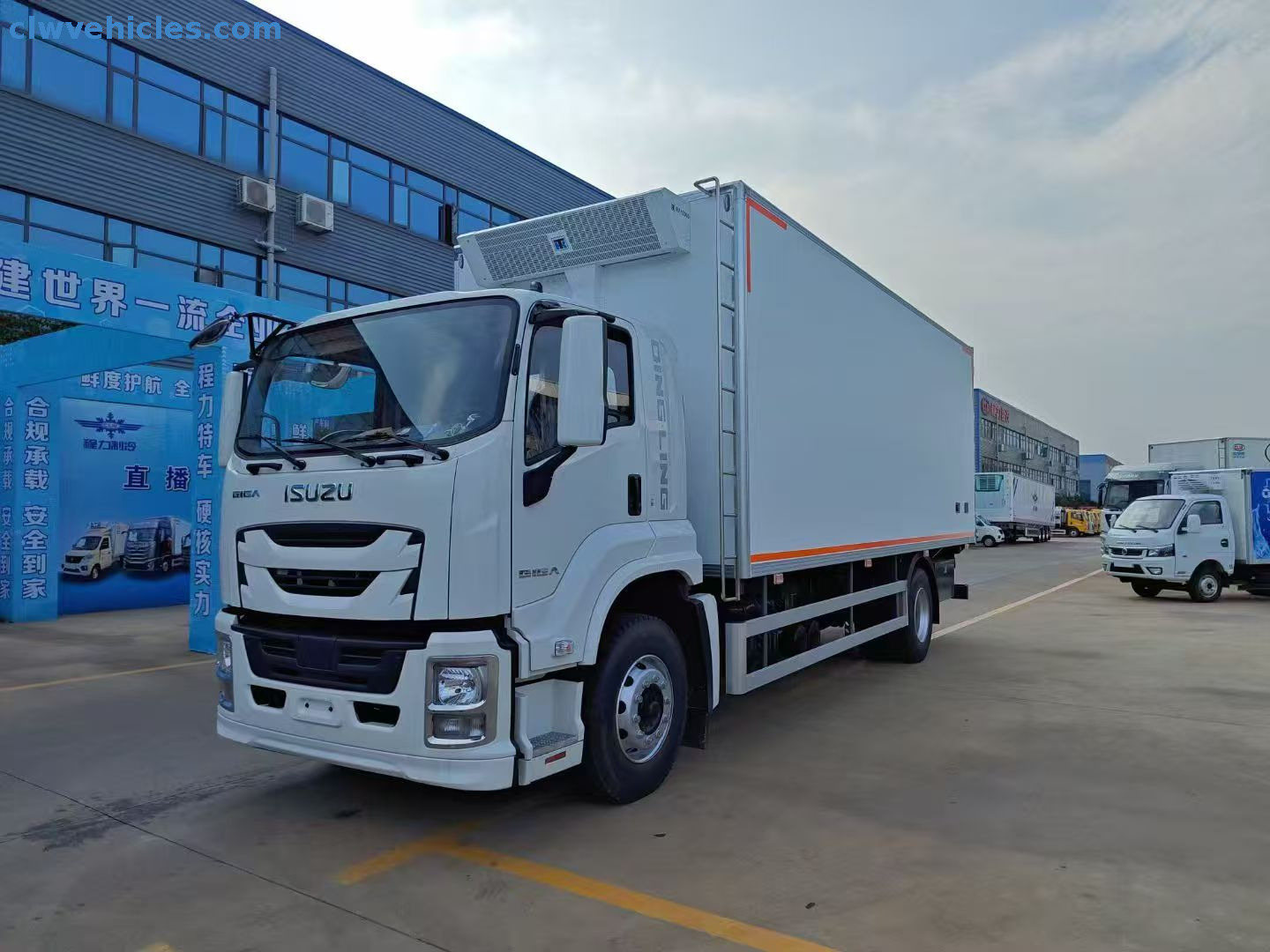

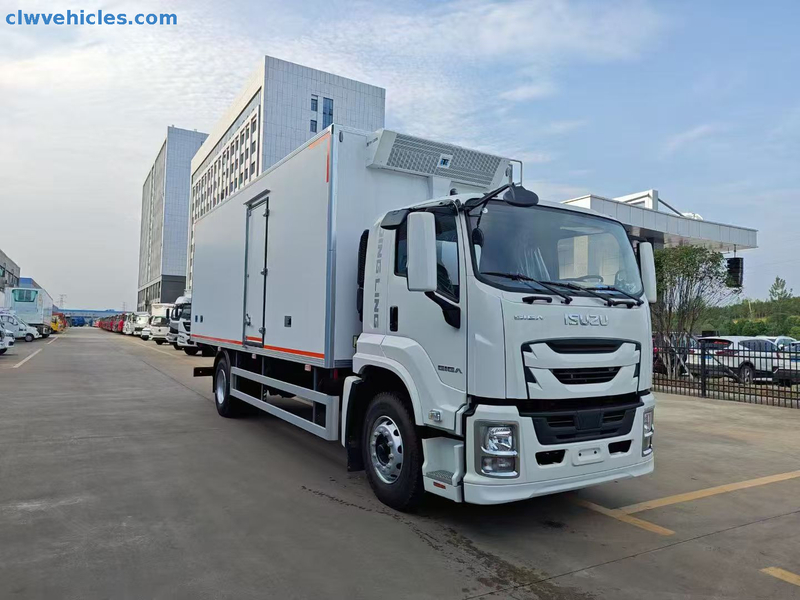

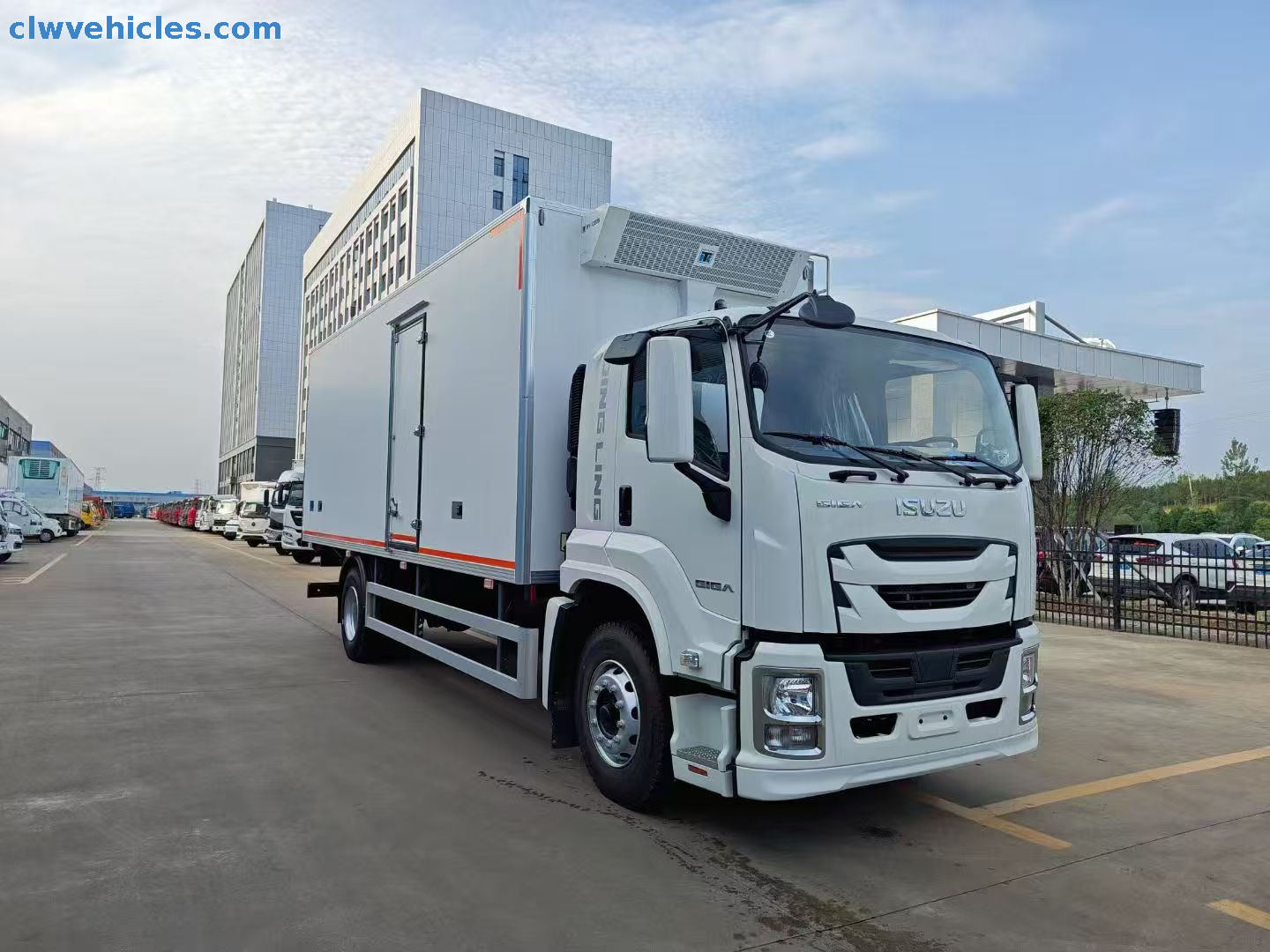

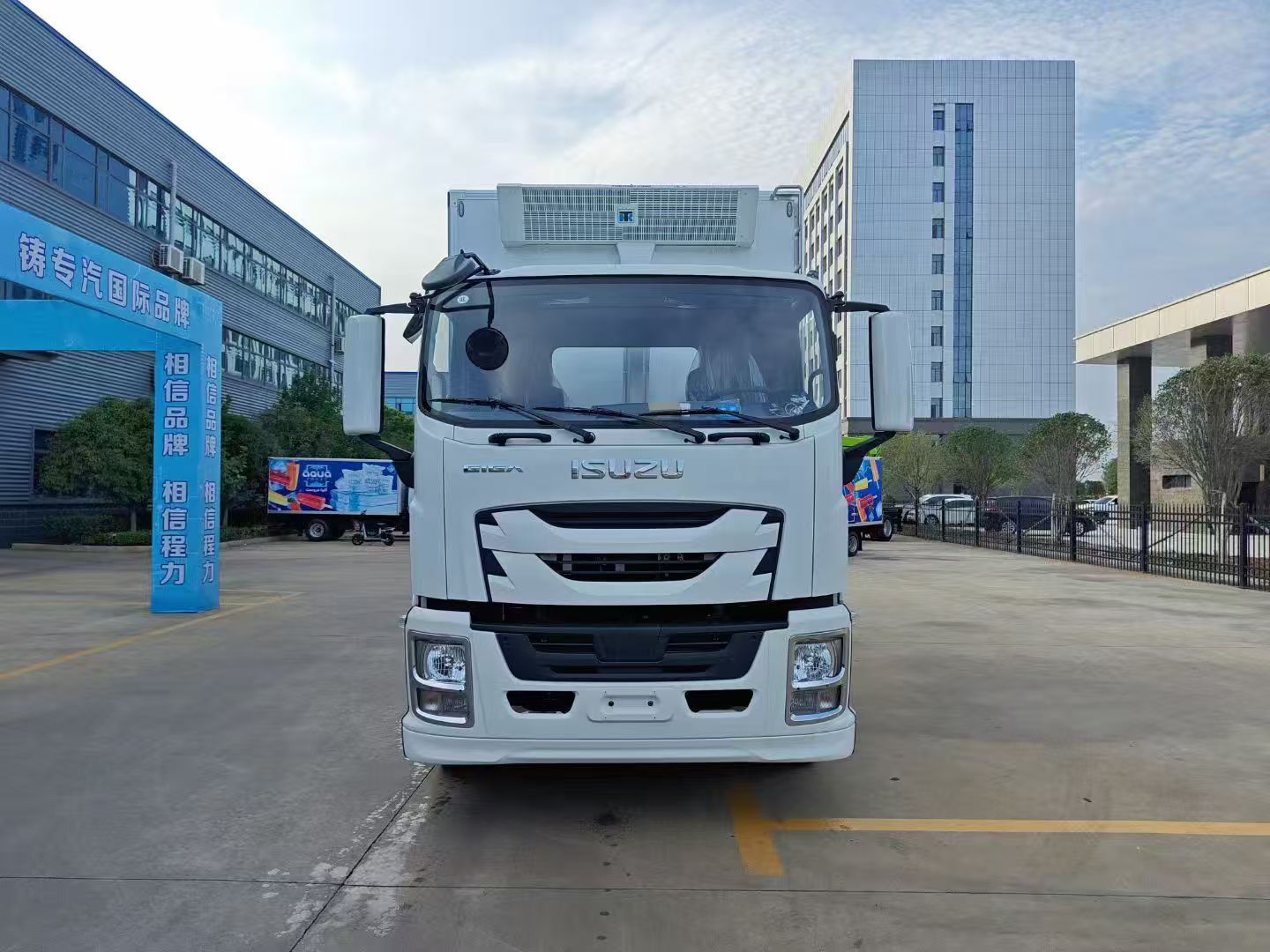

The ISUZU GIGA 4x2 Refrigerator Truck from CLW Group is a high-performance cold chain logistics vehicle designed for safe, efficient, and reliable transportation of perishable goods. With its durable ISUZU chassis, powerful Euro 6 diesel engine, and Thermo King SV-1080S refrigeration unit, this refrigerated truck ensures stable temperature control from -20°C to 30°C, making it suitable for frozen food, dairy, meat, seafood, fruits, vegetables, and pharmaceutical cold chain logistics.
General Vehicle Data
Brand: CLW Group
GVW: 18,000 kg
Curb Weight: 8,400 kg
Loading Capacity: 9,405 kg
Overall Dimensions: 9200 × 2550 × 3850 mm
Wheelbase: 4500 mm
Top Speed: 100 km/h
Chassis
Brand: ISUZU
Model: QL1180JQ

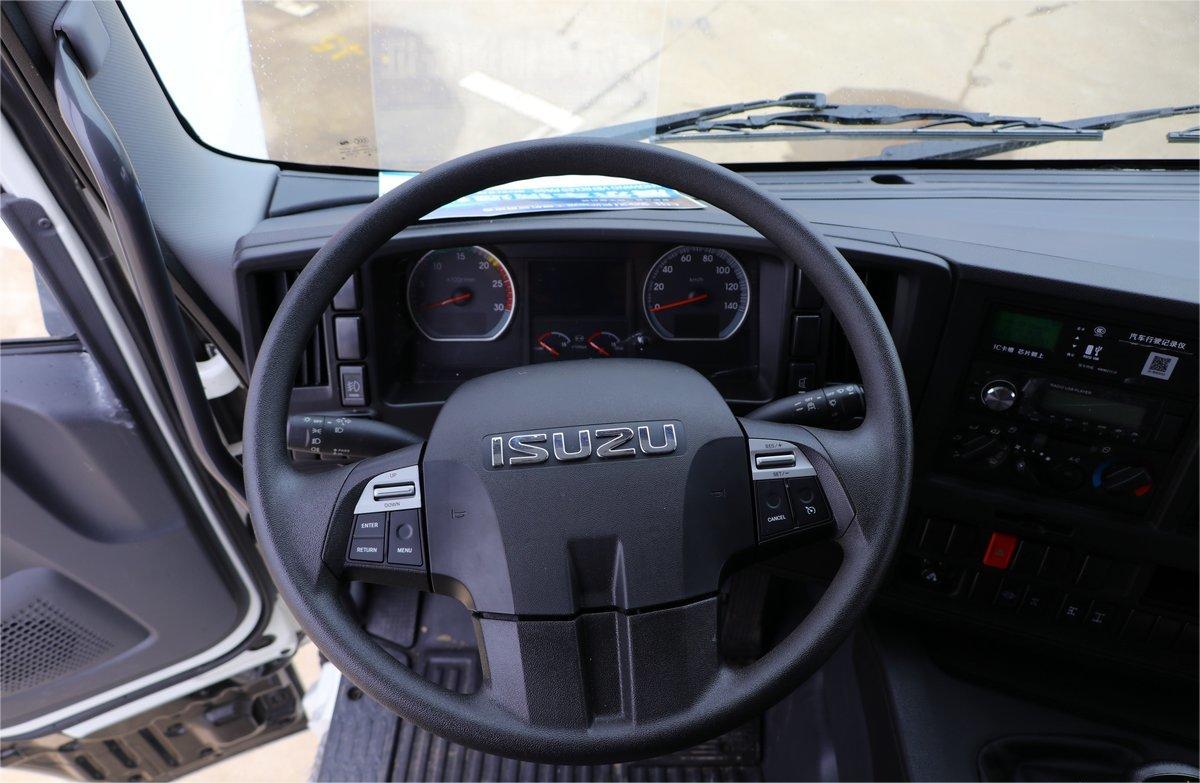

Cabin: Single, left-hand drive, with A/C
Engine
Model: ISUZU 4HK1-TCG60
Horsepower: 205 HP (151 kW)
Emission Standard: Euro 6
Displacement: 5.2 L
Torque: 640 N·m at 1500 rpm
Fuel: Diesel
Transmission & Tires
Gearbox: 5 forward, 1 reverse
Tires: 295/80R22.5 (6+1 spare tire)

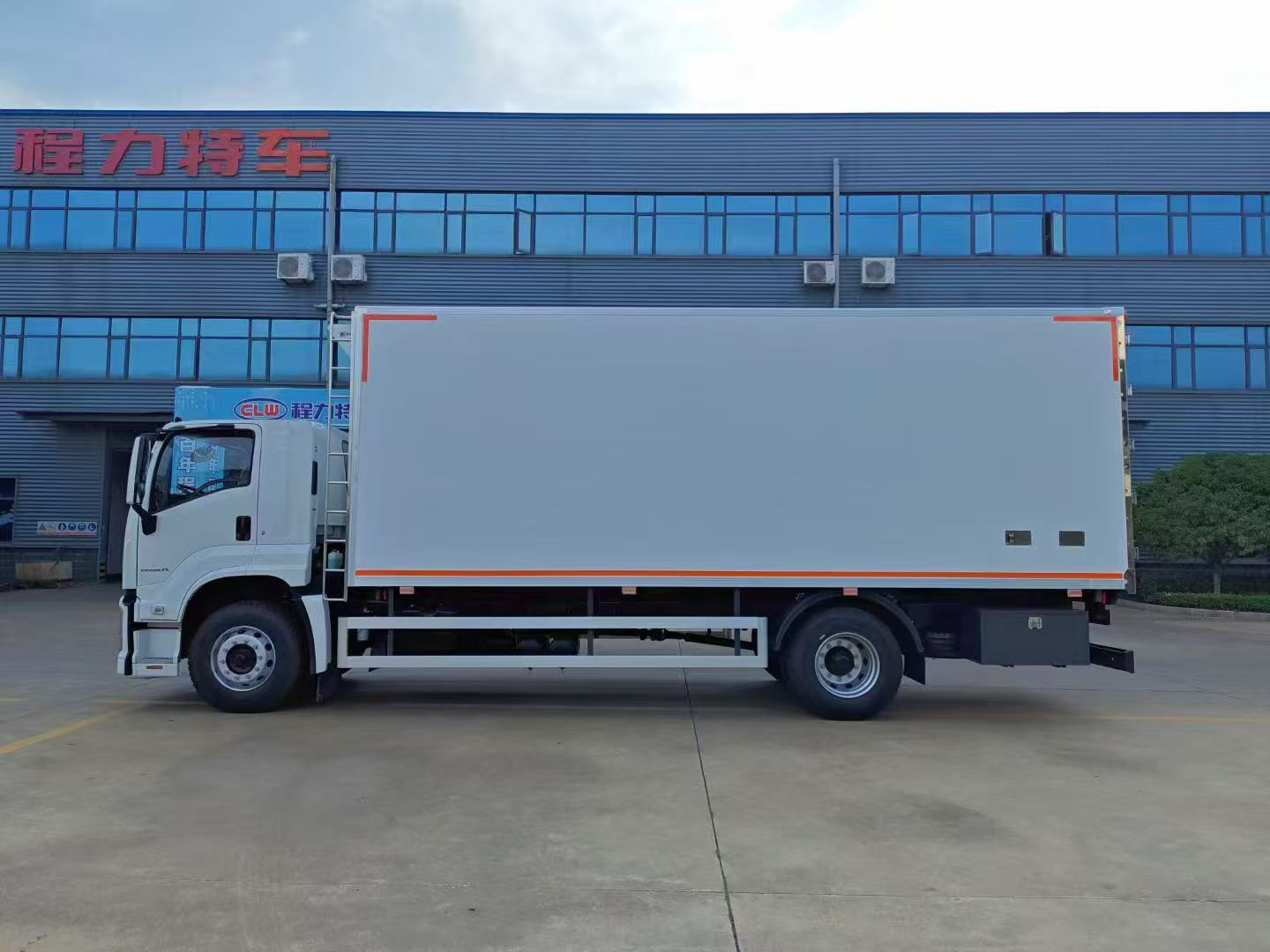

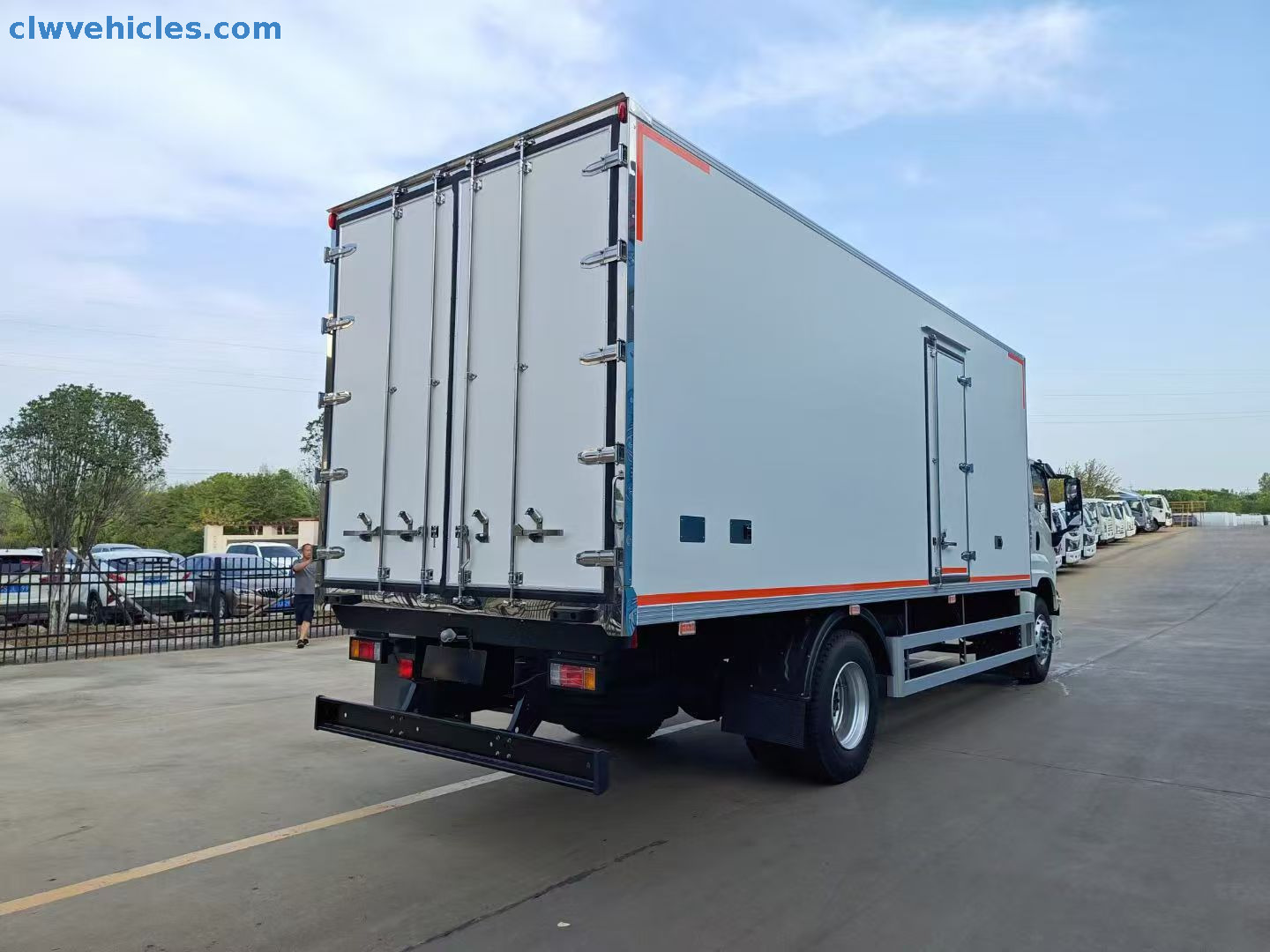

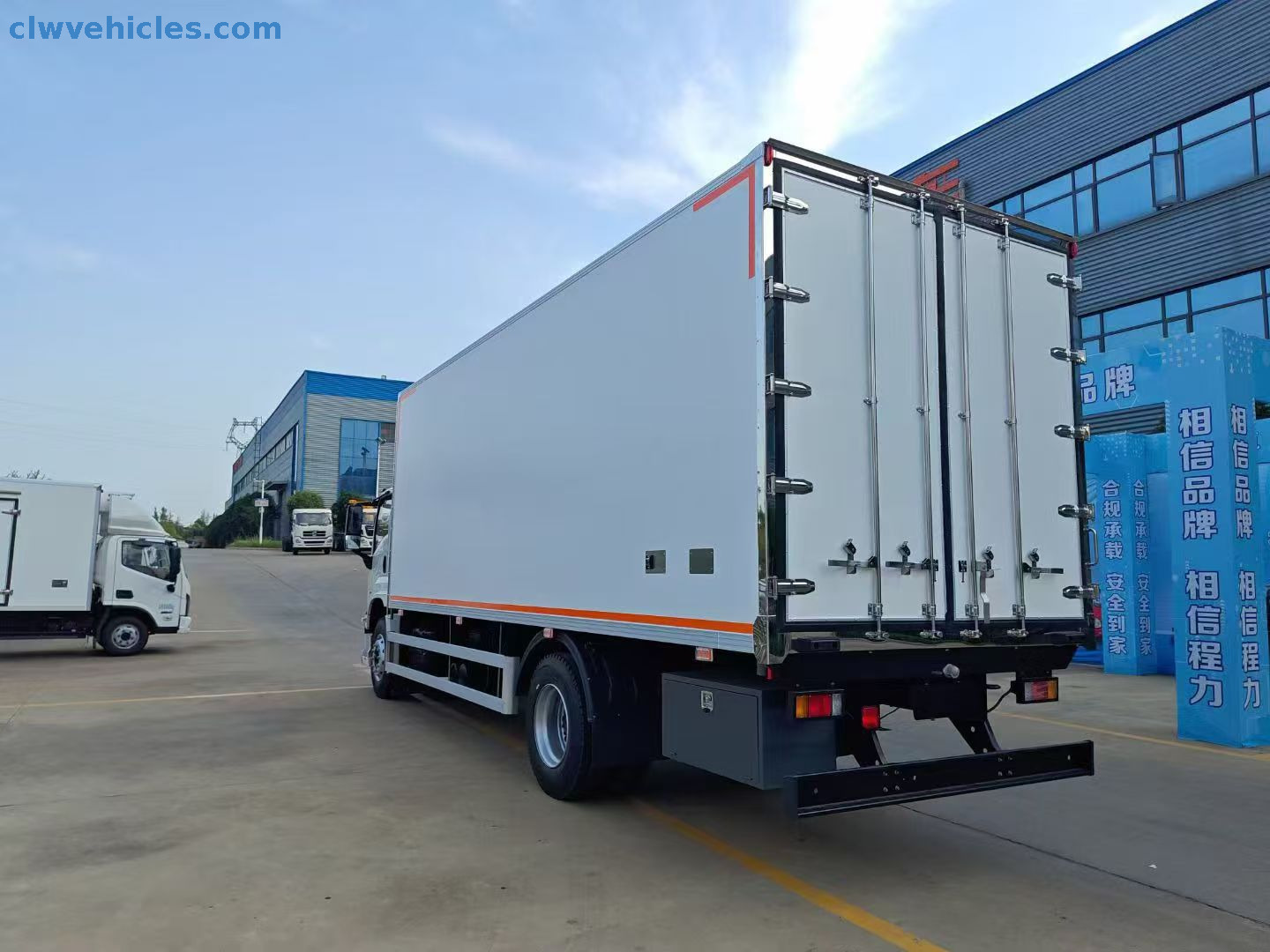

Refrigerated Van Body
Size: 6800 × 2440 × 2500 mm
Material: Fiberglass with 8cm polyurethane foam insulation

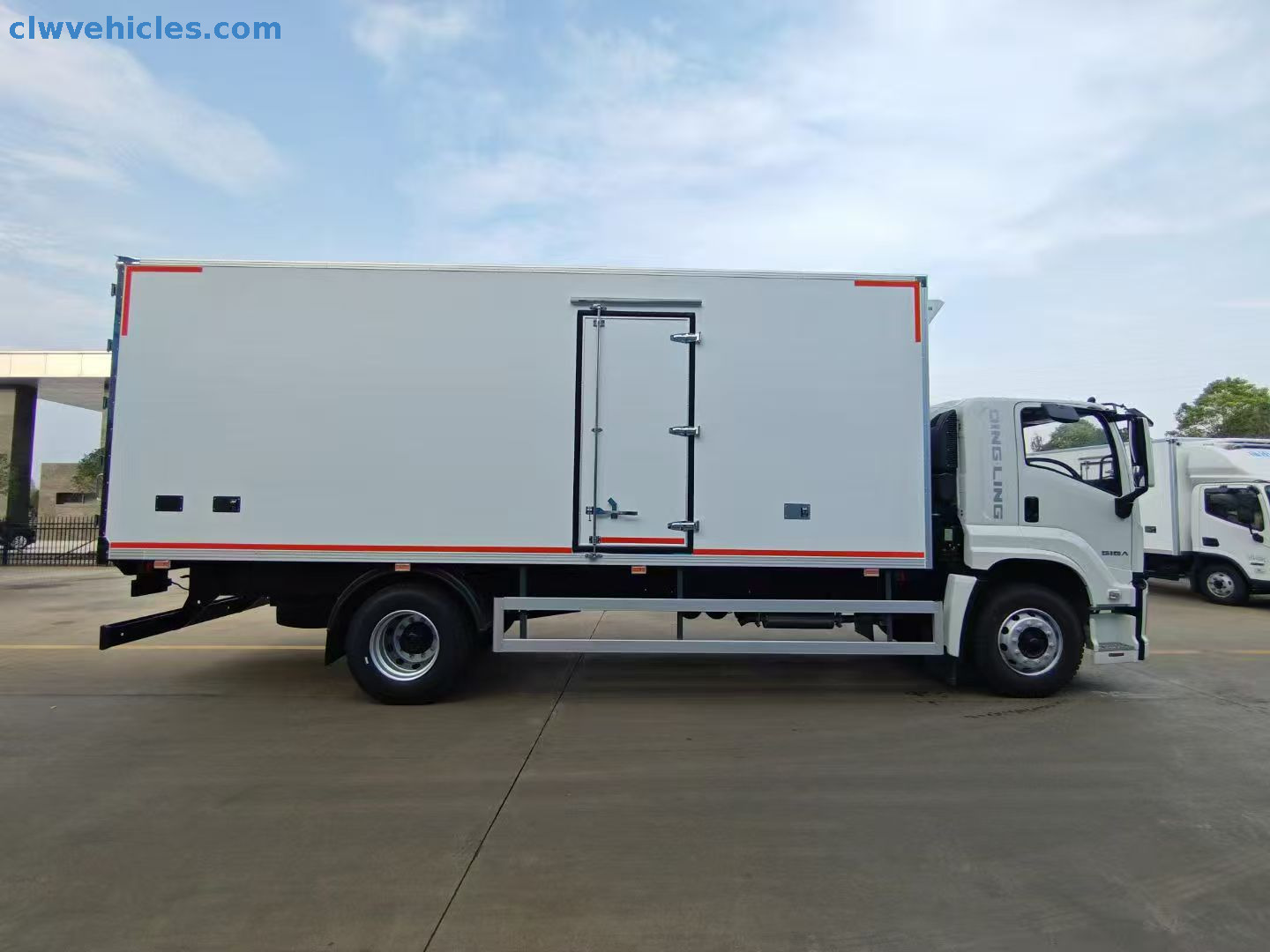

Features: Side door, ventilation slots, cargo hooks, external power supply (optional)
Refrigeration System
Brand: Thermo King SV-1080S
Temp Range: -20°C ~ 30°C
Cooling Capacity:
30°C / 0°C → 8500 W
30°C / -20°C → 4550 W
Air Flow: 3000 m³/h
Condenser Size: 1780 × 380 × 337 mm
Evaporator Size: 1376 × 253 × 622 mm
Efficient Cold Chain Logistics: Maintains stable temperature from -20°C to 30°C.
Durable ISUZU Chassis: Ensures long-term reliability for heavy-duty operations.
Thermo King Refrigeration: Trusted global brand for consistent cooling performance.
Fuel-Efficient Euro 6 Engine: Environmentally friendly and powerful at the same time.
Spacious Fiberglass Body: Insulated with thick polyurethane foam for excellent thermal performance.
Flexible Customization: Optional side door, ventilation slots, and external power supply.
Wide Applications: Perfect for frozen food delivery, seafood transport, dairy logistics, and pharmaceutical cold chain solutions.
Frozen Food Transport Truck – for meat, poultry, seafood, and ice cream delivery.
Dairy and Beverage Logistics – ensuring fresh milk, yogurt, and drinks arrive safely.
Pharmaceutical Cold Chain Vehicle – transporting vaccines, medicines, and medical supplies.
Supermarket Supply Chain Truck – delivering perishable goods to retail outlets.
Agricultural Produce Delivery – keeping fruits and vegetables fresh over long distances.
Q1: What temperature range can the ISUZU GIGA refrigerated truck maintain?
A1: The Thermo King SV-1080S unit maintains a temperature range of -20°C to 30°C, suitable for both frozen and chilled products.
Q2: What is the cargo box material and insulation thickness?
A2: The van body is made of fiberglass with 8cm polyurethane foam insulation, ensuring excellent thermal performance.
Q3: What industries typically use this refrigerated truck?
A3: It is widely used in frozen food delivery, pharmaceutical logistics, dairy transport, seafood logistics, and supermarket cold chain supply.
Q4: Is customization available for the refrigerated truck?
A4: Yes. Options include side doors, ventilation slots, external power supply, and cargo hooks.
Q5: What is the payload capacity of this ISUZU GIGA refrigerated truck?
A5: The truck has a loading capacity of around 9.4 tons, making it suitable for large-scale logistics operations.
Main Technical Parameters:
| Vehicle Description | Brand | CLW group |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 8400 | |
| Loading Weight(kg) | 9405 | |
| Overall Dimension(mm) | 9200x2550x3850 | |
| Wheelbase(mm) | 4500 | |
| Front/rear Overhang(mm) | 1335/3115 | |
| Front/rear Track(mm) | 1960/1855 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 100 | |
| Chassis Brand | ISUZU | |
| Chassis Model | QL1180JQ | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4HK1-TCG60 |
| HP | 205 | |
| Emission Standard | Euro 6 | |
| Displacement/Output(ml/kw) | 5193/151 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 640 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 5Forward/1Reverse Gear | |
| Tyre | 295/80R22.5 16PR; 6+1 spare tire | |
| Van | Box Size(mm) | 6800*2440*2500 |
| Material | Fiberglass | |
| Insulating Layer | 8cm Polyrethane Foam | |
| Refrigerator Unit | Brand | THERMO KING SV-1080S |
| Applicable Temperature | -20°C~30°C | |
| Cooling Capacity 30°C/0°C | 8500W | |
| Cooling Capacity 30°C/-20°C | 4550W | |
| Air flow | 3000 m³/h | |
| Condenser Dimension | 1780*380*337mm | |
| Evaporator Dimension | 1376*253*622mm | |
| Remarks | Part Optional:Ventilation Slot | |
| Hook | ||
| External Power Supply | ||
| Side Door | ||
Optional tailgate：
The weight of the tailgate is 550 kg. The horizontal length of the tailgate in the retracted state is 295 mm. When the tailgate is selected, only the rear protection with a cross-sectional dimension of Φ121 is used. The material of the rear protection is Q235. The connection method is welding. The ground clearance is 470 mm. Optional refrigeration unit with equivalent power from other manufacturers. Optional fixing method of side protection crossbars. Side protection: material Q235, bolted connection. Rear lower protection: material Q235, bolted connection. Cross-sectional dimension is 120×60 mm. Ground clearances are 480 mm, 460 mm, and 440 mm.
