Iveco
CLW
CLW5180AV3
Product Description：
Iveco 4x4 Diesel Ambulance – Reliable Emergency Medical Rescue for All Terrains
The CLW Brand Iveco 4x4 Diesel Ambulance is built to perform when it matters most. Designed for rapid emergency response in both urban and remote areas, this all-terrain hospital medical ambulance is ideal for transporting patients safely and comfortably in urgent situations. Whether you're equipping a city hospital fleet or deploying to rural or rugged environments, this 4x4 ambulance for sale is a trusted solution.
This ambulance vehicle is tailored for first response, patient transport, and mobile medical monitoring. The layout includes a fully equipped medical cabin with advanced emergency equipment, patient care stations, and oxygen systems—making it suitable for hospital-to-hospital transfers, on-site rescue, and mobile field operations. With its 4x4 drivetrain, it's a dependable choice even in off-road, flood-prone, or mountainous regions.
The base of this Iveco ambulance is a rugged 4x4 chassis, giving it excellent traction and off-road mobility. Powered by a F1CE8481M 180hp diesel engine, it delivers a strong 132kW output with turbo intercooling and an inline four-cylinder layout. The vehicle is equipped with a 5-speed manual transmission and 2 reverse gears, ensuring smooth gear shifting and solid performance even under heavy loads.
With a GVW of 4,490kg, a wheelbase of 3,300mm, and a top speed of 130km/h, this vehicle balances stability and speed. The reinforced hydraulic brakes (ventilated discs in the front and disc brakes in the rear) provide reliable stopping power, while the 195/75R16LT tires ensure grip on both paved roads and rugged terrain.

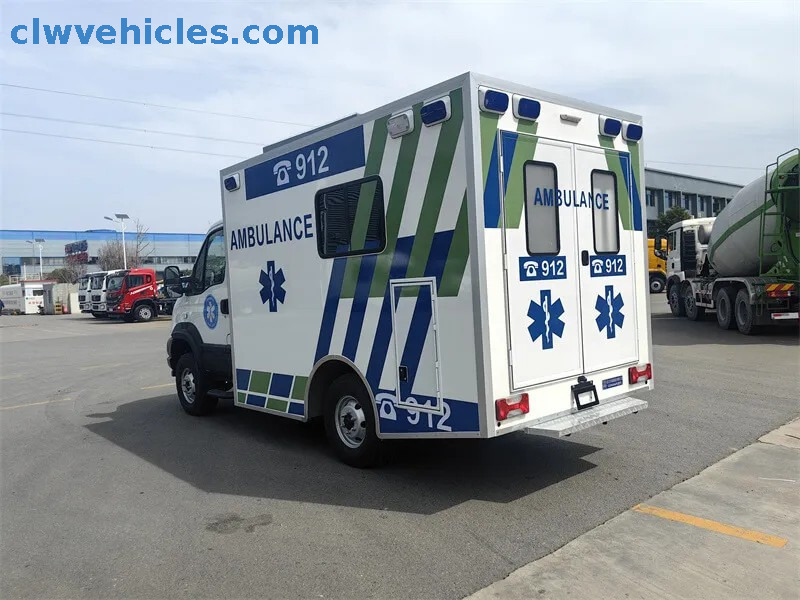

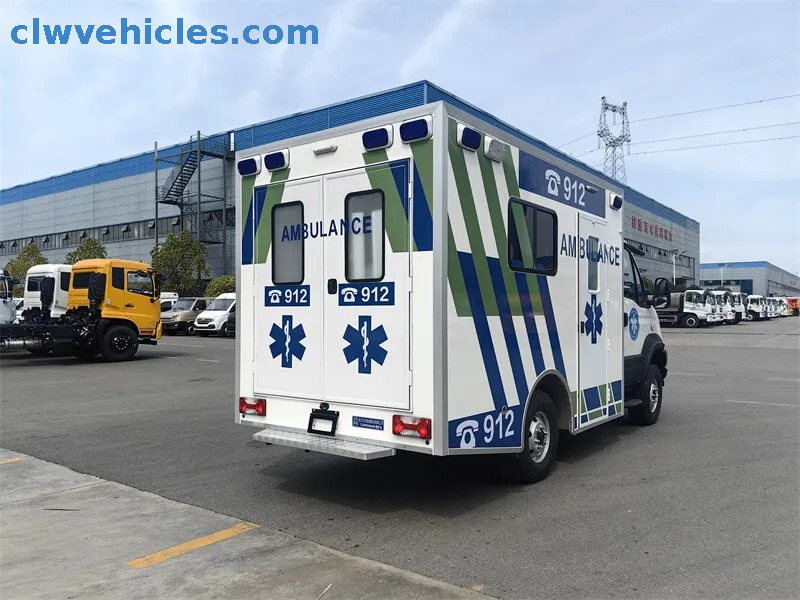

The upper body is where this emergency ambulance truly shines. Built with a steel-reinforced frame, it's safe, secure, and purpose-built. The large rear double doors and side sliding door make loading and unloading patients fast and easy, especially with stretchers.

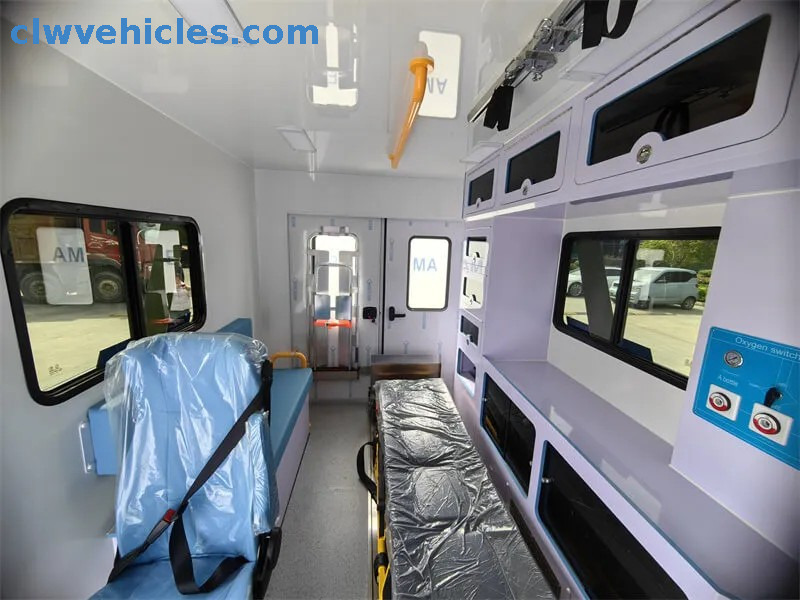

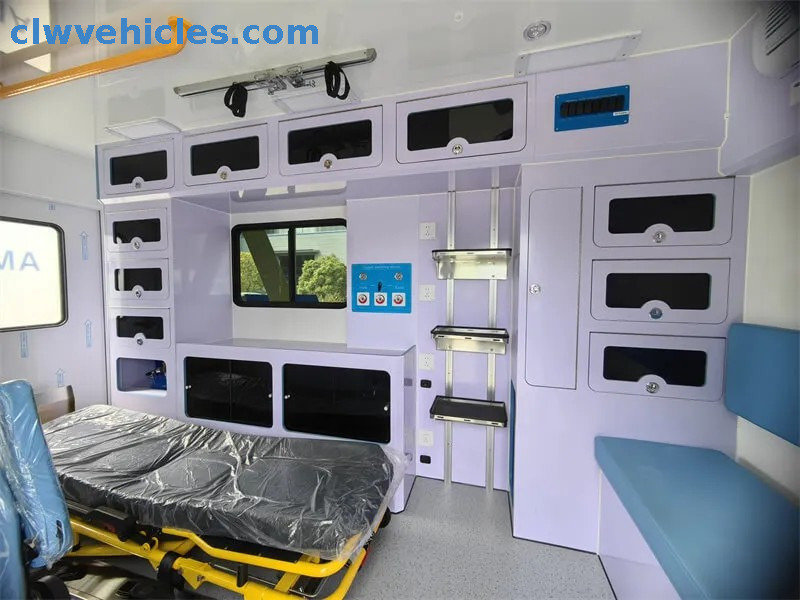

Inside the medical bay, you'll find:
Automatic aluminum stretcher (181kg load-bearing), lightweight and stable for safe patient handling.
Oxygen system: Two 10L steel tanks with valves, humidifier bottles, ventilator connection, and wall-mounted inhaler – ensuring on-demand oxygen therapy during critical moments.
Integrated medical cabinets on both sides offer large-capacity storage for medical devices, tools, and supplies.
Ultraviolet disinfection lamp and antibacterial flooring ensure clean and sterile conditions at all times.
DC-to-AC power inverter (500W) supports onboard equipment with 220V/12V multi-socket access.
Rear independent air conditioning and heating system, adjustable to maintain comfort in any climate.
Blue medical upholstery, safety hammer, fire extinguisher, long handrail, and multiple seatbelt-equipped seating enhance both patient and crew safety.
True all-terrain capability with 4WD for emergency rescue in harsh conditions.
Comprehensive medical setup including monitoring, oxygen, power supply, and hygiene systems.
Designed with both patient care and crew efficiency in mind.
Fully compliant with emergency medical service standards for modern ambulance operations.
Ideal for governments, hospitals, military, or disaster relief agencies seeking high-performance mobile medical units.
Whether for daily emergency response or as part of a rapid-deployment fleet, this Iveco 4x4 ambulance for sale is your dependable medical hospital emergency vehicle. Reach out today to get more details or customization options to meet your operational needs.
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Brand Iveco 4x4 Hospital Medical Ambulance |
| Driving Type | 4x4 |
| Color | White or based on client’s request. |
| Number of Cabs | 8 |
| Weights | |
| GVW(kg) | 4490 |
| Curb Weight(kg) | 3420 |
| Dimensions | |
| Wheelbase(mm) | 3300 |
| Front/Rear Overhang(mm) | 1002/1688 |
| Approach/Departure Angle | 23/11 |
| Overall Dimension(mm) | 5990*2330*2770 |
| Max Speed(km/h) | 130 |
| Engine | |
| Engine Model | F1CE8481M |
| Engine Type | Supercharged inter cooler, in-line 4 cylinders |
| Max.Output(kw) | 132(180hp) |
| Drive Line | |
| Transmission | 5 forwards,2 reverse gear |
| Booster Type | Hydraulic boost |
| Brake | Front (ventilated disc type)/ Rear (Disc type) |
| Axle | |
| Axle | 1610/2880 |
| Tire Specification | |
| Tire Specification | 195/75R16LT 10PR; 6 tires |
| Front Wheel Track(mm) | 1725 |
| Rear Wheel Track(mm) | 1538 |
| Number of Leaf Springs | -/1+- |
| Medical warning appearance | |
| Bodywork | Using steel reinforced frame structure design, safe and reliable. The right side of the car body is equipped with a sliding door, and the rear end is equipped with a double open tail door structure, and the opening width is large, which is convenient for the doctor and patient personnel and stretchers. |
| Vehicle appearance | The whole body is white, the front, both sides and the rear door of the Red Cross logo, all around the body color strip, bright color, eye-catching, effective warning. Medical cabin glass paste 2 / 3 frosted cellophane, effectively protect patient privacy. |
| Warning lamp | Streamline integrated LED alarm light assembly (polymer material injection molding), alarm horn power 100W, wire-controlled controller, equipped with LED lamp set. Blue flashing lights are installed on both sides and on the tail for effective warning. |
| Medical cabin ambulance facilities | |
| Ambulance system | Automatic car stretcher: all-aluminum alloy profile skeleton, comfortable soft stretcher mattress, light and strong, bearing 181kg, convenient, stable and easy up and down. The medical cabin has two suspended infusion bottle holders on the top, with a load-bearing capacity of 2.5kg, beautiful shape and reliable quality |
| Medical oxygen-based control system | The rescue compartment is equipped with an oxygen tank cabinet with two 10L steel oxygen cylinders, nominal pressure of 15 MPA (light weight, easy to load and replace), and equipped with two single table pressure reducing valves, two German oxygen terminals, a ventilator interface and a wall oxygen inhaler. The patient can control the oxygen amount when oxygen inhalation, and equipped with humidified bottles to provide the patient with moist oxygen, more conducive to the patient oxygen inhalation. |
| Medical appliances system | |
| Headlamp | 412V cabin lights, with stable light source and large irradiation surface. |
| Dc-to-ac converter | Con-board sine wave 500W, stable frequency, stable voltage, stable output power, provide power supply for vehicle equipment; 2 groups of 220V / 12V multi-function socket (can be connected to two / three holes, AC / DC). |
| Disinfection lamp 1 intelligent and regular ultraviolet ray disinfection, to ensure the health and safety of the cabin. | |
| Air circulation system | |
| 1 set of rear air conditioning and rear heating device, independent control of heating and cooling, according to the need to reasonably regulate the cabin temperature. | |
| Medical cabin cabinet interior configuration | |
| Midpartition wall assembly | The new environmental protection material (light weight, environmental protection, can be used twice) will be installed between the cab and the medical compartment, which separate the front and rear carriages, and an observation window is provided on the partition wall for easy observation and communication. |
| Medical cabin interior decoration | The original car interior, a single seat on the right side of the rear cabin, a long cabinet, blue blue imitation leather, the seat is comfortable, the car is equipped with a safety hammer, to ensure the safety of the car members in an emergency. |
| Cabinet assembly | On the left side of the medical cabin, install a set of long equipment cabinet made of new environment-friendly materials. The cabinet is equipped with space cabinet and other storage space. The medical equipment can be placed on the surface of the cabinet, with large capacity, simple and beautiful; In front of the long equipment cabinet, there is a set of oxygen tank made of new environmental protection materials, and the cabinet can accommodate 210L oxygen tank. |
| Medical floor | Using the new light body ground decoration material (light weight, environmental protection, can be used twice), the floor is waterproof, anti-corrosion, wear-resistant, antibacterial, convenient for the cleaning and finishing of medical staff. |
| Accessory equipment | |
| Grab rail | Install 1 long strip handrail on the top of the medical bay. |
| Fire extinguisher | Place a 1 KG fire extinguisher on the rear left side of the medical cabin. |
| Long bar cabinet | On the right side of the medical cabin, install a set of long cabinet, blue leather, and two-point safety belt. |
