JAC 4x2 Mini Dump Truck

JAC 4×2 Mini Dump Truck | CLW Group Small Tipper Truck for Urban Construction & Material Transport

Product Description

The JAC 4×2 Mini Dump Truck is engineered as a practical solution for contractors, municipal fleets and construction teams who need a smaller footprint truck without sacrificing load capacity. As part of CLW Group's dump truck lineup, it combines a robust JAC chassis with a heavy-duty dump body to support daily hauling tasks in urban and semi-urban environments.

With a gross vehicle weight of 16,200 kg, a curb weight of 7,600 kg and a loading capacity of 8,405 kg, this truck offers strong carrying capability for its compact dimensions. The overall size of 6,450 × 2,370 × 2,780 mm and 3,700 mm wheelbase make it easier to maneuver in narrow alleys, residential neighborhoods, busy job sites and tight material yards where larger dump trucks are difficult to operate. The axle load configuration of 6,500 kg at the front and 11,500 kg at the rear provides balanced support for loaded operation.

Under the hood, the truck is powered by the YC6J180-33 diesel engine. This Euro 3–compliant, 6.494 L engine delivers 132 kW (180 HP) and 650 N·m of torque, providing the power needed for climbing ramps, moving off under load and maintaining steady speeds with a full payload. The engine's torque characteristics support strong low- and mid-range pulling power, which is especially important during stop-and-go construction work and frequent loading/unloading cycles.

The drivetrain is paired with a straightforward 5-forward / 1-reverse gearbox, giving drivers simple and reliable control. The 9.00R20 16PR tires offer solid traction on paved roads and typical site surfaces. The truck can reach a top speed of 105 km/h when conditions allow, helping maintain efficient logistics between job sites, quarries and disposal areas.

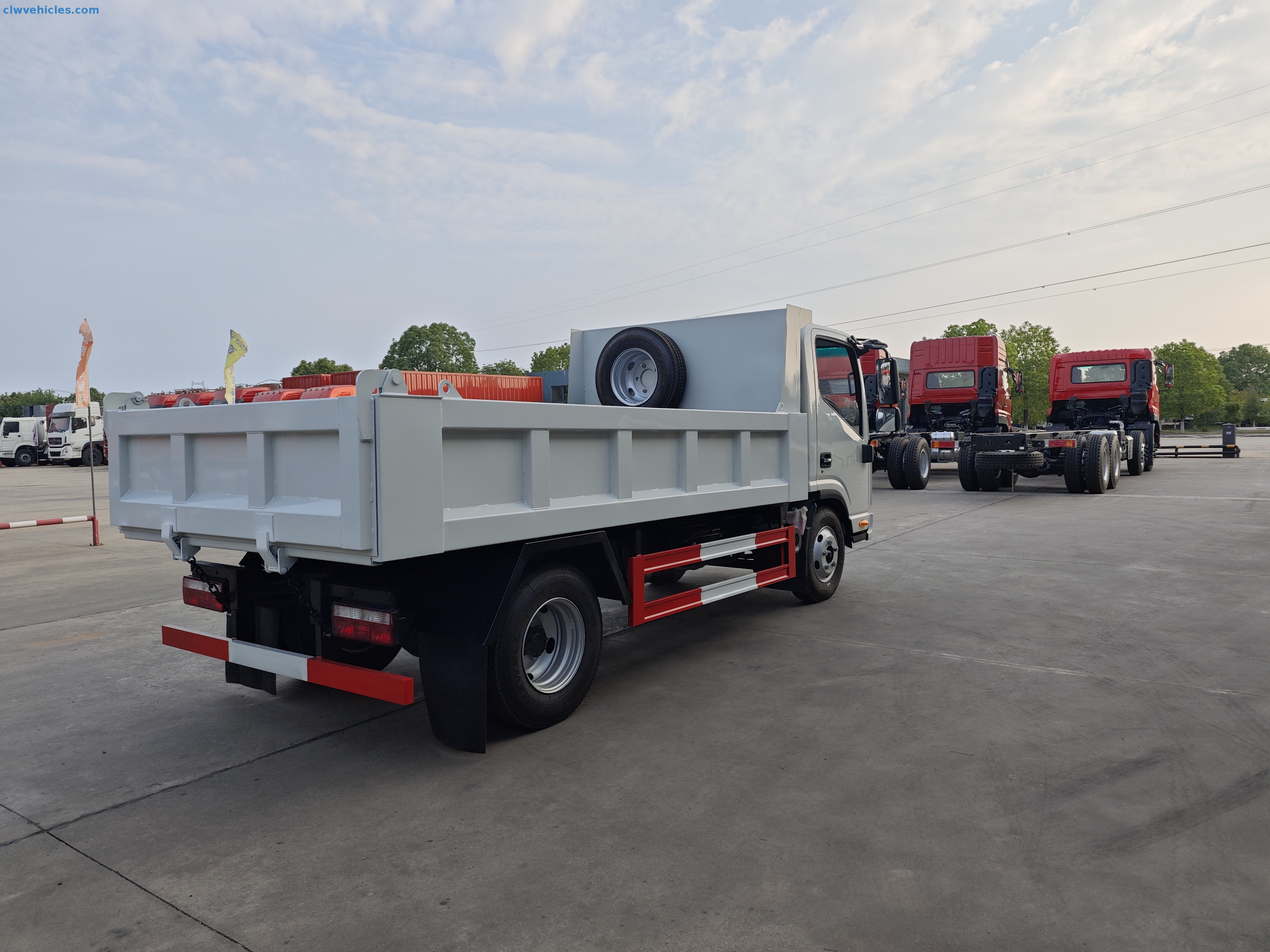

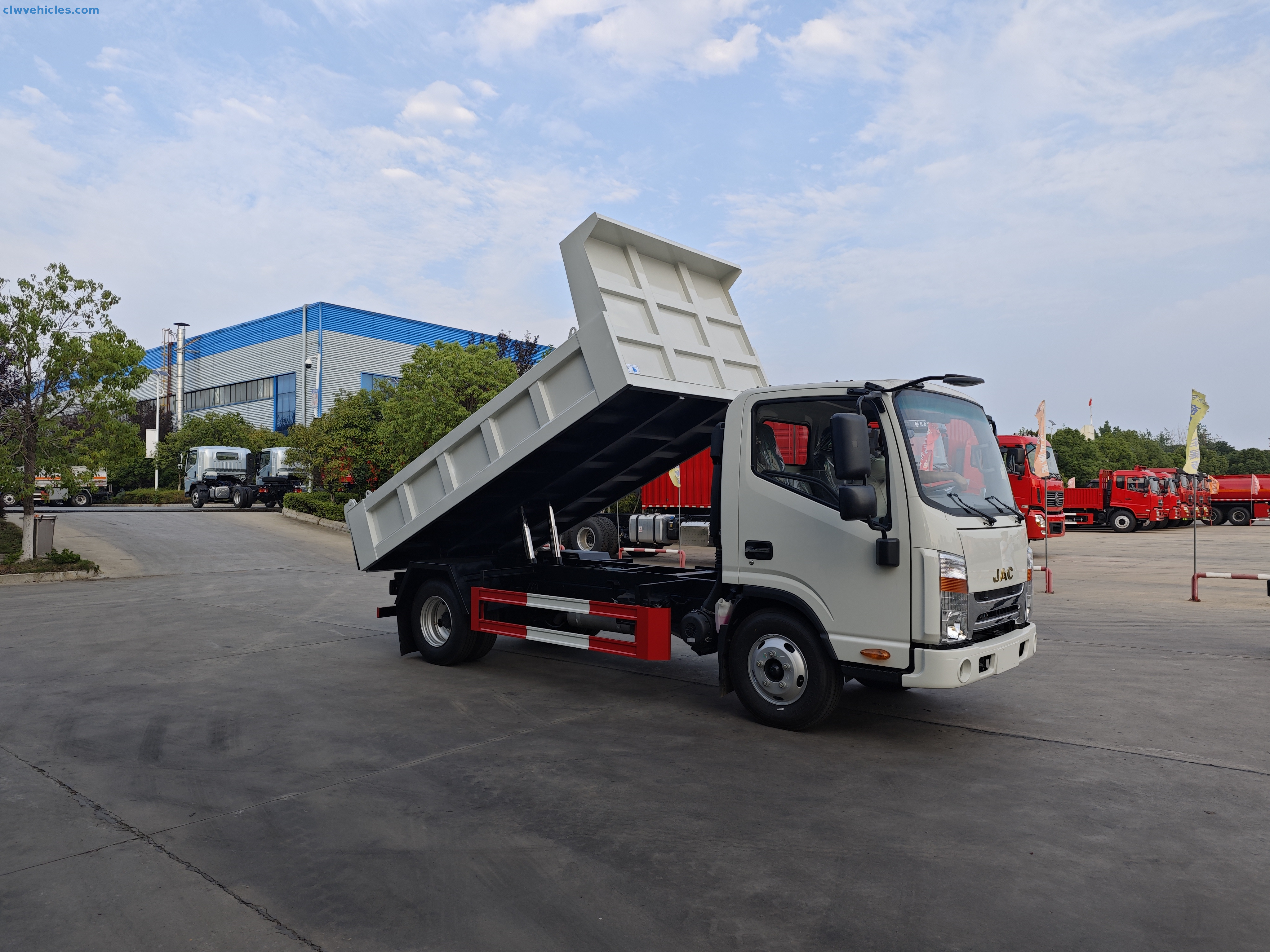

The dump body is manufactured by ChengLi Special Automobile Co., Ltd. and measures 3,600 × 2,200 × 600 mm. Built from carbon steel with a configuration of 4 mm side plates and 5 mm bottom plate, the body is designed to withstand frequent loading, abrasion from aggregates and repeated tipping cycles. This makes it suitable for transporting materials such as sand, gravel, crushed stone, soil and construction waste. Hydraulic lifting provides controlled, efficient dumping, allowing operators to unload materials accurately where they are needed.

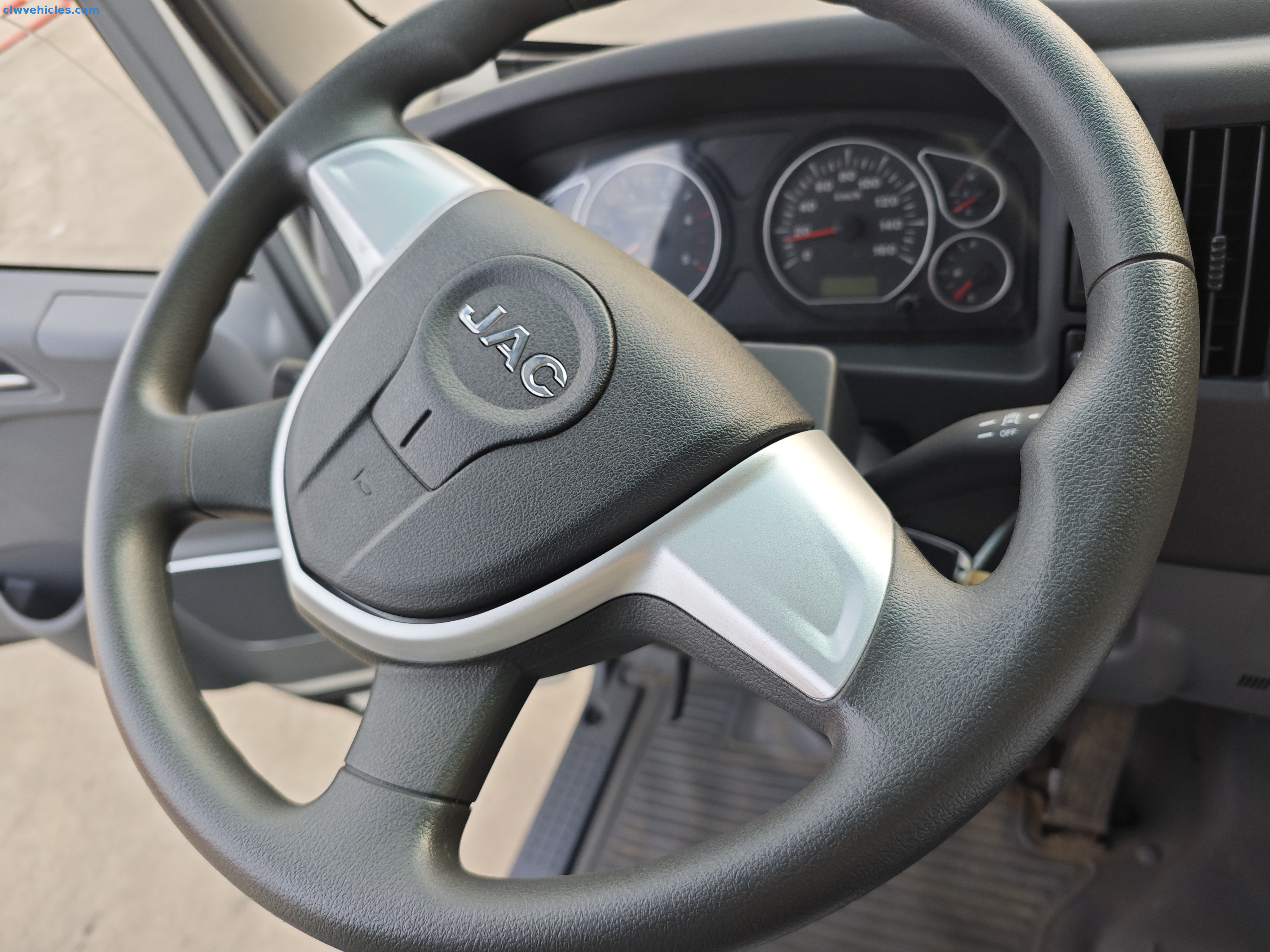

The truck features a single-row JAC cabin, right-hand drive, with seating for three and air conditioning to improve driver and crew comfort. Exterior color can be customized according to customer requirements, making it easy to align with company branding or fleet standards.

Overall, the JAC 4×2 Mini Dump Truck provides a compact, reliable and efficient haulage solution for everyday construction support, landscaping projects, municipal maintenance and small-scale material transport. It is particularly well-suited to environments where access is limited but payload demands remain high.

Applications

• Urban and town construction site material transport

• Road repair and maintenance (pothole filling, small road works)

• Landscaping projects (soil, sand, gravel and debris hauling)

• Small demolition waste removal and site cleanup

• Aggregate transport from local quarries to city projects

• Municipal engineering and utility maintenance support

Key Advantages

• Compact 4×2 configuration: Short overall length (6,450 mm) and 3,700 mm wheelbase enable operation in narrow streets and tight job sites.

• High payload for mini size: Loading capacity of 8,405 kg offers strong hauling capability within a smaller truck class.

• Proven JAC chassis: Reliable frame and axle configuration (6,500/11,500 kg) designed for steady, loaded operation.

• Powerful diesel engine: YC6J180-33 Euro 3 engine with 180 HP and 650 N·m torque provides good power for urban and project work.

• Durable carbon steel dump body: 3,600 × 2,200 × 600 mm body with 4 mm sides and 5 mm bottom resists wear from aggregates and demolition material.

• Practical cabin: Single-row, right-hand drive cabin with A/C and three seats supports comfortable daily use.

• Versatile usage: Suitable for construction, municipal, landscaping and small-scale logistics tasks.

Exported Experience

The JAC 4×2 Mini Dump Truck has been exported to:

• South America

• North African countries (batch exports)

In these regions, it is used primarily as a compact construction and material transport vehicle where maneuverability and payload must be balanced. Its performance in these markets demonstrates its suitability for a variety of working conditions and project types, from urban infrastructure work to local material distribution.

FAQ

Q1: What is the payload capacity of this JAC mini dump truck?
A1: The loading weight is 8,405 kg, suitable for transporting sand, gravel, soil and construction debris.

Q2: What are the main dimensions of the vehicle and dump body?
A2: The overall vehicle dimensions are 6,450 × 2,370 × 2,780 mm, and the dump body size is 3,600 × 2,200 × 600 mm.

Q3: Which engine is used and what is its power?
A3: The truck uses the YC6J180-33 diesel engine, Euro 3 standard, with 180 HP (132 kW) and 650 N·m maximum torque.

Q4: What is the driving configuration and top speed?
A4: It is a 4×2 drive truck with a top speed of 105 km/h under standard conditions.

Q5: What is the material and thickness of the dump body?
A5: The dump body is made of carbon steel, with 4 mm side plates and a 5 mm bottom plate.

Q6: How many people can the cabin seat and what is the drive position?
A6: The single-row JAC cabin seats three people and is configured as right-hand drive, with air conditioning.

Q7: Has this model been exported overseas?
A7: Yes. It has been exported to South America and in batch quantities to North African countries.

Q8: Can the exterior color be customized?
A8: Yes. The color can be specified according to customer requirements.

Main Technical Parameters：
