JMC 4x2 Mini Dump Truck

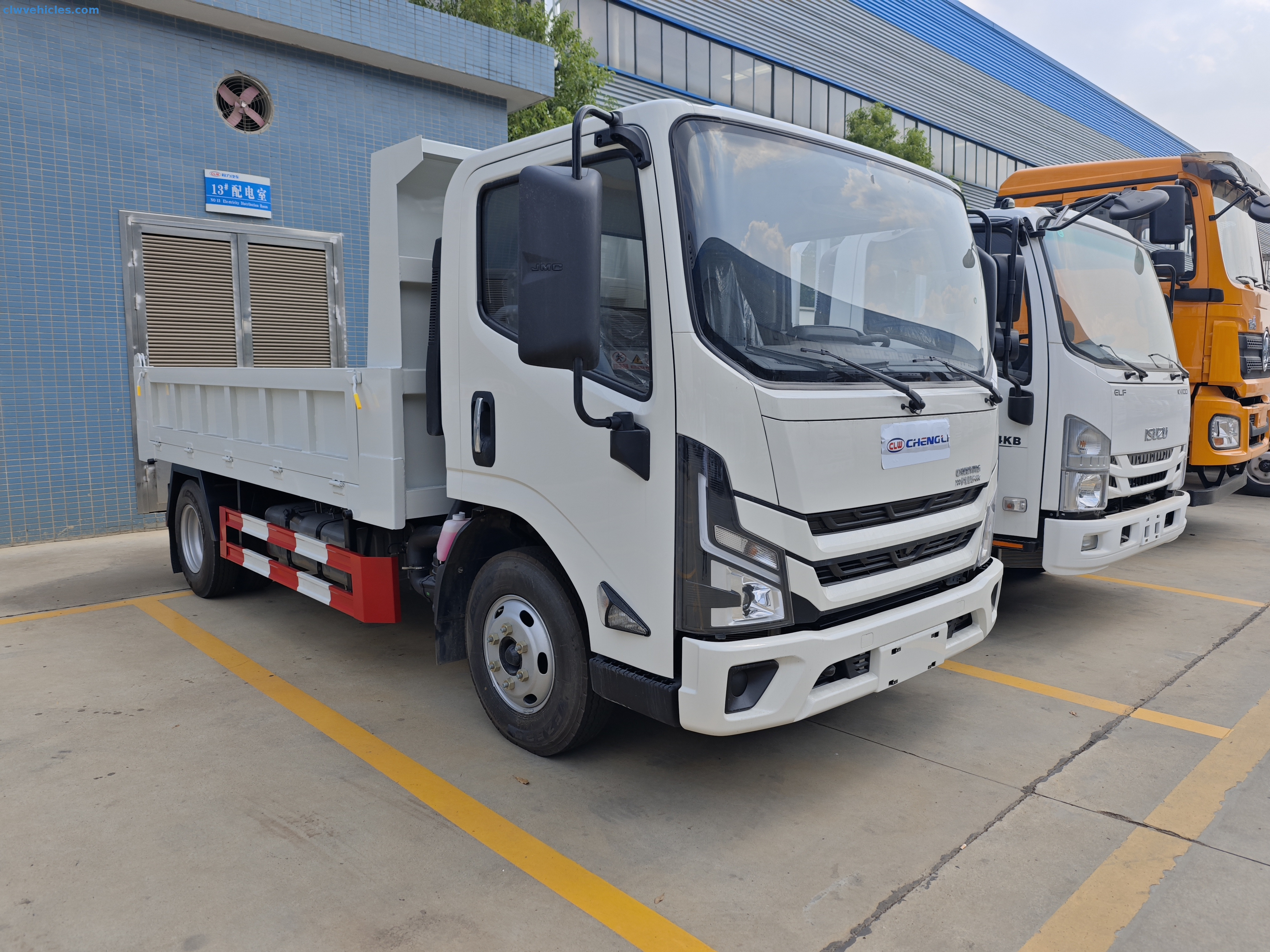

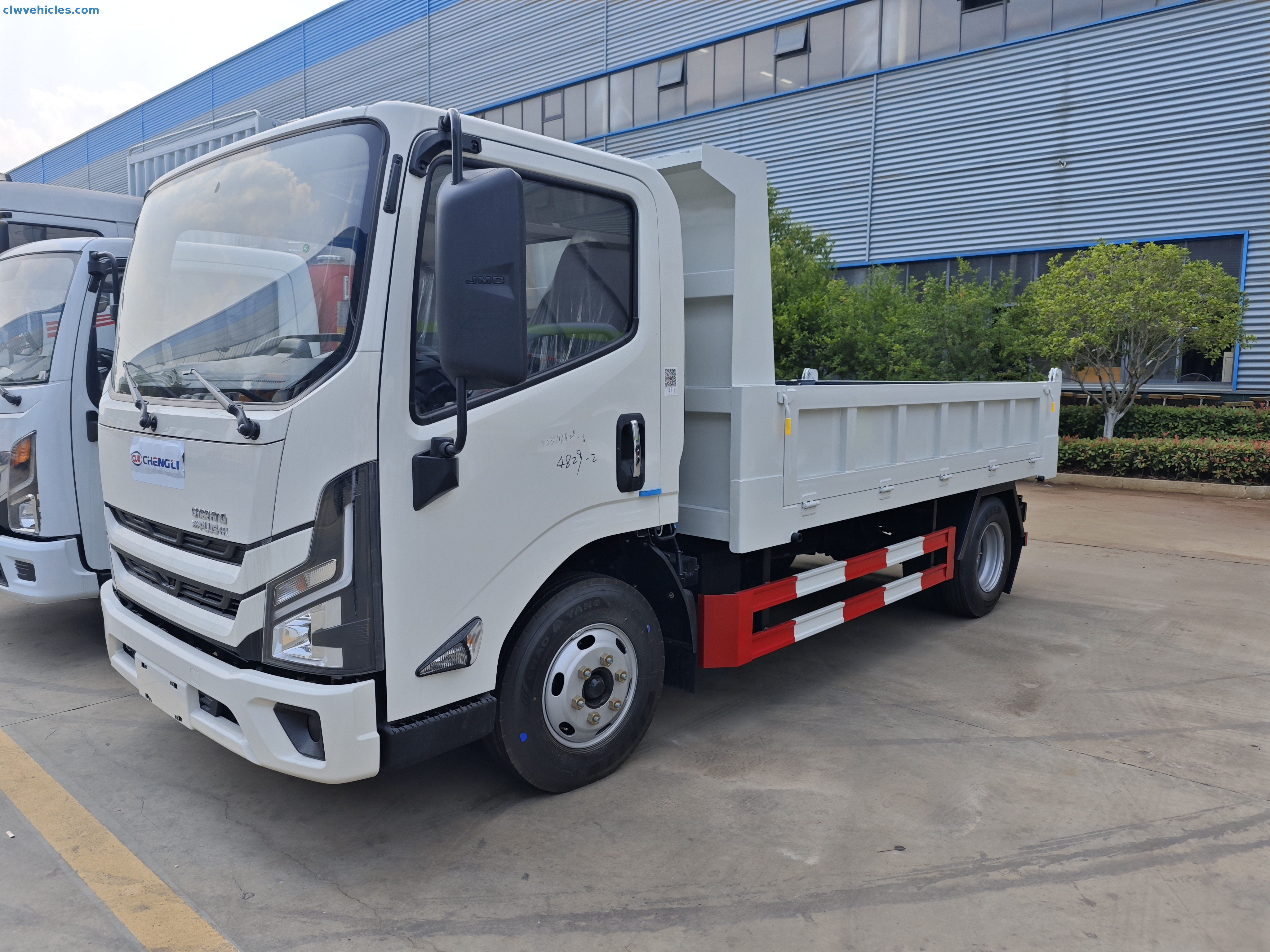

JMC 4×2 Mini Dump Truck – Compact Power for Tight Spaces

Overview

The JMC 4×2 Mini Dump Truck by CLW Group delivers reliable performance in compact form. Perfect for construction sites, farmyards, and urban projects, it handles sand, gravel, debris, and agricultural materials efficiently. Its small footprint ensures maneuverability in narrow roads, crowded job sites, and rural terrain without sacrificing power or payload.

Chassis & Performance

• Engine: JX493 series, 90kW (122hp), optimized for stop-and-go tasks

• Transmission: FAST 5-speed manual with 1 reverse gear

• Axles: 2,930kg front / 5,270kg rear, ensuring stability under load

• Tires: 315/80R22.5 20PR (10+1 spare)

• Brakes: Air brake system with vacuum pump for reliable stopping power

• Customization: Vehicle color, dimensions, payload capacity, and cabin type (single or double row) are configurable; also available as standard cargo truck

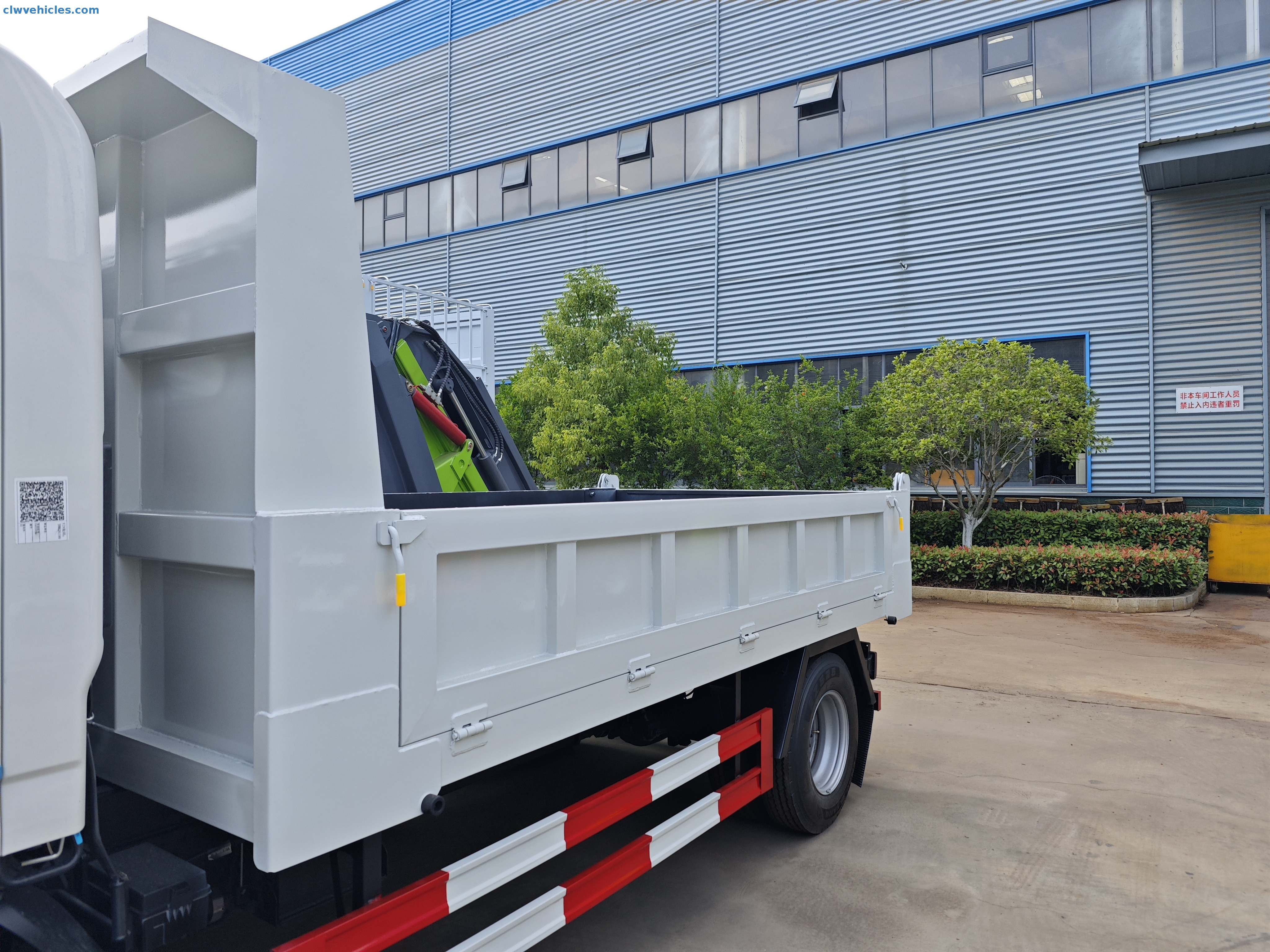

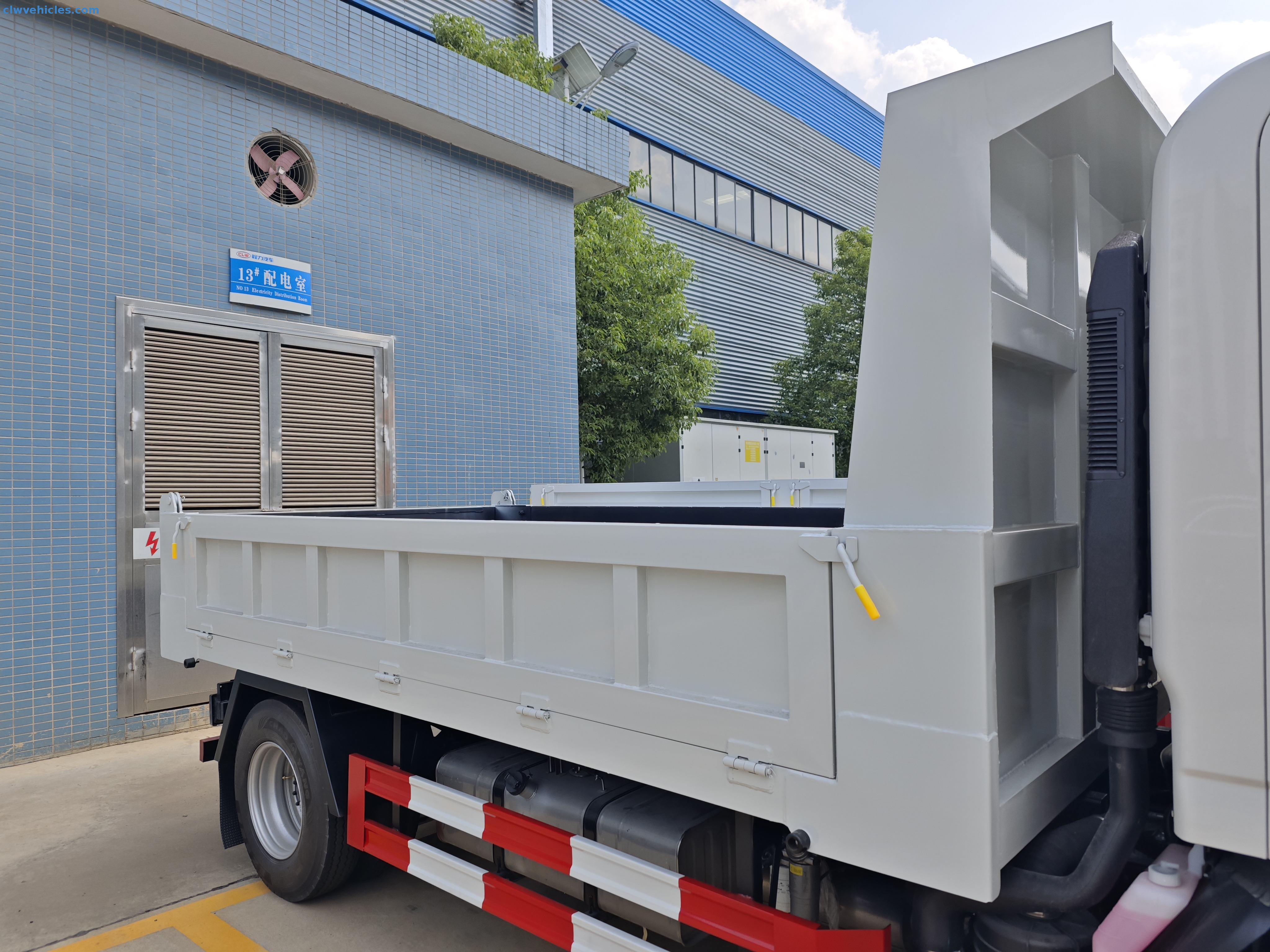

Dump Box & Operation

• Dimensions: 3,600 × 2,200 × 600 mm

• Material: 4mm sidewalls, 5mm carbon steel bottom

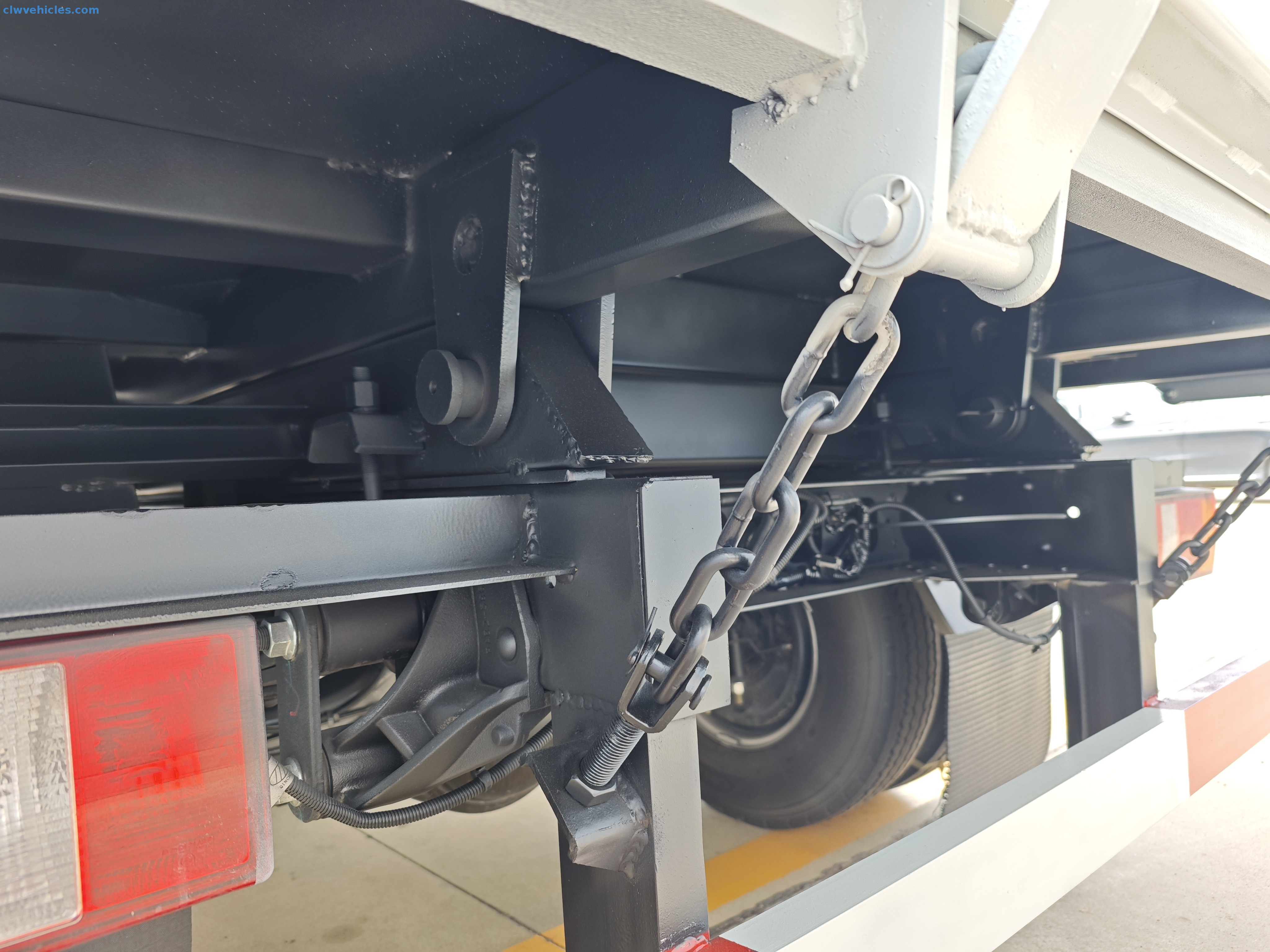

• Hydraulic Tipping: Quick one-person operation, tipping angle up to 50°

• Versatility: Suitable for sand, gravel, construction debris, and agricultural materials

Driver Comfort & Safety

• Cabin: JMC Carrying Plus, ergonomic design, 2 seats, A/C

• Visibility & Control: Excellent line of sight and easy maneuvering for tight spaces

• Approach/Departure Angle: 16°/9° for steep inclines and uneven terrain

• Steering: Power steering for effortless navigation in urban or rural environments

Key Highlights

• Compact design ideal for narrow streets and job sites

• Robust payload capacity despite small footprint

• Configurable cabin, color, dimensions, and cargo volume

• Available as standard cargo truck or double-cab variant

• Durable hydraulic tipping system for fast, safe unloading

• Batch export experience to Algeria; highly favored in North African market

Operational Advantages

• Efficient hauling of construction, agricultural, and urban materials

• Quick dumping with minimal manpower

• Reliable in both urban and rural environments

• Easy maintenance with reinforced chassis and hydraulic components

• Customizable to meet client-specific operational needs

FAQ (English)

Q1: Can the JMC Mini Dump Truck be customized?
A1: Yes, clients can select vehicle color, dimensions, cargo volume, and cabin type. Double-cab and standard cargo truck versions are also available.

Q2: What type of materials can it carry?
A2: Sand, gravel, debris, construction materials, and agricultural products.

Q3: Is this truck suitable for narrow roads or tight job sites?
A3: Yes, its compact footprint allows easy navigation in confined spaces while maintaining payload capacity.

Q4: Has this truck been exported internationally?
A4: Yes, we have successfully exported batches to Algeria, where it is popular in the North African market.

Q5: What is the maximum tipping angle?
A5: The hydraulic dump box can tilt up to 50° for efficient unloading.

Main Technical Parameters：
