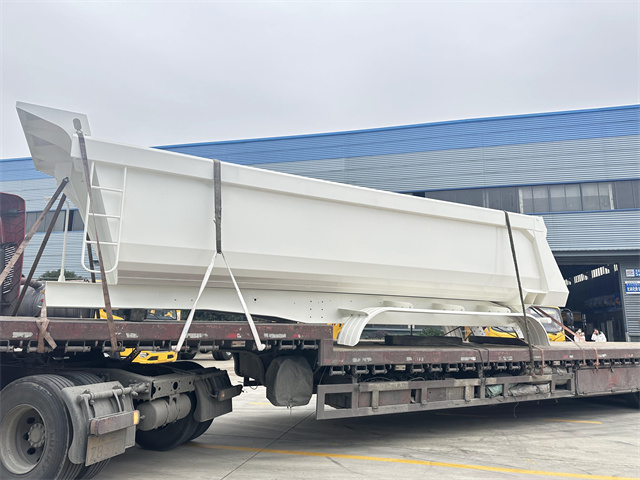

New design T700 steel U type 38cbm dump box for Saudi market

New design T700 steel  U type 38cbm dump box for Saudi market

U-Tip Semi-Trailer for Saudi Market - Technical Specification

(Optimized for Heavy-Duty Applications with Enhanced Durability)

---

Product Overview

Designed for the demanding conditions of Saudi Arabia's construction, mining, and bulk material transport sectors, this U-shaped semi-trailer combines high-strength T700 steel construction with advanced hydraulic systems to deliver unmatched durability, payload capacity, and operational efficiency.

---

Key Features

1. Reinforced Chassis Structure

- Dual-Plate Main Beam: Constructed with T700 high-strength steel, the double-layer main beam ensures exceptional load-bearing capacity (up to 60-80 tons) while resisting deformation under extreme stress. Ideal for Saudi's heavy-haul road conditions.

- Sub-Frame & Cross-Balanced Axle System: Integrated sub-frame and cross-balanced axles enhance lateral stability during off-road driving, minimizing sway and reducing wear on critical components.

2. Hydraulic System (HYVA Brand)

- Heavy-Duty Hydraulic Cylinder: Features an oversized cylinder diameter (≥180mm) for faster, smoother lifting with a ≥50° tipping angle. The HYVA system ensures reliable performance in high-temperature environments (up to 50°C).

- Anti-Rollover Design: Optimized hydraulic pressure distribution and low center of gravity prevent lateral instability during unloading, critical for uneven terrain.

3. Enhanced Loading System

- U-Shaped Body with Grid-Reinforced Sidewalls: Internal dimensions (7,300×2,354×1,660mm) maximize volumetric capacity (28.5 CBM). The grid-pattern sidewalls (T700 steel) resist bulging under heavy bulk materials like sand, gravel, or ore.

- Flip Support Frame: Reinforced flip-out supports evenly distribute stress during dumping, protecting the rear structure from deformation.

4. Structural Reinforcements

- Multi-Channel Reinforcement Ribs: Strategically welded ribs along the floor and sides increase torsional rigidity while reducing dead weight.

---

Competitive Advantages for Saudi Market

- Heat-Resistant Hydraulics: HYVA components tested for sustained operation in 50°C+ ambient temperatures.

- Low Maintenance Costs: Modular design allows rapid replacement of wear parts (e.g., liners, hinges).

We can export the whole trailer or only upbody to you as your request.
