HOWO
CLW
CLW5250SC7
| Main Technology Parameter | |
| Model Name | CLW Brand HOWO 6x4 Van Body Truck |
| Driving Type | 6x4 |
| Color | white or based on client’s request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 10150 |
| Curb Weight(kg) | 14720 |
| Dimensions | |
| Wheelbase(mm) | 3900+1350 |
| Front/Rear Overhang(mm) | 1450/2620 |
| Approach/Departure Angle | 16/11 |
| Overall Dimension(mm) | 9320x2550x3650 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP10.340E32 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Rated Torque(Nm) | 1250 |
| Rated Speed(rpm) | 2200 |
| Max.Output(kw) | 250(340hp) |
| Drive Line | |
| Transmission | 10 forwards,2 reverse gear,10JSD180 |
| Axle | |
| Axle | 7000/18000/18000 |
| Tire Specification | |
| Tire Specification | 295/80R22.5 18PR; 10+1 spare tire |
| Front Wheel Track(mm) | 1998 |
| Rear Wheel Track(mm) | 1850/1850 |
| Number of Leaf Springs | 3/2+-/2+- |
| Upper Body | |
| Van Box Size(mm) | 6400x5800x2000 |
| Box Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Sewage Tank Volume | 12.68m³ |
| Water Tank Volume | 4.78m³ |
| SewageTank Material | 5mm thickness;Q235A |
| Water Tank Material | 5mm thickness;Q235A |
| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
| Other Key Parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |

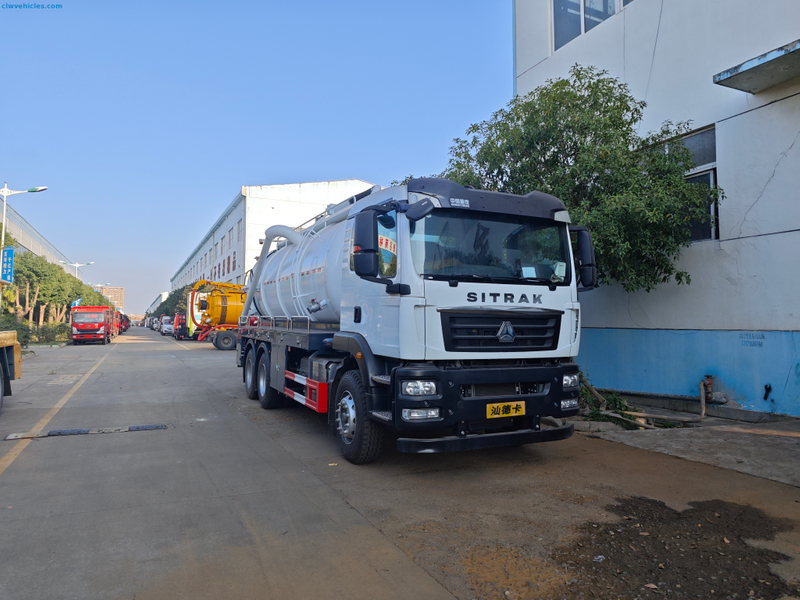

The special devices of this vehicle are the tank body and the cleaning and sewage suction devices. It is mainly used for sewer drainage and dredging, and the tank body can be lifted for operation.
Dimension of the tank body (total length x straight section length x diameter)(mm): 6400x5800x2000. The front section of the tank body is the clean water tank with a straight section length of 1600 mm. The total capacity of the clean water tank is 5.02 cbm, the effective volume is 4.78 cbm, the medium is water, and the density is 1000 kg/m³. The rear section is the sewage tank with a straight section length of 4200 mm. The total capacity of the sewage tank is 13.32 cbm, the effective volume is 12.68 cbm, the medium is liquid waste, and the density is 800 kg/m³. The two tanks are independent and cannot be fully loaded at the same time. The clean water tank is used for the cleaning function, and the sewage tank is used for the sewage suction function.
The materials of the side and rear protective devices are all Q235A. Connection method: The left and right side protective devices and the rear lower protective are all connected by welding. The cross-sectional dimensions(width x height) of the rear protective device are 310x50 mm, and the height from the lower edge to the ground is 500 mm.
The speed-limiting device can be optionally installed with the chassis, with speed limits of 80 km/h and 89 km/h. Only the chassis leaf spring suspension and 11.00R20 and 295/80R22.5 tires are used.
The corresponding relationships of the overall vehicle length/front overhang/wheelbase/rear overhang are(mm): 9320/1450/3900+1350/2620.
1. Slowly insert the suction pipe into the sewage well or sewage pool. The insertion depth should be appropriate to avoid the pipe mouth being blocked.
2. Start the vacuum pump and control the suction speed by operating the valve. Pay attention to observing the liquid level of the suction tank.
3. During the suction process, always pay attention to the working sound and temperature of the vacuum pump. If there is any abnormality, stop the machine immediately for inspection.
Discharge operation:
1. After arriving at the designated discharge location, stop the vehicle and pull the handbrake.
2. Open the discharge valve and slowly discharge the sewage. Pay attention to controlling the discharge speed and direction.
3. After the discharge is completed, close the discharge valve and clean the discharge pipe.
