CLW3250ZZ
SHACMAN
8704230

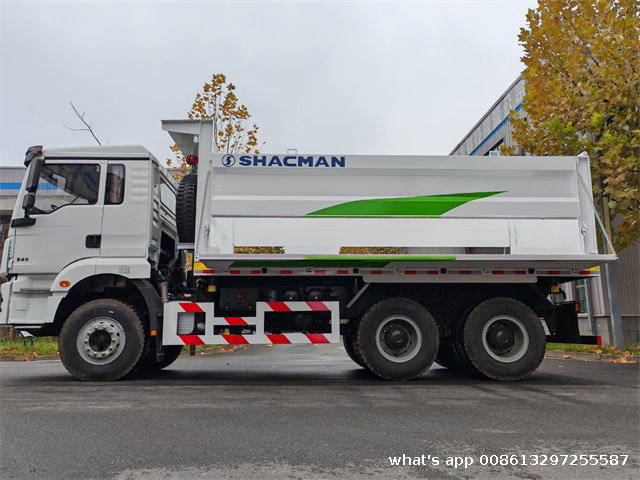

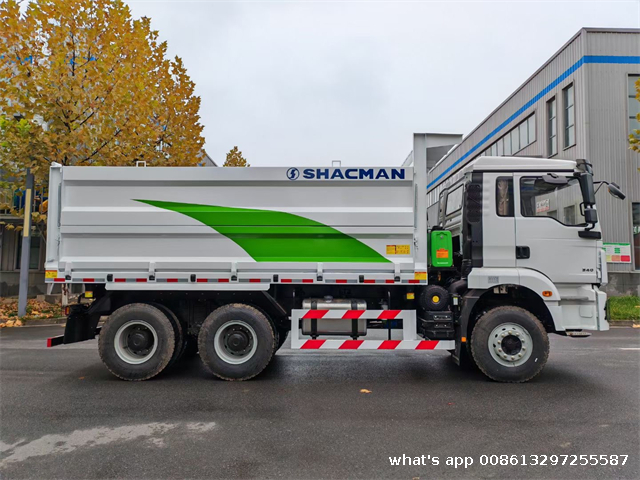

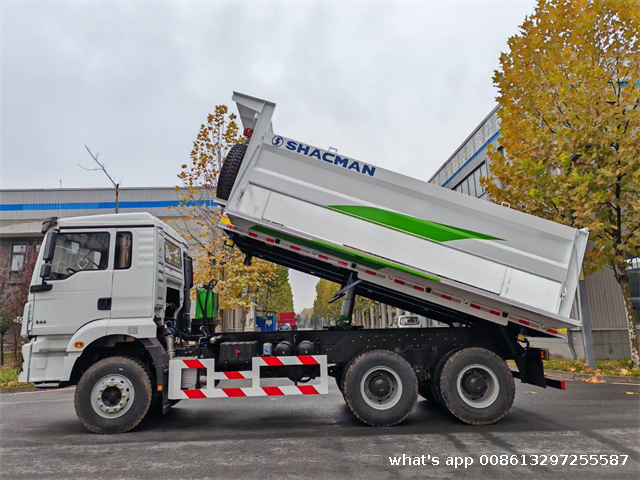

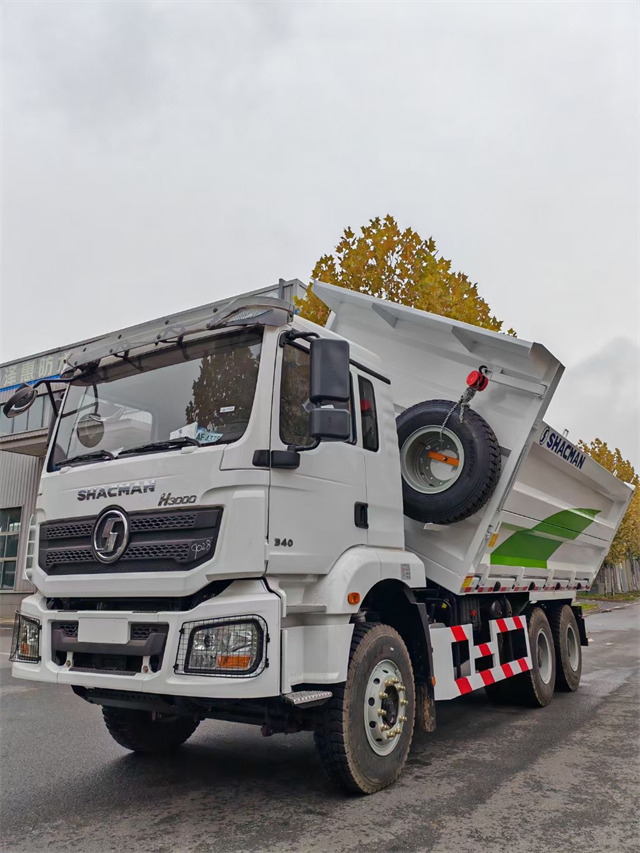

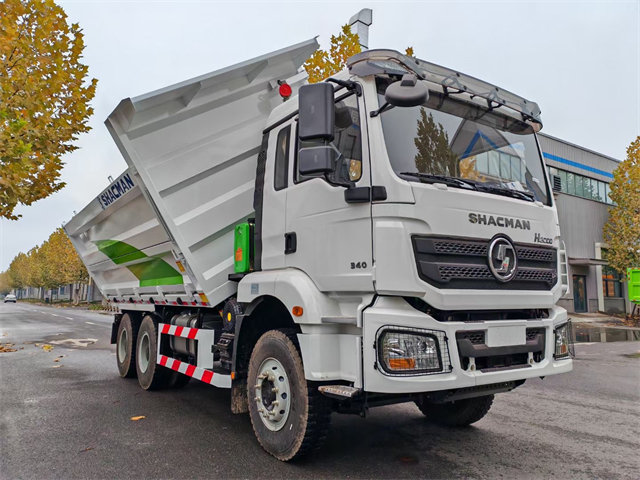

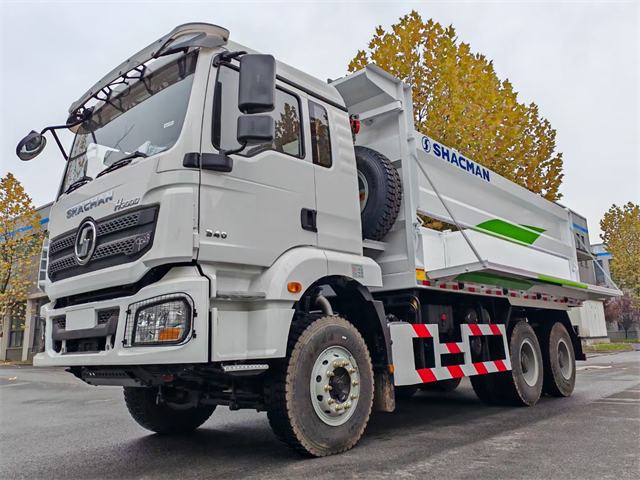

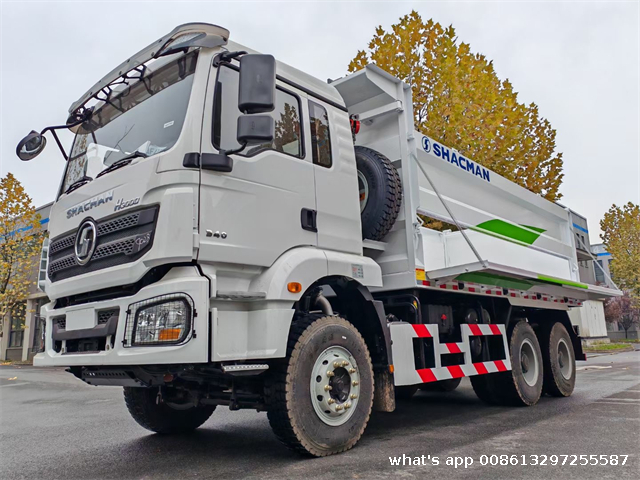

Shacman H3000 340HP 3 Side Dump Truck
Wheat transport dump truck for Kazakhstan, Shacman H3000 chassis, with weichai 340hp, and hyva cylinder, it can dump by 3 sides, right , left and rear door. the loading capacity is 20 tons. t700 High-strength steel plate,It is the most practical dump truck for transporting wheat and rice and we can produce the 3 sides dump trailer with the truck too.
ITEM | PARAMETER | DATA |
Vehicle | Vehicle model | CLW3250A5 |
Overall dimension | 9815×2500×3285 MM | |
Curb weight | 10000 KG | |
Max speed | 95 | |
Drive wheel | 6X4 | |
Chassis | Chassis model | CLW3250A5 |
Manufacture | CLW | |
Gear Box | Fast brand 12 shifts | |
Wheelbase | 4350+1350 mm | |
Axle | Front:7.5 tons, rear:2x16tons with ABS | |
Tire Specification | 11.00R20 | |
Nos of tire | 10 Pcs | |
Engine | Engine model | YC6MK420-33 |
Engine Horse power | 420HP | |
Displacement | 10200ml | |
Emission Standard | EURO 3, | |
Dump Box | Box dimension | 6000*2300*1100 mm |
Manufacturers | ChengLi Special Automobile Co.,Ltd | |
Volume | 20cbm | |
Configuration | The thickness of the side is 2mm and bottom is 4mm (t700 carbon steel) | |
Cylinder | 1 unit | |
Material | Carbon steel | |
Side door | According to you | |
Cabin | Brand | CLW brand |
Model | Flat proof | |
Air conditioner | Warm/ cold | |
Seats | 3 | |
Steering | Left hand drive | |
Color | According to you | |
Others | With FM RADIO,CD, central control the door and electric window and so on. |
