DongFeng
CLW
CLW5180WT8
Product Description：

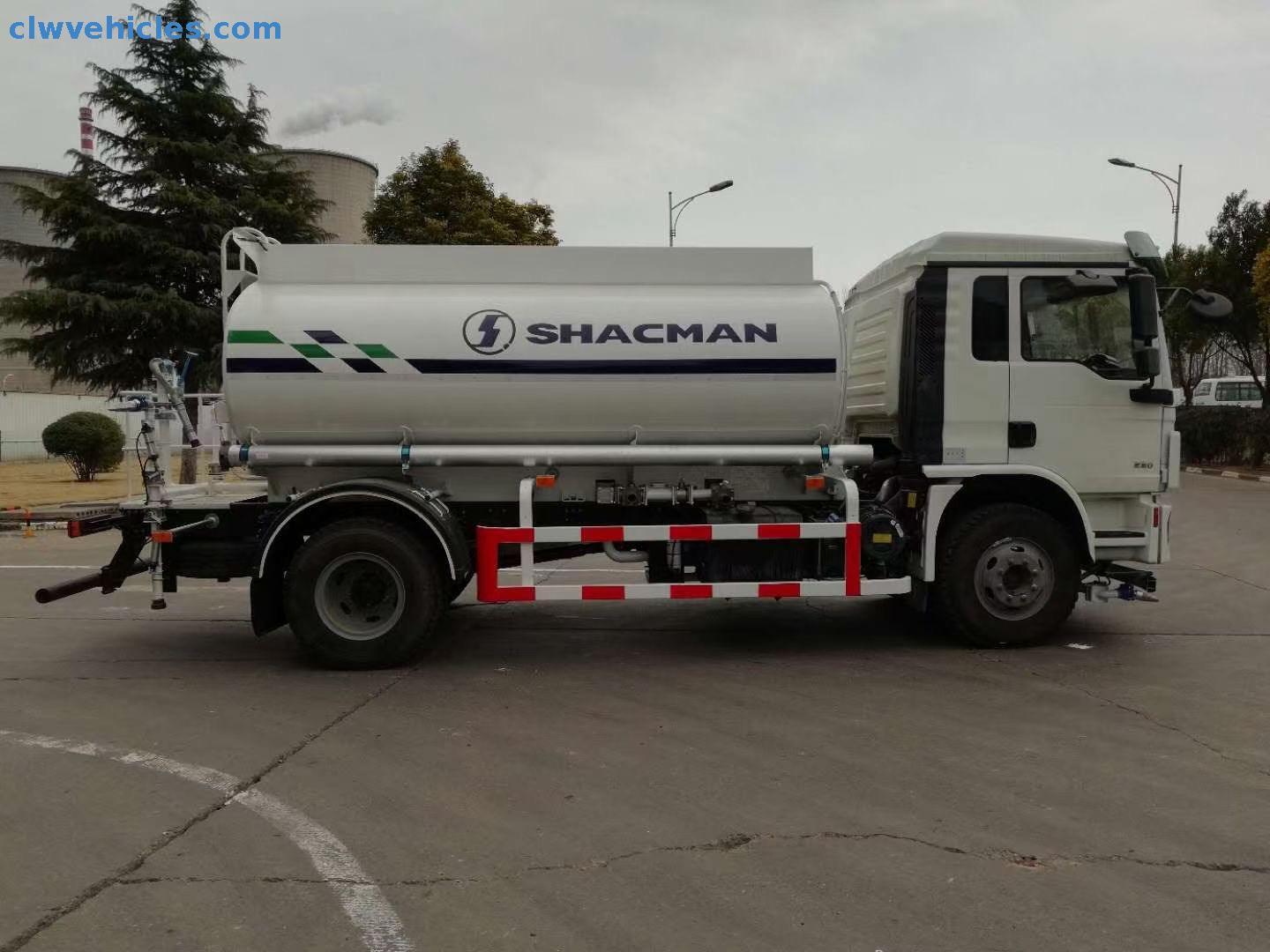

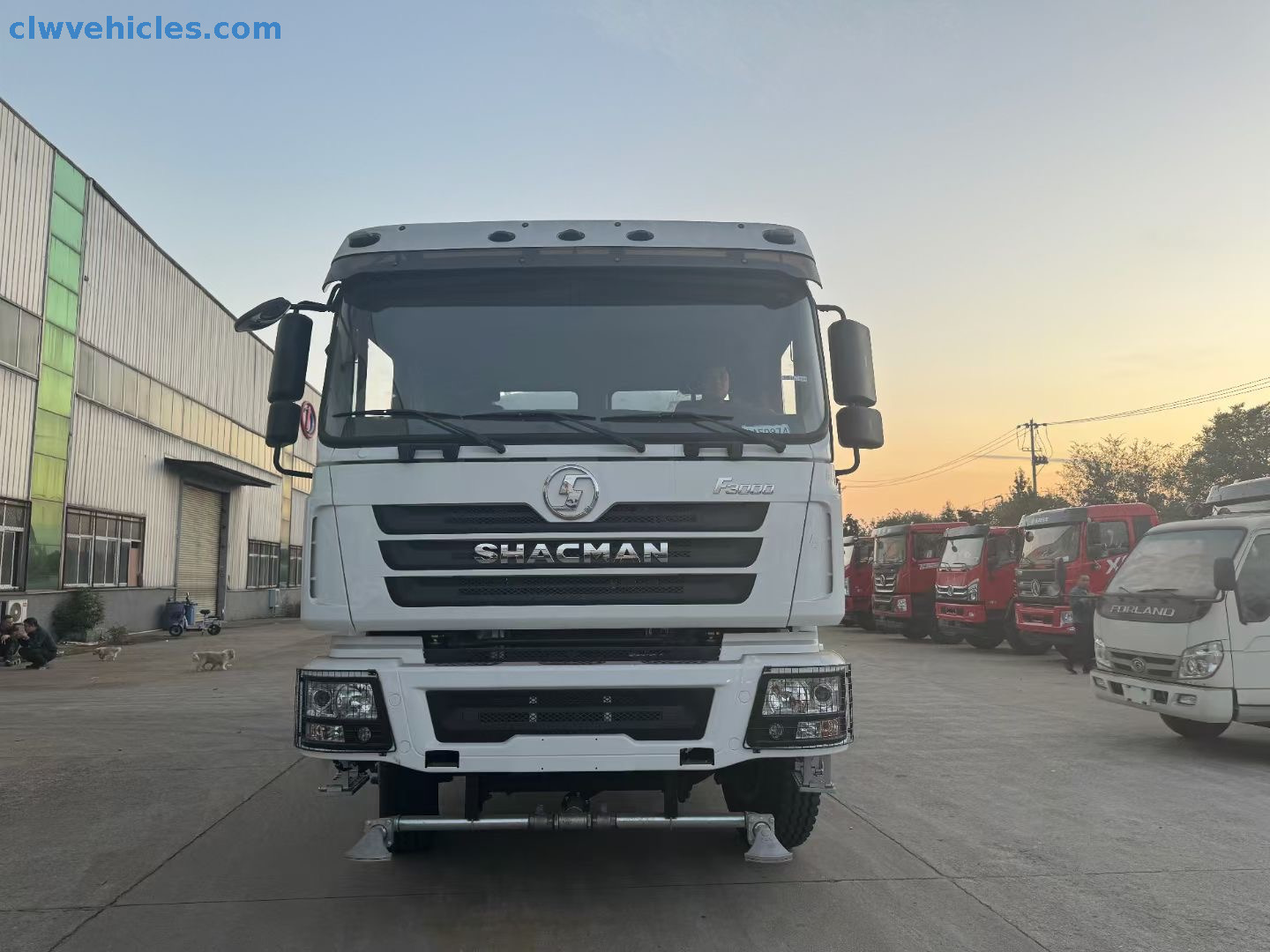

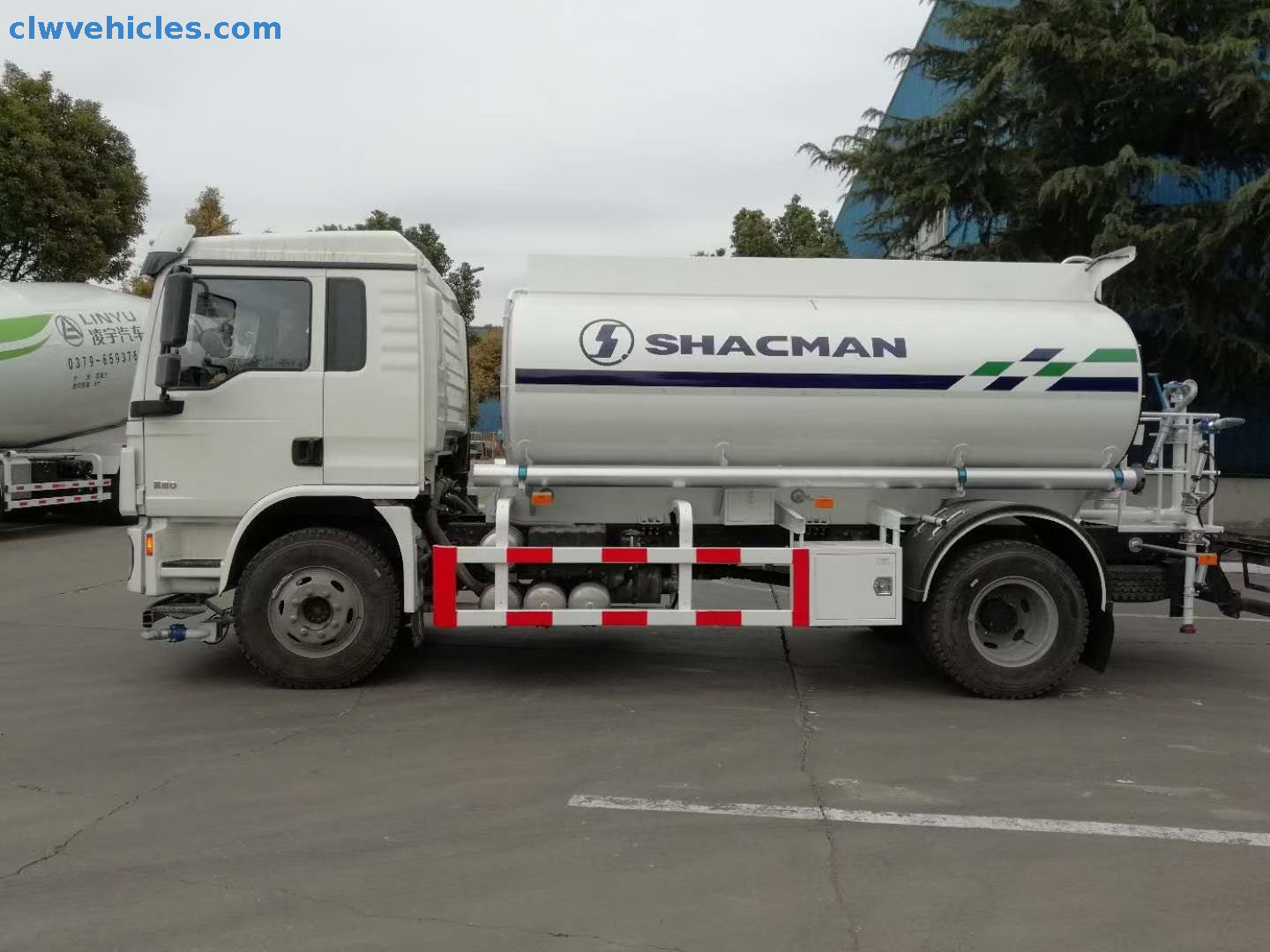

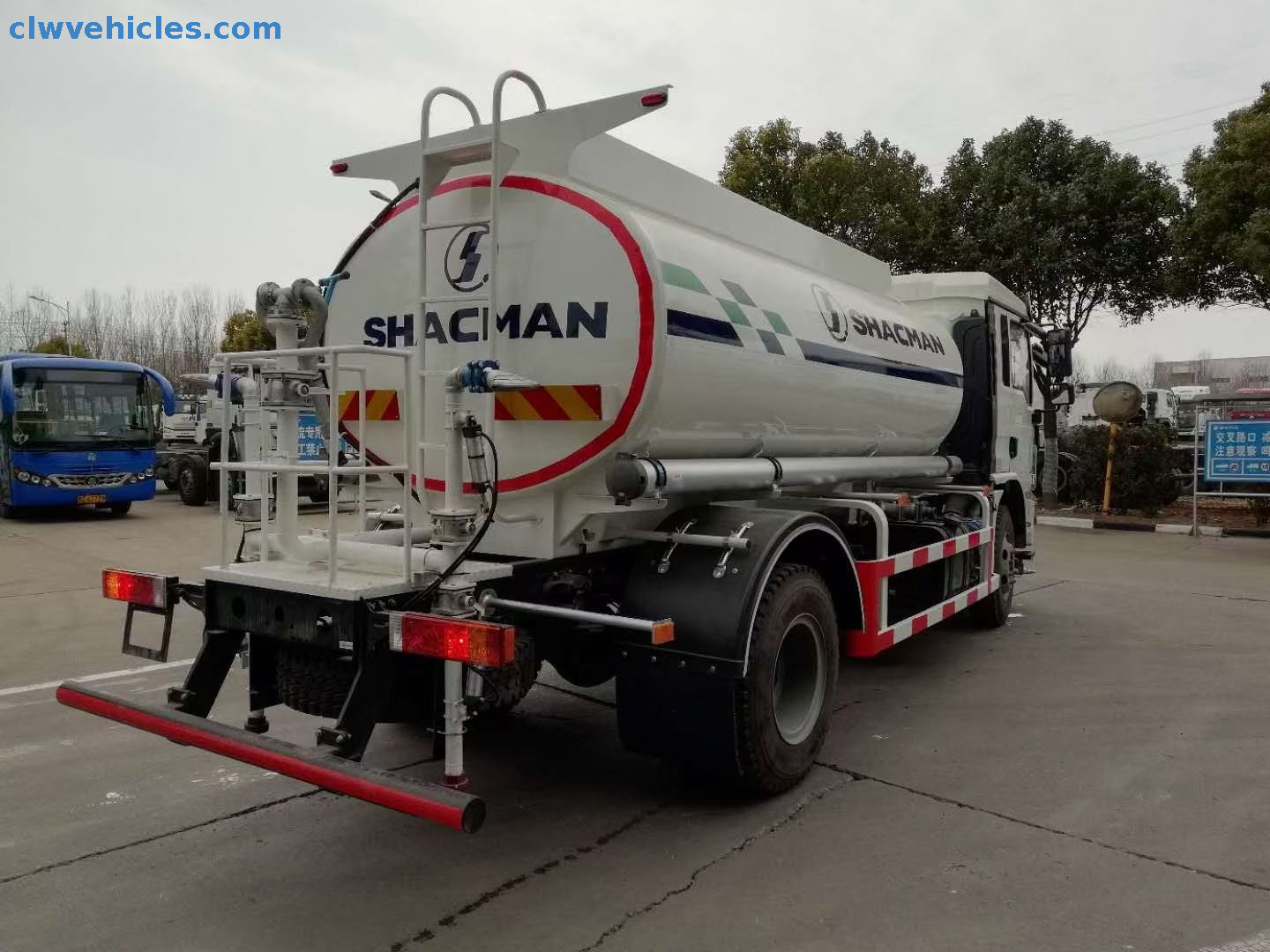

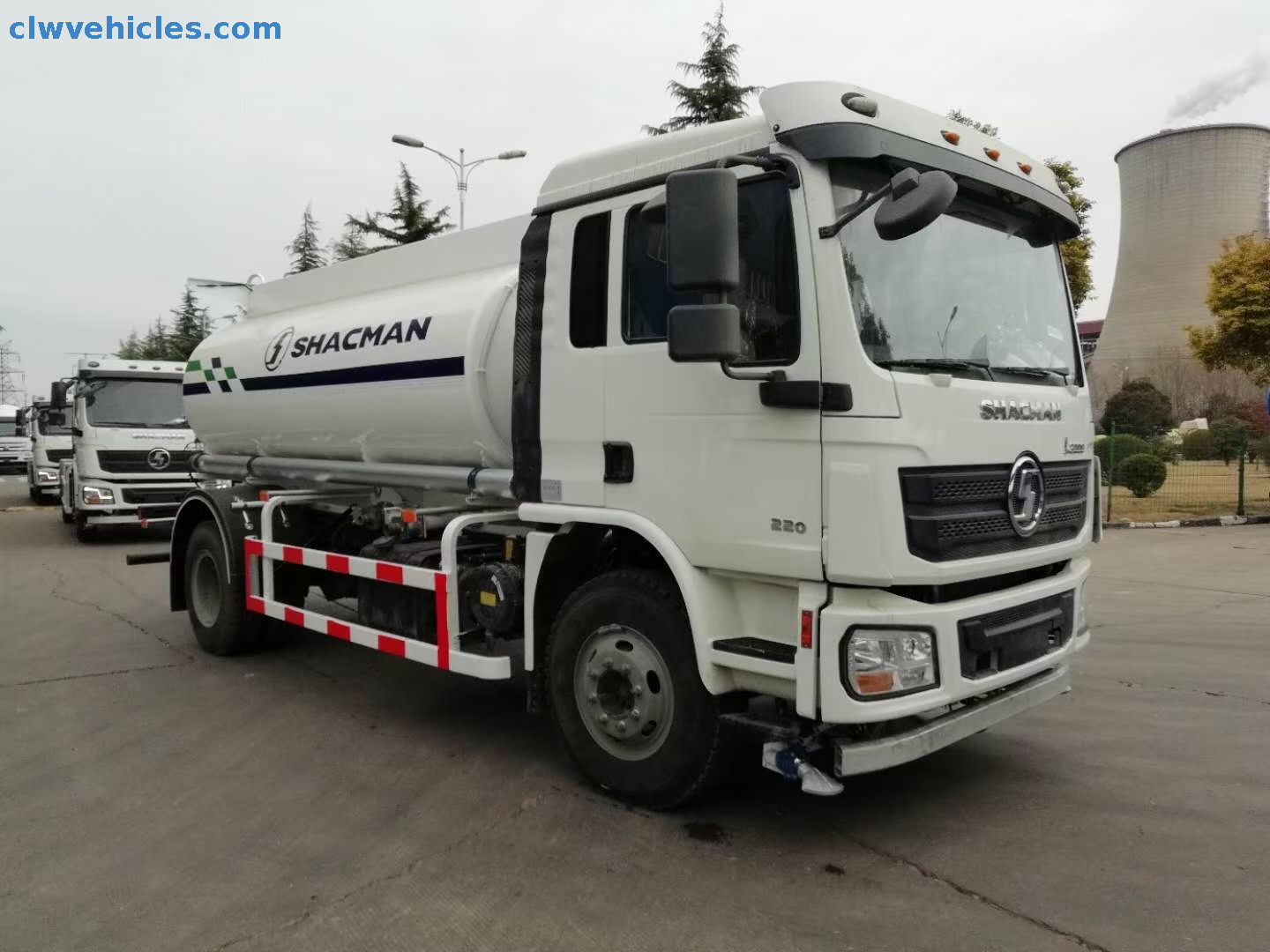

Shacman 4×2 10 cbm Watering Tanker Truck – Built to Keep Dust Down and Greenery Fresh
When dust control or landscape watering calls, the Shacman 4×2 10 cbm Watering Tanker Truck from CLW Group steps up. This versatile watering tanker truck is ideal for road dust suppression, park irrigation, street washing, and even construction site compaction. With a generous 10.2 m³ tank and powerful pumps, this 4×2 watering tanker truck handles big jobs on city streets or rural roads with ease.
Whether you’re keeping highways clean, watering roadside trees, or controlling dust on unpaved sites, this watering truck gives you the flow and coverage you need. A front-mounted spray bar and rear misting nozzles let you switch between broad sweeps and fine fogging. Optional fog cannon attachments make it a true irrigation truck and watering tanker all in one.
Underneath it all is the trusted Shacman 4×2 chassis with a 4,000 mm wheelbase, carrying an 18 000 kg GVW and 10,205 kg payload. The WP4.6NQ220E61 Euro 6 diesel engine delivers 162 kW (220 hp), turbo‑intercooled and direct‑injected, with exhaust‑brake for controlled downhill operation. A WLY6TS55 6‑forward/1‑reverse gearbox gives smooth, responsive shifts, while power steering and heavy‑duty leaf springs keep you stable at speeds up to 90 km/h.
The 4,000 × 2,350 × 1,560 mm tank is built from 4 mm high‑strength carbon steel (or your choice of material) and plumbed with galvanized pipes. An electric power‑take‑off drives a WeiLong low‑pressure pump—50 m³/h at 28 m head—delivering steady flow for both low‑pressure sprays and high‑volume watering. With a 30 kW or optional 45 kW motor, you get full control of spray pressure and coverage.
Versatile Watering: From street washing to park irrigation and dust suppression
Robust Build: Shacman reliability with thick‑steel tank and durable suspension
Power & Control: Euro 6 engine, electric PTO, and high‑capacity pump system
Easy Upgrades: Fog cannon, custom tank materials, and spray bar configurations
For a dependable CLW Group watering tanker truck that combines hauling power with precise water delivery, the Shacman 4×2 10 cbm Watering Tanker is your ideal partner in keeping roads clean, plants healthy, and dust under control.
Main Technical Parameters
| Main Technology Parameter | |
| Model Name | CLW Group Shacman Watering Truck |
| Driving Type | 4x2 |
| Color | White or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 18000 |
| Rated Payload Weight(kg) | 10205 |
| Curb Weight(kg) | 7600 |
| Dimensions | |
| Wheelbase(mm) | 4000 |
| Front/Rear Overhang(mm) | 1340/2510 |
| Approach/Departure Angle | 21/12 |
| Overall Dimension(mm) | 8400*2550*3200 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | WP4.6NQ220E61 |
| Emission Standard | Euro 6 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Max.Output(kw) | 162(220hp) |
| Drive Line | |
| Transmission | WLY6TS55; 6Forward/1Reverse Gear |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes or air brakes) |
| Axle | |
| Axle (kg) | 6500/11500 |
| Tire Specification | |
| Tire Specification | 10.00R20 18PR |
| Front Wheel Track(mm) | 1935 |
| Rear Wheel Track(mm) | 1860 |
| Number of Leaf Springs | 3/4+3 |
| Upper Body | |
| Volume | 10.2cbm |
| Tank Size | 4000*2350*1560mm |
| Raw Material | High-strength carbon steel(thickness 4mm) or according to customer's requests |
| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 28m |
| Optional Configuration | 1.Fog Cannon could be available |
| 2.Tanker material could be customized | |
