Shacman
CLW
CLW5180OT1
Product Description：

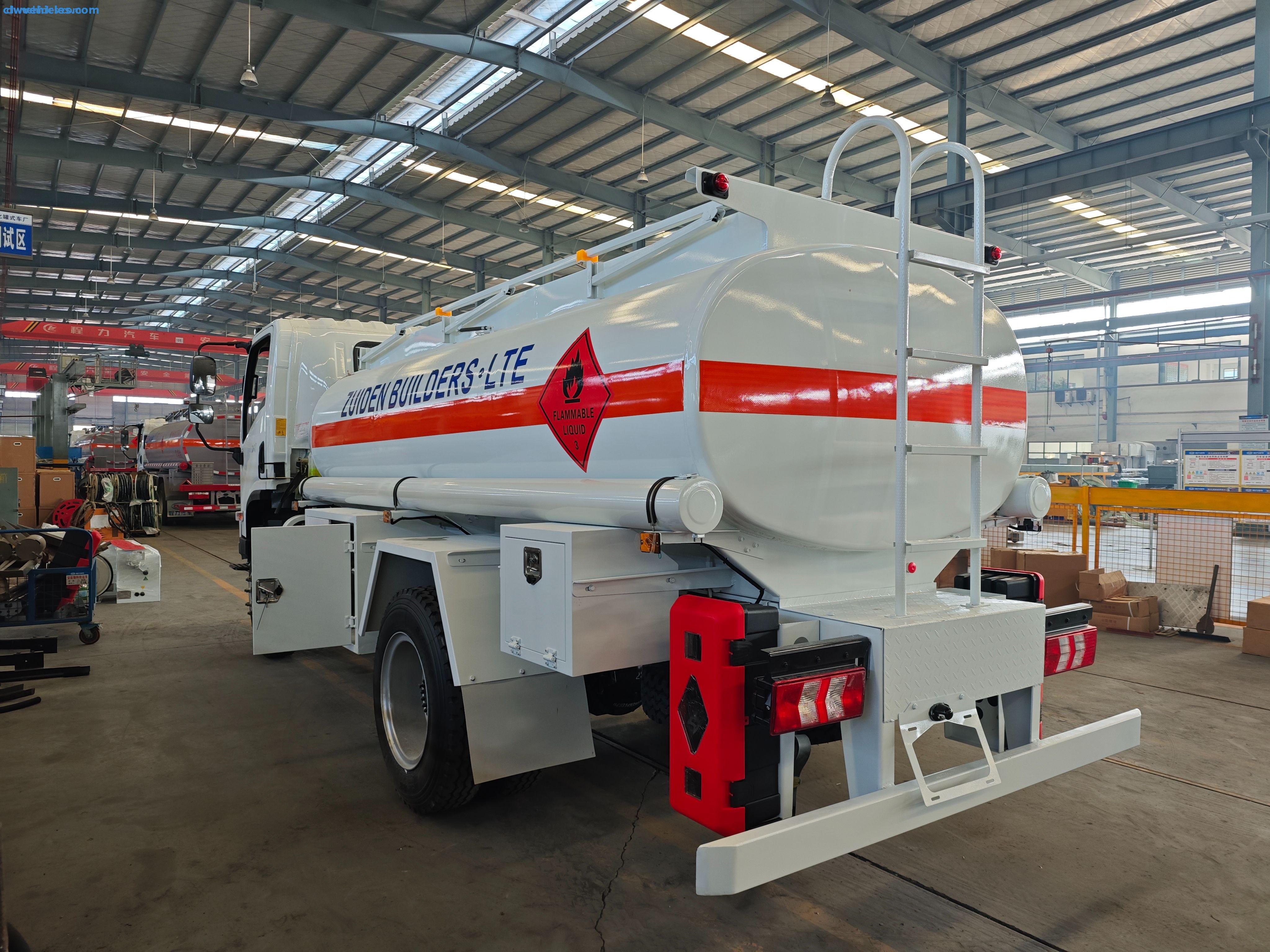

1. This vehicle is a dangerous goods vehicle. The type of dangerous goods transport vehicle is FL type.
2. The effective volume of the tank is 7 cubic meters. The maximum density (kilograms/cubic meter) of the permitted medium is: 735. The tank dimensions (length × long axis × short axis) (mm) are: 4000x1830x1220.
3. The side and rear protections are all connected to the girder by aluminum alloy bolts. The cross-sectional dimension of the rear protection device is (mm): 80x150. The ground clearance of the rear protection is: 400mm.
4. The exhaust pipe is located in the front. The front wheels are equipped with disc brakes. A speed-limiting device is installed. The rear axle of this vehicle is equipped with air suspension. Optional styles of rear ladders; optional appearances of different sides of the vehicle body; optional styles of rear clearance lamp brackets and fender styles; optional appearances of different locksets for pump boxes and toolboxes; optional safety notice boards on both sides of the vehicle body, and optional safety notice boards on the right side of the rear.
Main Technical Parameters
| Vehicle Description | Brand | CLW |
| GVW（kg） | 11000 | |
| Curb Weight（kg） | 4500 | |
| Loading Weight（kg） | 5495 | |
| Overall Dimension（mm） | 6160x2200x2900 | |
| Wheelbase（mm） | 3360 | |
| Axle Load（kg） | 2500/10000 | |
| Front/Rear Overhang(mm) | 1200/1600 | |
| Approach/Departure Angle | `17/14 | |
| Top Speed（km/h） | 89 | |
| Chassis Brand | Shacman | |
| Chassis Model | CLQ5110GYY5SX | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | YC4D140-33 |
| Hp | 140 | |
| Emission Standard | Euro 3 | |
| Displacement/Output（ml/kw） | 4212/103 | |
| Fuel Type | Diesel | |
| Rate Speed（rpm） | 2800 | |
| Maximum Torque（N·m） | 420 | |
| Maximum Torque Speed（rpm） | 1600-1900 | |
| Gearbox Brand | WLY | |
| Gearbox | WLY10H46; 5Forward/1Reverse Gear | |
| Tyre | 6tires+1spare tire; 8.25R20 | |
| Front Wheel Track(mm) | 1670 | |
| Rear Wheel Track(mm) 1655 | 1650 | |
| Fuel Tank | Capacity(cbm) | 4000x1830x1220mm; 7m³ |
| Tank Material | Carbon steel Q235(Aluminum alloy) | |
| Compartment Quantity(pcs) | `1/2 | |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium | |
| thickness(mm) | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm | |
| Compartments | 3 | |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. | |
| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. | |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. | |
