CLW5250XW
SHACMAN
87059099099

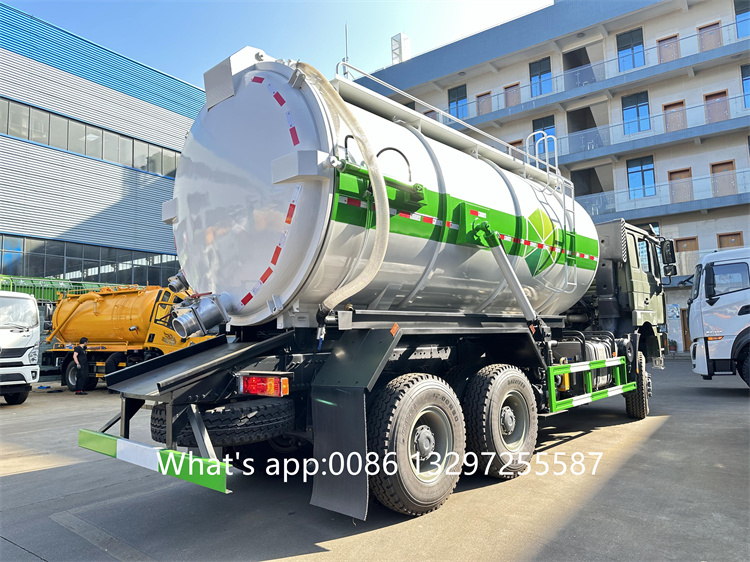

Shacman 6x6 20cbm PF vacuum pump Sewage Suction Truck
Benefits:
1. High-quality steel plate with 8mm thickness, The tank is strong and durable
2.With 5 pcs wave plates,
3.Italian BP brand vacuum pump
4. Equipped with a safety valve, the power of the vacuum pump can be automatically cut off and stop working after the tank is full.
5.A stainless steel filter is installed at the inlet of the vacuum tube to prevent the dust into the pump.
6.The tank is equipped with a lifting and dumping function, the tail can be opened hydraulically and automatically, with a locking device.
7.Electrophoretic paint after sandblasting.
8.In addition to North America and Europe, many countries can provide after-sales service for key parts such as engines, gearboxes, and vacuum pumps.
Main Technology Parameter | |
Model Name | CLW 20cbm sewage suction truck CLW5256GXWH5 |
Driving Type | 6x6, |
Cabin | Shacman F3000 |
Color | Olive drab |
Weights | |
Rated payload weight(kg) | 20000 |
Curb weight(kg) | 14460 |
GVW(kg) | 34460 |
Dimensions | |
Wheelbase(mm) | 4575+1400mm |
Overall Dimension(mm) | 10990*250*3650 |
Max speed(km/h) | 95 |
Engine | |
Engine model | WP12.375E50 |
Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged intercooler |
No. of cylinders | straight-6 cylinders, diesel |
Displacement(L) | 11.596L |
Max. output (kw) | 276kw (375HP) |
Drive Line | |
Transmission | FAST: 10JSD180；10 forwards,2 reverse gear, manual operation |
Steering | Power steering |
Brake | Oil brake with vacuum pump |
Axle | |
Front axle | 9 tons (MAN technology) |
Rear axle | 16 tons *2 (MAN technology) |
Tire specification | |
Tire specification | 12.00R20 ;standard tire,10 tires+1 spare tire |
Sewage suction tank | |
Loading volume | 20m3 |
Box material | 6mm Q235B |
Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
Other key parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
