Product Description：

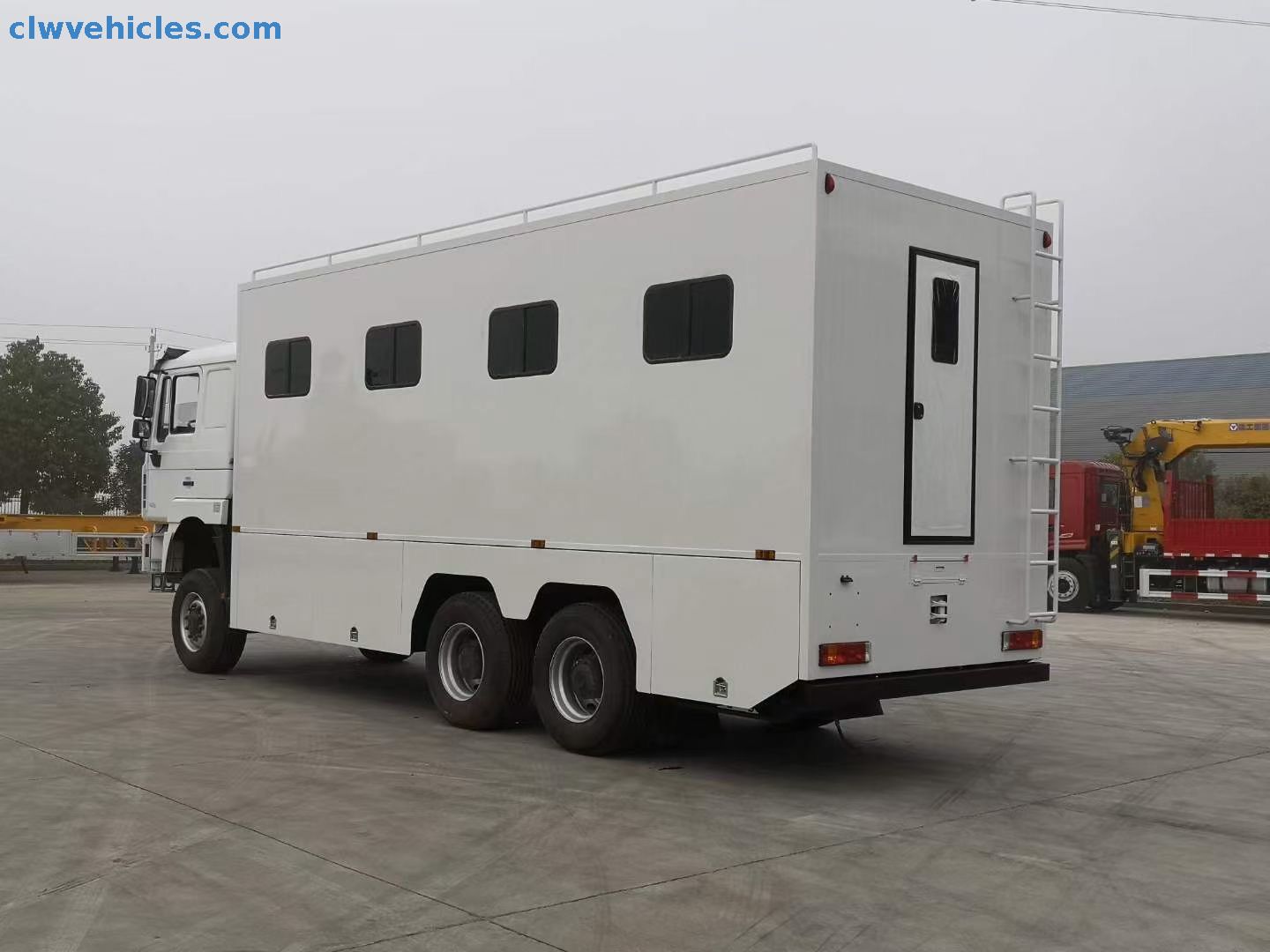

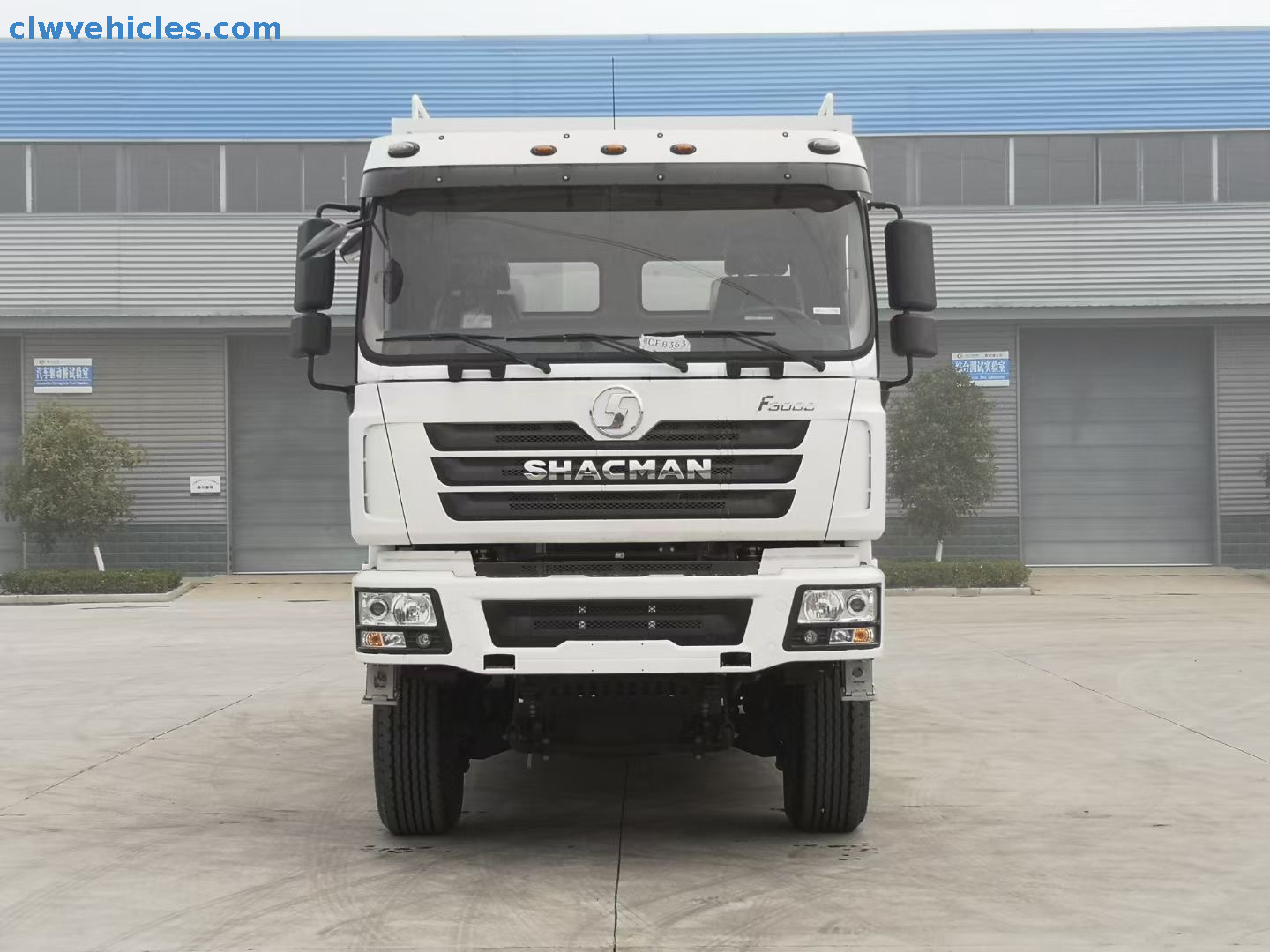

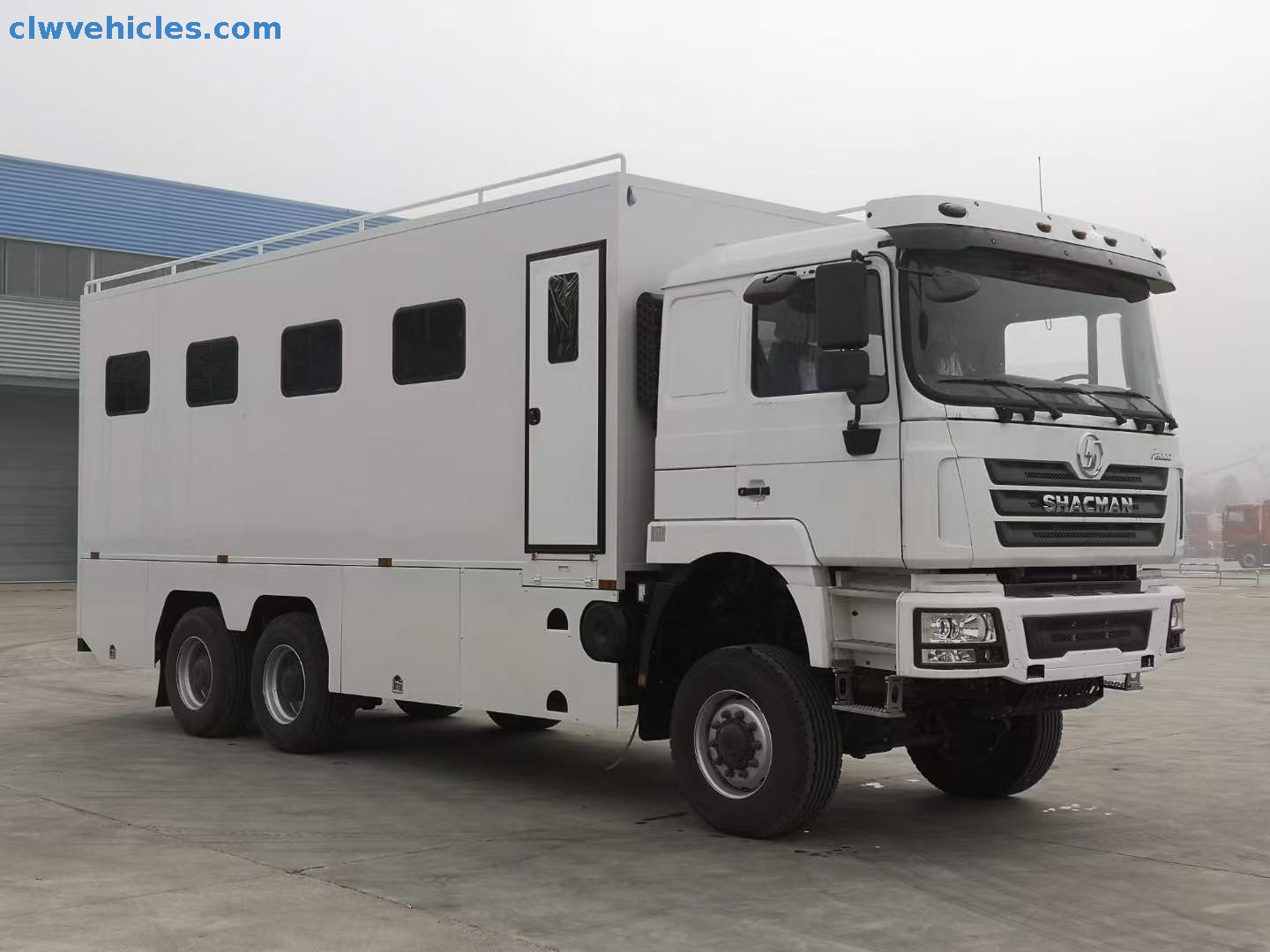

Shacman 6×6 Military Troop Carrier Truck – Rugged, Reliable Off‑Road Transport
When your unit must move personnel safely across rough terrain, the Shacman 6×6 Military Troop Carrier Truck from CLW Group answers the call. Built for demanding missions, this troop carrier truck combines serious off‑road muscle with a protected, climate‑controlled space for up to 30 soldiers or specialists.
Whether you're shuttling troops to a forward operating base or moving engineers into remote locations, this military troop carrier truck handles the job. Its long 8.5 m cargo box (8,500 × 2,500 × 2,300 mm) features sturdy plastic‑steel benches and AWning covers for protection against sun, rain, or dust. The high sides and secure seating make it an ideal Shacman troop carrier for any peace‑time patrol or rapid deployment.
Underneath, a purpose‑built Shacman 6×6 chassis carries a 25,000 kg GVW with a 4,500 + 1,350 mm wheelbase and balanced 7,500 kg front / 16,000 kg rear axles. The WP10.380E32 turbo‑intercooled diesel engine delivers 380 hp and a massive 1,600 N·m of torque at 2,200 rpm, powering you up steep grades or through muddy fields without hesitation. A FAST 8‑forward, 2‑reverse gearbox gives you precise control at low crawl speeds or when cruising at up to 89 km/h on roads. Six rugged 12.00R20 tubeless tires (plus spare) keep you rolling over rocks, sand, or snow.
The troop bay seats 30 in two parallel rows, each bench made of corrosion‑resistant plastic over a steel frame. A manually retractable awning shields troops from the elements, and side rails double as handholds during bumpy rides. The open‑sided design lets you communicate and observe the surroundings, making it a true off‑road military transport vehicle.
All‑Terrain Capability: Full‑time 6×6 drive and high torque for extreme conditions.
High Capacity: Room for 30 troops plus gear, with plenty of headroom and secure seating.
Rapid Deployment: Speeds up to 89 km/h for quick reactions on and off road.
Built‑In Comfort: A/C–equipped single cab keeps driver and commander alert.
Proven Durability: Shacman reliability and CLW Group's quality control ensure years of service.
When the mission demands a Truck‑Mounted Crew Carrier that won't quit, choose the Shacman 6×6 Military Troop Carrier Truck—your trusted partner for frontline mobility and rapid personnel transport.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 8850 | |
| Overall Dimension(mm) | 10550*2500*3350 | |
| Wheelbase(mm) | 4500+1350 | |
| Front/Rear Wheel Track(mm) | 1250/1850 | |
| Front/Rear Overhang(mm) | 1876/1870/1870 | |
| Axle Load(kg) | 7500/16000 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 8500*2500*2300 | |
| Chassis Brand | Shacman | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.380E32 |
| HP | 380 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 9726/280 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1600 | |
| Gearbox | FAST Brand; 8Forward/2Reverse Gear | |
| Tyre | 12.00R20 Tubeless; 6+1 spare tire | |
| Upper body | Quantity | 30 units |
| Type | Generally type( Plastic with steel type) | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
