Shacman
CLW
CLW5180OT9

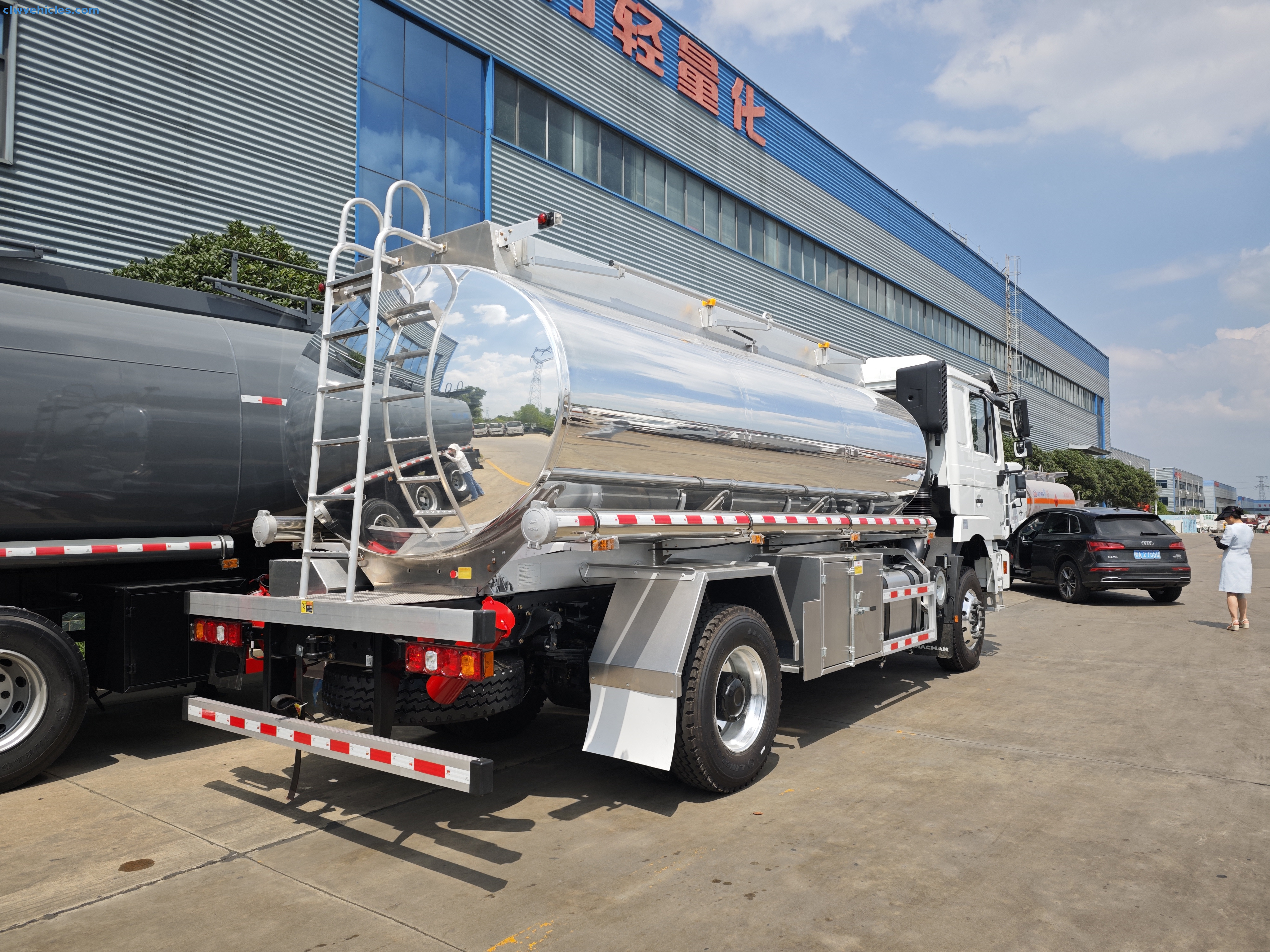

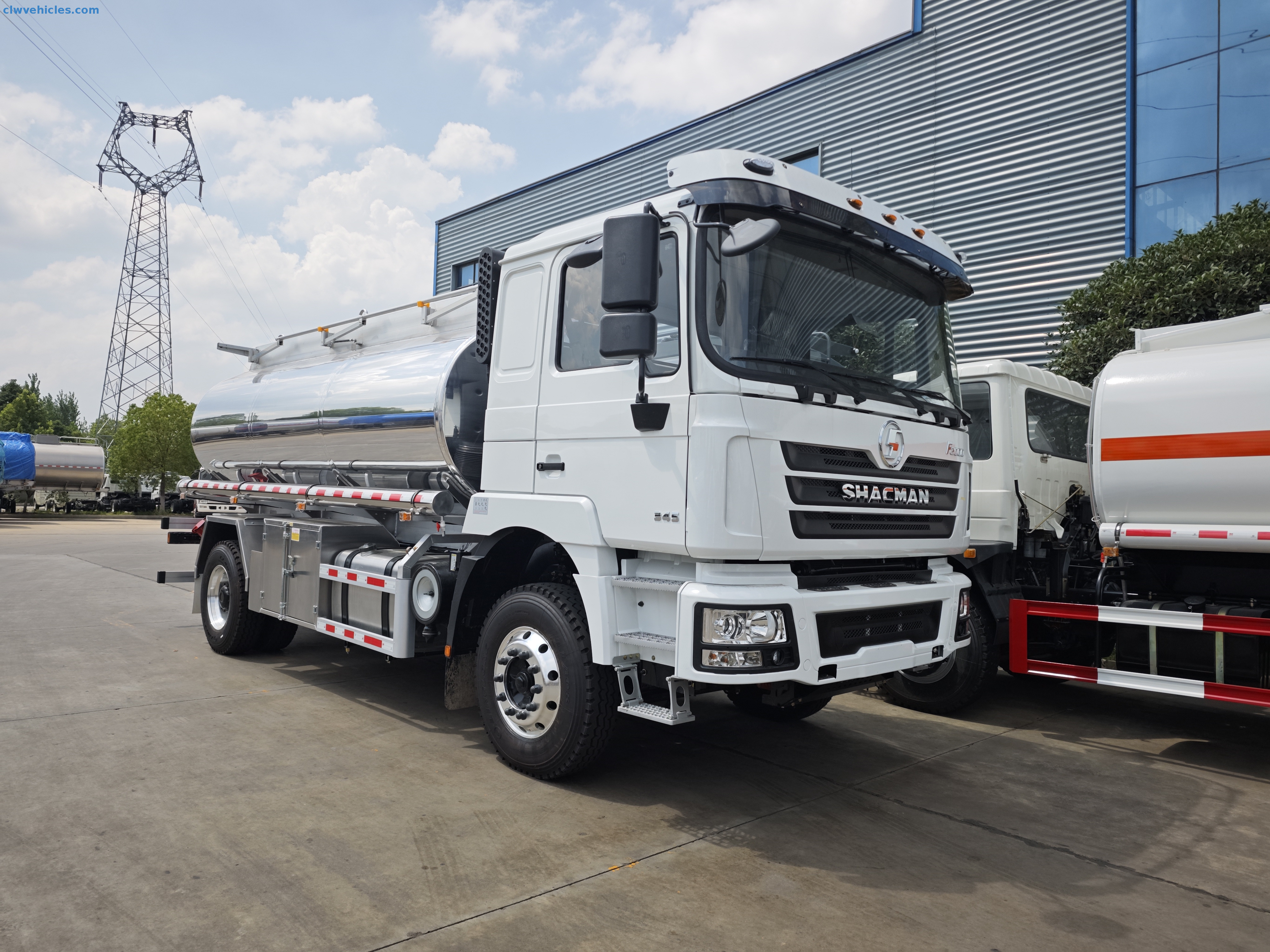

The CLW Brand Shacman 4x2 Oil Tank Truck is engineered for professional petroleum logistics, bulk fuel transport, and petrol station supply. Built on a robust Shacman 4x2 chassis, this tanker is powered by the 345hp ISME345 30 engine paired with a FAST 10-speed transmission, delivering both strength and efficiency for medium and long-distance transport.
The 13.7m³ fuel tank is constructed from mirror aluminum alloy with optional Q235 carbon steel, designed with 3 compartments for flexible fuel delivery. It is equipped with a bottom loading and gravity discharge system, ensuring fast and secure fuel transfer. Safety is prioritized with dual manholes, emergency vents, vapor recovery system, and lockable outlet box, making this tanker the reliable choice for oil distributors, logistics fleets, and refueling operations.
Whether transporting gasoline, diesel, or kerosene, the Shacman 4x2 Oil Tank Truck ensures durability, compliance, and operational efficiency.
Large Tank Volume – 13.7m³ effective capacity with 3 compartments for multi-fuel distribution.
Powerful Engine – 345hp ISME turbocharged & intercooled engine with FAST 10-speed gearbox.
Durable Tank Build – Mirror aluminum alloy with 5mm tank walls, or optional carbon steel Q235.
Efficient Fuel System – Bottom loading, gravity discharge, pneumatic bottom valves, and API adapters.
Enhanced Safety – Dual manholes with emergency vents, vapor recovery system, and lockable outlet box.
Global Standard Compliance – Designed for safe transport of diesel, gasoline, and other fuels.
General Parameters
Model: CLW Brand Shacman 4x2 Oil Tank Truck
GVW: 18,000 kg
Rated Payload: 9,670 kg
Curb Weight: 8,200 kg
Dimensions: 8420 × 2550 × 3350 mm
Wheelbase: 4700 mm
Max Speed: 89 km/h
Cab: Double cabin, 2 passengers
Engine & Transmission
Engine Model: ISME345 30
Power: 345 hp (254 kW)
Type: Turbocharged, intercooled, direct injection, water-cooled
Transmission: FAST 10 forward + 2 reverse

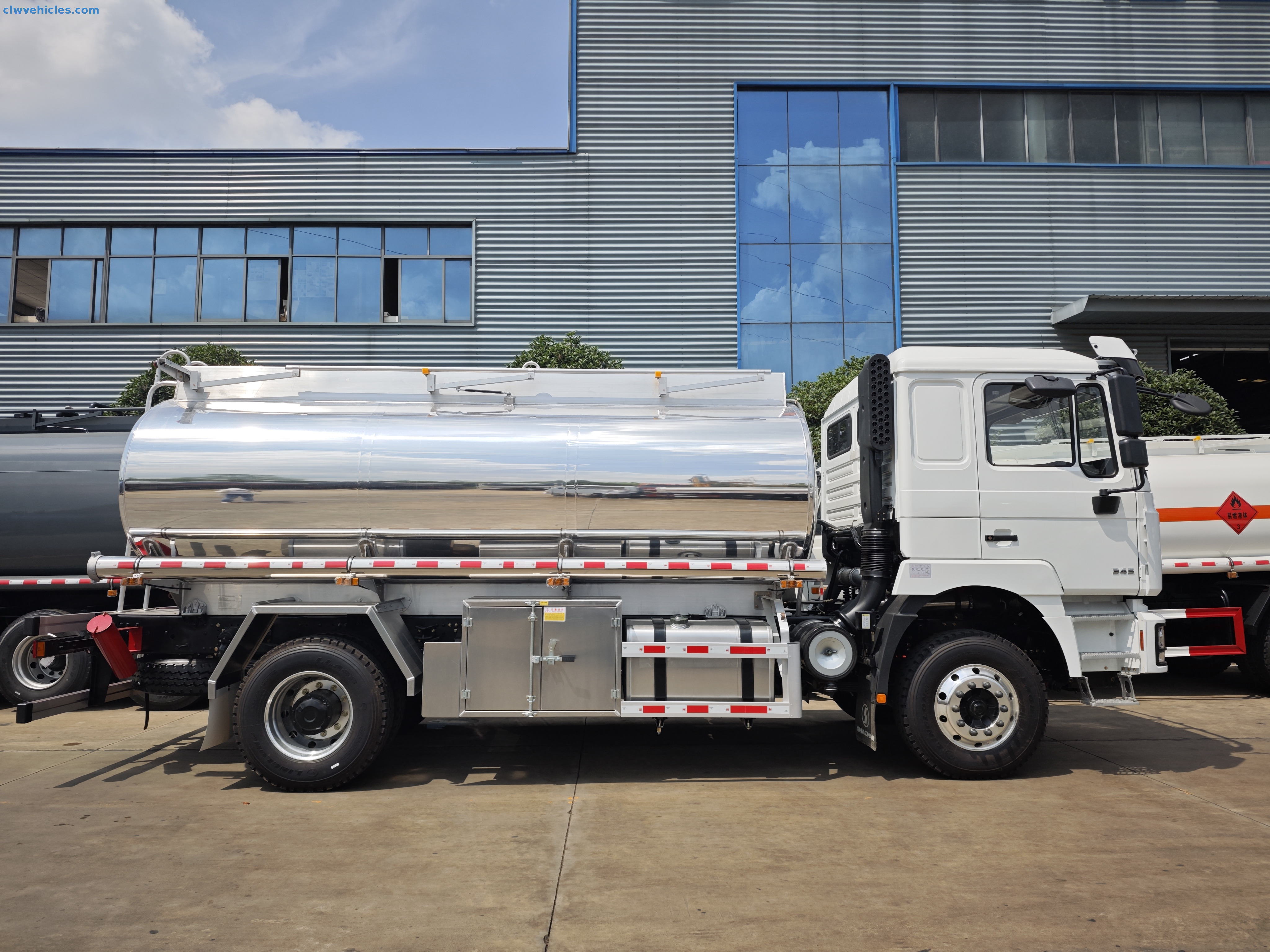

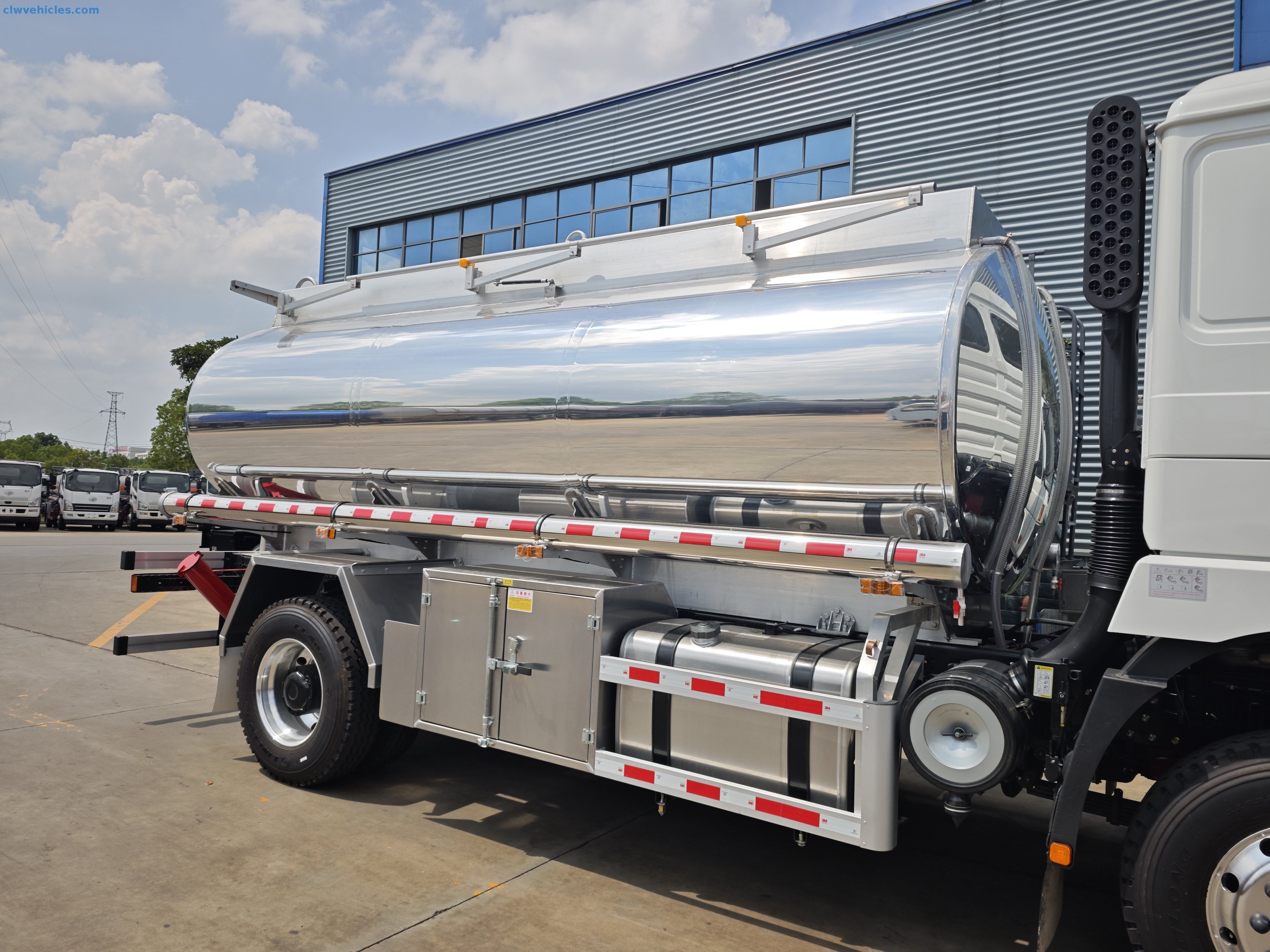

Tank Configuration
Capacity: 13.7 m³
Material: Mirror aluminum alloy or optional Q235 carbon steel
Compartments: 3
Thickness: Head 5mm, tank 5mm, partition 5mm, breaker plate 4mm
Manholes: 2 × 20-inch with emergency & vacuum vents + protective covers
Fuel Loading & Discharge System
Bottom loading with 2 × 4-inch pneumatic bottom valves
2 × 4-inch API adapters with aluminum dust covers
4-inch aluminum alloy pipeline

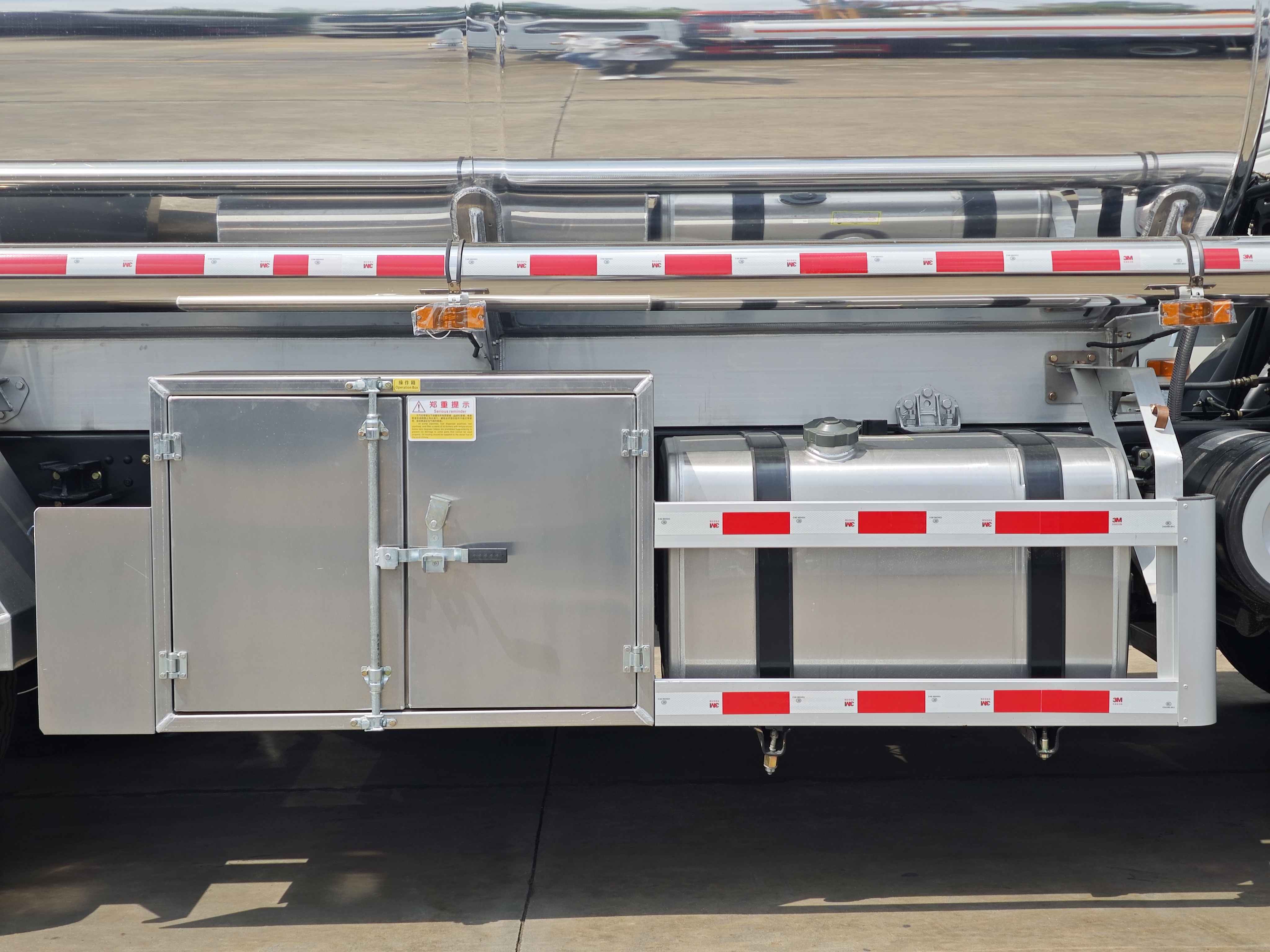

Lockable outlet box with collapsible door
Safety Systems
Dual-line vapor recovery with 3-inch aluminum pipeline
Emergency venting system
Protective covers for manholes
Reverse camera and side monitoring options
Tires: 295/80R22.5 18PR (10+1 spare)
Q1: What is the fuel tank capacity of the Shacman 4x2 Oil Tank Truck?
A1: It has a 13.7m³ tank divided into 3 compartments for flexible fuel transport.
Q2: What type of fuel can it carry?
A2: It is designed for diesel, gasoline, kerosene, and other petroleum-based products.
Q3: What material is the tank made of?
A3: Standard build is mirror aluminum alloy, with optional Q235 carbon steel for customized needs.
Q4: How does the fuel discharge system work?
A4: It uses bottom loading and gravity discharge, equipped with pneumatic valves, API adapters, and aluminum alloy pipelines.
Q5: What safety features are included?
A5: Emergency vents, vapor recovery system, dual manholes with protective covers, and a lockable outlet box.
| Main Technology Parameter | |
| Model Name | CLW Brand Shacman 4x2 Oil Tank Truck |
| Driving Type | 4x2 |
| Color | White or based on client's request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 18000 |
| Rated Payload Weight(kg) | 9670 |
| Curb Weight(kg) | 8200 |
| Dimensions | |
| Wheelbase(mm) | 4700 |
| Front/Rear Overhang(mm) | 1340/2380 |
| Approach/Departure Angle | 16/10 |
| Overall Dimension(mm) | 8420*2550*3350 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | ISME345 30 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 254kw(345hp) |
| Drive Line | |
| Transmission | FAST brand; 10 forwards,2 reverse gear |
| Axle | |
| Axle | 6500/11500 MAN double-stage |
| Tire Specification | |
| Tire Specification | 295/80R22.5 18PR; 10+1 spare tire |
| Front Wheel Track(mm) | 1935 |
| Rear Wheel Track(mm) | 1860 |
| Number of Leaf Springs | 3/- |
| Upper Body | |
| Fuel Tank | |
| Capacity(cbm) | 5800*2260*1450mm; 13.7cbm |
| Tank Material | Mirror Aluminum alloy(Carbon steel Q235) |
| Filling Medium | Gasoline,Diesel Or Other Loading Medium |
| Thickness(mm) | Head is 5mm; tank is 5mm ;separated plate is 5mm;breakwater plate is 4mm |
| Compartments | 3 |
| Manhole | 1. Two manholes with a diameter of 20 inches and 20-inch manhole covers; a 10-inch filling/venting port. The pressure vacuum vent and emergency vent are included in the manhole assembly. 2. Protective covers are provided for the manholes. |

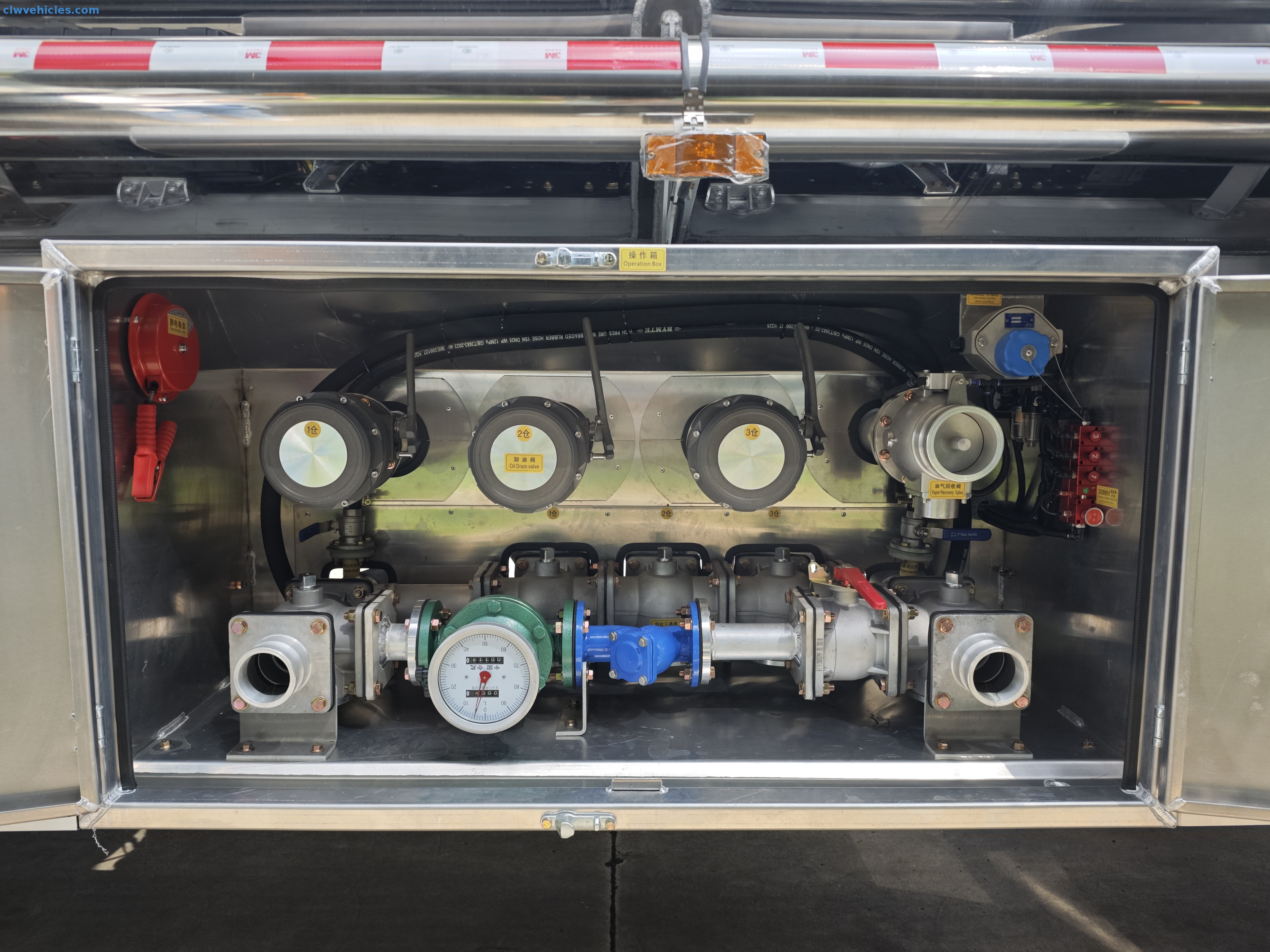

| Discharge System | Bottom loading and gravity discharge system: 1. Bottom valve: There are 2*4-inch pneumatic bottom valves at the bottom of the tanker. 2. 4-inch aluminum alloy pipeline 3. There are 2*4-inch API adapters on the right side of the tanker, equipped with aluminum dust covers. Horizontal installation. 4. All outlets are inside the aluminum alloy box. 5. The outlet box is equipped with a collapsible door with a lock. |
| Vapor Recovery System | 1. Two sequential pneumatically controlled air vents. 2. A 3-inch aluminum alloy pipeline from the two manholes to the middle bottom of the tank. 3. One vapor recovery adapter is installed on the right side of the middle bottom of the tank. |
