Shacman
CLW
CLW5250WT1

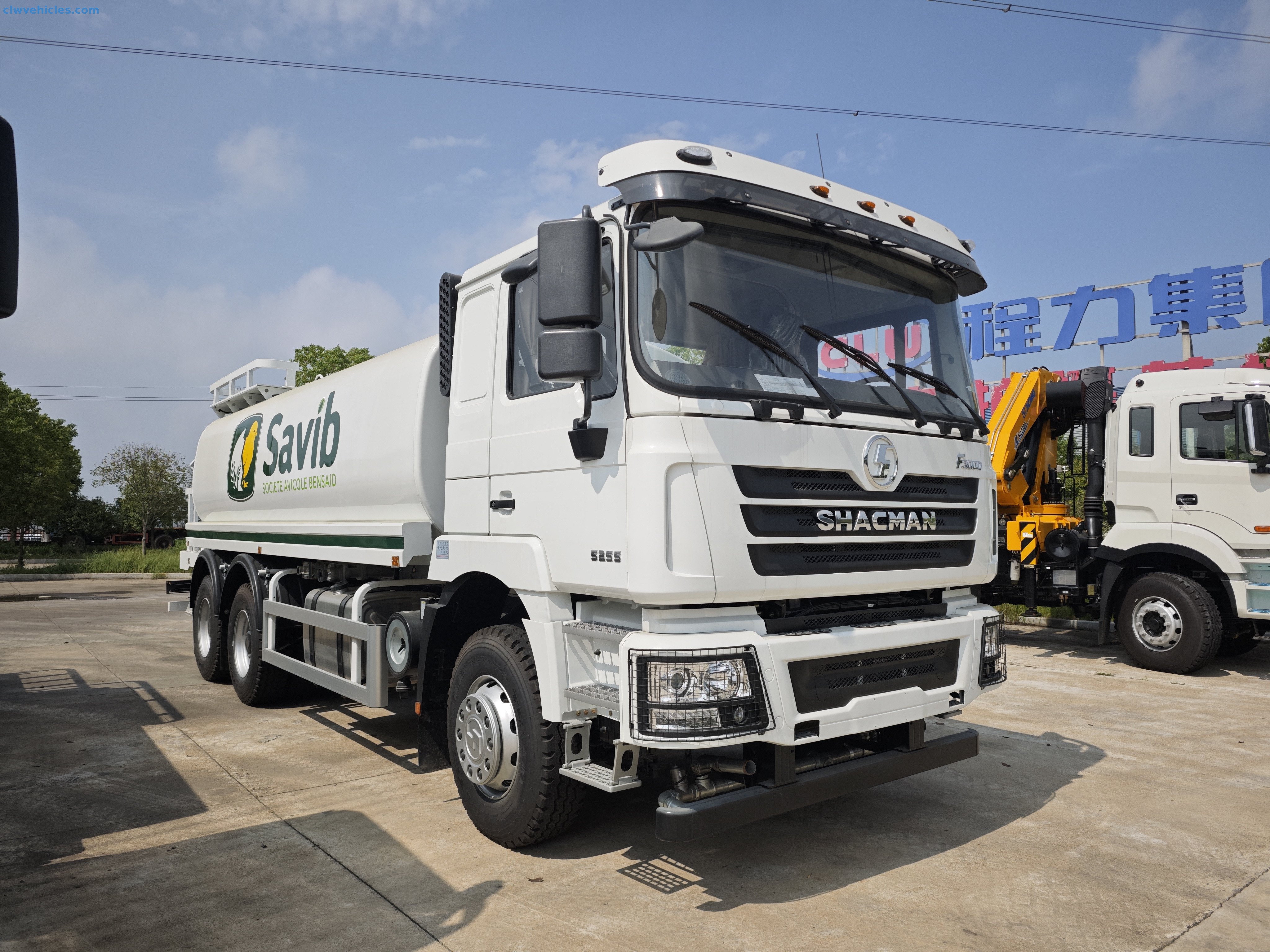

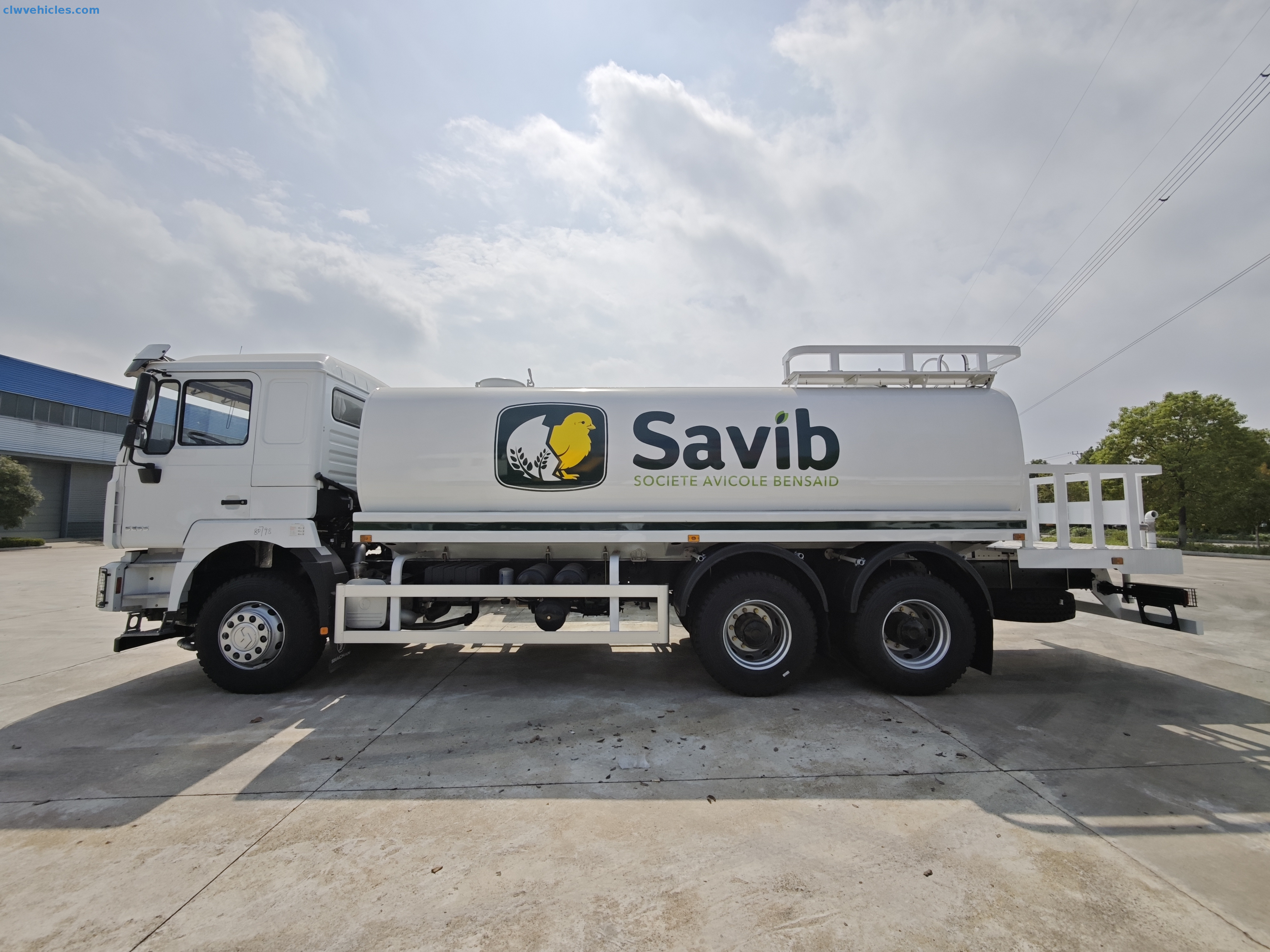

The Shacman F3000 6×4 Water Sprinkler Truck is a heavy-duty water tanker designed for road cleaning, dust control, landscaping, and construction site operations. With a 16,000-liter water tank, powerful pumping system, and reliable spraying functions, this truck ensures efficient performance in urban and industrial applications.
Built on the robust Shacman F3000 chassis, it features a Euro 2 YC6G255-20 diesel engine with 255 horsepower, delivering strong and stable performance. The water tank is made of high-strength carbon steel, ensuring durability and long service life.
Large 16,000L Water Tank – Suitable for city road cleaning, irrigation, and dust suppression.
Powerful Pumping System – WeiLong low-pressure water pump with 50m³/h flow and 110m head.
Durable Tank Body – 5mm thick carbon steel for long-lasting strength.
Efficient Spraying – Equipped with front, rear, and side spray systems for full coverage.
Optional Fog Cannon – Enhances dust suppression for mining and construction sites.
Reliable Drivetrain – 6×4 drive, FAST 9JS119 gearbox, and MAN heavy-duty axles for stability.
General
Model: CLW Shacman Watering Truck
Driving Type: 6×4
GVW: 25,000kg
Payload: 13,270kg
Curb Weight: 11,600kg
Dimension (mm): 9935 × 2490 × 3210
Tank Capacity: 16m³
Engine & Transmission
Engine Model: YC6G255-20 (Euro 2)
Power: 188 kW / 255 HP
Transmission: FAST 9JS119, 9F/1R gears
Fuel Type: Diesel
Max Speed: 90 km/h
Water Tank & Pump
Tank Material: 5mm high-strength carbon steel
Tank Size: 6600 × 2400 × 1600mm
Pump Brand: WeiLong
Pump Flow Rate: 50m³/h
Pump Head: 110m
Power Take-off: Electric PTO
Axle & Tires
Front Axle: MAN 7.5T
Rear Axle: 13T MAN Double Reduction
Tire Size: 315/80R22.5, 18PR
Optional Configurations
Fog cannon system
Stainless steel or aluminum alloy tanker body
City Sanitation – Road cleaning, park watering, municipal maintenance.
Construction Sites – Dust suppression and foundation watering.
Agriculture – Farmland irrigation and spraying.
Mining & Industrial Areas – Dust control and cooling operations.
Q1: What is the capacity of the Shacman F3000 water sprinkler truck?
A1: The truck is equipped with a 16,000-liter water tank, suitable for road cleaning, irrigation, and dust suppression.
Q2: Can the water tank material be customized?
A2: Yes, it can be built with stainless steel or aluminum alloy according to client requirements.
Q3: What kind of pump does this truck use?
A3: It uses a WeiLong low-pressure pump with 50m³/h flow and 110m head for strong and stable spraying.
Q4: Is a fog cannon available for dust suppression?
A4: Yes, an optional fog cannon system can be added for enhanced dust control in mining and construction sites.
Q5: What are the main applications of this water truck?
A5: It is widely used for city sanitation, landscaping, construction site watering, farmland irrigation, and dust suppression.
Main Technical Parameters
| Main Technology Parameter | |
| Model Name | CLW Shacman Watering Truck |
| Driving Type | 6*4 |
| Color | White or based on client's request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 13270 |
| Curb Weight(kg) | 11600 |
| Dimensions | |
| Wheelbase(mm) | 4375+1400 |
| Front/Rear Overhang(mm) | 1525/2519 |
| Approach/Departure Angle | 16/10 |
| Overall Dimension(mm) | 9935*2490*3210 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | YC6G255-20 |
| Emission Standard | Euro 2 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Max.Output(kw) | 188(255hp) |
| Drive Line | |
| Transmission | FAST 9JS119+QH50; 9Forward/1Reverse Gear |
| Steering | ZF8098 technology, circulating ball steering machine |
| Brake | Drum brake(Double circuit air brake; rear wheel spring brake; WEVB engine exhaust brake) |
| Axle | |
| Axle | MAN 7.5T; 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 |
| Tire Specification | |
| Tire Specification | 315/80R22.5 18PR |
| Front Wheel Track(mm) | 2036 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 10/12 |
| Upper Body | |
| Volume | 16m³ |
| Tank Size | 6600*2400*1600mm |
| Raw Material | High-strength carbon steel(thickness 5mm) |

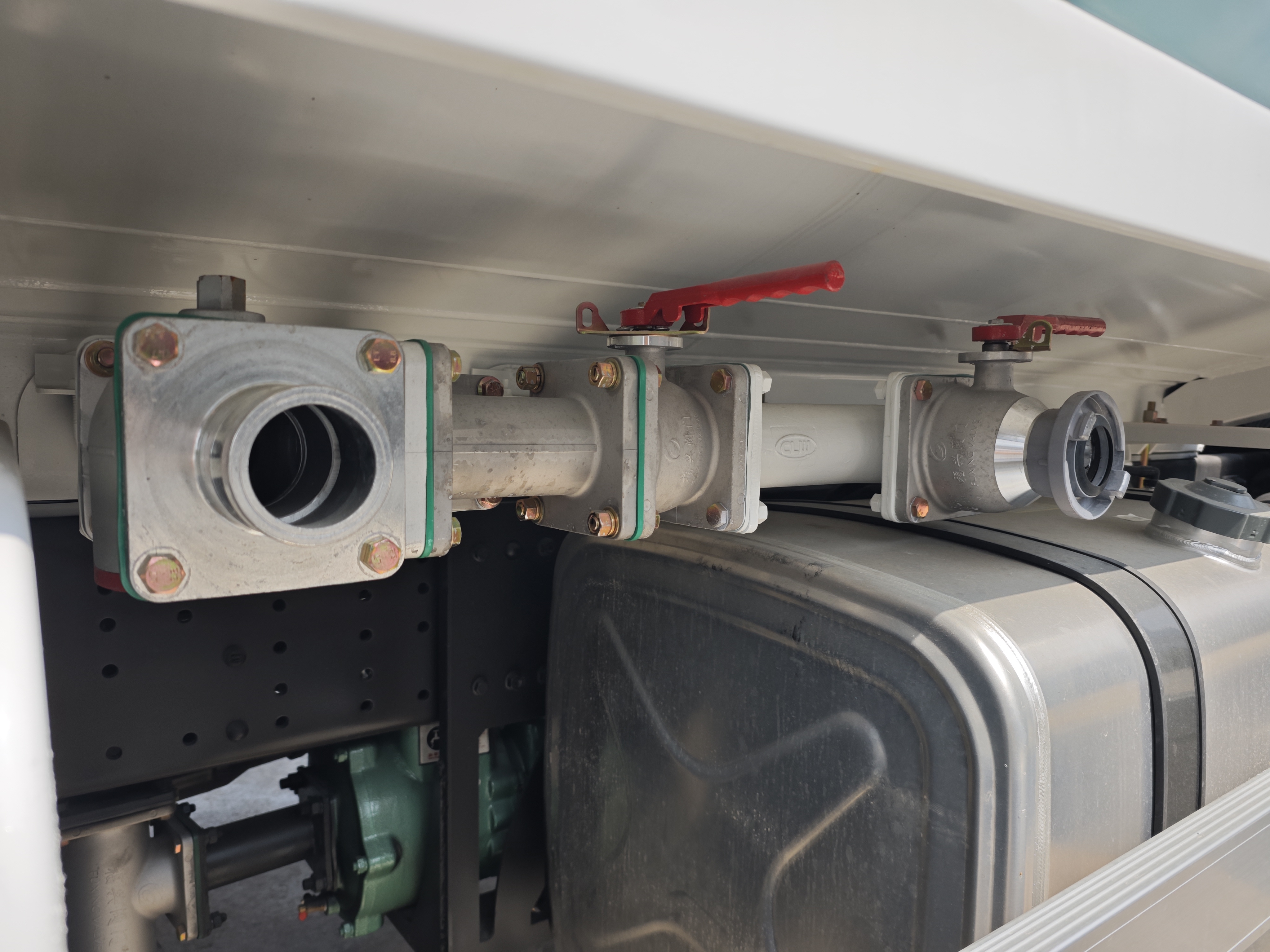

| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 110m |
| Optional Configuration | 1.Fog Cannon could be available |
| 2.Tanker material could be customized | |
