Main technical parameter：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 |
| Curb Weight(kg) | 19000 |
| Loading Weight(kg) | 6000 |
| Overall Dimension(mm) | 12000*2550*3900 |
| Wheelbase(mm) | 3775+1400 |
| Axle Load(kg) | 9000/16000 |
| Top Speed(km/h) | 85 |
|
| Chassis Brand | Shacman |
| Chassis Model | SX3165DR442 |
| Cabin | Single,LHD,with A/C |
| Engine | Model | WP10.340E32 |
| HP | 340 |
| Emission Standard | Eu 3 |
| Displacement/Output(ml/kw) | 9726/250 |
| Fuel Type | Diesel |
| Rate Speed(rpm) | 2200 |
| Maximum Torque(N·m) | 1250 |
| Maximum Torque Speed(rpm) | 1400-1600 |
| Gearbox Brand | Fast |
| Gearbox | 10Forward/1Reverse Gear |
| Tyre | 12.00R20 |
|
| Crane | Crane Model | MSQS300-4 |
| Max. lifting moment(kN·m) | 300 |
| Max lifting capacity(kg) | 12000 |
| Max hydaulic outreach(m) | 14.5 |
| Slewing angle(°) | 360 |
| Stabilizer spread(mm) | 2310-5700 |
| Installation space(mm) | 130 |
| Max operating pressure(MPa) | 26 |
| Recommended pump capacity(L/min) | 63+40 |
| Oil tank capacity(L) | 270 |
| Dead weight(kg) | 4300 |

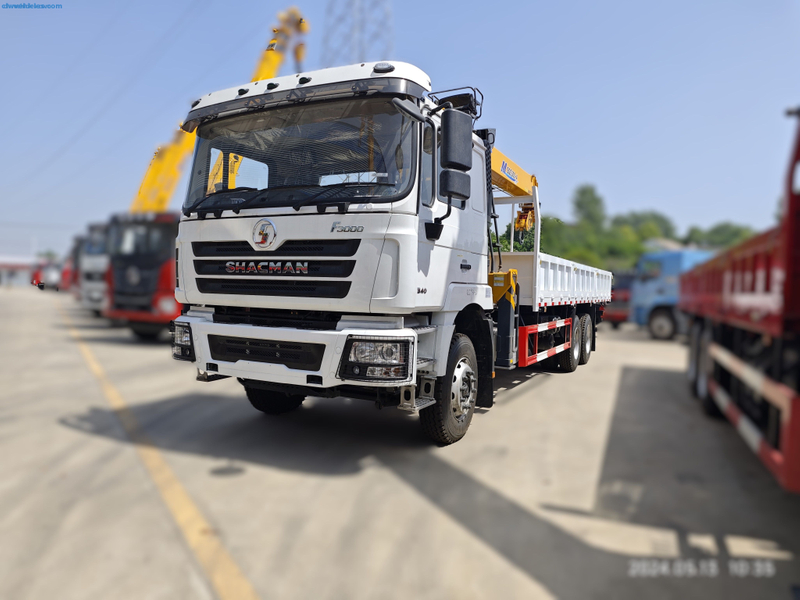

The chassis of this Shacman truck-mounted crane is derived from the Shacman F3000 series and is powered by a Weichai WP10.340E32 engine. The overall dimensions of the vehicle are considerable, with a length, width and height of 12,000 mm, 2,550 mm and 3,900 mm respectively.
For the upper part, the size of the cargo box is 8,300×2,450×550 mm. The key crane is of XCMG brand, with the model MSQS300-4, which is a design of 12 tons and 4 boom sections.
The maximum working range of this crane is 12.5 meters, the maximum lifting height is 16.3 meters, and the maximum lifting capacity is 12 tons. In the fully extended boom state, the maximum lifting weight is 1.8 tons.
The slewing speed is 2 to 3 revolutions per minute, and the lifting speed is 115 meters per minute.
Whether it is lifting heavy objects at the construction site or handling large equipment in the industrial field, this Shacman truck-mounted crane has excellent operating capabilities and can efficiently complete various lifting tasks.
