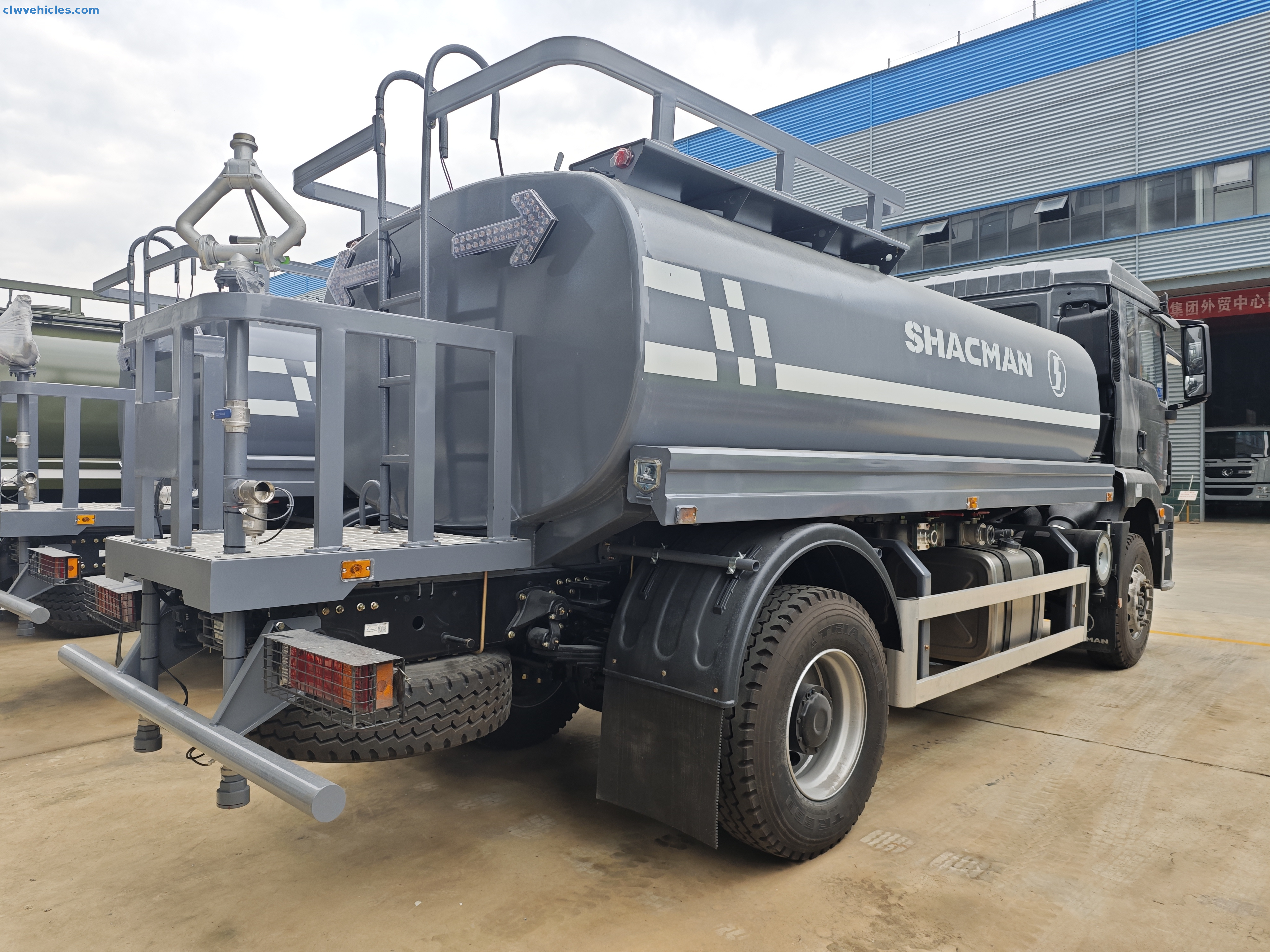

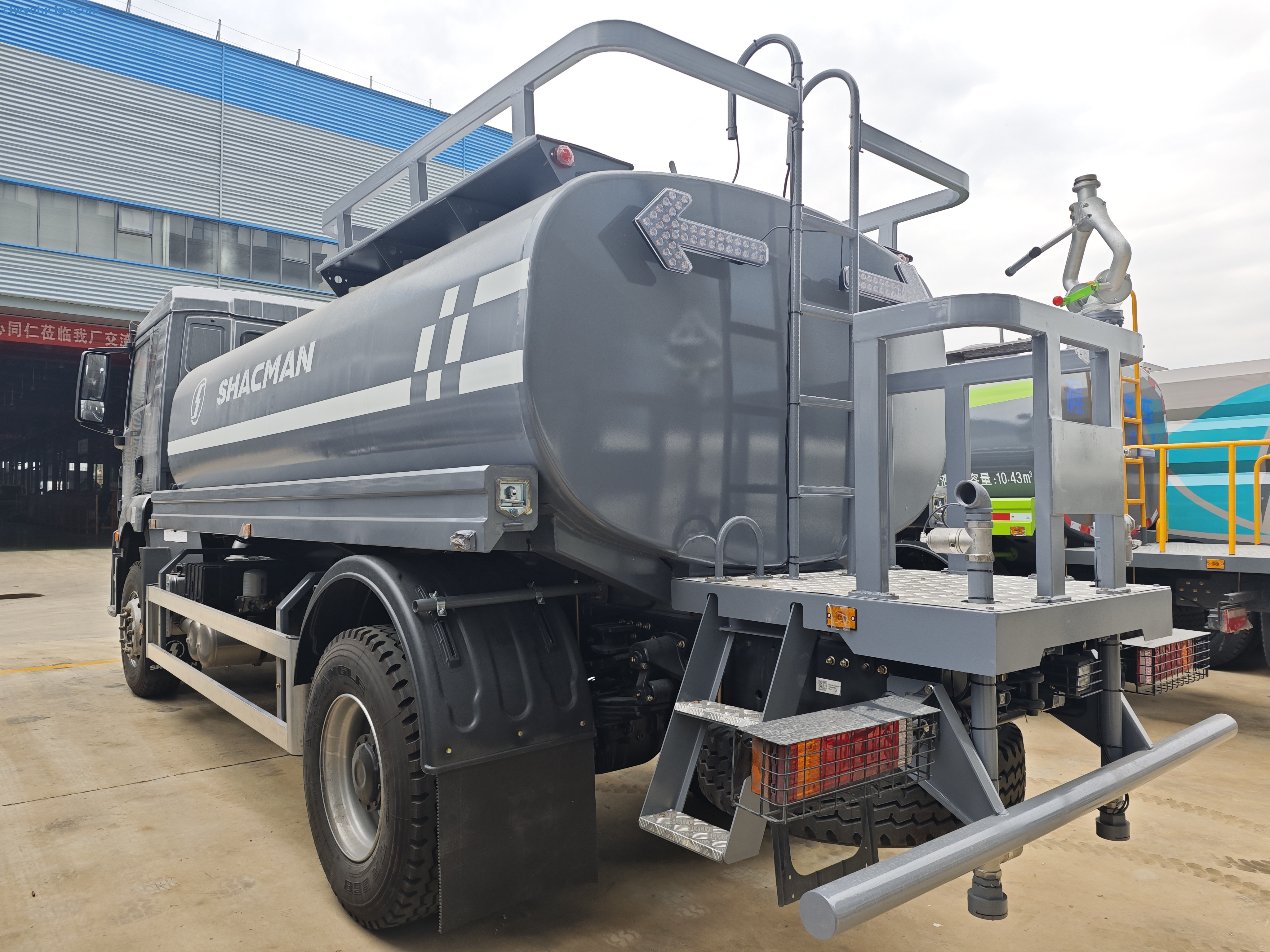

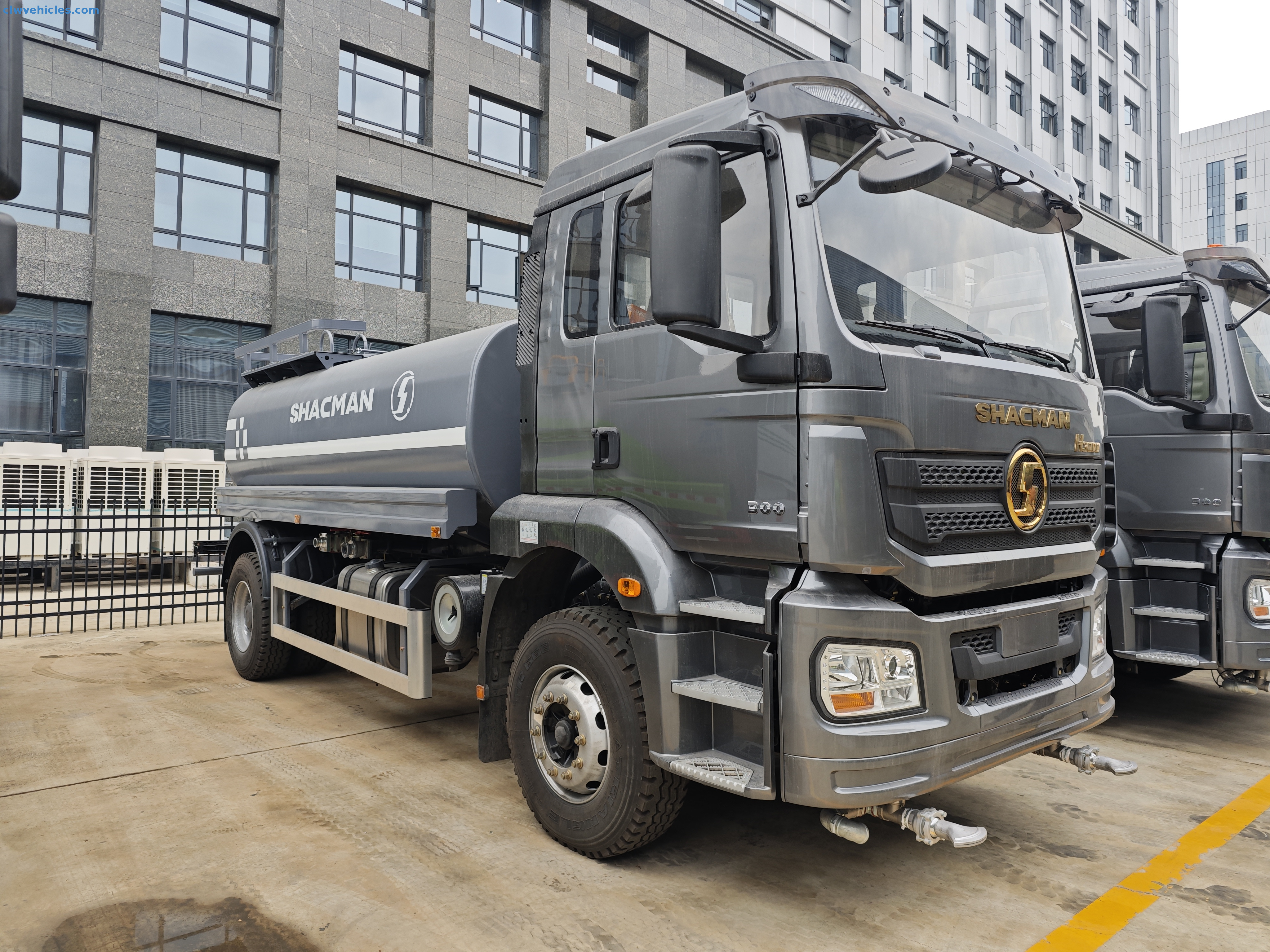

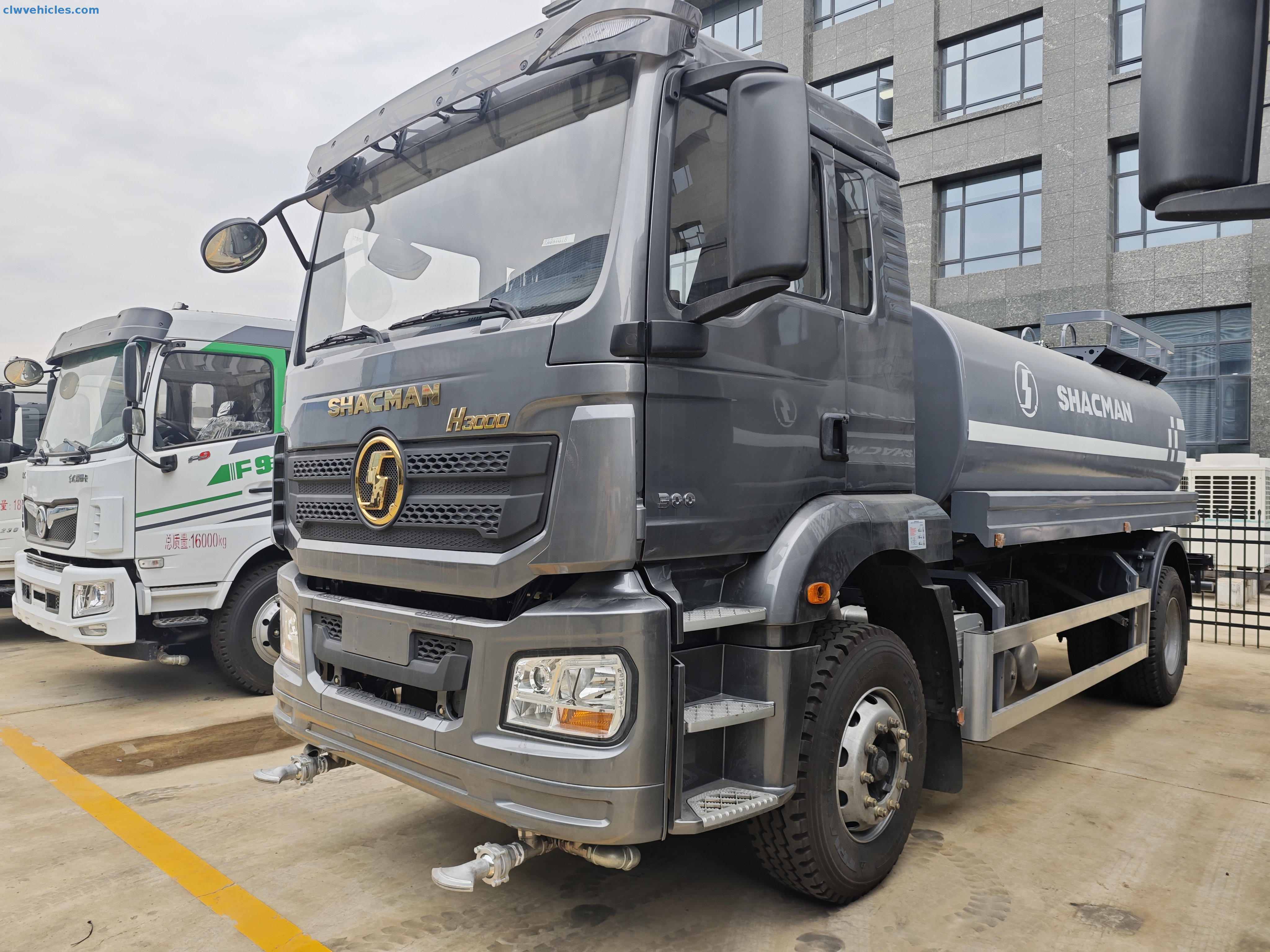

Shacman H3000 18cbm Water Sprinkler Truck

Shacman 6x4 18cbm Water Sprinkler Truck | CLW Group Water Tanker for Dust Control & Road Cleaning

Product Description

The Shacman 6x4 18cbm Water Sprinkler Truck is engineered to handle demanding daily operations where efficient and controlled water distribution is essential. Based on Shacman’s rugged 6x4 chassis, this truck combines strong power, stable carrying capacity and precise water spraying performance in one integrated solution.

At its core is the WP12.400E62 engine, delivering 294 kW (400 hp) and meeting Euro 5 emission standards. The water-cooled, four-stroke engine with exhaust valve braking, direct injection and turbocharged intercooling provides reliable power for long-haul routes, slopes and heavy loads. Paired with the 10JSD180T+QH50 transmission (10 forward and 2 reverse gears), drivers can choose appropriate gears for city streets, highways and rough site roads, maintaining both fuel efficiency and control.

The truck’s total gross vehicle weight is 25,000 kg, with a rated payload of 13,740 kg and a curb weight of 11,130 kg. A 4375+1400 mm wheelbase, 16°/9° approach and departure angles and power steering help the vehicle navigate urban corners, plant roads and uneven construction sites with confidence. The reinforced 7.5-ton front axle and double 13-ton rear axles, combined with 315/80R22.5 tires (10+1 spare), support stable driving under full load and frequent stopping. An air brake system with front and rear drum brakes provides safe braking performance.

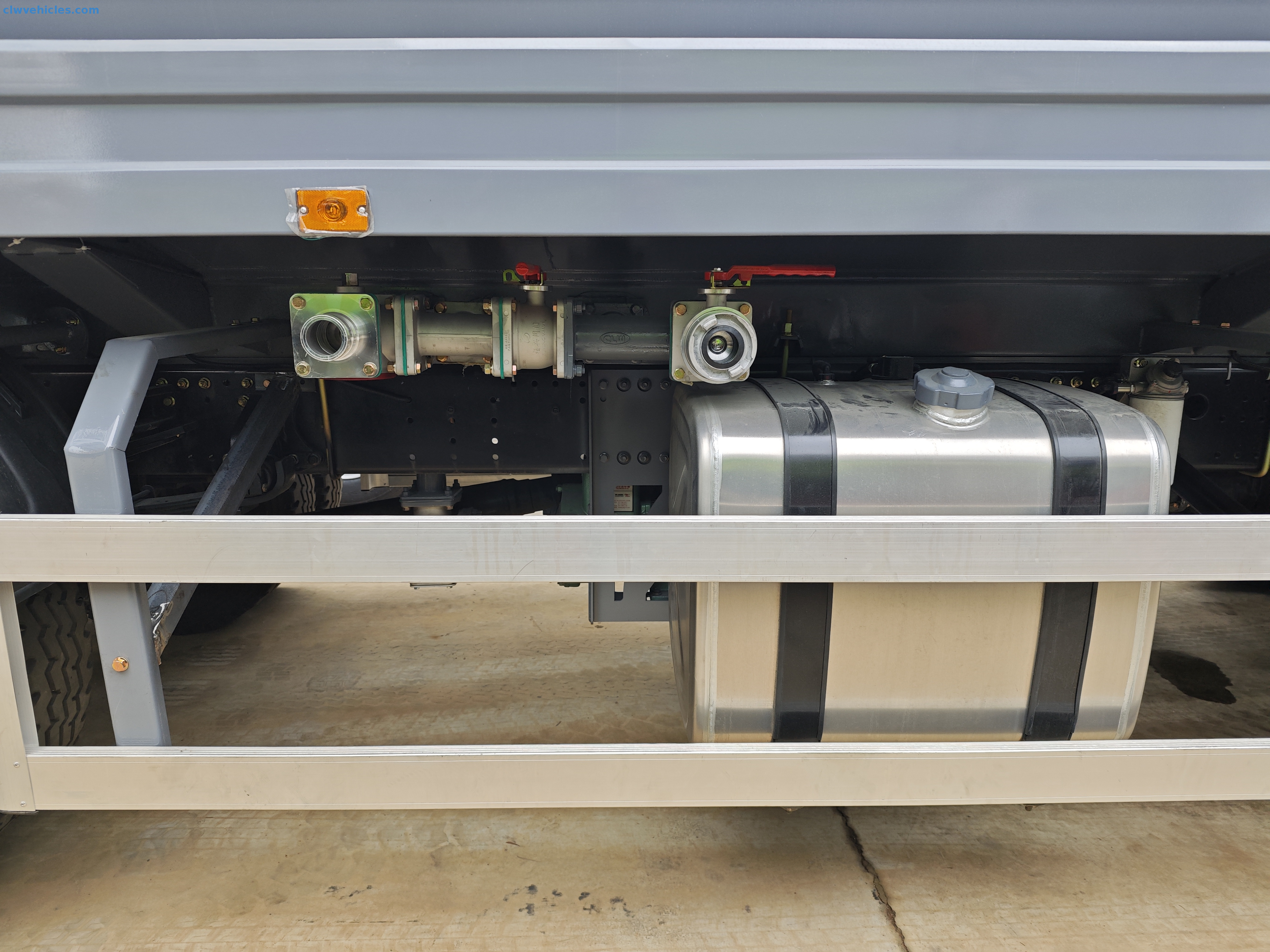

The upper body is equipped with an 18m³ tank manufactured from 5 mm thick high-strength carbon steel, giving good durability and resistance to harsh working environments. Tank dimensions are approximately 6500×2450×1650 mm, with galvanized pipes used throughout the water system to help reduce internal corrosion. The water distribution system includes a front-mounted sprinkler with a spray width greater than 14 m, suitable for wide road coverage, and a rear water cannon with a range over 28 m for long-distance spraying and elevated targets.

A high-performance low-pressure water pump (WeiLong brand) with a flow rate of 50 m³/h and head of 110 m supports fast filling and stable output. The pump can draw water from lakes, rivers, reservoirs or hydrants, providing flexibility for areas without fixed water supply points. Electric power take-off simplifies operation of the mounted system, and the rated power of the mounted motor is 30/45 kW. Fire valves, filters and adjustable nozzles are configured to maintain stable water flow and enable multiple spray patterns as needed.

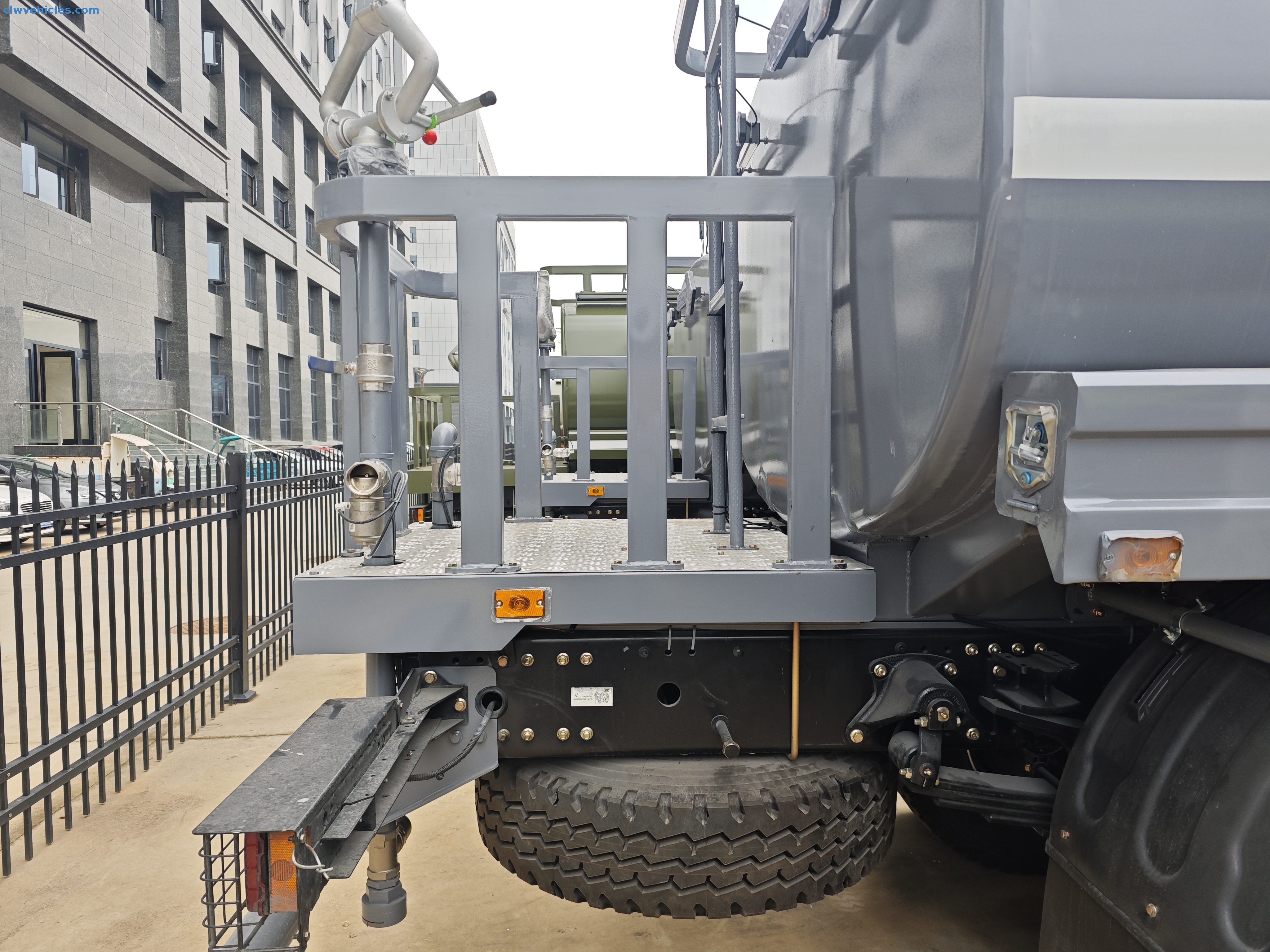

The rear working platform allows safe operation of the water cannon, especially when conducting long-range spraying or supporting firefighting and emergency water delivery tasks. With an overall dimension of 10270×2550×3260 mm and a maximum speed of 90 km/h, the truck balances large capacity with road maneuverability. Optional configurations such as a fog cannon can be added for fine mist dust suppression in mining areas, construction zones or quarry environments. The tank material can also be customized according to customer requirements to better match specific working conditions.

By integrating a durable chassis, high-capacity tank, reliable pumping system and flexible spraying functions, the Shacman 6x4 18cbm Water Sprinkler Truck provides a practical solution for municipal, industrial and agricultural water management tasks.

Applications

• Municipal road cleaning and dust suppression on city streets and urban avenues

• Highway and expressway surface cooling and cleaning

• Construction site road wetting and dust control

• Mining, quarry and industrial zone dust suppression (with optional fog cannon)

• Irrigation of urban green belts, parks and roadside vegetation

• Agricultural field irrigation and rural road watering

• Emergency water delivery for communities and work sites

• Long-range water spraying and support for firefighting operations

Key Advantages

• Powerful Euro 5 engine: WP12.400E62 294 kW (400 hp) engine provides strong power with Euro 5 emission compliance.

• Heavy-duty 6x4 chassis: Shacman chassis with 7.5-ton front and dual 13-ton rear axles designed for heavy loads and continuous operation.

• Large 18m³ tank capacity: High-strength 5 mm carbon steel tank offers ample water volume for large-scale tasks, reducing refill frequency.

• Efficient spray system: Front sprinkler spray width >14 m and rear water cannon range >28 m for both wide and long-distance coverage.

• Reliable pumping performance: WeiLong low-pressure water pump with 50 m³/h flow and 110 m head for fast suction and stable output.

• Durable piping and structure: Galvanized pipes and robust tank construction improve resistance to corrosion and harsh working conditions.

• Safe and easy operation: Rear working platform, power steering and air brake system enhance safety and operator comfort.

• Flexible customization: Optional fog cannon and customizable tank material to suit different working environments and customer requirements.

Exported Experience

The Shacman 6x4 18cbm Water Sprinkler Truck is designed to meet the practical needs of municipal, industrial and agricultural users who require reliable water transport and spraying performance. With its Euro 5 engine, large 18m³ tank, wide spray coverage and optional fog cannon, it is suitable for customers who need a complete solution for road cleaning, dust suppression, irrigation and emergency water supply in diverse regions and working conditions.

FAQ

Q1: What is the effective water tank capacity of this Shacman water sprinkler truck?
A1: The tank capacity is 18 m³ (18 cbm), manufactured from 5 mm thick high-strength carbon steel.

Q2: What is the driving configuration and chassis type?
A2: The truck adopts a Shacman 6x4 driving type with a heavy-duty chassis designed for demanding municipal, industrial and agricultural applications.

Q3: Which engine does the truck use and what emission standard does it meet?
A3: It is equipped with the WP12.400E62 engine, a water-cooled, four-stroke engine with exhaust valve braking, direct injection and turbocharged intercooling. The engine output is 294 kW (400 hp) and meets Euro 5 emission standards.

Q4: What are the main spraying functions?
A4: The truck features a front-mounted sprinkler with a spray width greater than 14 m for road cleaning and dust suppression, and a rear water cannon with a range over 28 m for long-distance spraying and support in firefighting or emergency water delivery.

Q5: What kind of water pump is used on this truck?
A5: It uses a WeiLong low-pressure water pump with a flow rate of 50 m³/h and a head of 110 m, supporting efficient water suction and stable discharge.

Q6: Can the truck be customized for different working conditions?
A6: Yes. Optional configurations include a fog cannon for fine mist dust suppression, and the tank material can be customized according to customer requirements.

Q7: What are the overall dimensions and maximum speed of the vehicle?
A7: The overall dimensions are approximately 10270×2550×3260 mm, and the maximum speed is 90 km/h under standard conditions.

Main Technical Parameters
