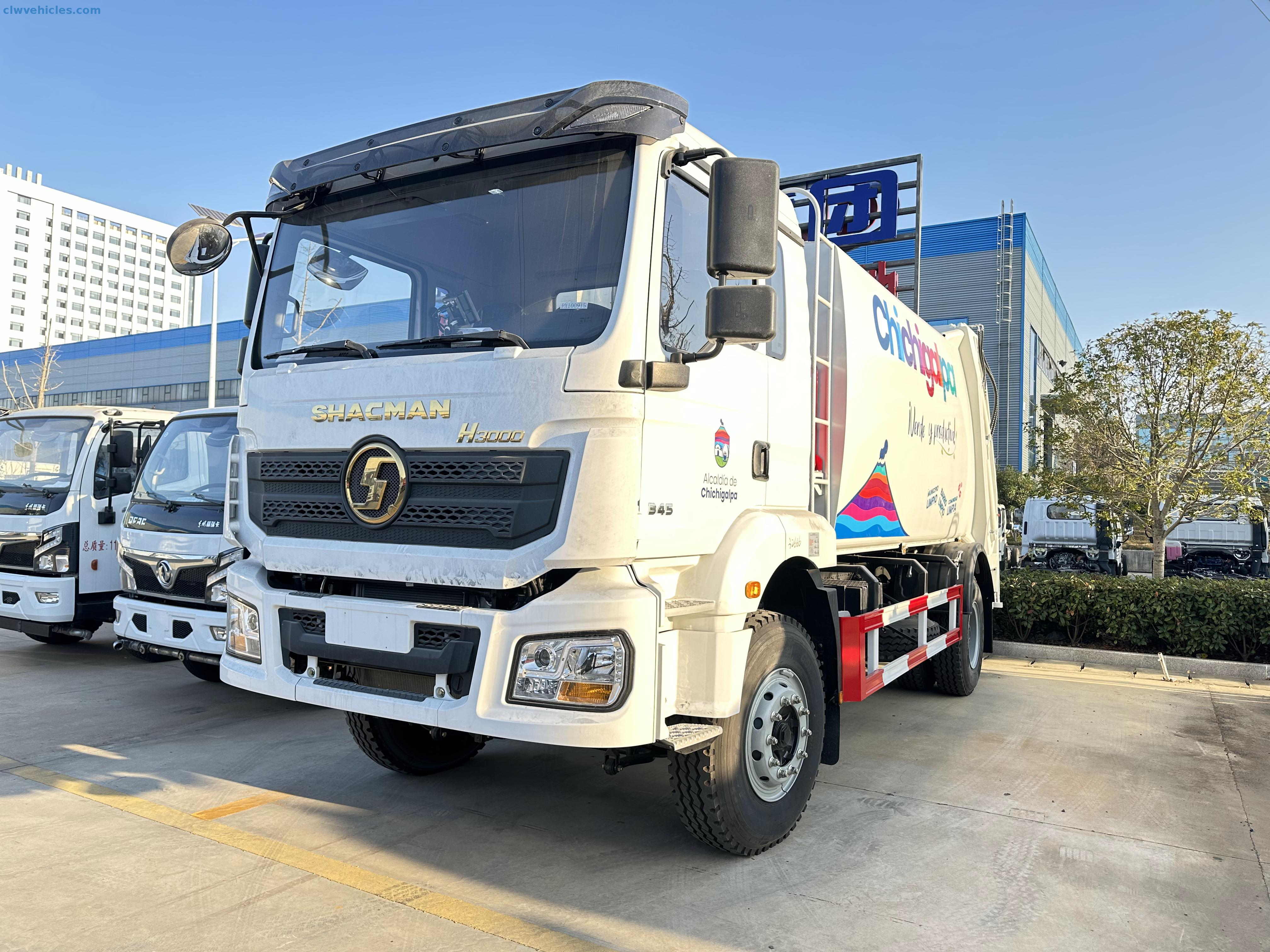

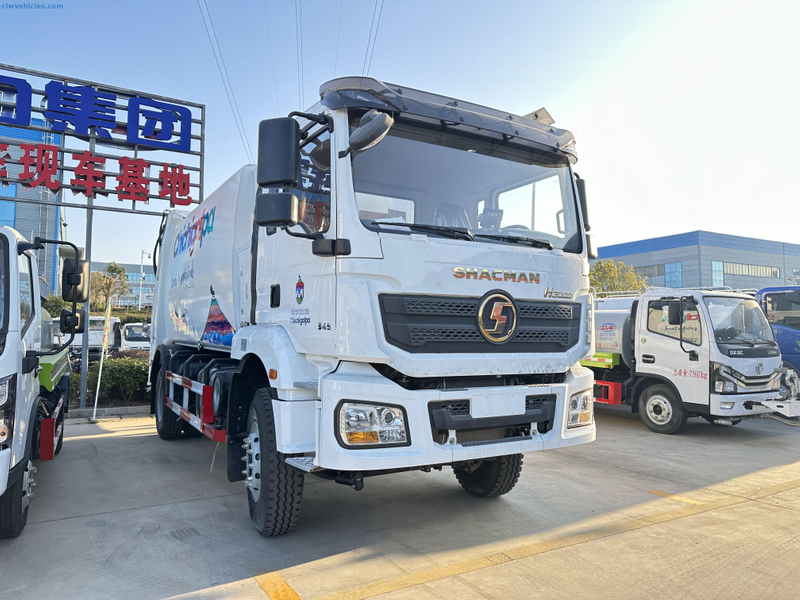

Shacman H3000 4x2 12cbm Garbage Compactor Truck with Customization

Shacman 4x2 H3000 12cbm Garbage Compactor Truck

Key Specifications

• Overall Dimensions (L×W×H): 8,780 × 2,550 × 3,500 mm

• Wheelbase: 4,500 mm

---

Chassis & Powertrain

• Base Chassis: Shacman H3000 Original 4x2 Chassis

• Engine: Weichai WP6.210E32

• Power: 210 HP | High Torque & Low Fuel Consumption

• Transmission: FAST 8-Speed Manual Gearbox

---

Cab & Features

• Cab Design: White Shacman H3000 Heavy-Duty Cab

• Comfort & Convenience:

• Power Windows | Factory Air Conditioning | Power Steering

• Safety Systems:

• ABS | Central Locking | Air Brake System

---

Tires & Braking

• Tires: 10.00R20 Steel-Belted Tires (Spare Tire Included)

---

Garbage Compaction System

• Compactor Box Material: T700L High-Strength Steel

• Thickness: Side Plates (4mm) | Bottom Plates (5mm)

• Capacity: 12 m³

• Compaction Ratio: 0.6–0.8 t/m³

• Control Method:

• Dual-Side Control Boxes + Manual Levers (Flexible Operation)

---

Operational Highlights

1. Robust Design:

• Reinforced T700L steel compactor box ensures long-term durability.

• Optimized chassis for heavy-duty waste management tasks.

2. Efficient Compaction:

• High compaction ratio maximizes load efficiency.

3. Operator-Centric Controls:

• Dual-side control boxes enhance safety and workflow in urban environments.

---

Designed for reliability and efficiency in municipal and industrial waste collection, this Shacman compactor truck delivers powerful performance with low operational costs.

Technical Specifications of the CLW 12cbm garbage compactor truck：

Main Technology Parameter
Model Name	CLW Brand Shacman H3000 4x2 12cbm Garbage Compactor truck
Driving Type	4x2
Color	White color or based on client’s request.
Weights
GVW(kg)	18000
Rated payload weight(kg)	6955
Curb weight(kg)	10850
Dimensions
Wheelbase(mm)	4500
Overall Dimension(mm)	8780*2550*3500
Max speed(km/h)	89
Engine
Engine model	WP6.210E32
Emission standard	Euro 3
Engine type	Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler
No. of cylinders	straight-6 cylinders, diesel
Displacement(L)	6.2
Max. output (kw)	155(210hp)
Drive Line
Transmission	Fast Brand;8 forwards,2 reverse gear, manual operation
Steering	Power steering
Brake	Air brake with vacuum pump
Axle
Front axle	Dena 6.5 tons
Rear axle	Dena 11 tons
Tire specification
Tire specification	10.00R20 18PR
Garbage compactor box
Volume	12 cbm
Raw material	T700L, side is 4mm, and bottom is 5mm.
Loading Method	Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins
Unloading Method	The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate
Compacted Ratio	0.6-0.8t/m³
Control Method	Double side control box + manual levers
	PLC; one-key cycling + half-auto control
Sewage Tank	One unit

Product Description：



  1. The main special devices of this vehicle consist of a box body and a compression system, and are used for the collection and transportation of domestic waste. Only leaf spring suspension is used. This vehicle can optionally be equipped with different box body appearances, a flip bucket device with different styles of sealing covers, a flip bucket device, a swing arm device, a dump device, and a fully sealed bucket.

  2. The side protection material is Q235 and is connected by bolts and welding. The rear protection is replaced by special devices. The height from the lower edge to the ground is 420mm.

  3. Install a tachograph with satellite positioning function. Optional cab appearance of the same series along with the chassis.

  4. A work light is optionally installed at the rear. This light only serves for illumination when working at night and cannot be lit during driving.
